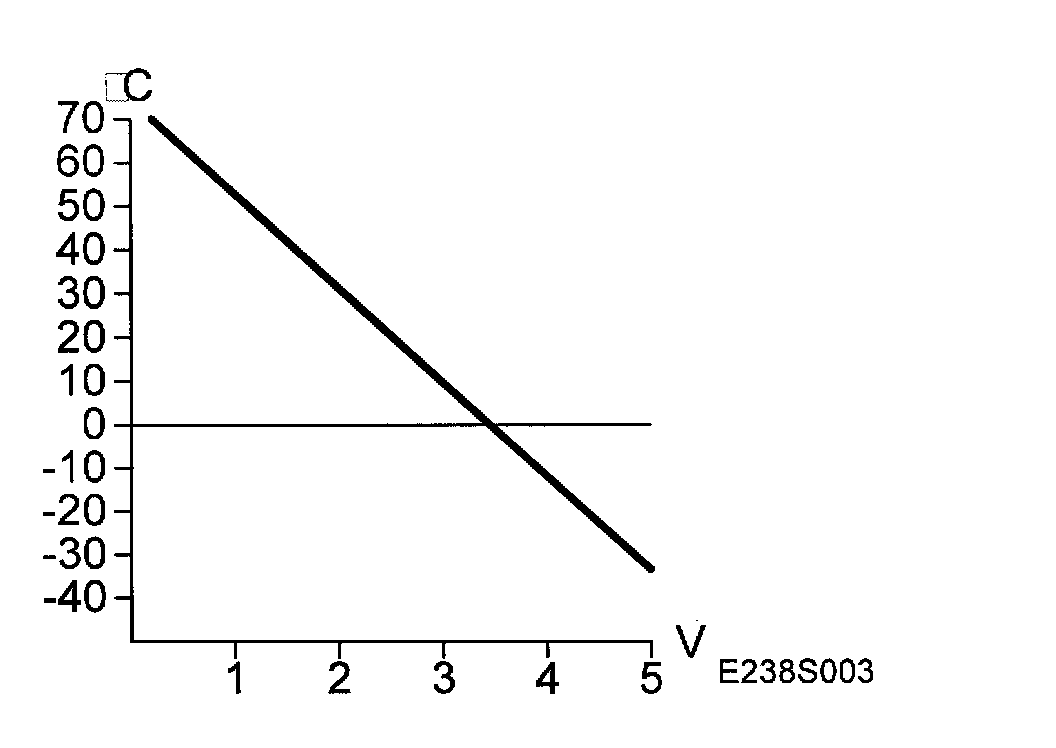

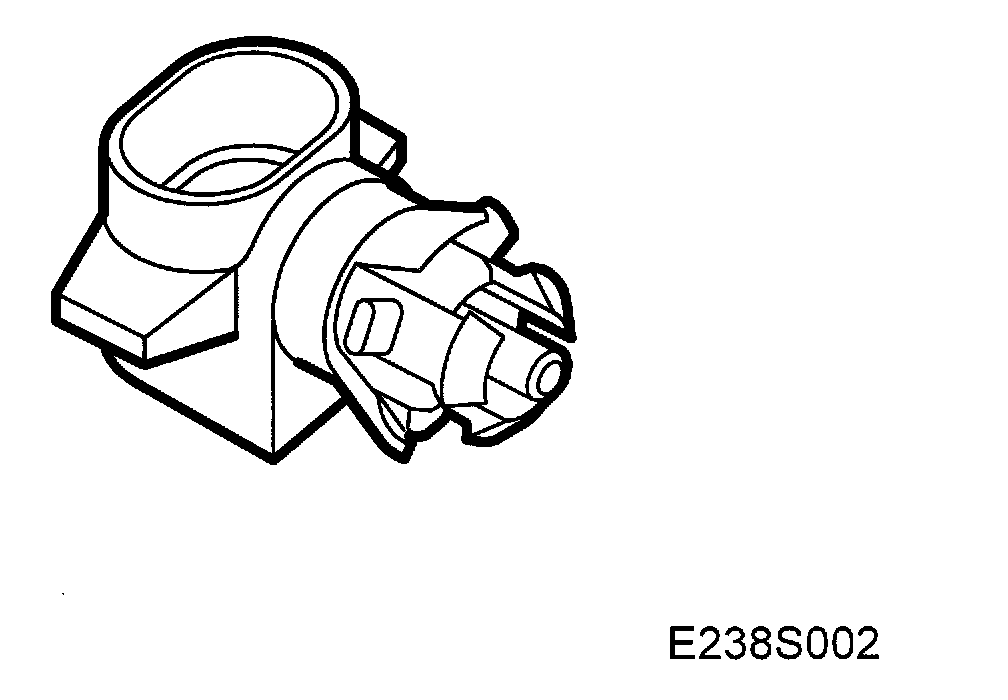

Outside Temperature Sensor
Outside Temperature Sensor
Outside Temperature Sensor
Power supply
5 V
through a
10 Kohm
resistor in the control module.
