Home >> Saab >> 2001 >> 9-5 (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Charging System >> System Specifications >> Generator 130A

Generator 130A




Generator 130A, 4-cyl

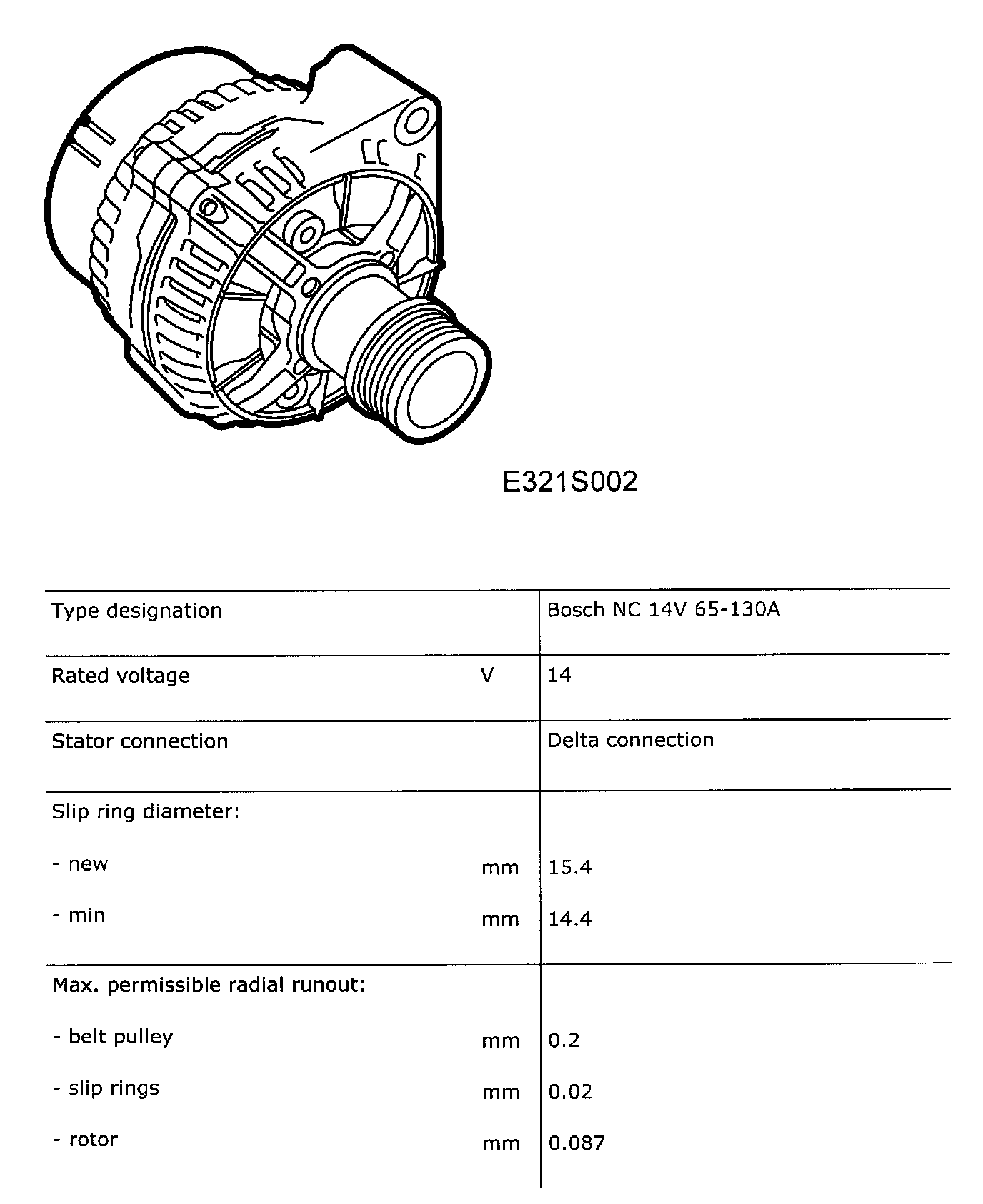

Part 1:

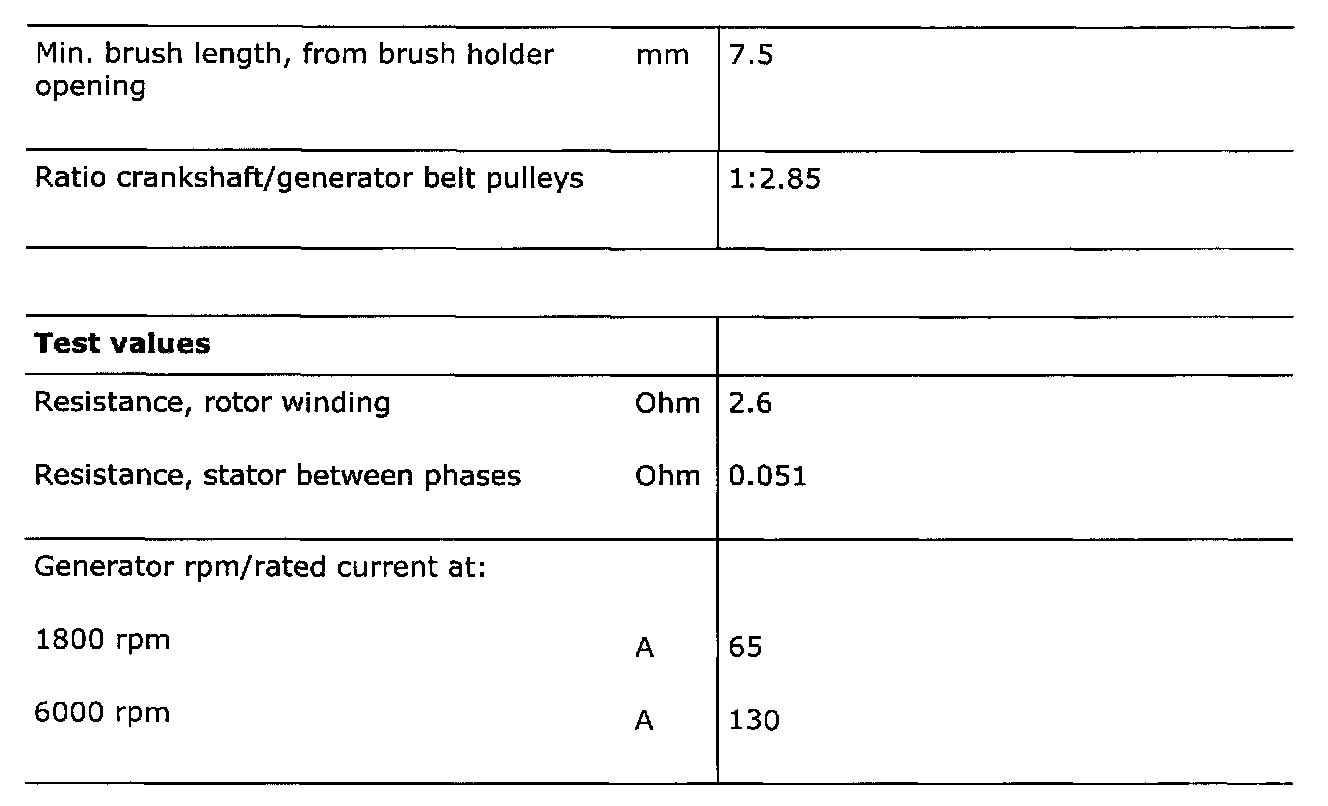

Part 2:
