Parking Assist Distance Sensor: Service and Repair

Distance Sensor (SPA)

To Remove

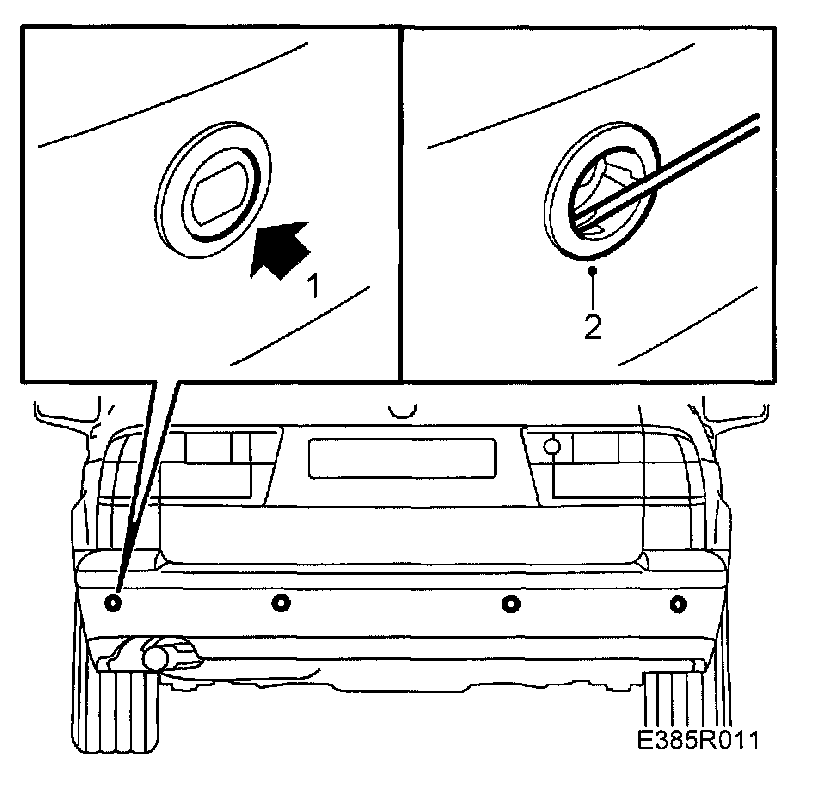

1. Press in the centre of the distance sensor with your thumb (approx. 10 kg pressure).
2. Undo the 3 locking clips with a small screwdriver.

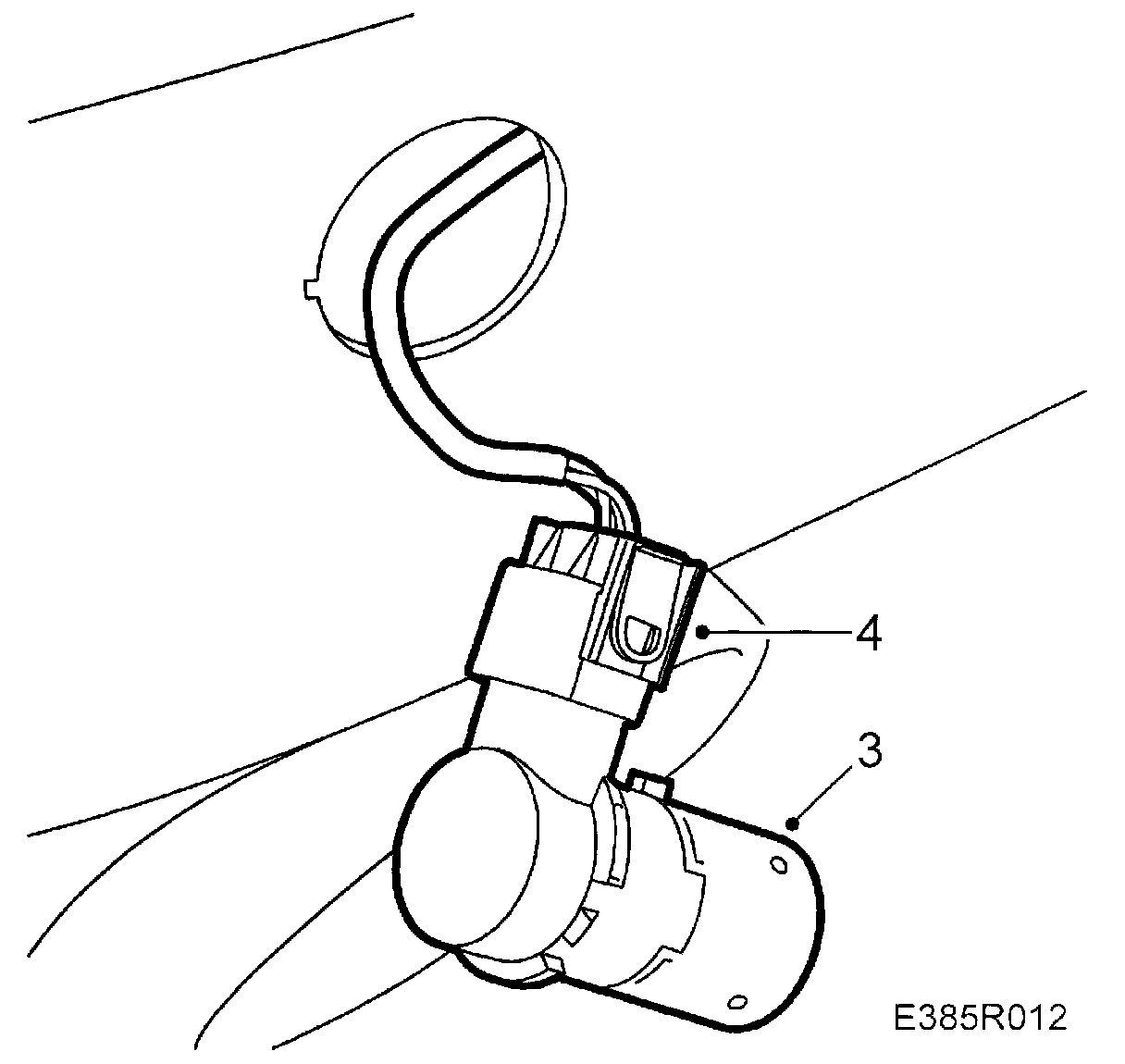

3. Pull the distance sensor out of the bumper.
4. Unplug the distance sensor connector.

To fit

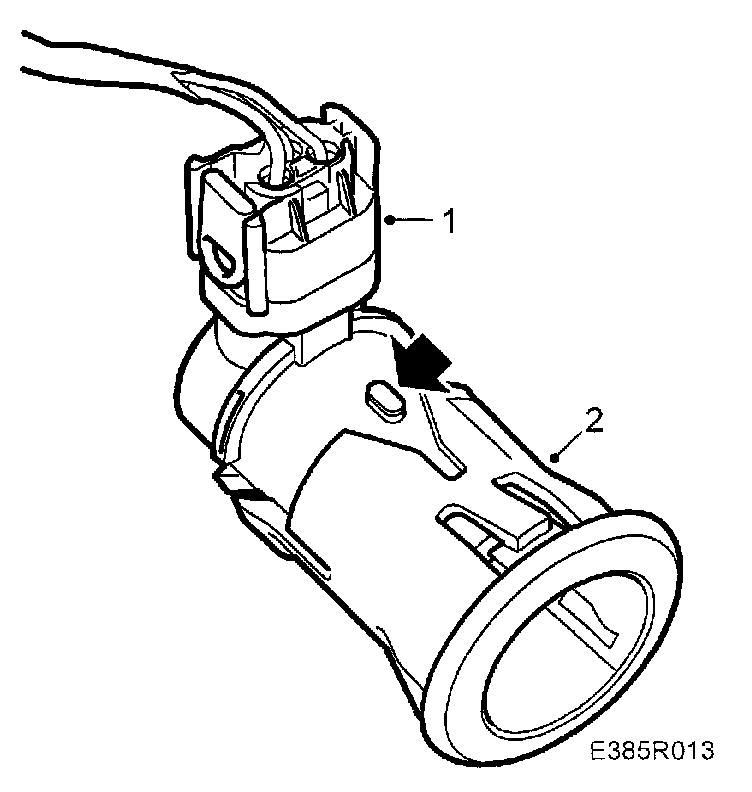

1. Plug in the distance sensor connector.
2. Press the centre of the distance sensor into the sleeve, with the key on the sensor in the groove in the sleeve.

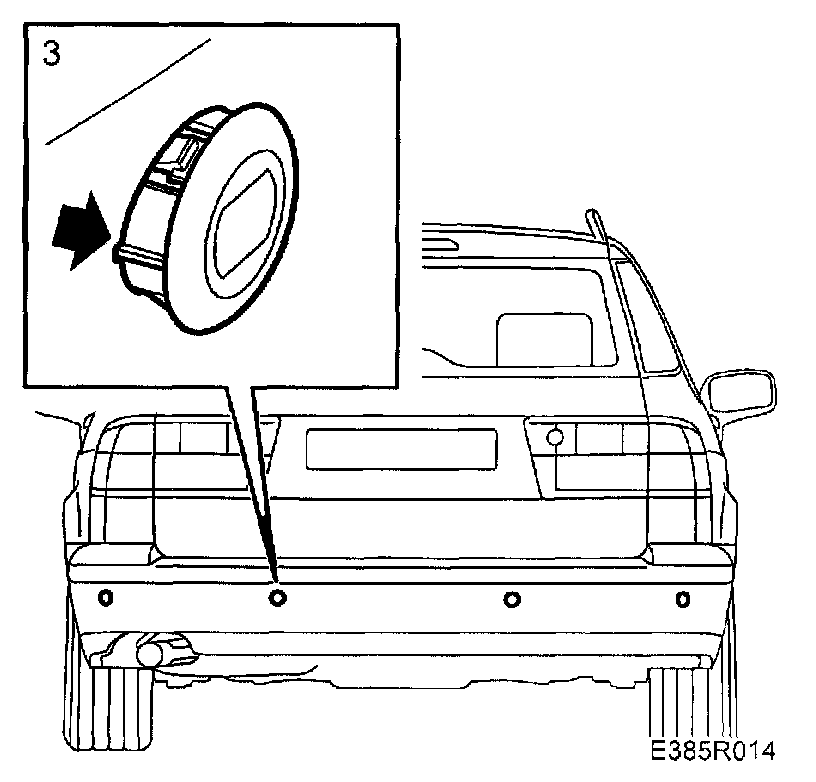

3. Press home the distance sensor in the bumper, aligning it with the slits on the lefthand edge of the hole.
