Home >> Saab >> 2001 >> 9-5 (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations >> Ground Locations >> G41P

G41P

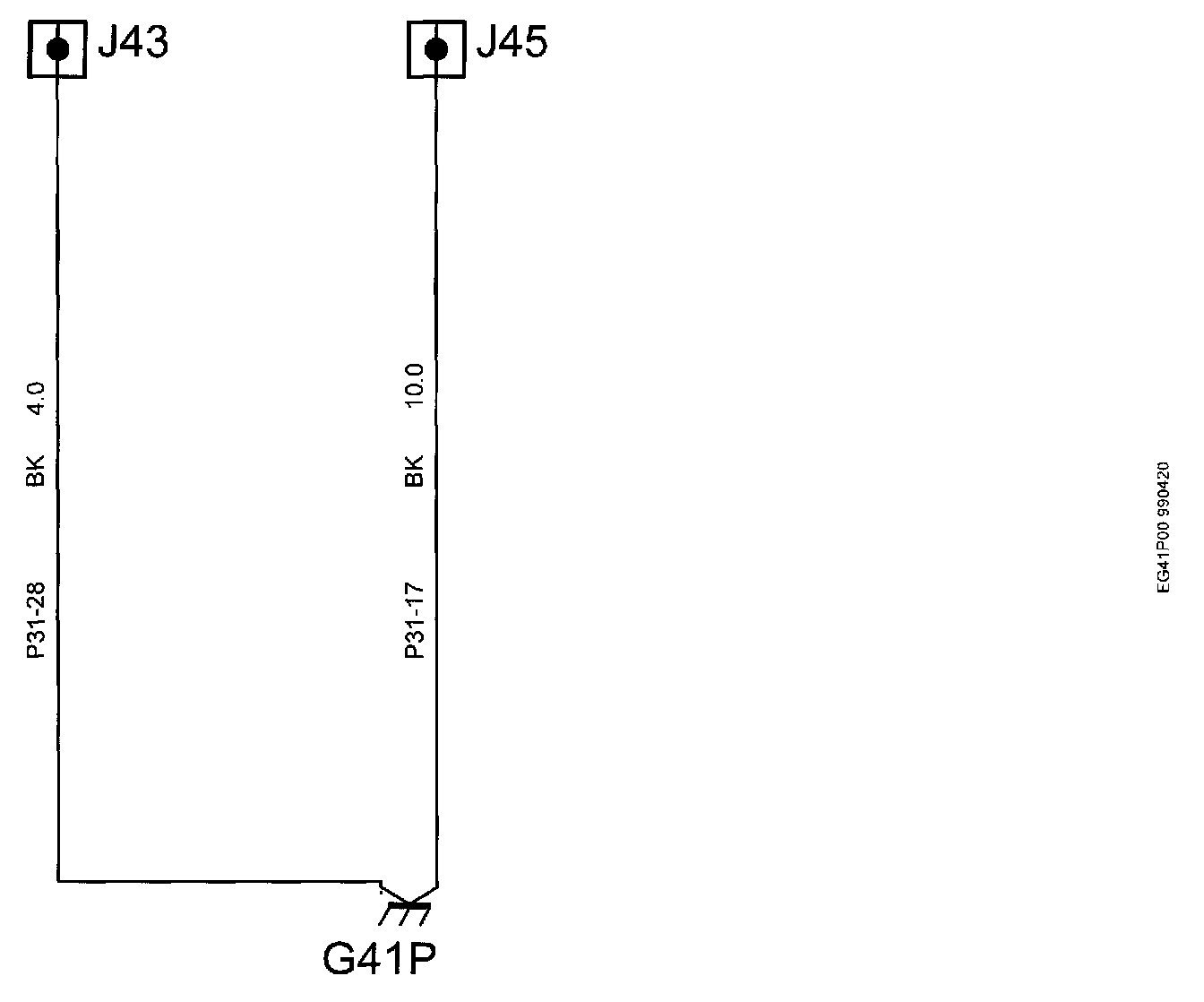

Grounding Point G41P


G41P:











Location: On the centre ground screw in the middle of the knee member (in the interior).

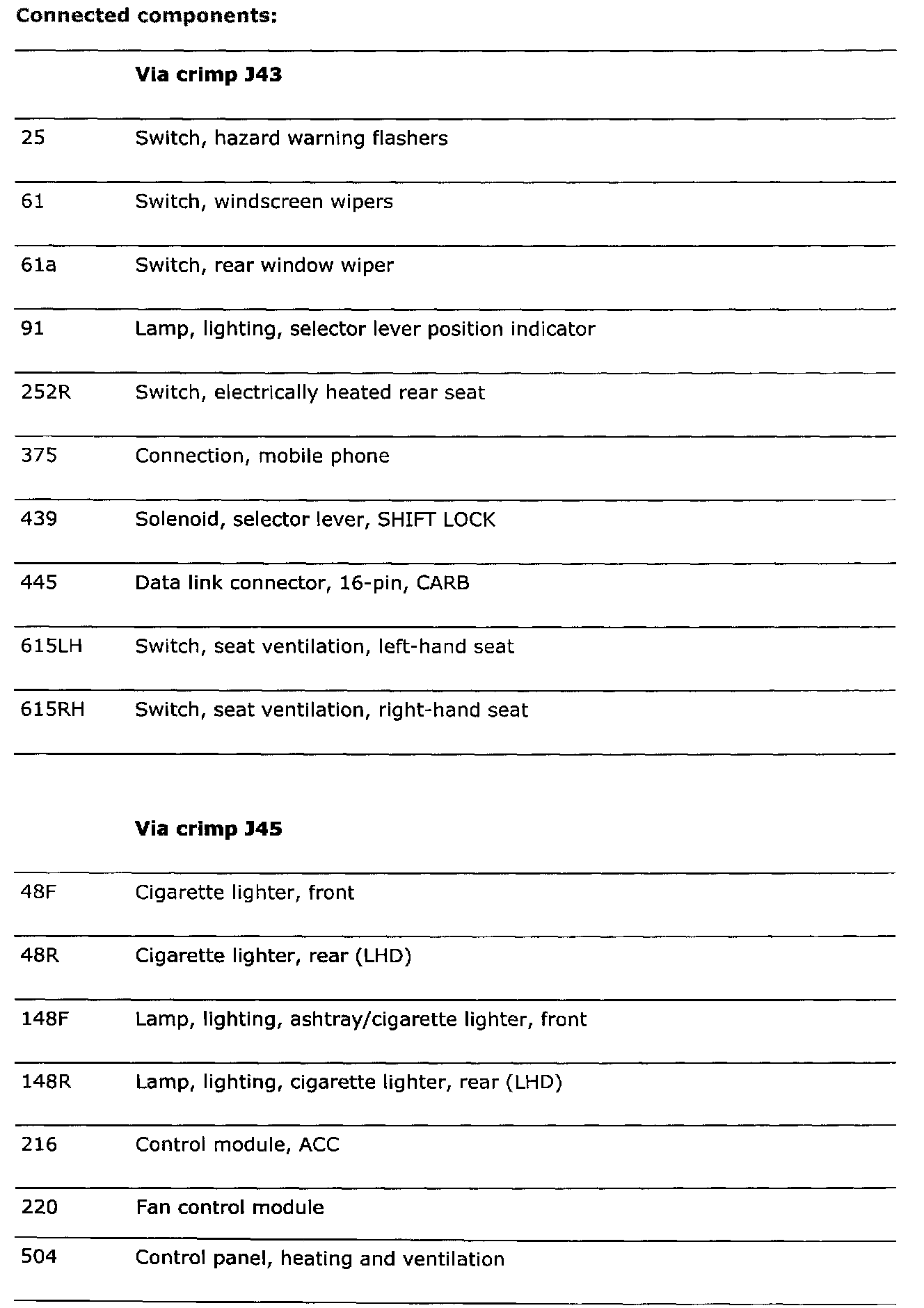

Connected Components:
