Bus Messages




Bus Messages, Trionic T7
For further description of the car's bus system, see System Overview, bus and diagnostics communication, petrol


No control module DTC
TCM P1623
MIU P1622
TC/ABS/ESP P1625

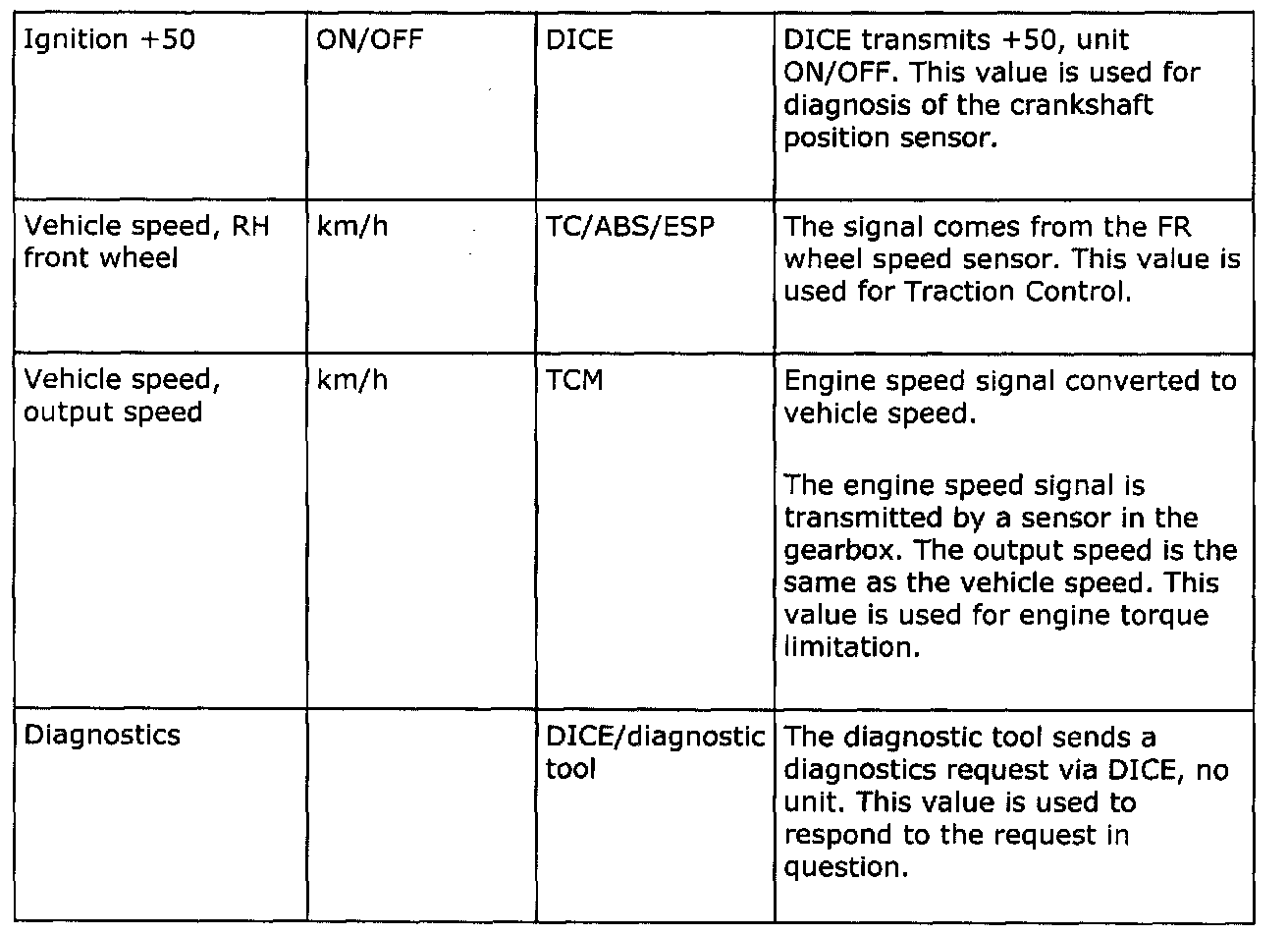

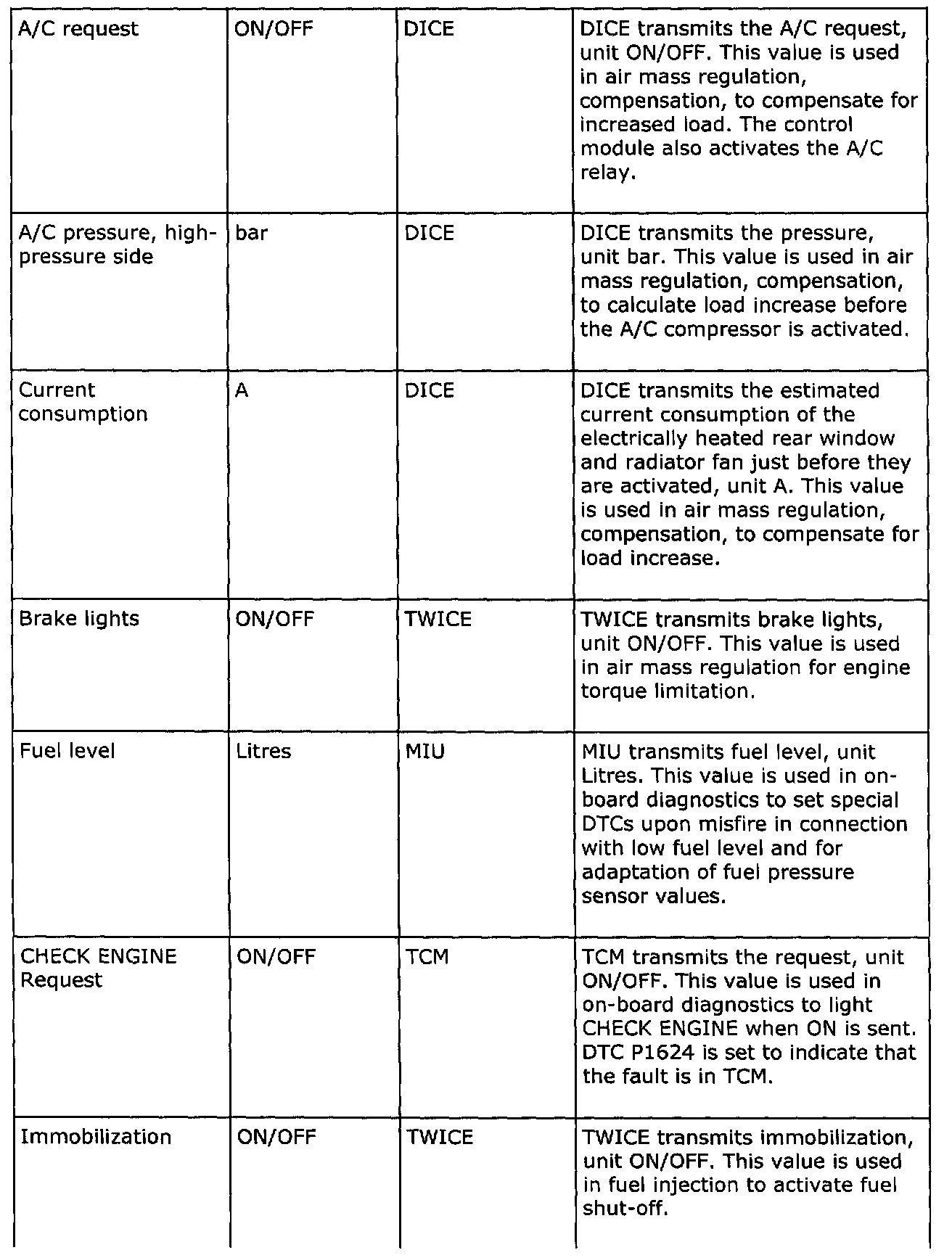

Trionic T7 uses the following information:


Part 1:






Part 2:






Part 3:

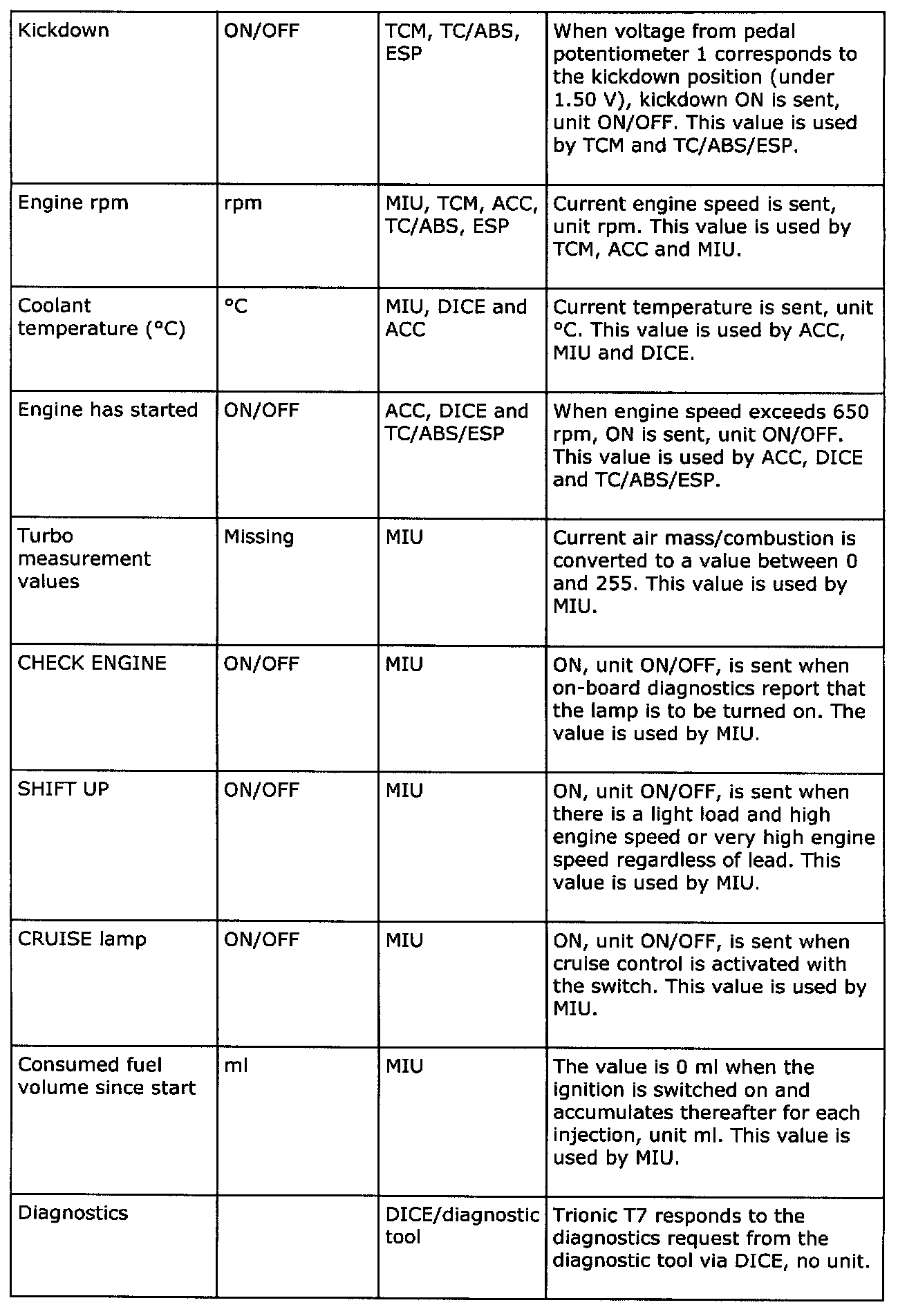

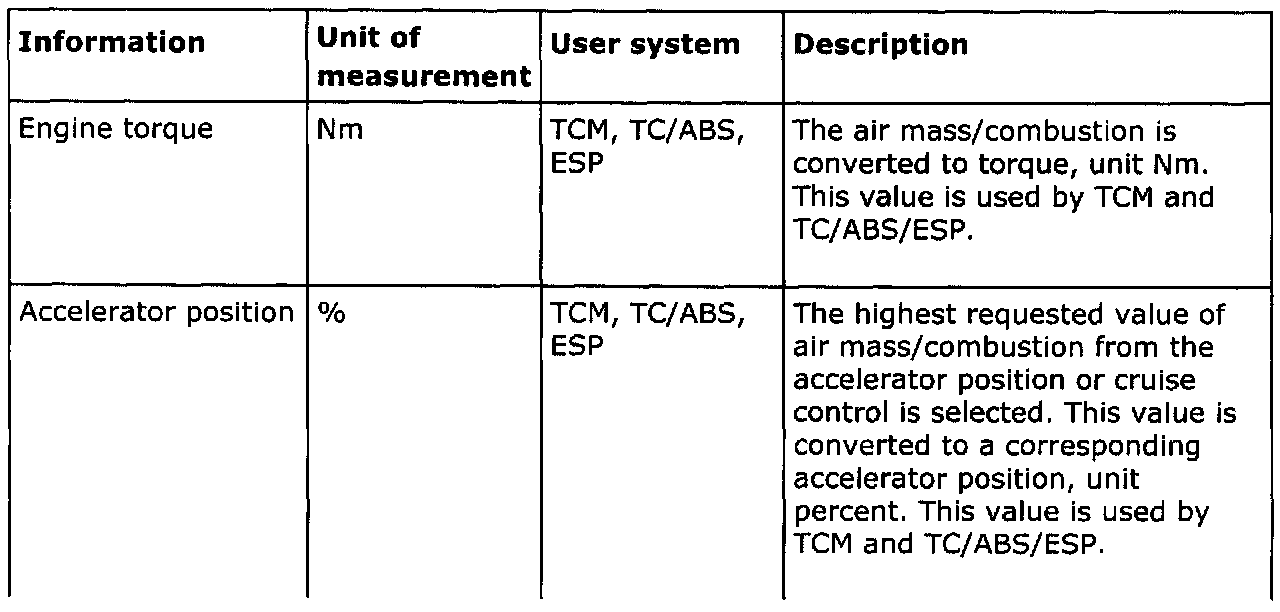

Trionic T7 transmits the following information


Part 1:






Part 2:
