System Overview
For a detailed description of the car's bus system, see "Bus and diagnostic communication", System overview. A General Overview

Diagnostics
In a bus system, it is necessary for all the units to be able to communicate with each Other. For example, the engine cannot be started unless Trionic T7 can receive immobilizer information transmitted by TWICE.

Permanent Bus Faults
All communications between the diagnostic tool and systems on the bus take place via DICE. Irrespective of which system is being contacted, the diagnostic tool, with the help of DICE, will make sure that all the systems on the bus are active and communicating. The diagnostic tool will indicate any Control modules missing from the bus. This means that all the Control modules are communicating correctly on the bus unless the diagnostic tool warns Otherwise.

Intermittent Bus Faults
Trionic continually checks that TCM, TC/ABS and MIU are communicating correctly. In the event of intermittent faults in bus communication, diagnostic trouble codes will be generated. The cause of the problem can be that the Control module in question has lost its power supply or one of its bus leads.

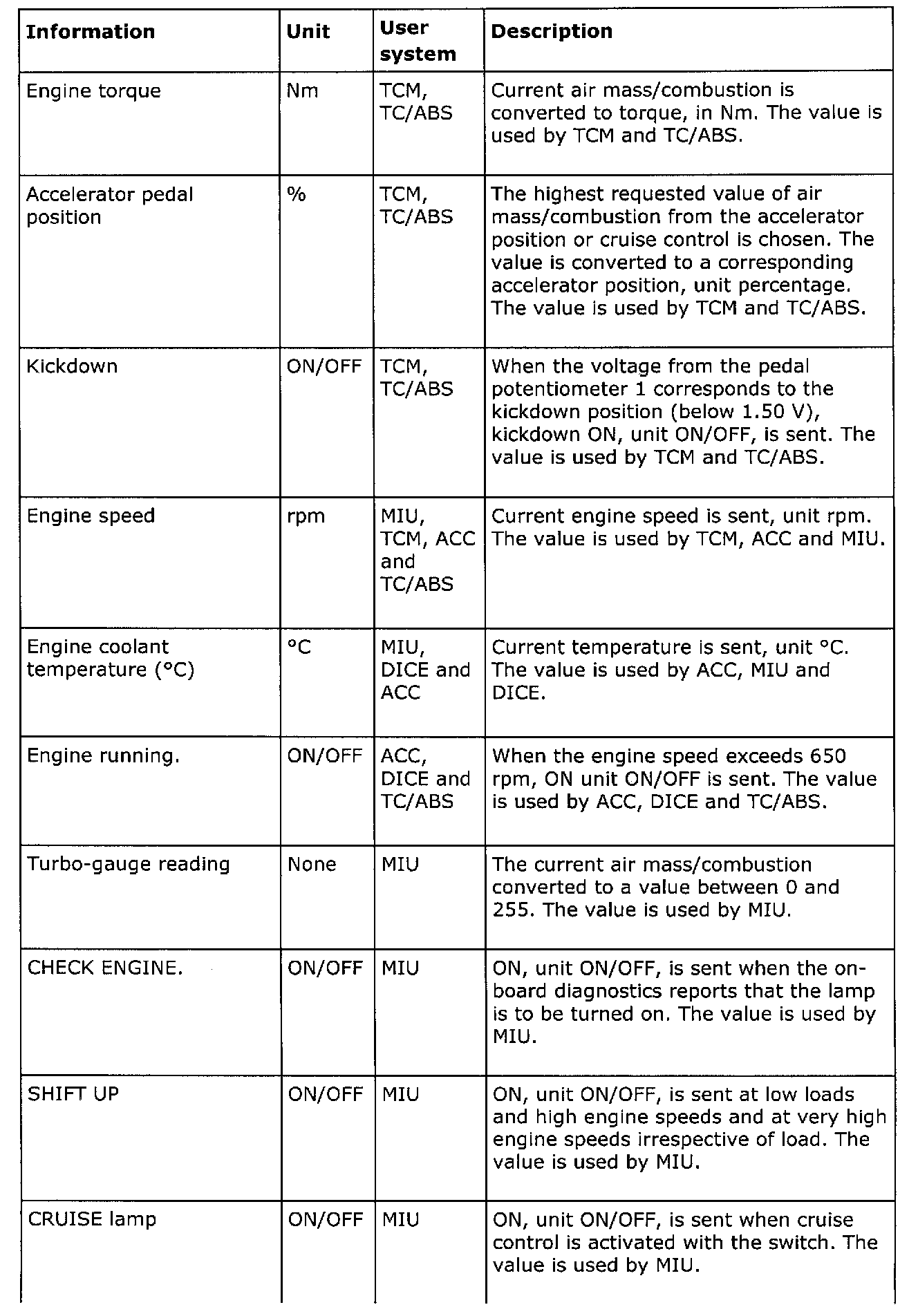

Trionic T7 uses the following information

Part 1:

Part 2:

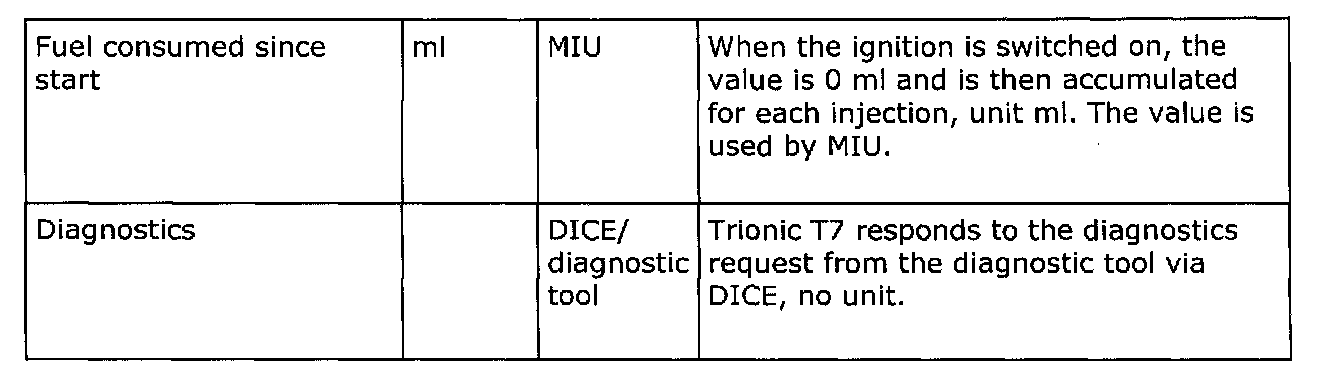

Trionic T7 transmits the following information

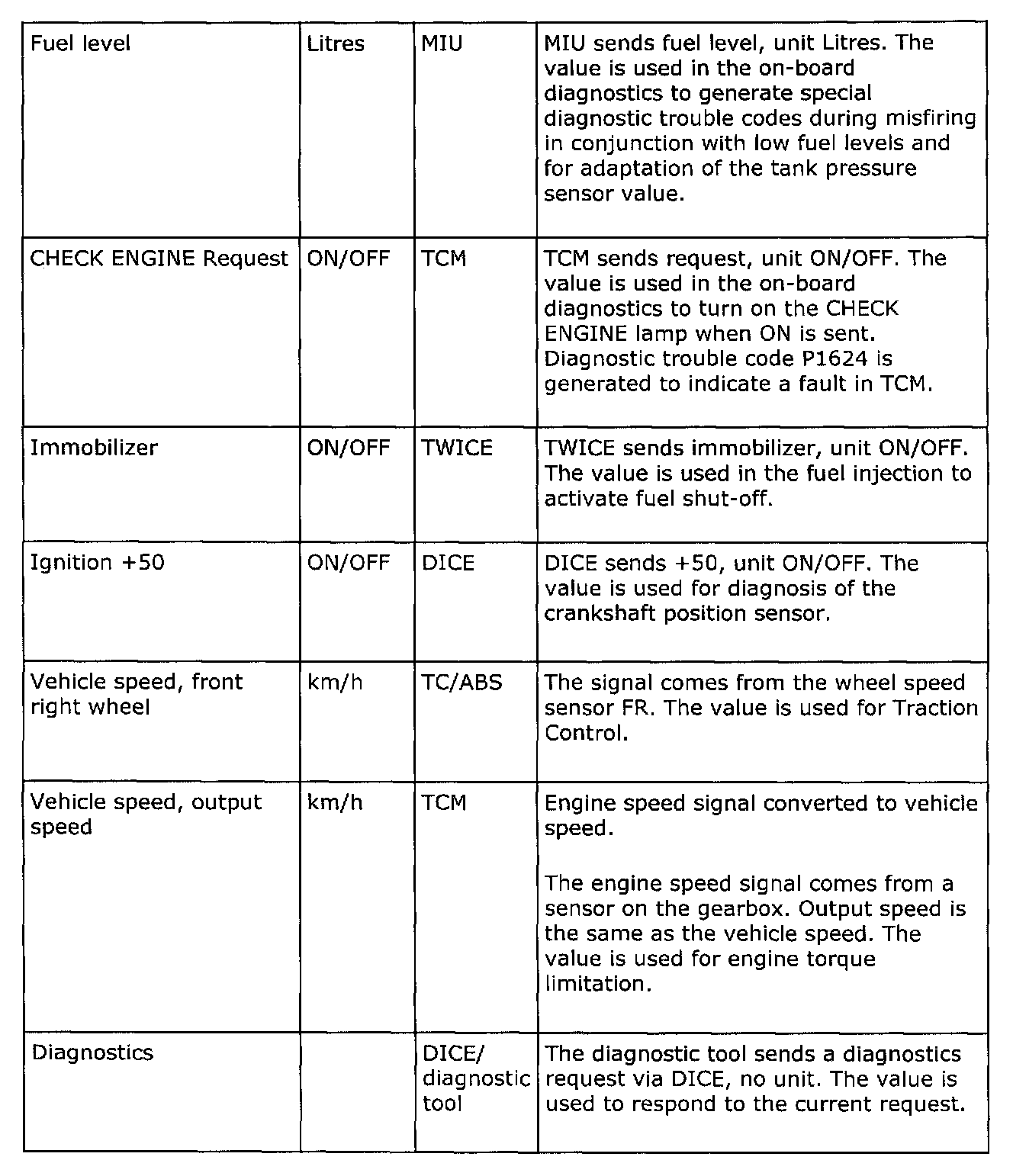

Part 3:

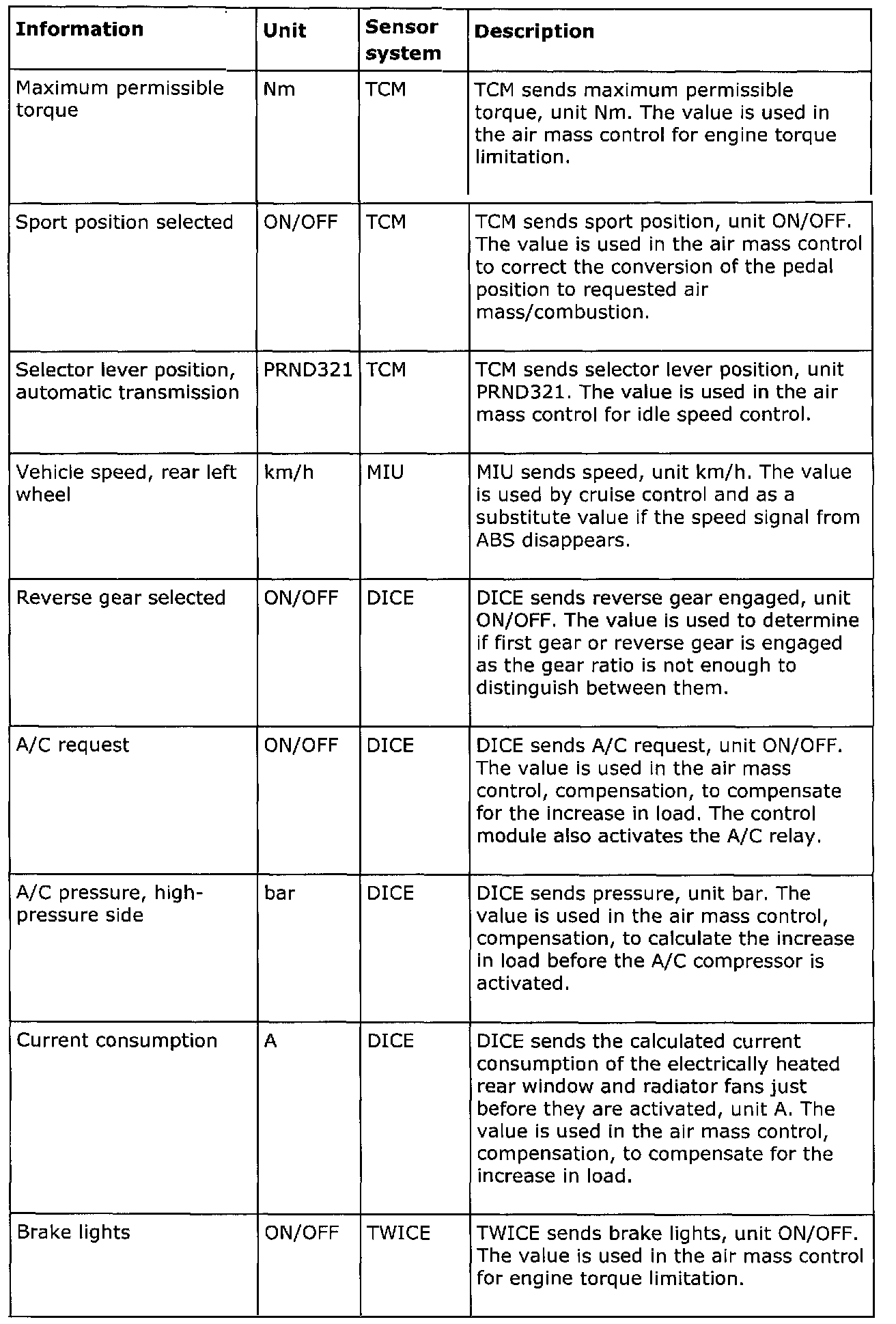

Part 4:
