Home >> Saab >> 2001 >> 9-5 (9600) L4-2.3L Turbo (B235) >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Diagrams >> Electrical Diagrams >> Reversing Lights, Manual Gearbox

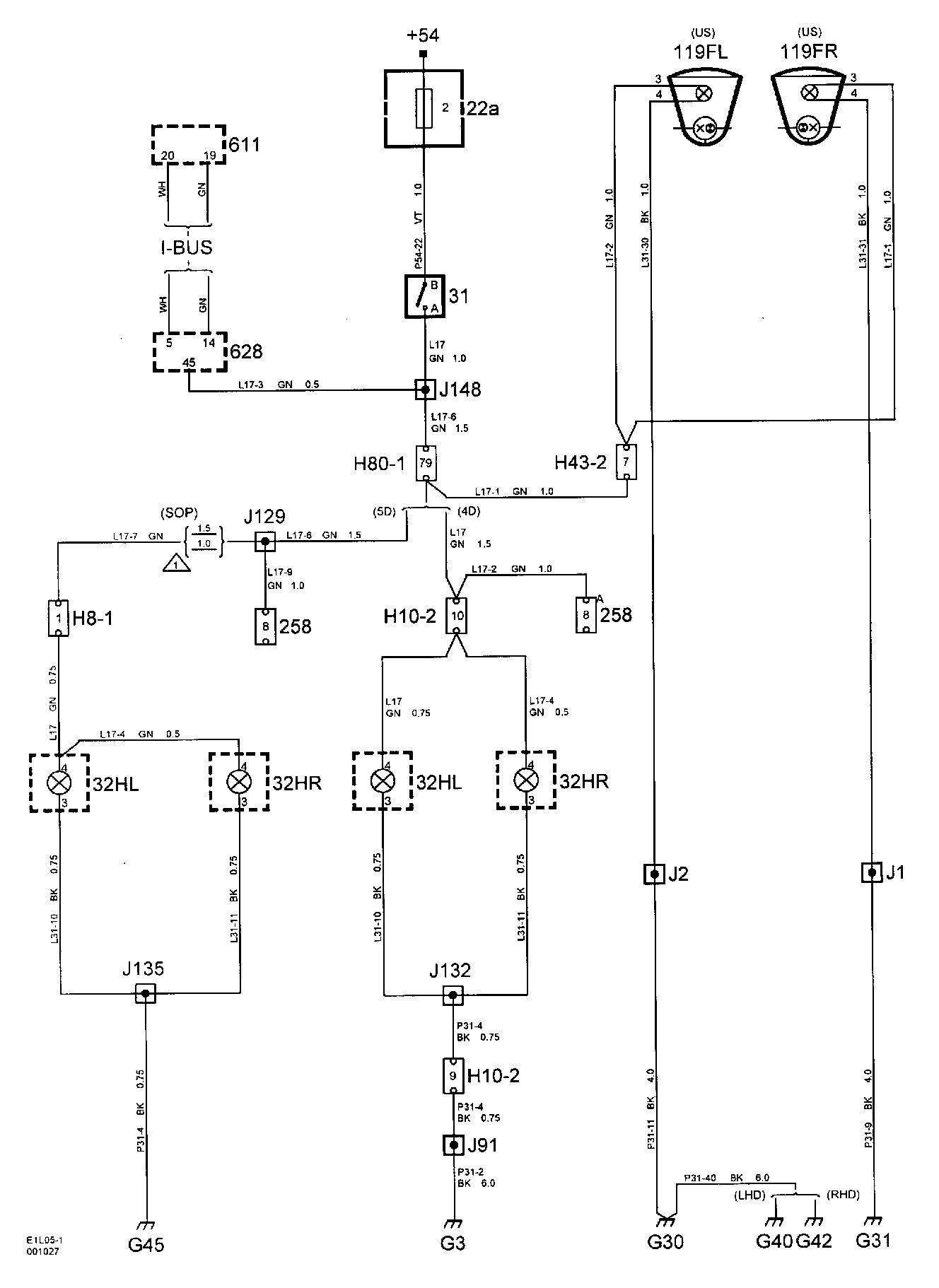

Reversing Lights, Manual Gearbox




Reversing Lights, Manual Gearbox

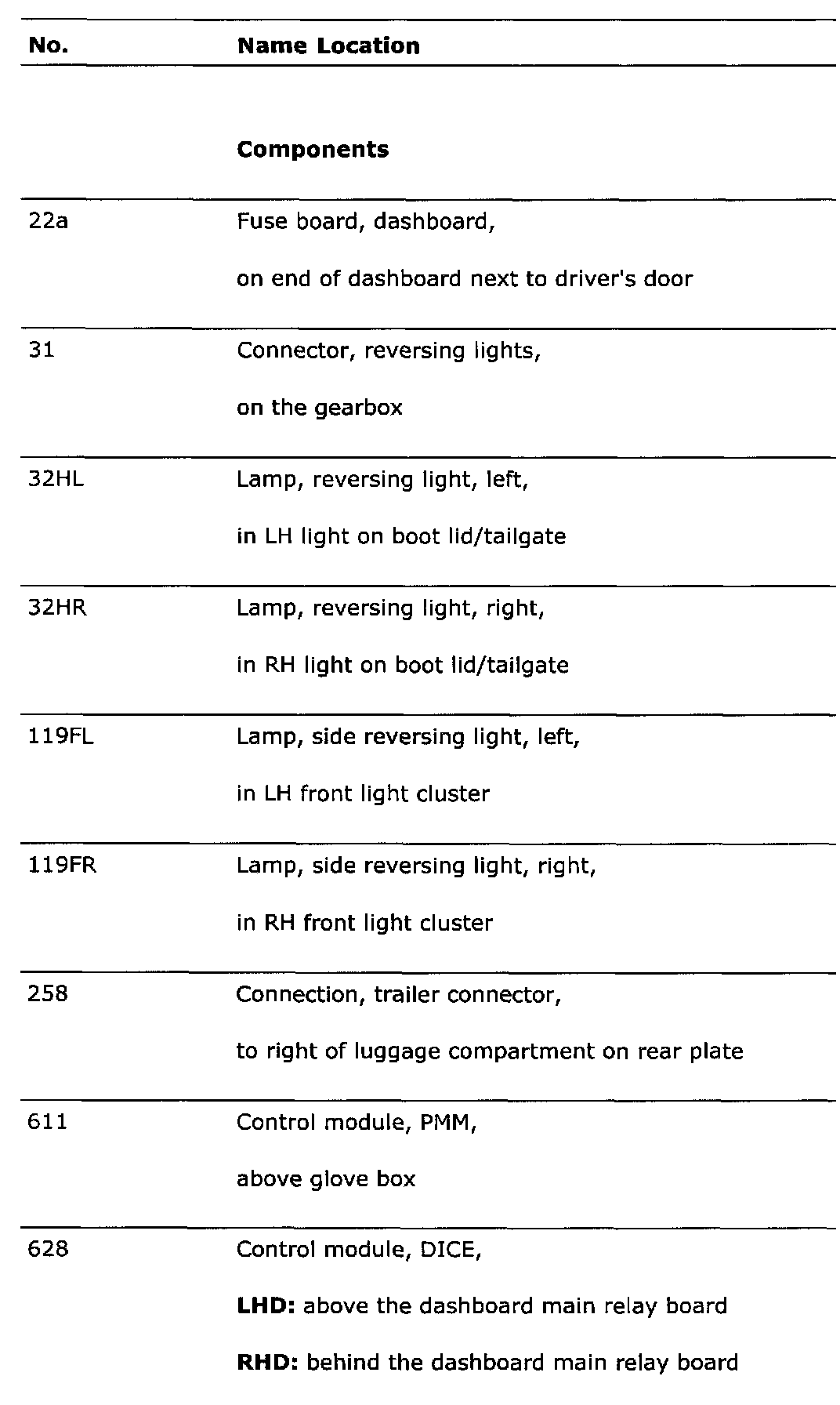

List of components


Part 1:

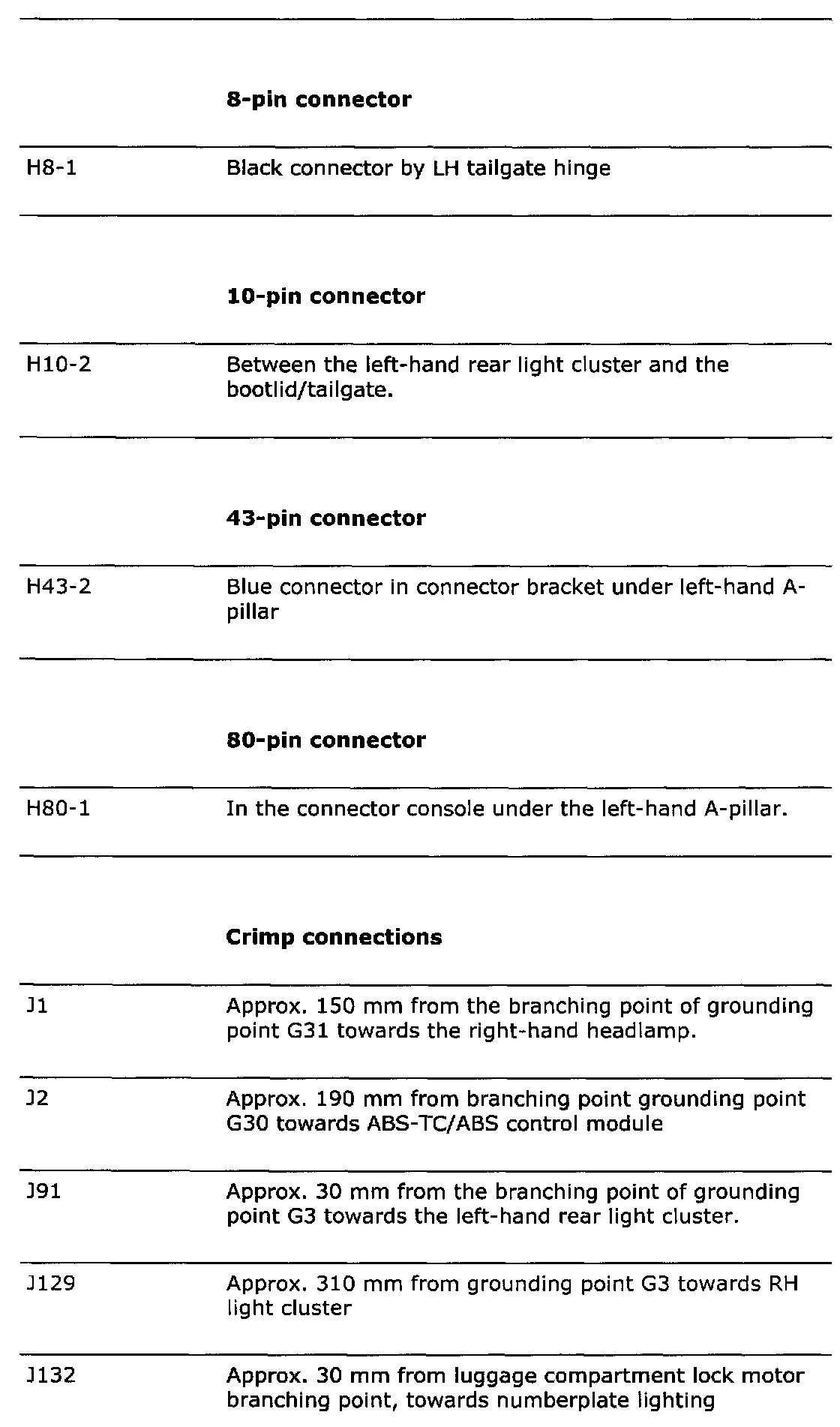

Part 2:

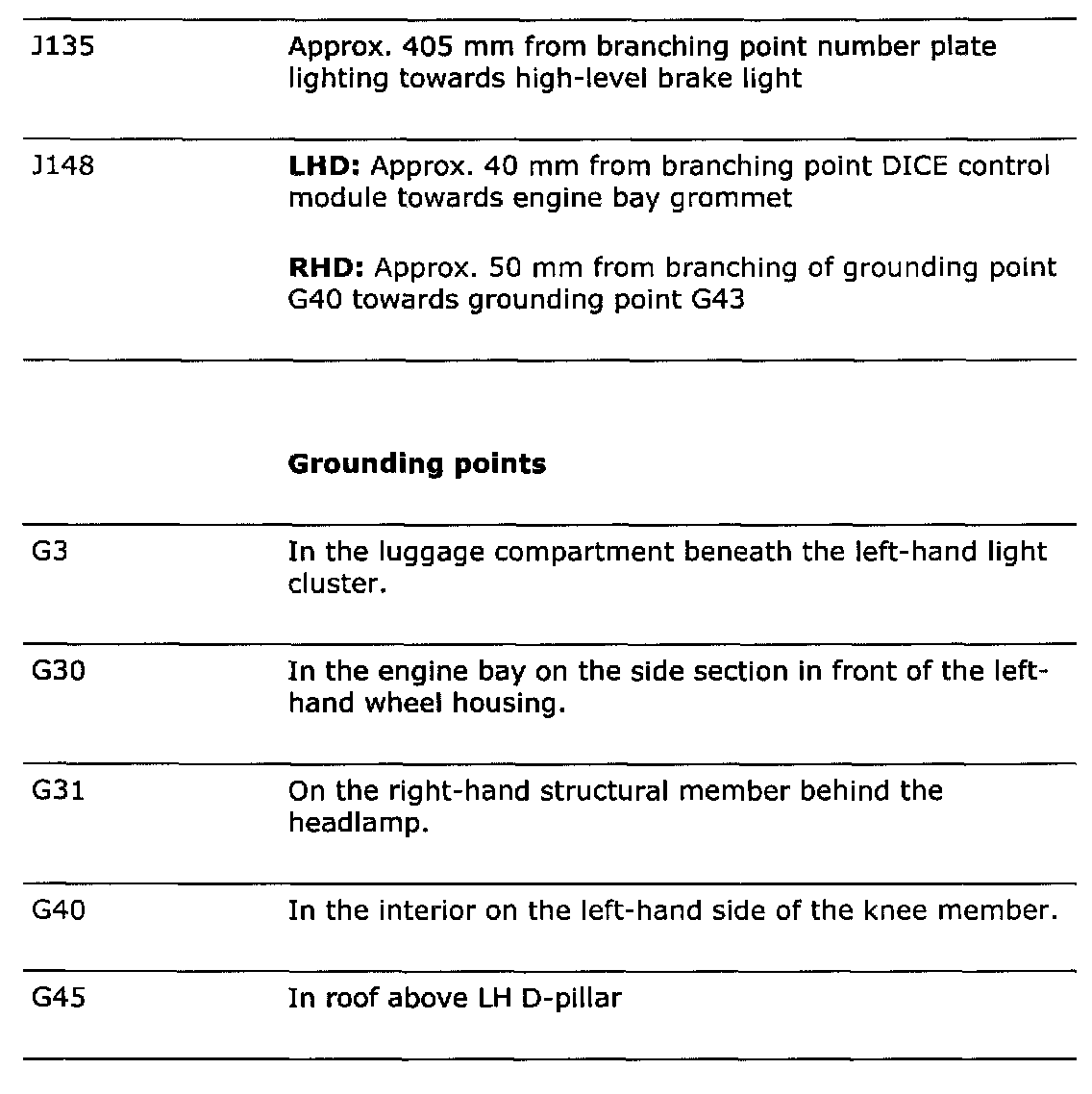

Part 3:
