Tech 2 Menu

Tech 2 Menu Structure

Diagnostic Trouble Codes (DTC)
Read Values/Activate
Adjustment
Programming
Snapshot
System Information

Menu "Read Values"

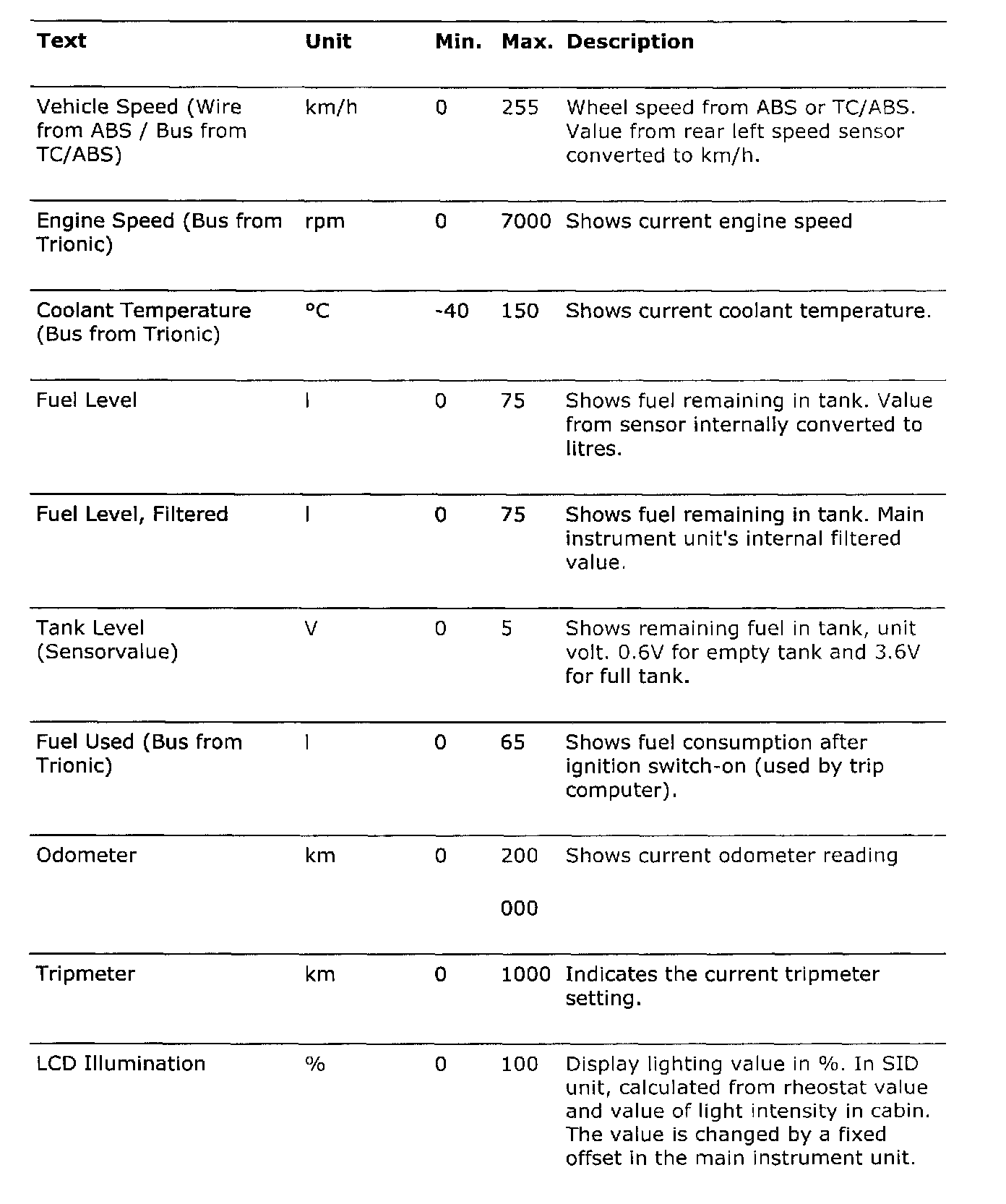

Part 1:

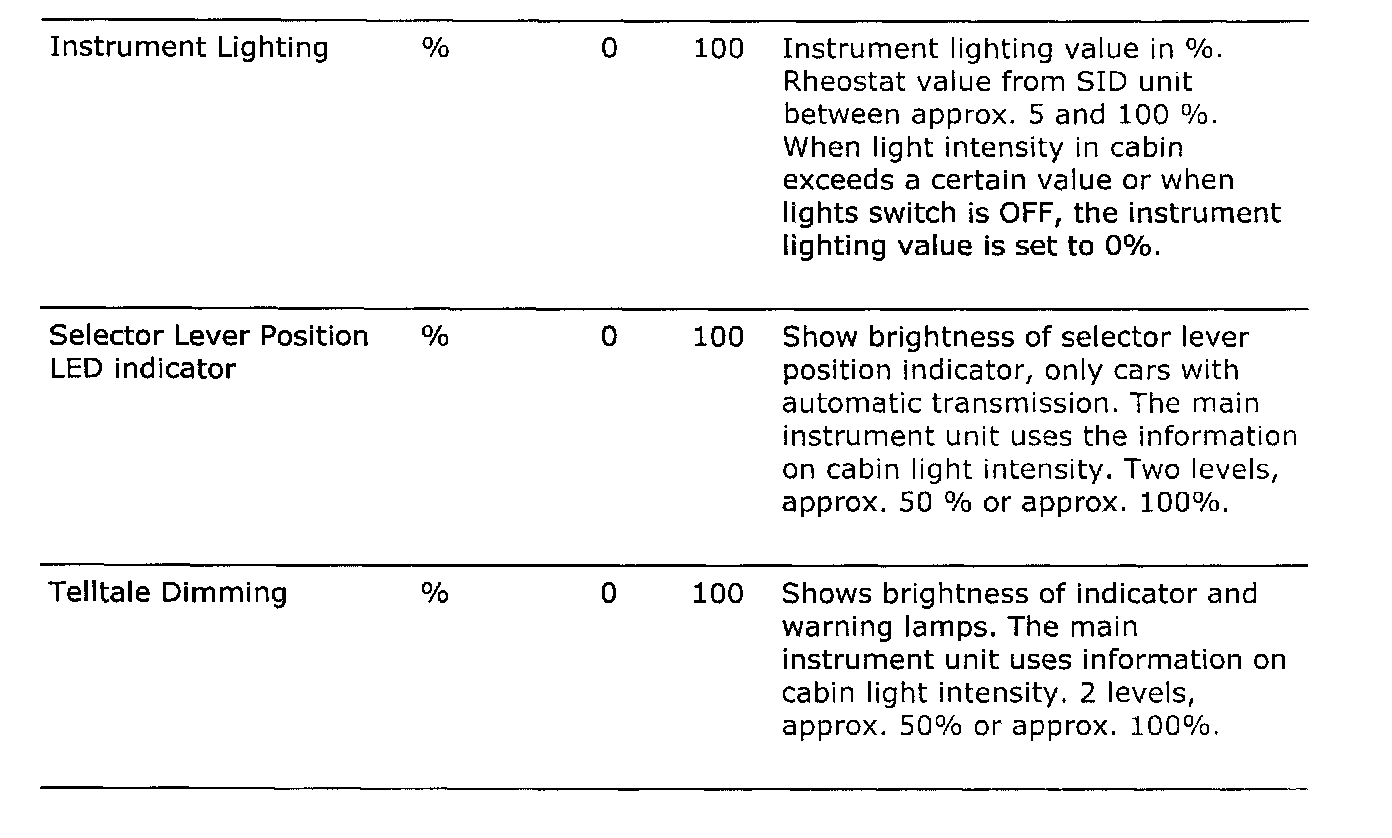

Part 2:

Menu "Activate"


NOTE: When a system function is activated with the diagnostic tool, the control module executes a command that is not functionally normal. In activating mode, the diagnostic tool controls the control module, for which reason the activation command should be used with care. An activated function is always reset after exiting activation mode and another selection is made in the diagnostic tool's menu.

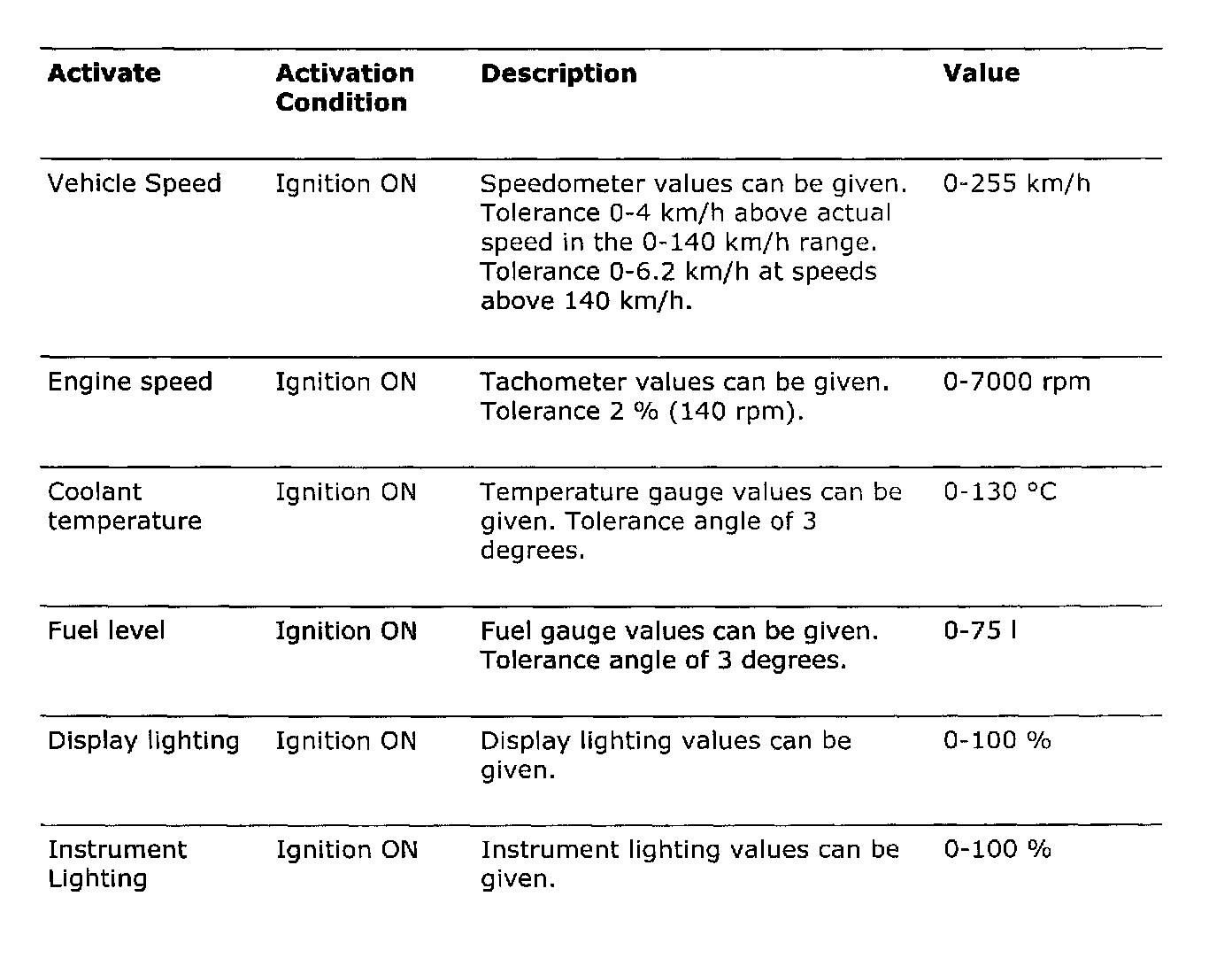

Part 1:

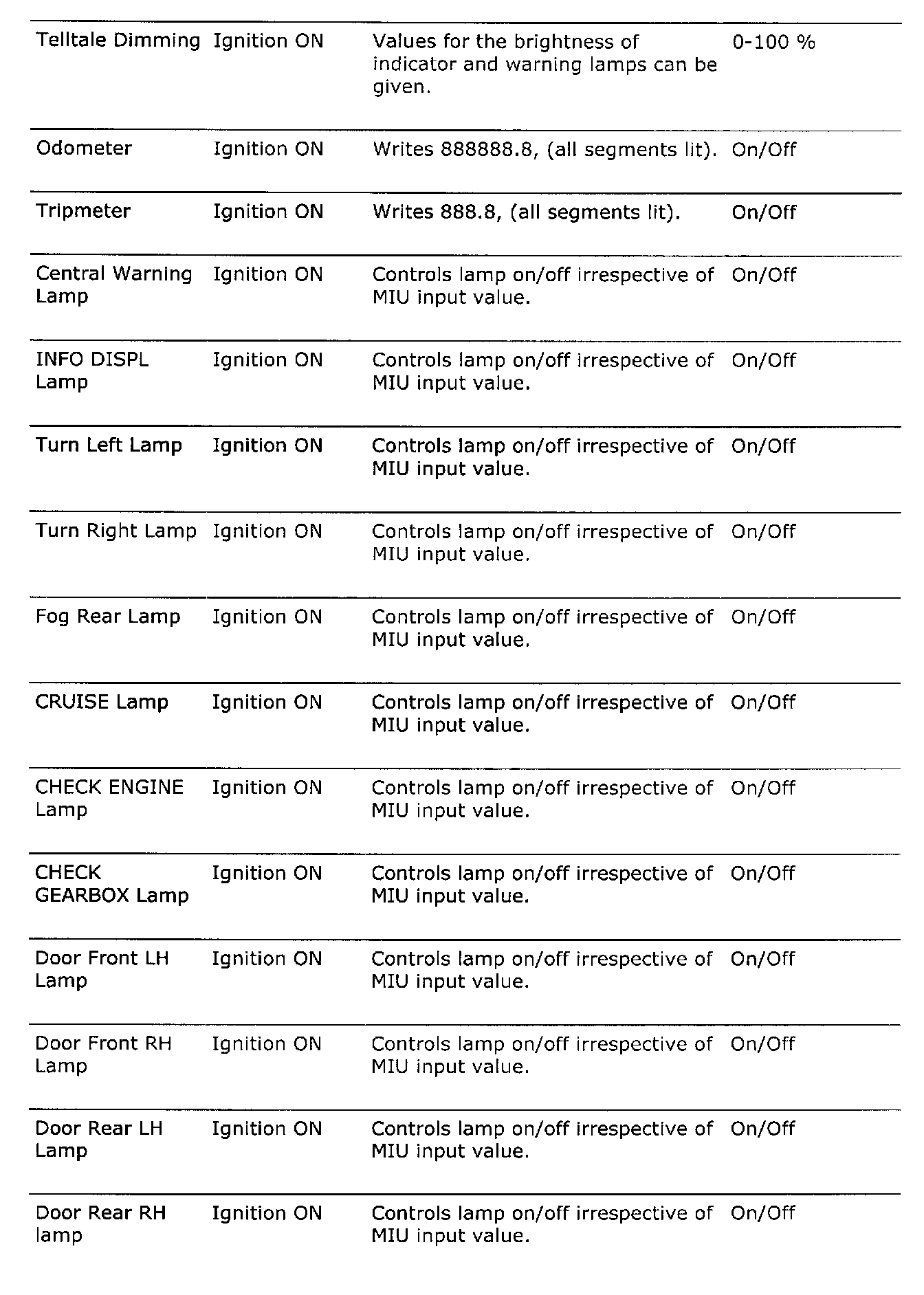

Part 2:

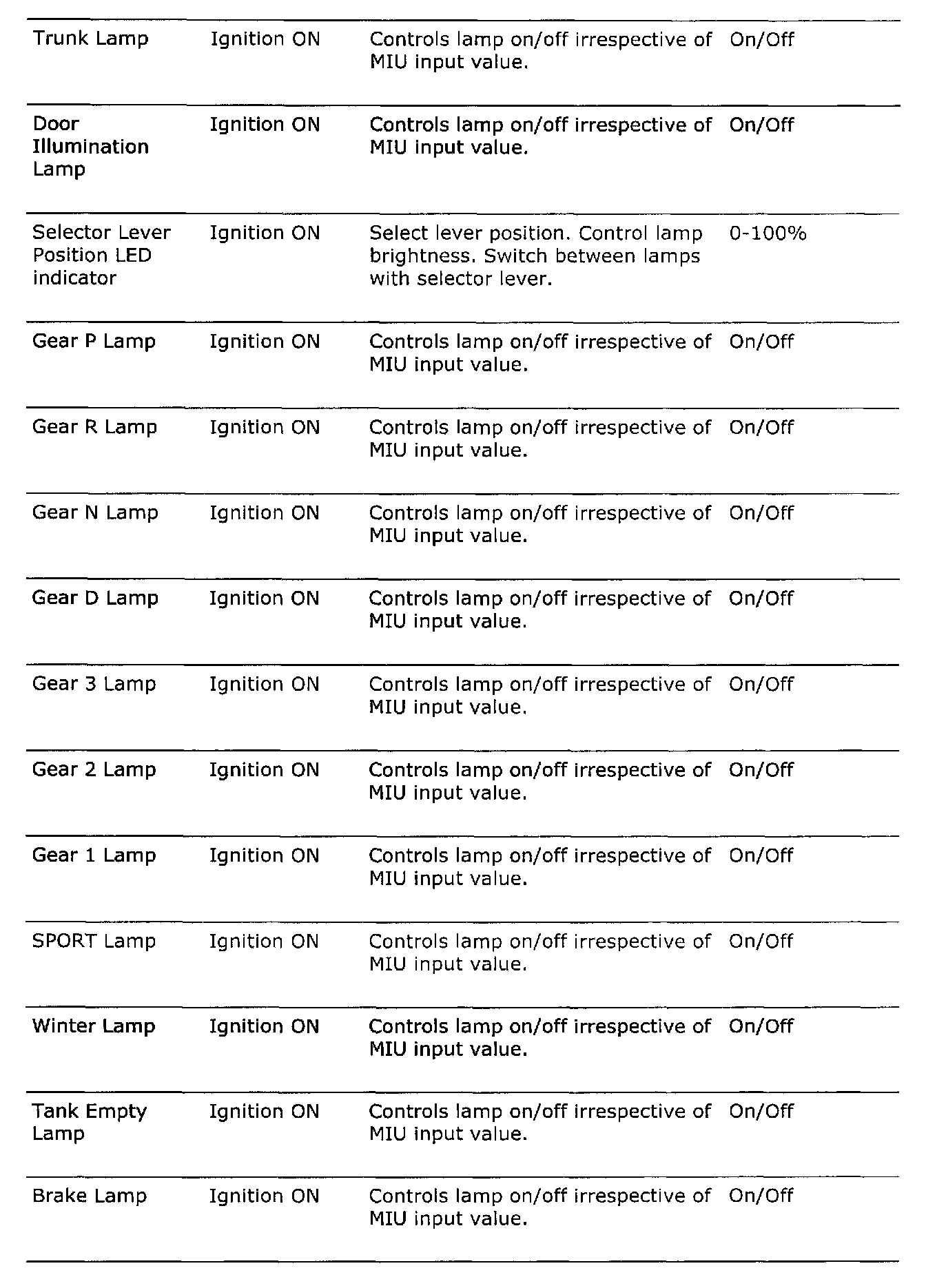

Part 3:

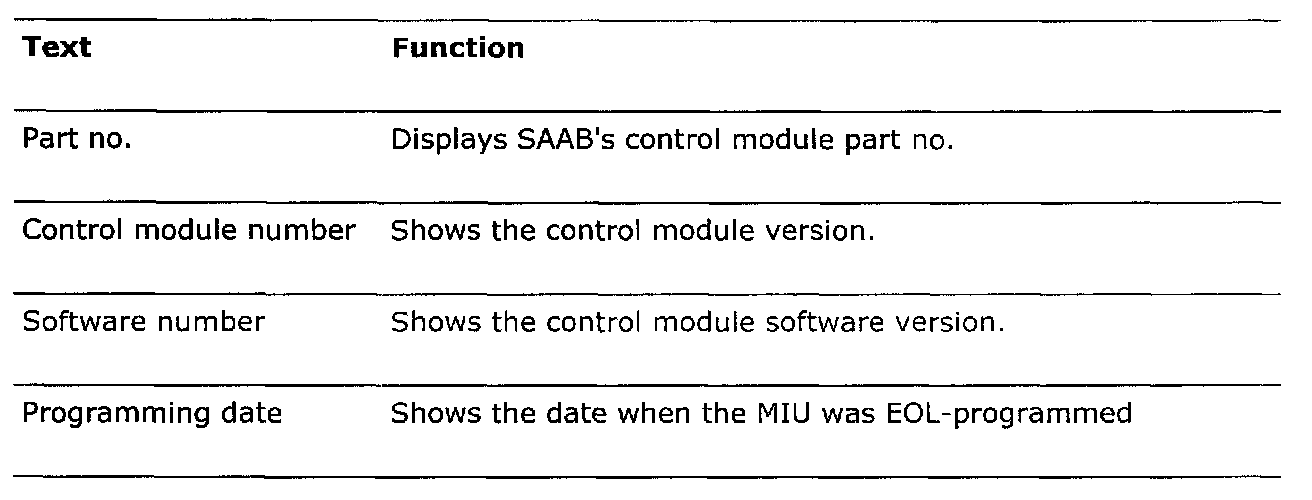

Menu System information







Menu "Adjustment"


Diagnostic tool Function
Speedometer Programming the Speedometer
Fuel Gauge Adjusting the Fuel Gauge/Sensor
LED offset Service and Repair
Fuel Consumption Factor Adjusting Fuel Consumption Display on SID
Coolant Temperature Gauge Adjusting Temperature Gauge/Night Panel
Coolant Temperature Night Panel Adjusting Temperature Gauge/Night Panel
Vehicle Speed Night Panel Adjusting Speedometer Night Panel
Engine RPM Night Panel Service and Repair

Menu "Programming"

Diagnostic tool Function
Speedometer Programming the Speedometer
