System Overview, Radiator Fan System (Cars Without A/C)

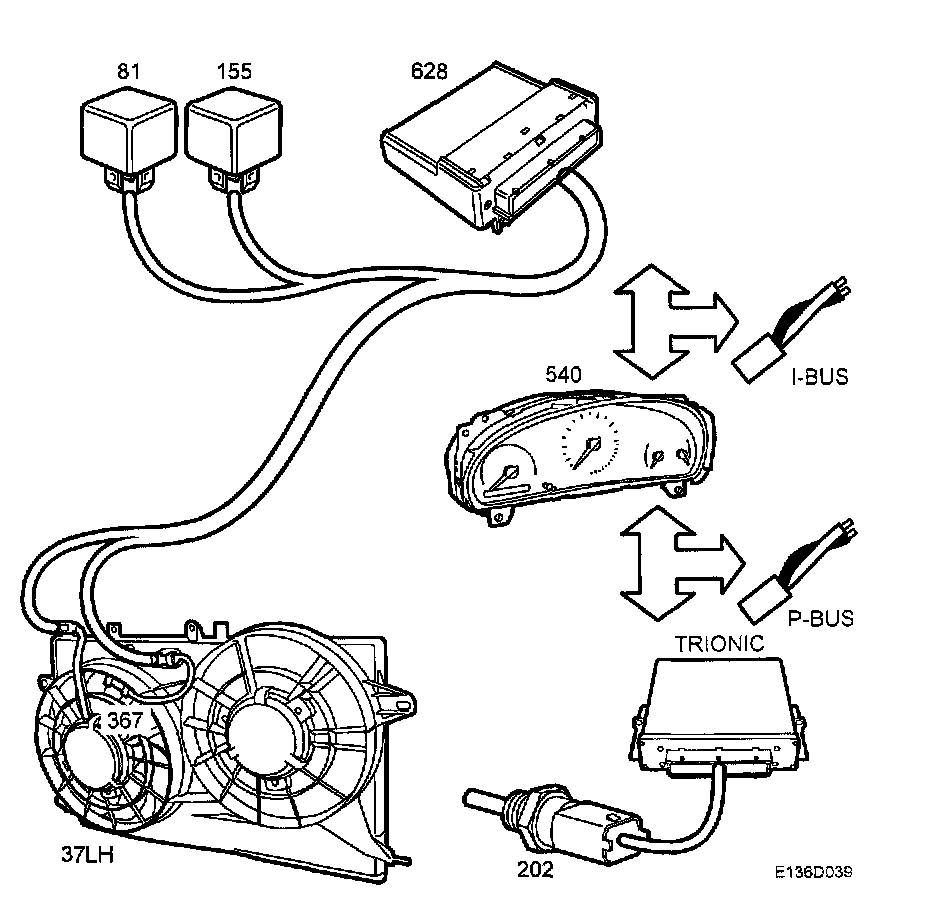

System overview, radiator fan system (Cars without A/C)







- Control module, DICE (628)
- Relay, 2-speed radiator fan, low speed (155)
- Relay, 2-speed radiator fan, high-speed (81)
- Resistor, 2-speed radiator fan (367)
- Radiator fan motor (37LH)
- Engine management system (430, 589, 600, 608)
- Main instrument display (540)
- Engine coolant temperature sensor, engine management system (202)
