Tools Numbered 30 05 496 Through 83 94 884

30 05 469 Adapter, cooling system tester
86 11618 Toolboard T1
Used together with 30 05 477 Cooling system tester
Group: Engine





30 05 758 Fluid tester
Used for coolant, washer fluid and battery fluid
86 11 618 Toolboard T1
Group: Engine





30 06 558 Plastigage
Group: Engine






75 10 531 Protective collar (type 10)
86 11 592 Toolboard T3
Group: Engine





78 40 622 Dial gauge
Group: Engine





73 60 802 Oil pain
Used together with 78 74 878 Floor stand
Group: Automatic gearbox

83 93 936 Valve seat cutters, 60 Degrees:

78 61 040 Valve seat cutter, 11° and 45° 34,5 mm Diameter
86 11 592 Toolboard T3
Group: Engine





78 61 065 T-wrench
86 11592 toolboard T3
Group: Engine

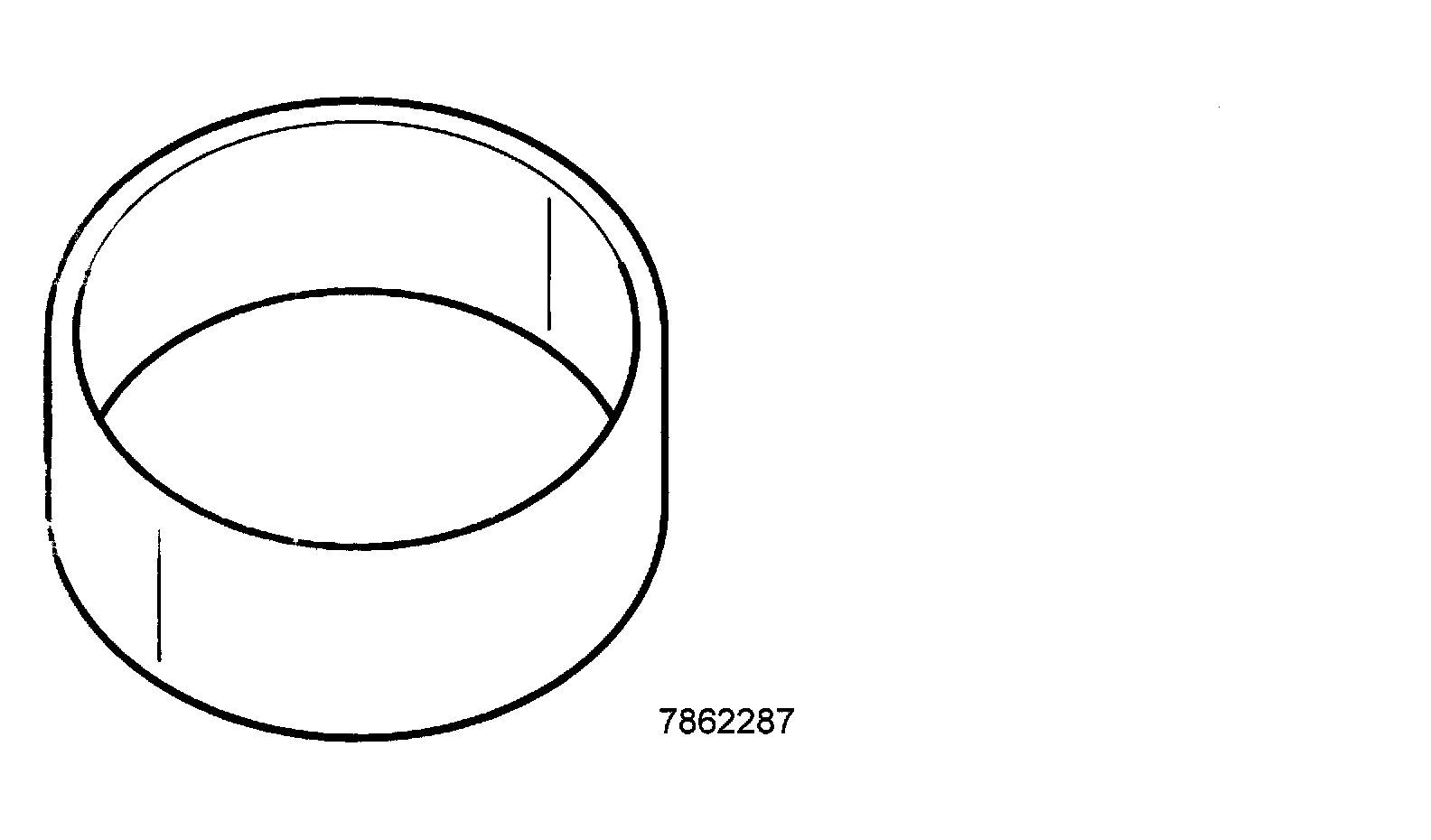

78 62 287 Piston fitting tool
86 11592 Toolboard T3
Group: Engine





78 74 878 Floor stand
Group: Engine, Manual gearbox





82 93 594 Sleeve 27 mm
For chain tensioner, 4 cyl. FACOM 427 NSB
Help tools (not included on toolboard)
Group: Other tools





82 93 128 Template 1/2"
Help tools (not included on toolboard)
Group: Misc.





83 90 130 Spring balance
Reading for bearing preload
86 11 584 Toolboard T4
Group: Engine





83 90 270 Sliding hammer
86 11 584 Toolboard T4
Use with 83 90 858 Pin
Group: Manual gearbox





83 90 478 Axle
Used together with 78 74 878 Floor stand .
Group: Manual gearbox, Automatic gearbox, Engine

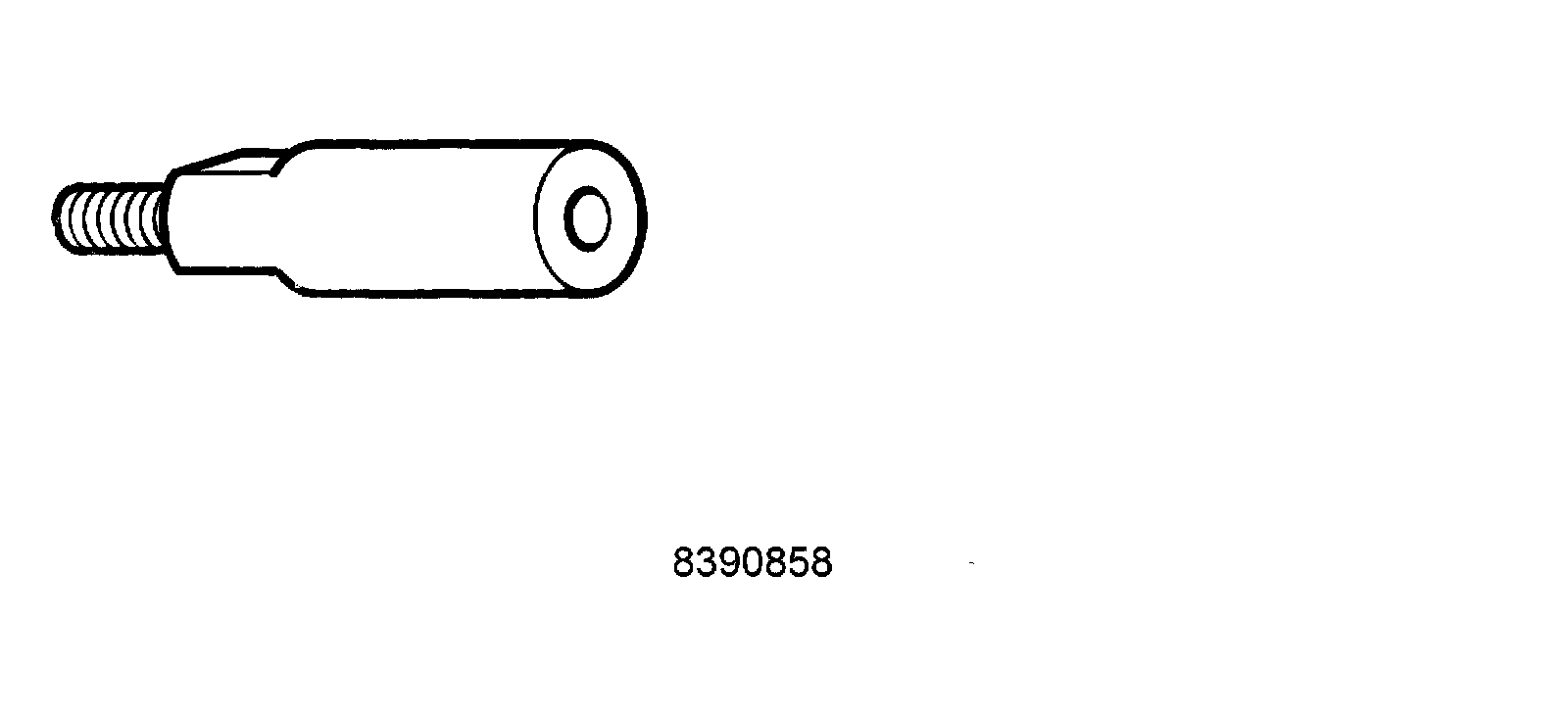

83 90 858 Journal
Used together with 83 90 270 Sliding hammer





83 93 401 Magnetic tool
86 11 618 Toolboard T1
Group: Engine

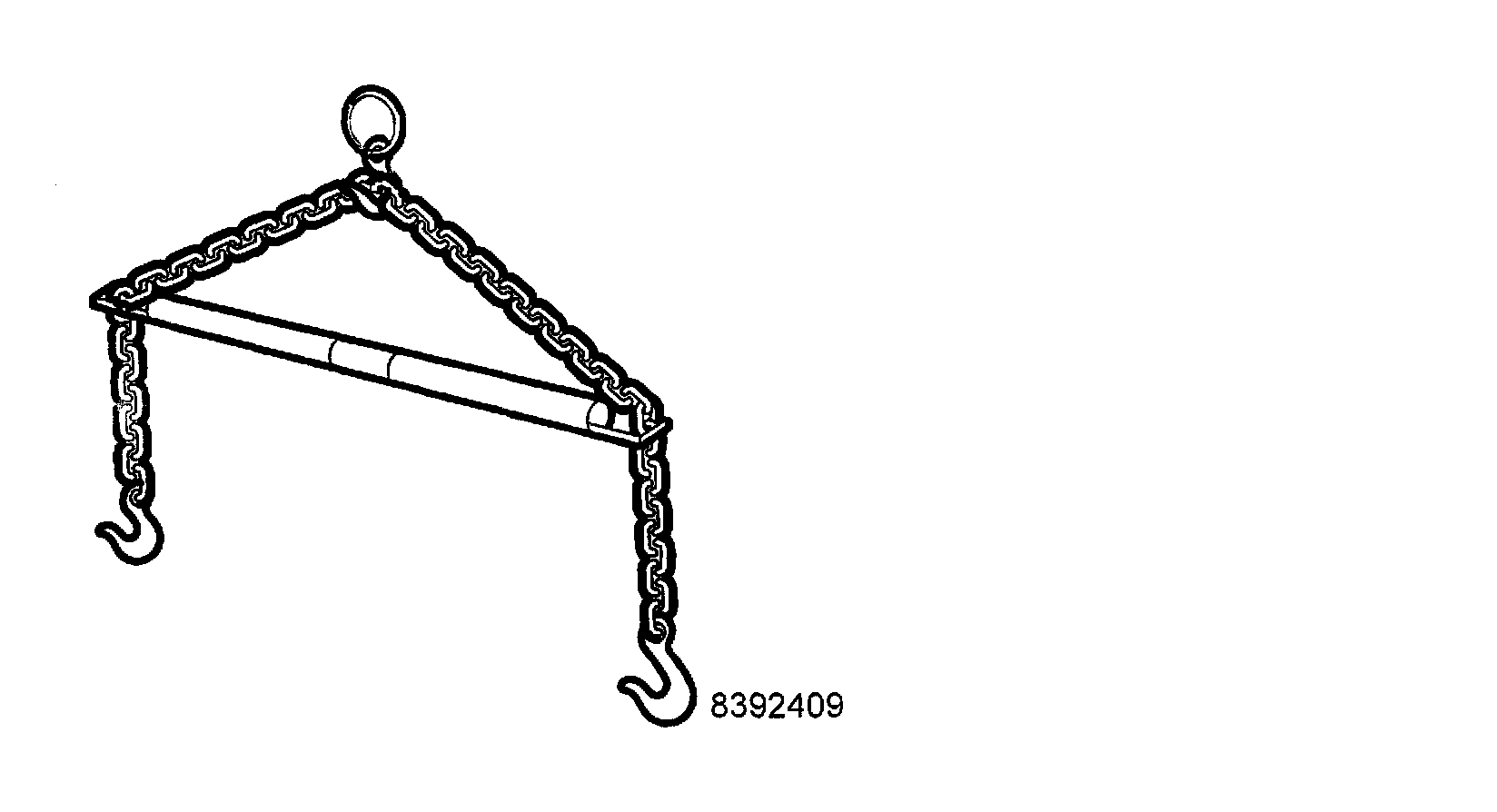

83 92 409 Lifting sling
Group: Engine





83 93 332 Wrench, small oil filter
86 11 618 Toolboard T1
Group: Engine

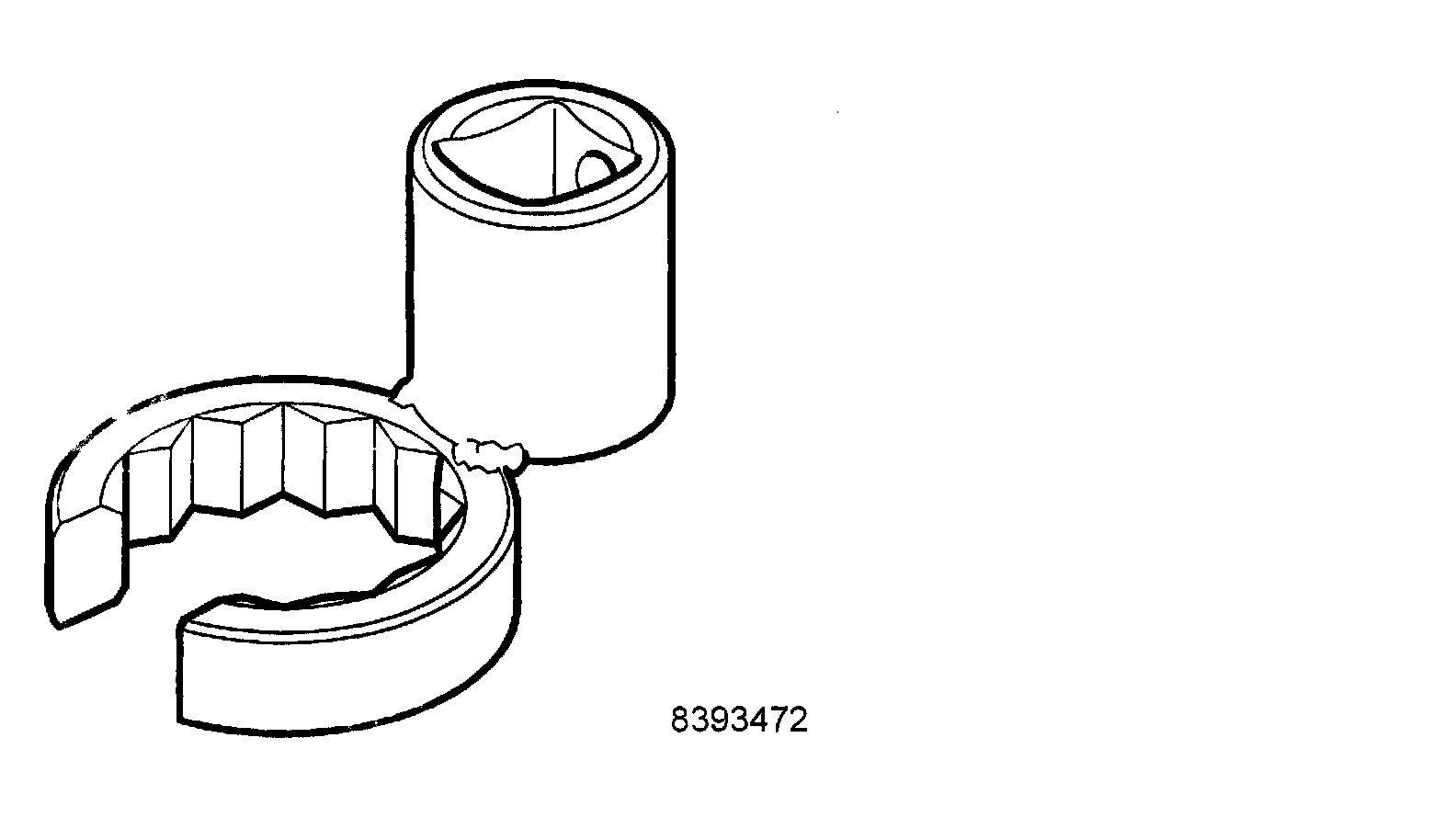

83 93 472 Wrench, knock sensor and oil pressure switch
86 11 618 Toolboard T1
Group: Engine





83 93 746 Protective collar
Required number 16
86 11 592 Toolboard T3
Group: Engine





83 93 753 Measuring bridge, valve position
86 11 S92 Toolboard rd T3
Group: Engine





83 93 761 Valve spring tool
86 11 592 Toolboard T3
Used together with 83 93 779 Tappets
Group: Engine

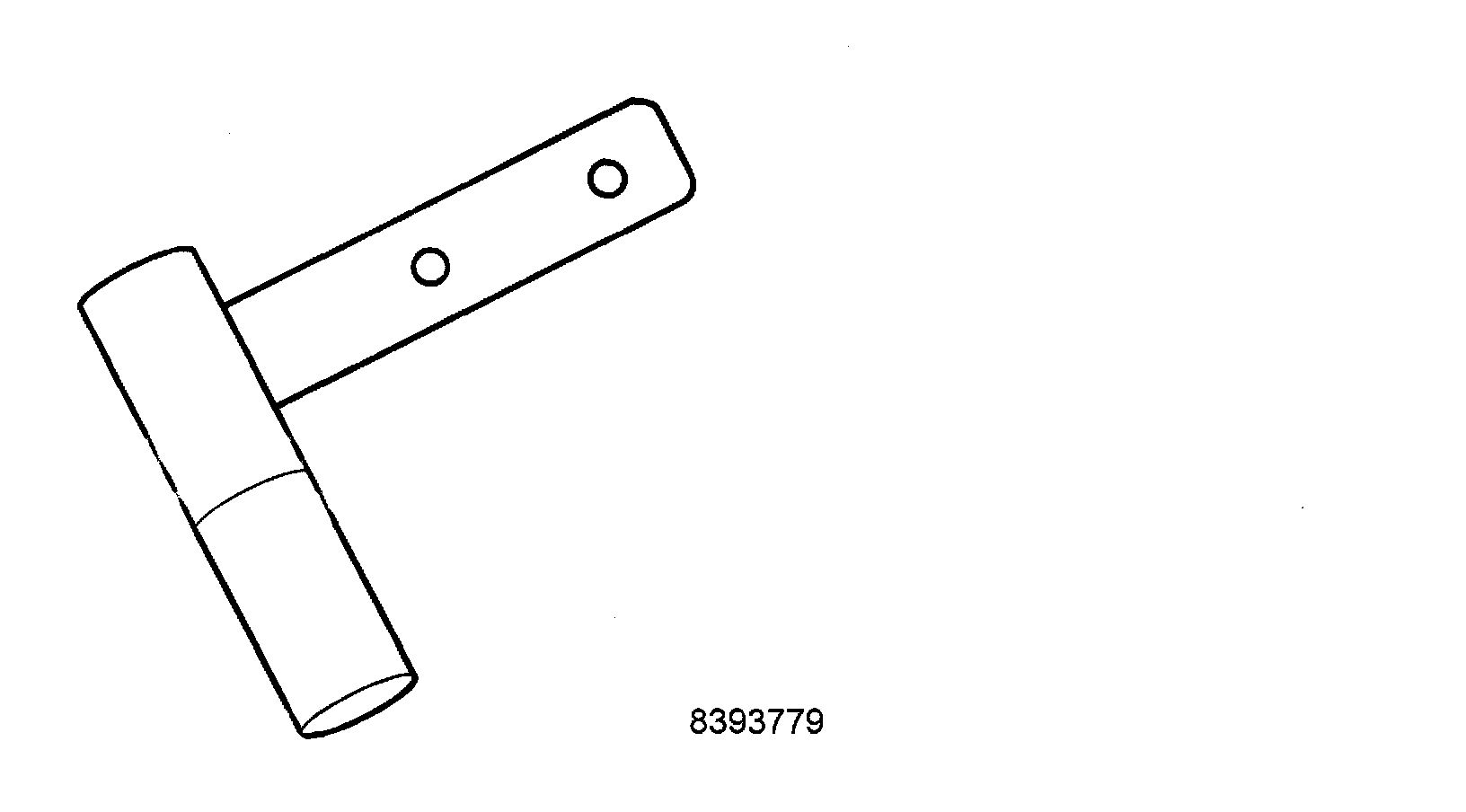

83 93 779 Tappets
Used together with 83 93 761 Valve spring tool
Group Engine





83 S3 787 Valve rack
86 11 592 Toolboard T3
Group: Engine

83 93 936 Valve seat cutters, 60 Degrees:

83 93 936 Valve seat cutters, 60°
86 11 592 Toolboard T3
Used together with 78 61 040 Valve seat cutter, 11° and 45° 34.5 mm Diameter
Group: Engine





83 94 157 Pliers for removing valve stem seal
86 11 592 Toolboard T3
Group: Engine

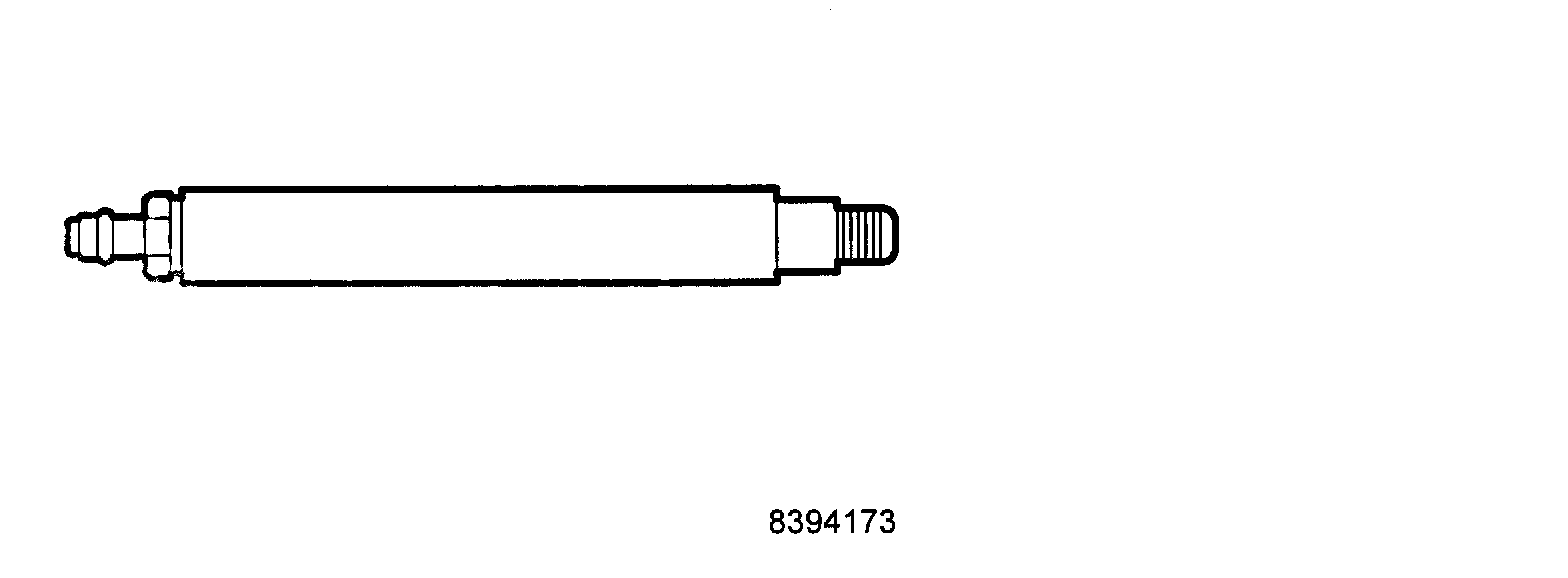

83 94 173 Compressed air adapter for spark plug hole
86 11 592 Toolboard T3
Used on 9-3 together with 83 94 207 Assembly tool and 83 94 181 Dismantling tool
Group: Engine





83 94 181 Removal tool
86 11 592 toolboard3
Used together with 83 94 20Z Fitting tool and 83 94 l23 Compressed air adapter for spark plug hole
Group: Engine





83 94 207 Fitting tool
86 11 892 Toolboard T3
Used together with 83 94 131 Removal tool and 83 94 173 Compressed air adapter for spark plug hole
Group: Engine

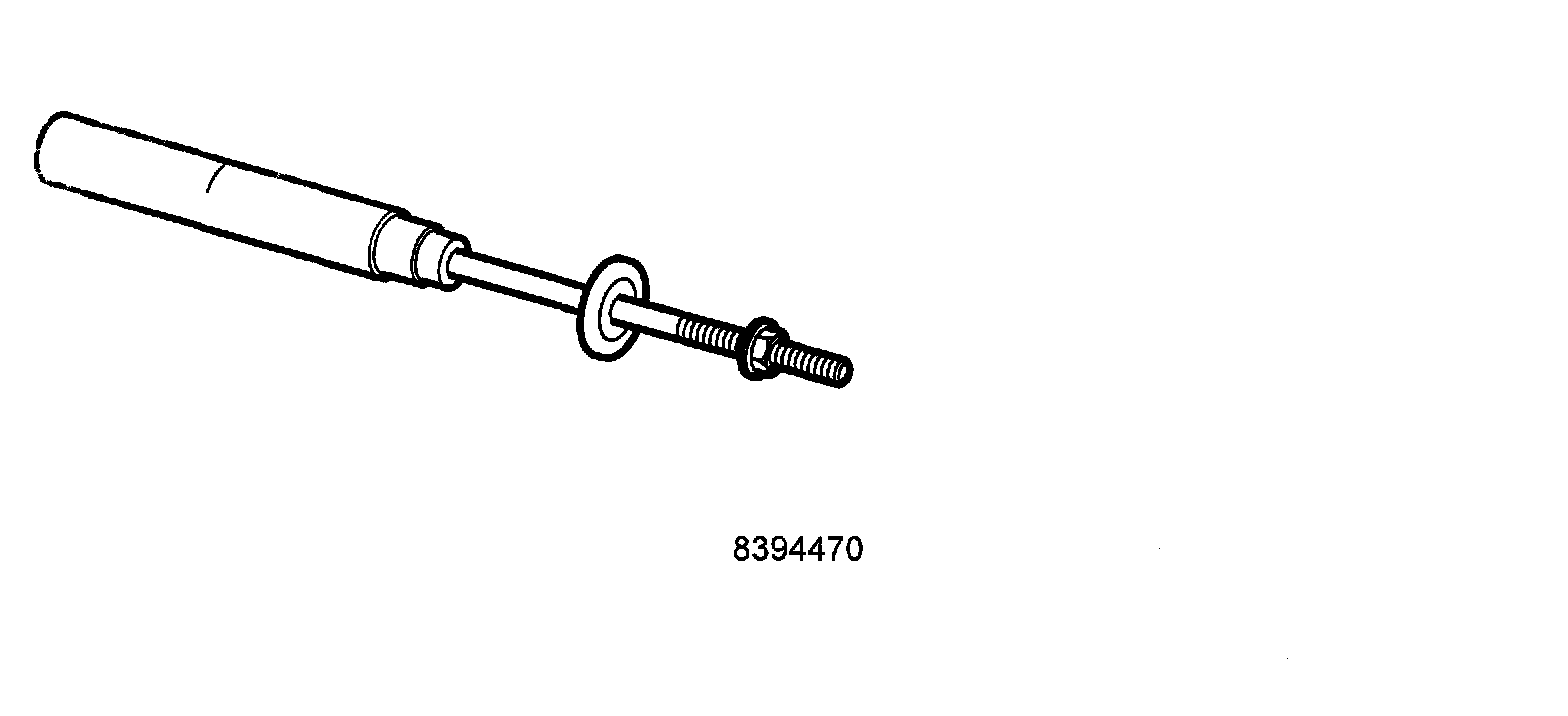

83 94 470 Balancer shaft bearing press
86 11 592 Toolboard,T3
Group: Engine





83 94 520 Locknut wrench
Adjusting basic charging pressure, Turbo
86 11 618 Toolboard T1
Used together with
Group: Engine

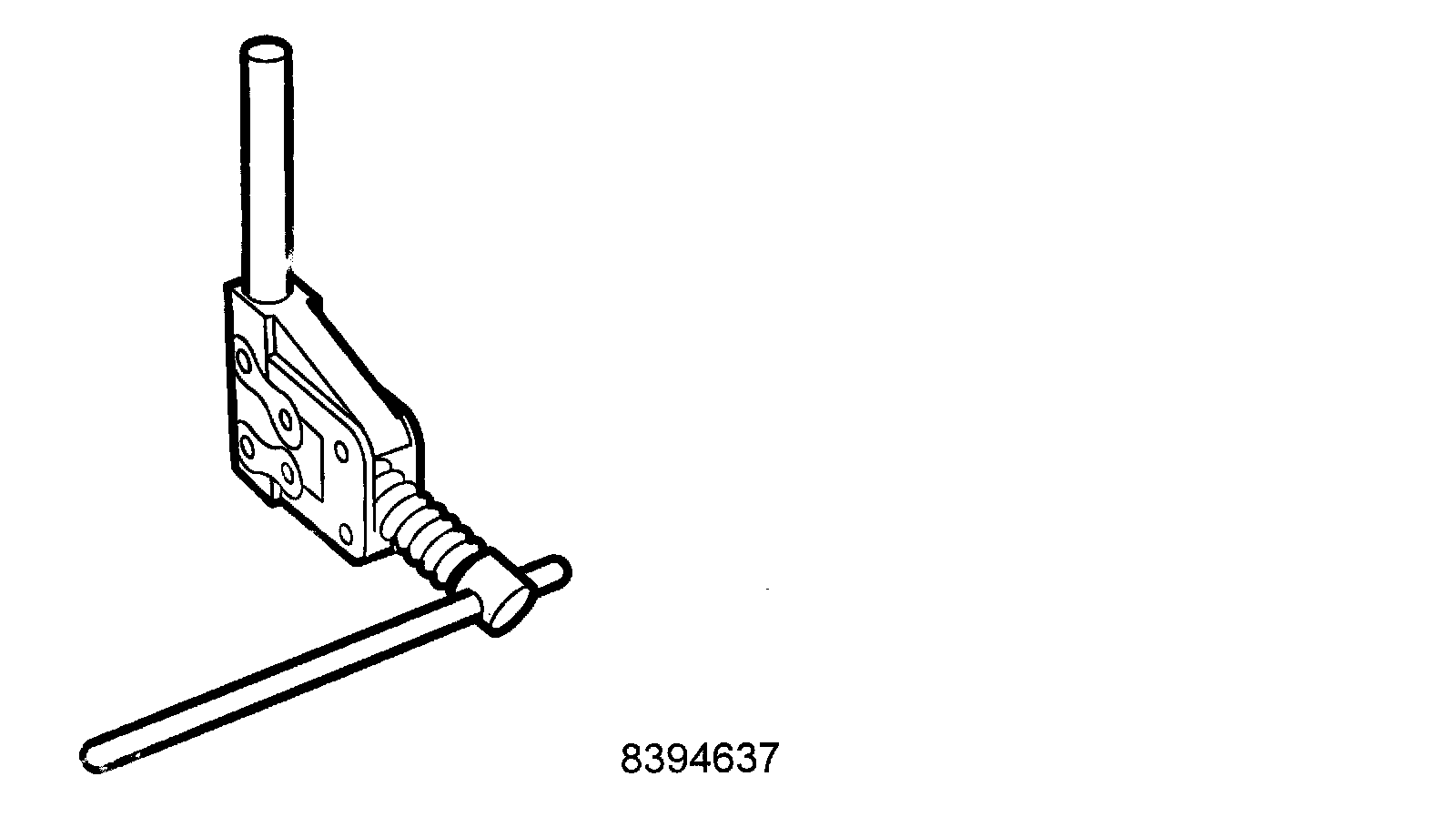

E3 94 637 Removal tool
86 11 592 Toolboard T3
Used together with 83 94 678 Timing chain removal kit, 16 valve
Group: Engine





83 94 645 Fitting tool
86 11 592 Toolboard T3
Used together with 83 94 678 Timing chain removal kit, 16 valve
Group: Engine





83 94 852 Fixture
86 11 592 Toolboard T3
Used together with 83 94 678 Timing chain removal kit, 16 valve
Group Engine





83 94 660 Chain lock
For timing chain removal
86 11 592 Toolboard T3
Used together with 83 94 678 Timing chain removal kit, 16 valve
Group: Engine

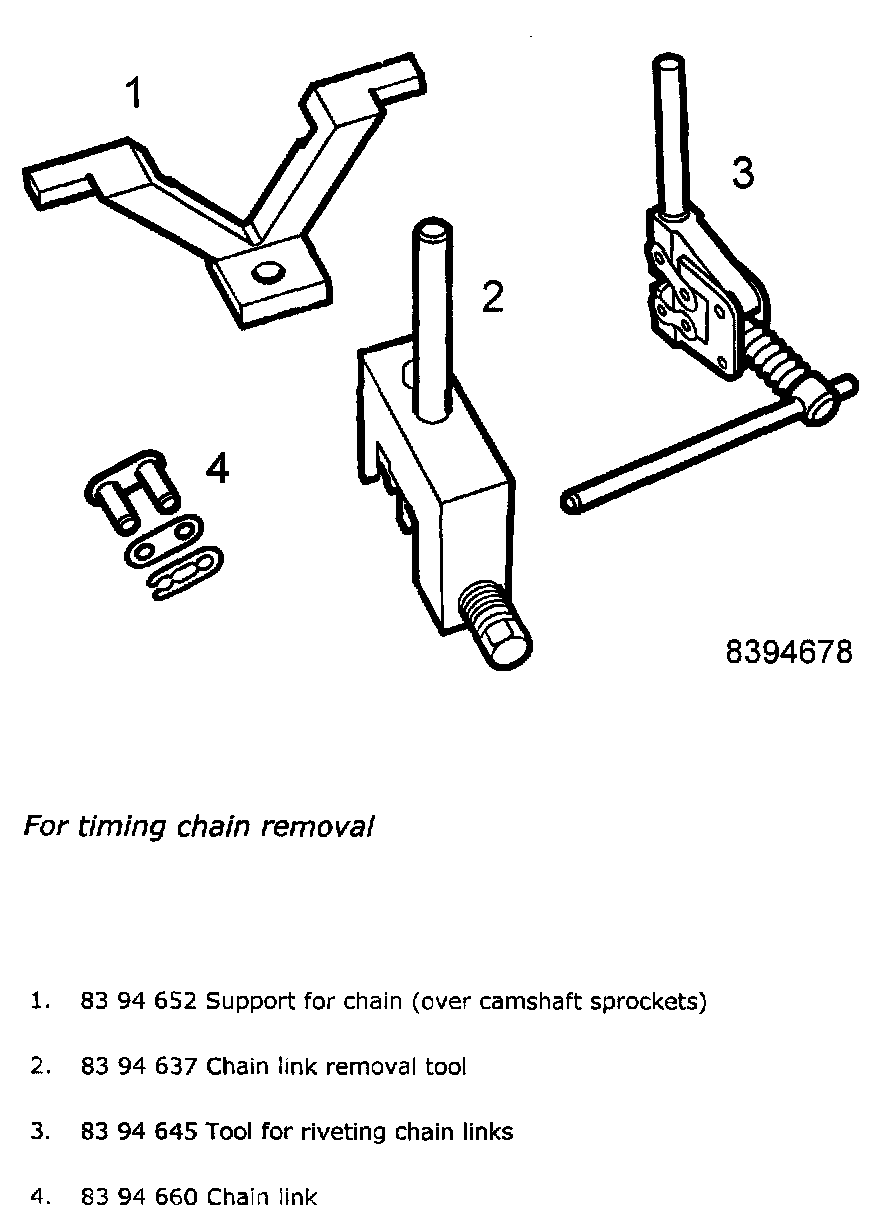

83 94 678 Timing chain removal kit, 16 valve
For timing chain removal
1. 83 94 652 Support for chain (over camshaft sprockets)
2. 83 94 637 Chain link removal tool
3. 83 94 645 Tool for riveting chain links
4. 83 94 660 Chain link
86 11 592 Toolboard T3
Group: Engine





83 94 744 Adapter, fuel pressure testing
Group: Engine





83 94 850 Lifting beam
Group: Engine, Manual gearbox





83 94 868 Flywheel locking attachment
86 11 618 Toolboard T1
Group: Engine





83 94 876 Fitting Tool, crankshaft seal
Timing end
86 11 618 Toolboard T1
Group: Engine





83 94 884 Fitting tool, crankshaft seal
Flywheel end
86 11 618 Toolboard T1
Group: Engine
