Control Module Outputs

Control Module Outputs:

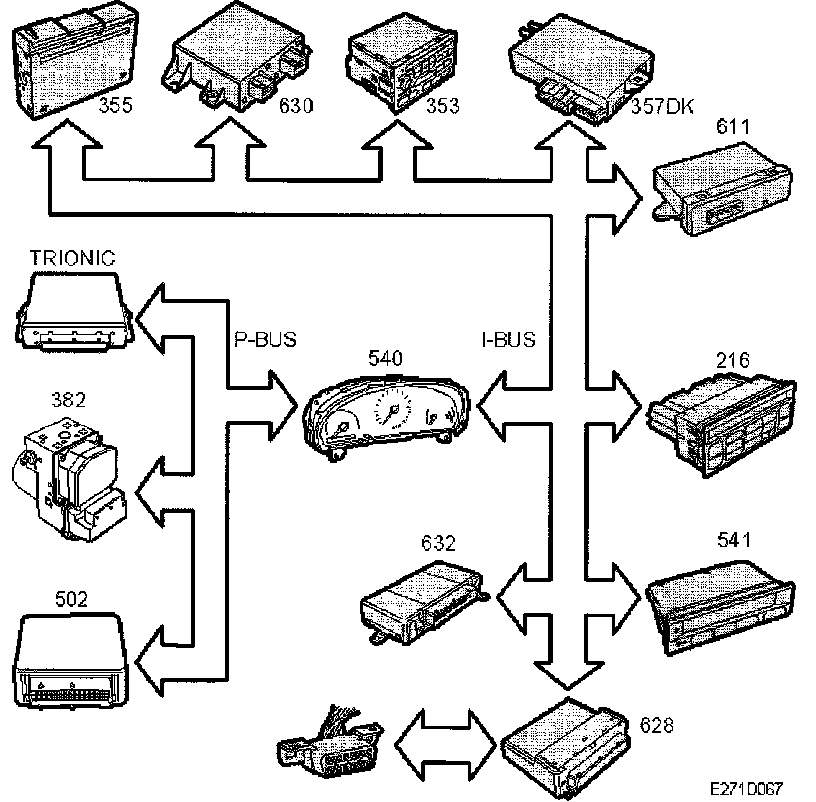

Control Module Bus Outputs:

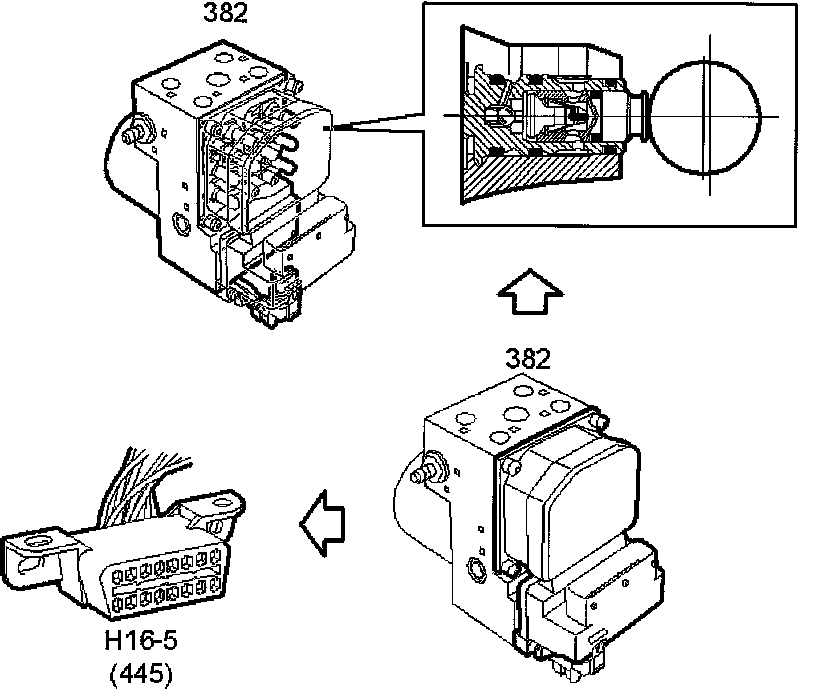

Legend
- Return pump (382)
- Diagnostics communication (445)
- Inlet valve, FL (382)
- Outiet valve, FL (382)
- Inlet valve, FR (382)
- Outlet valve, FR (382)
- Inlet valve, RL (382)
- outlet valve, RR (382)
- Inlet valve, RR (382)
- Outlet valve, RR (382)
- Pressure increase valve 1 FL (382)
- Pressure increase valve 2 FR (382)
- Pressure decrease valve 1 FL (382)
- Pressure decrease valve 2 FR (382)
