Interior Rear-View Mirror With Automatic Antidazzel Function

Interior Rear-view Mirror With Automatic Antidazzel Function

To remove







1. Remove the lamp housing.

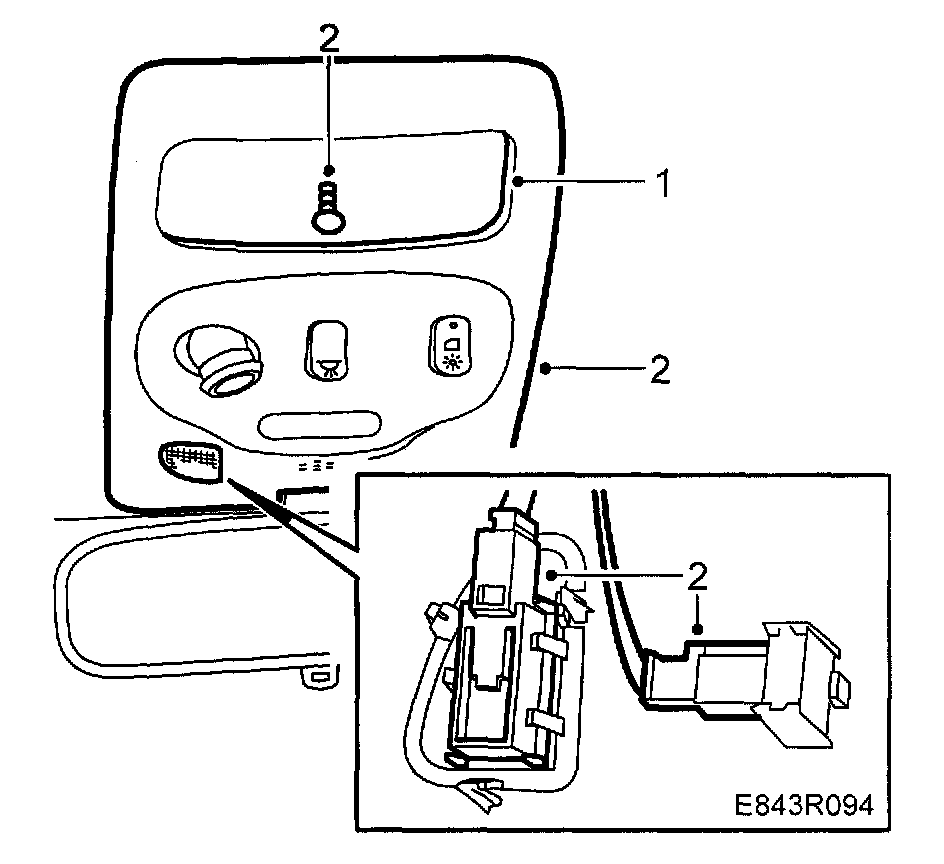

2. Remove the screw and remove the cover. Unplug the connectors for the temperature sensor, ACC and mobile telephone microphone.

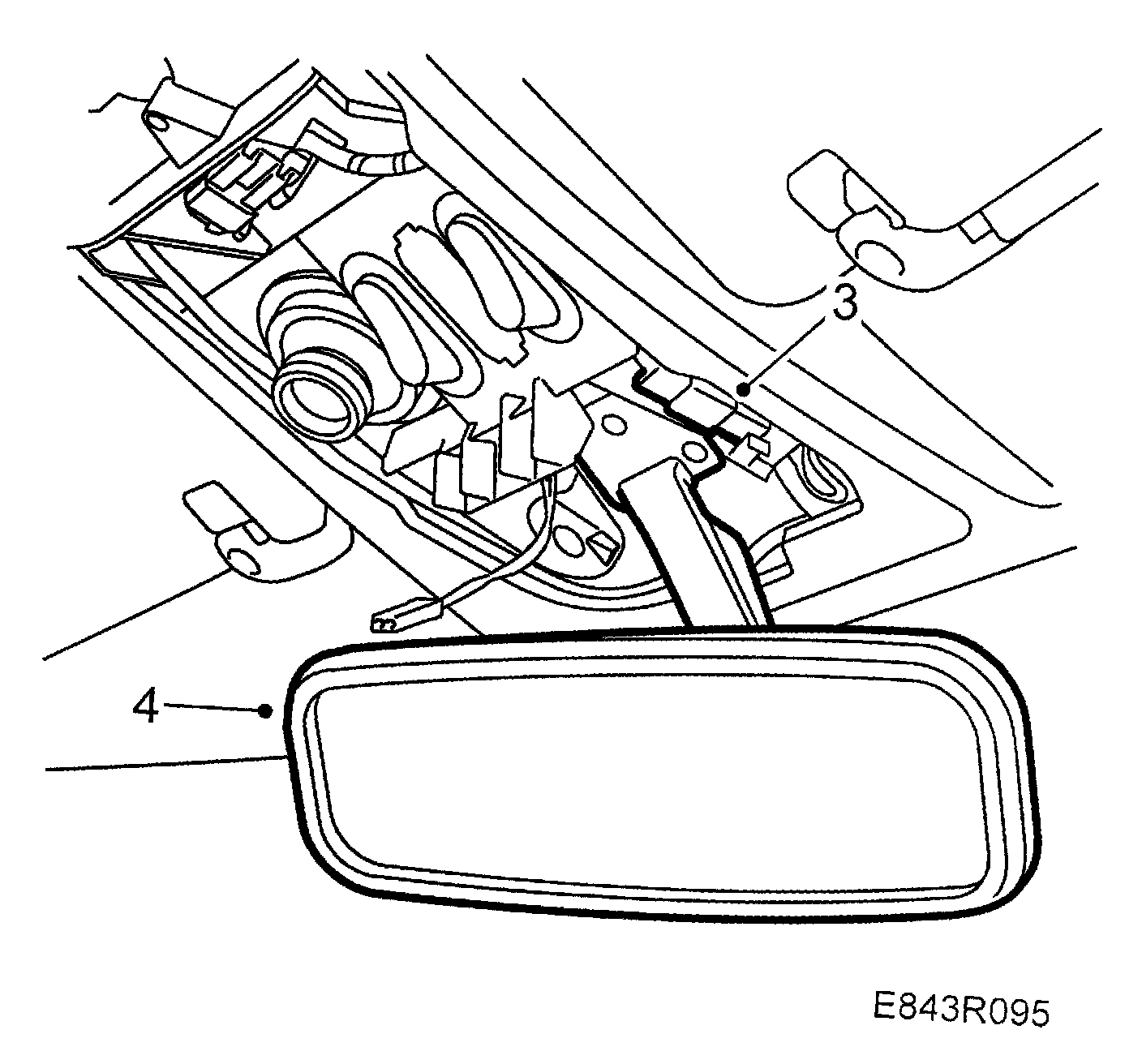

3. Unplug the connector for the rear-view mirror.
4. Take out the retaining screws and remove the mirror.

To fit

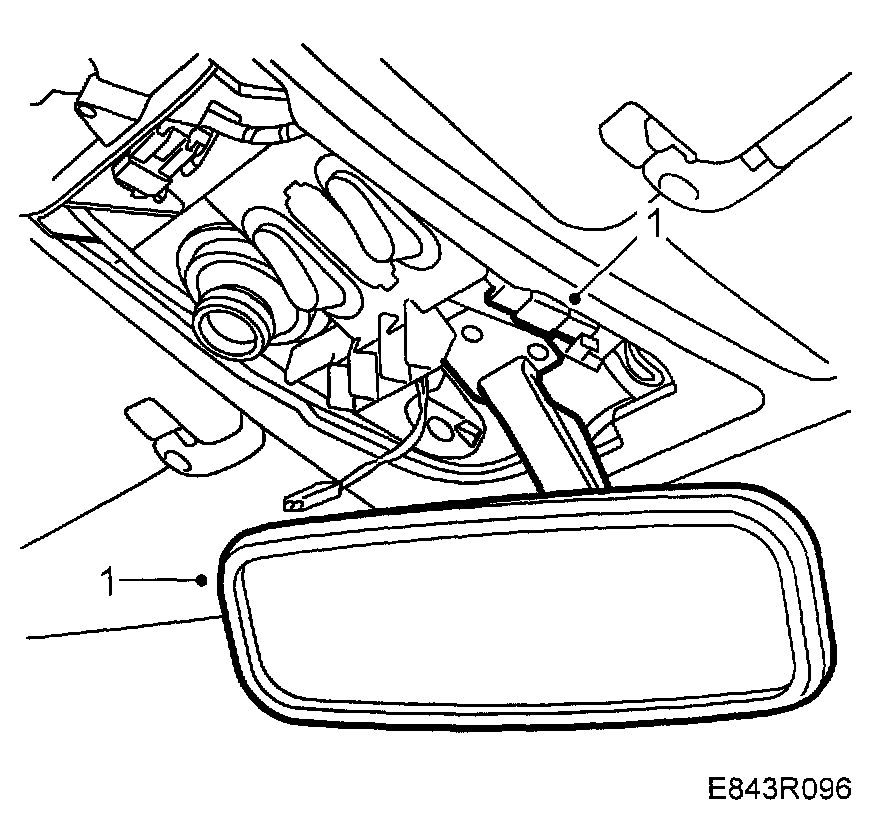

1. Position the rear-view mirror and fit the screws. Plug in the connector.

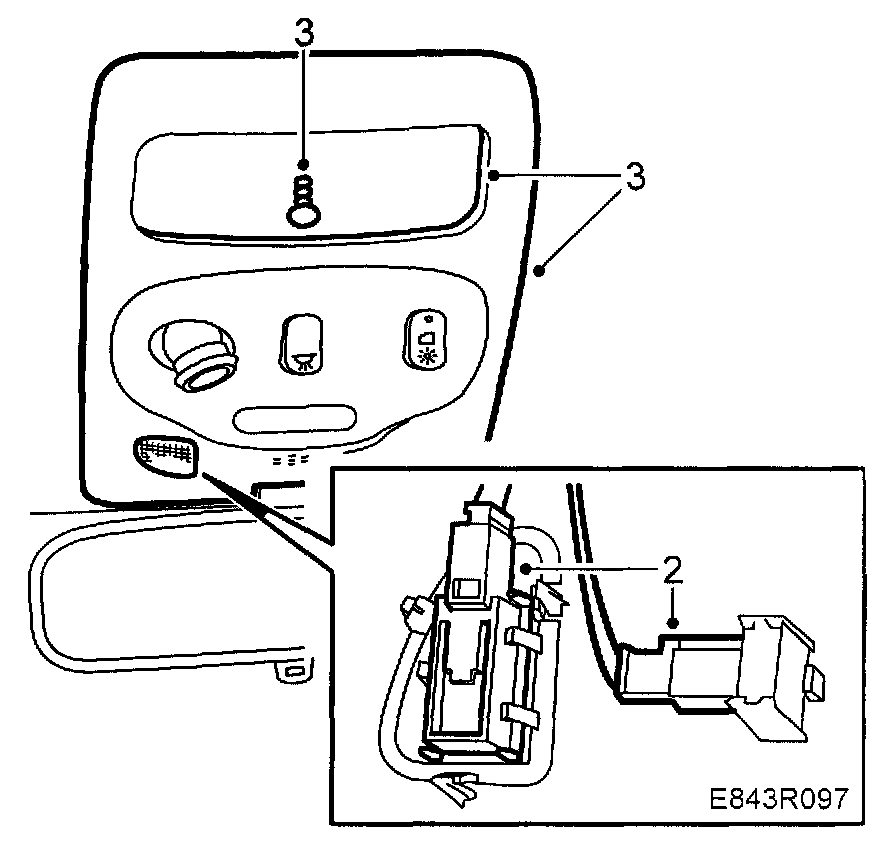

2. Plug in the connectors for the temperature sensor and microphone.
3. Fit the cover and lamp glass.
