System Overview, Lamp Check

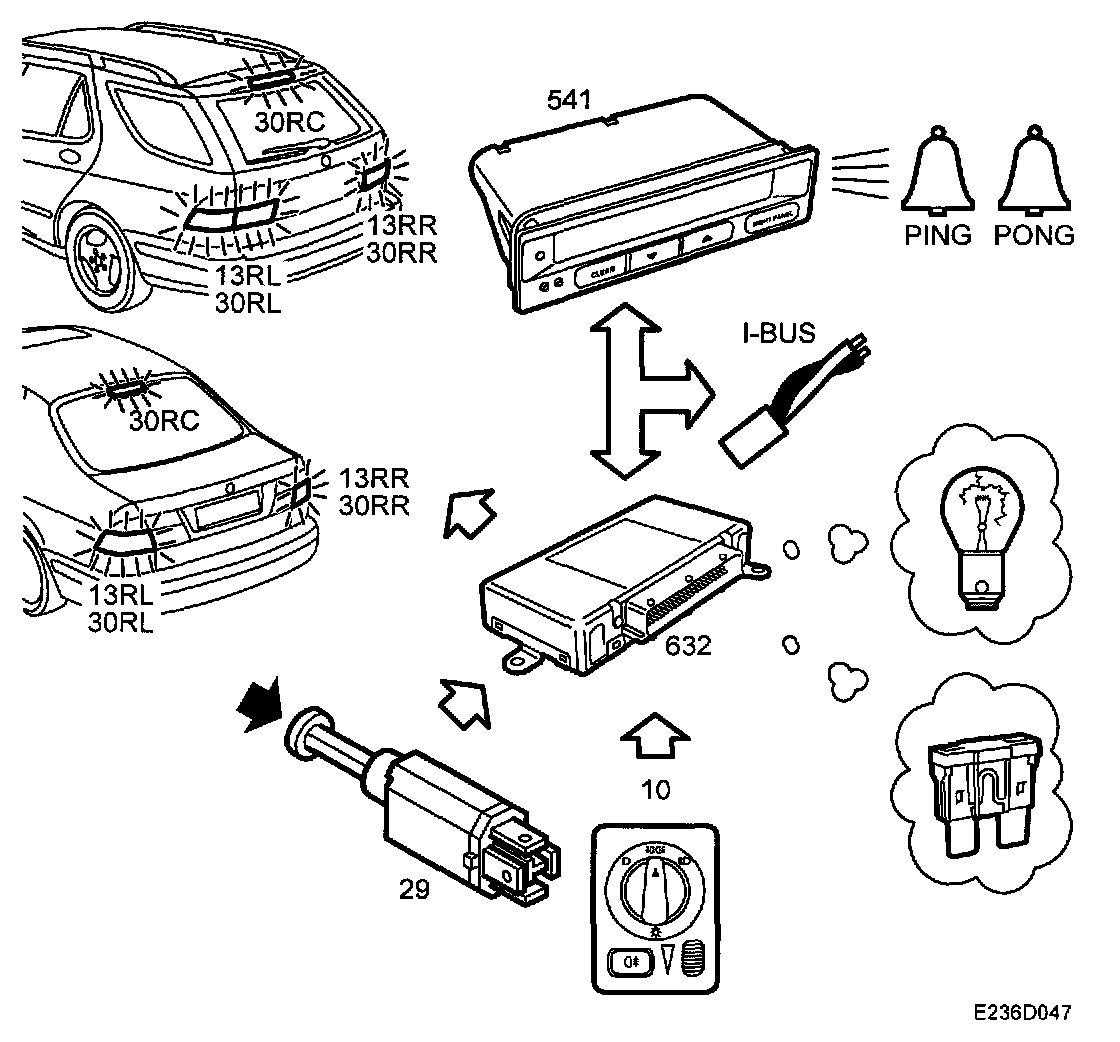

System overview, lamp check







- Control module, TWICE (632)
- Lamps, rear parking lights (13RL, 13RR)
- Lamps, rear parking lights tailgate 5D (13HL, 13HR)
- Lamps, brake lights (30RL, 30RR, 30RC)
- Brake light switch (29)
- Switch, lights (10)
- SID (541)

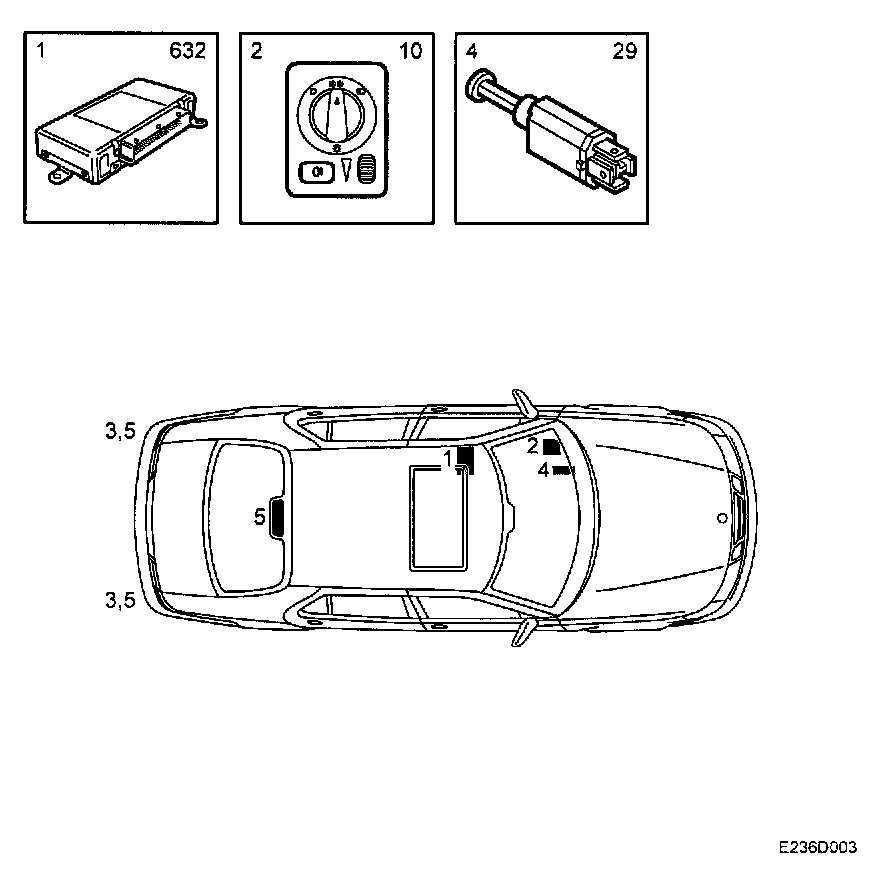

Main components, lamp check (4D)







1 Control module, TWICE (632)
2. Switch, lights (10)
3. Lamp, rear parking light, left (13RL)
Lamp, rear parking light, right (13RR)
4. Brake light switch (29)
5. Lamp, brake light, left (30RL)
Lamp, brake light, right (30RR)
Lamp, high-level brake light (30RC)

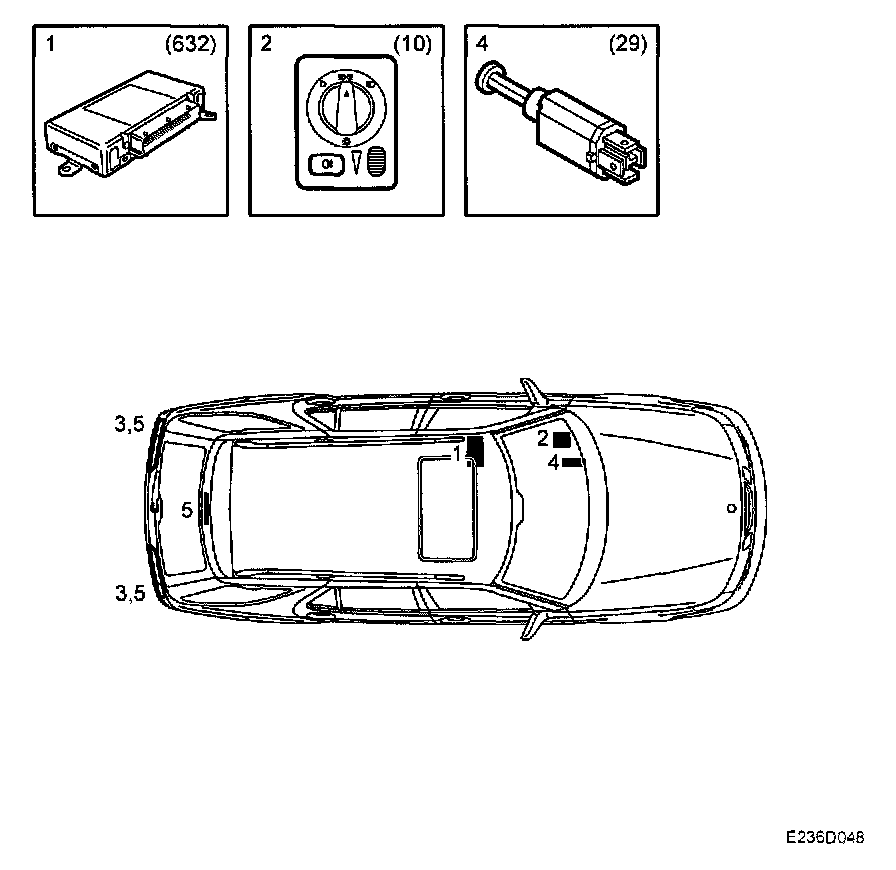

Main components, lamp check (5D)







1. Control module, TWICE (632)
2. Switch, lights (10)
3. Lamp, rear parking light, left (13RL)
Lamp, rear parking light, right (13RR)
Lamp, parking light tailgate, left 5D (13HL)
Lamp, parking light tailgate, right 5D (13HR)
4. Brake light switch (29)
5. Lamp, brake light, left (30RL,)
Lamp, brake light, right (30RR)
Lamp, high-level brake light (30RC)
