System Overview, Electrical Opening of Boot Lid

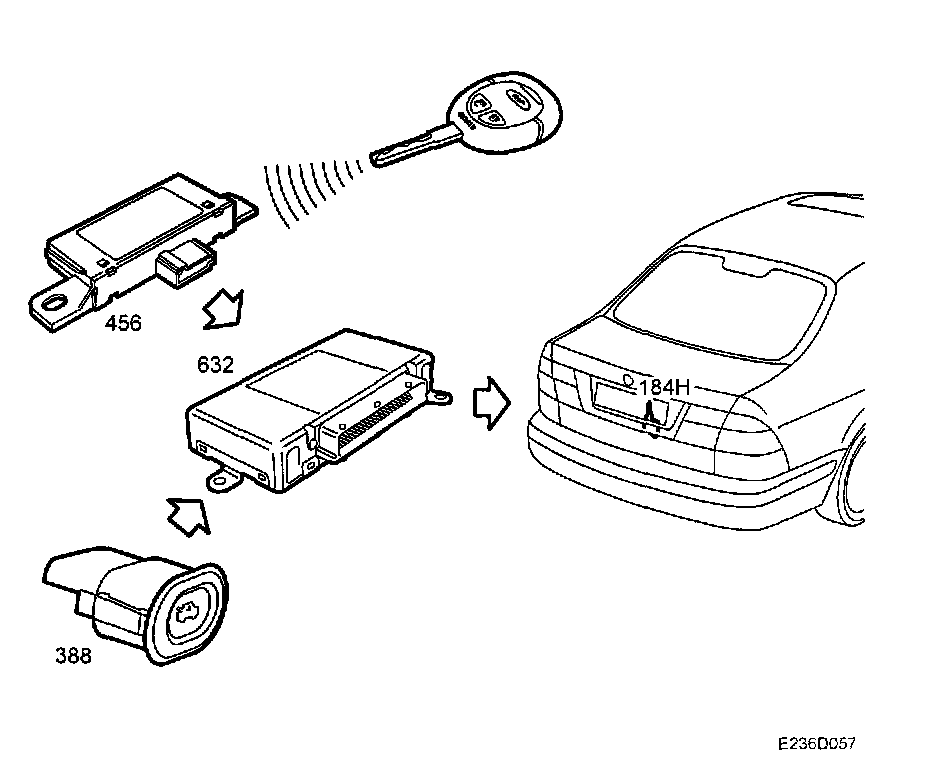

System overview, electrical opening of boot lid (4D)







- Control module, TWICE (632)
- Car key
- Antenna, remote control, central locking system (456)
- Switch, boot lid (388)
- Motor, central locking system, boot lid (184H)

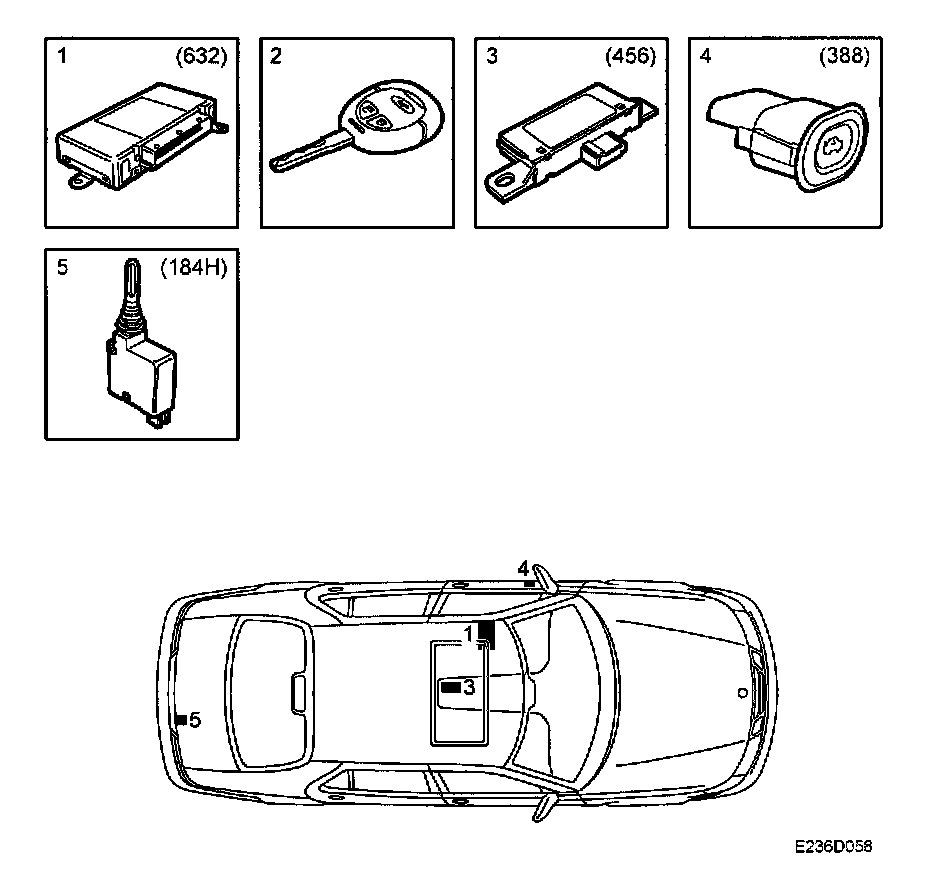

Main components, electrical opening of boot lid (4D)







1. Control module, TWICE (632)
2. Car key
3. Antenna, remote control, central locking system (456)
4. Switch, boot lid (388)
5. Motor, central locking system, boot lid (184H)
