Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Wiper and Washer Systems >> Windshield Washer Spray Nozzle >> Service and Repair >> Windscreen Washer Nozzles

Windscreen Washer Nozzles




Windscreen Washer Nozzles

Removal

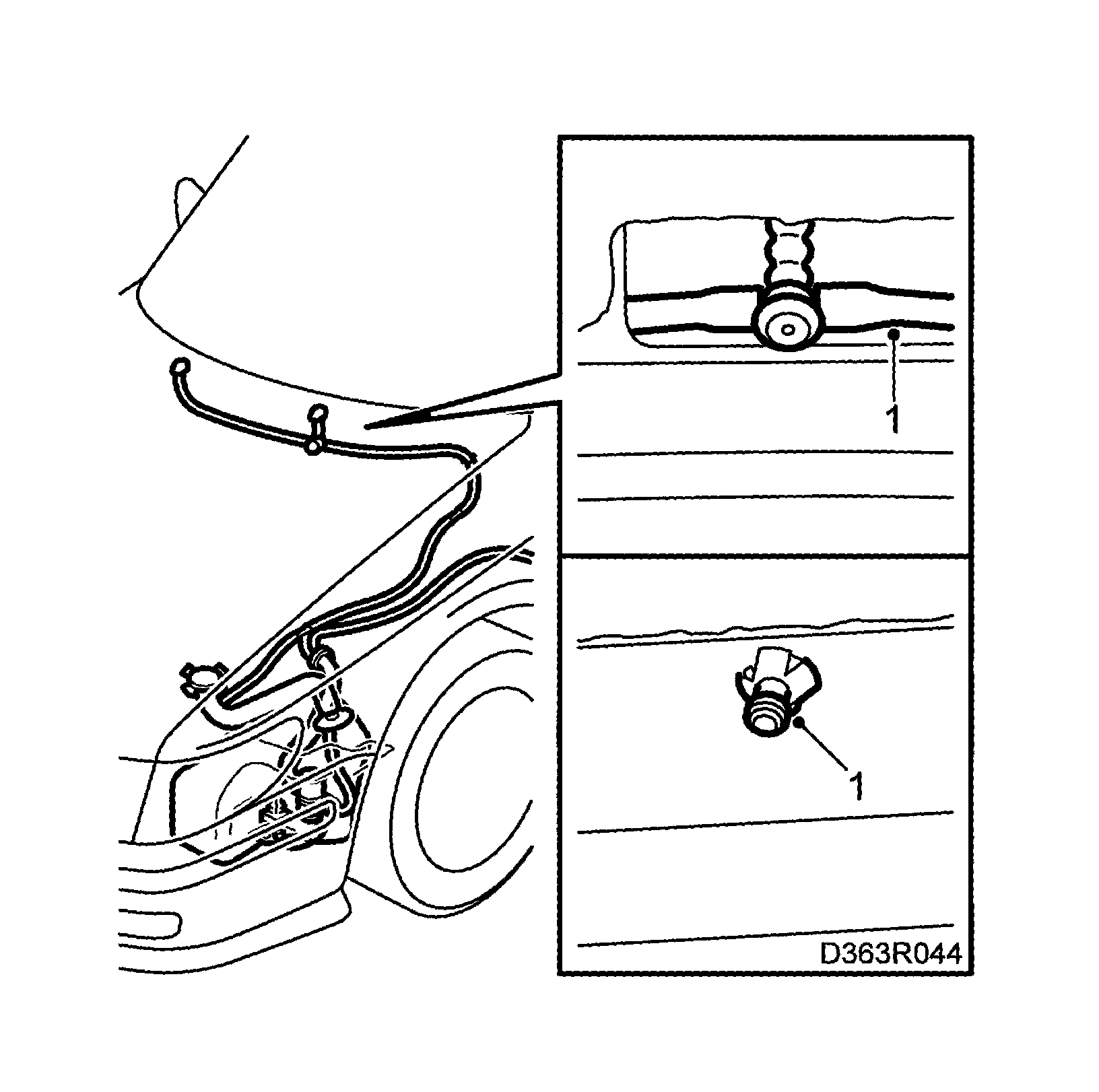

Windscreen Washer Nozzles:






1. Disconnect the hose from the nozzle.
2. Remove the nozzle by pressing in the lock tabs.


Refitting







1. Press the new nozzle into place and connect the hose.
2. Close the bonnet. Adjust the nozzle jets.
