Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Electric Window Lifts (Part 1/2)

Electric Window Lifts (Part 1/2)

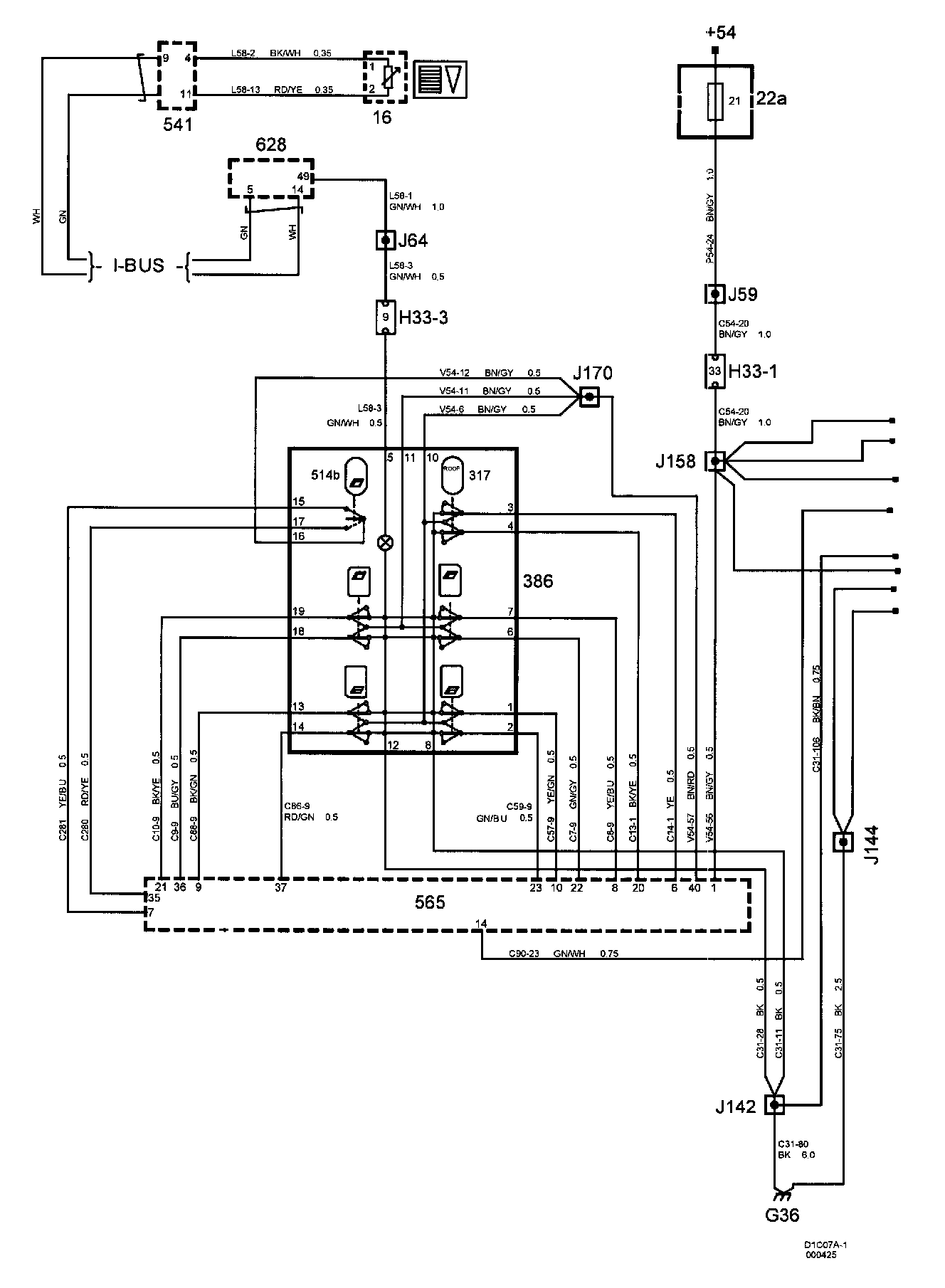

Electric Window Lifts, Convertible (Part 1/2)







Part 1:






Part 2:
