Electric Door Mirrors Not Functioning

Electric Door Mirrors Not Functioning





Fault symptoms
Electric door mirrors not functioning





Diagnostic help

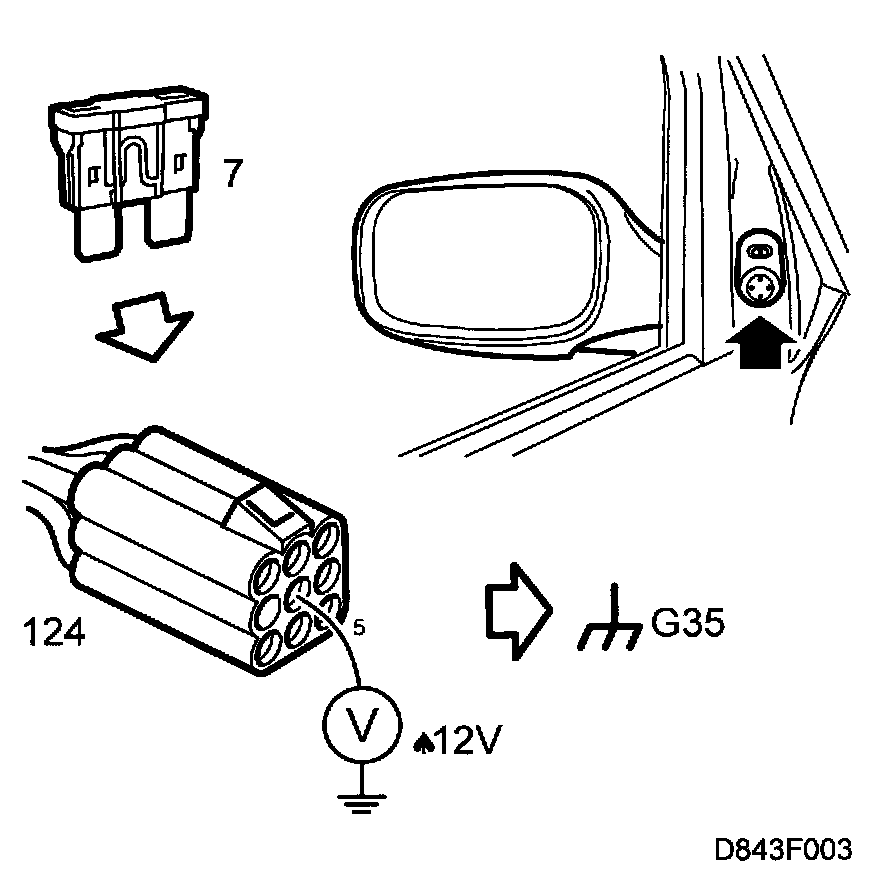

1. Check fuse 7 as well as if there is power to the fuses.

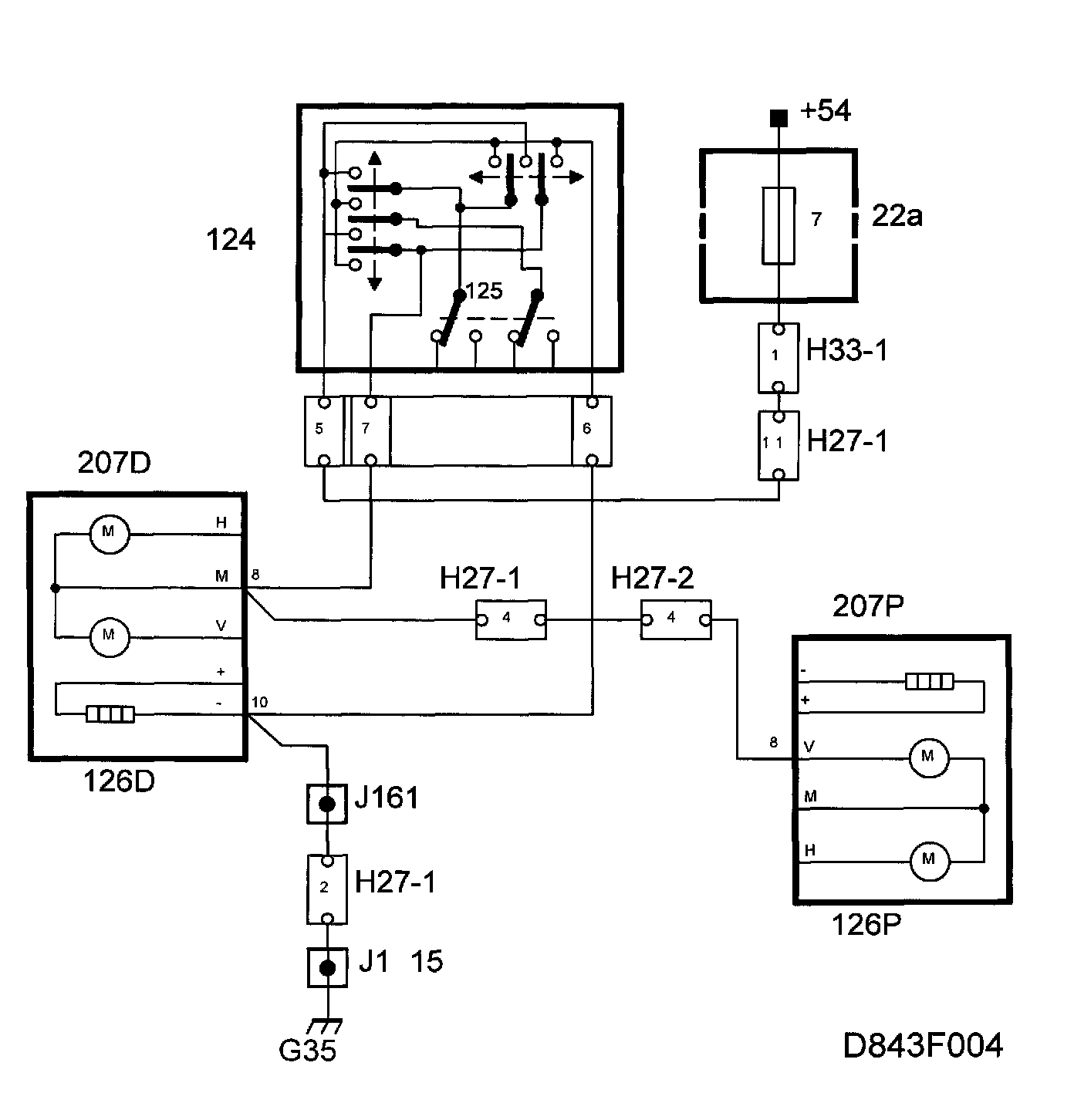

2. Check the voltage in pin 5 on switch 124.
3. Check that the power goes out to the motors 126D and 126P by activating the switch.
4. Check connector, wiring and ground connection.
