Grounding Point G3

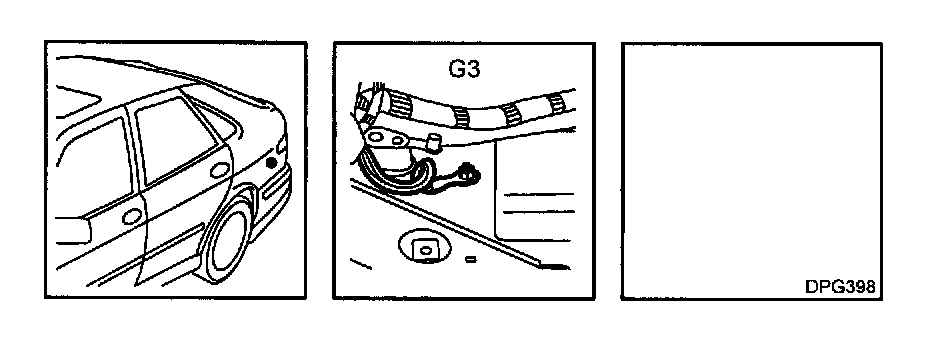

Grounding point G3







Location: In luggage compartment under rear lift cluster.

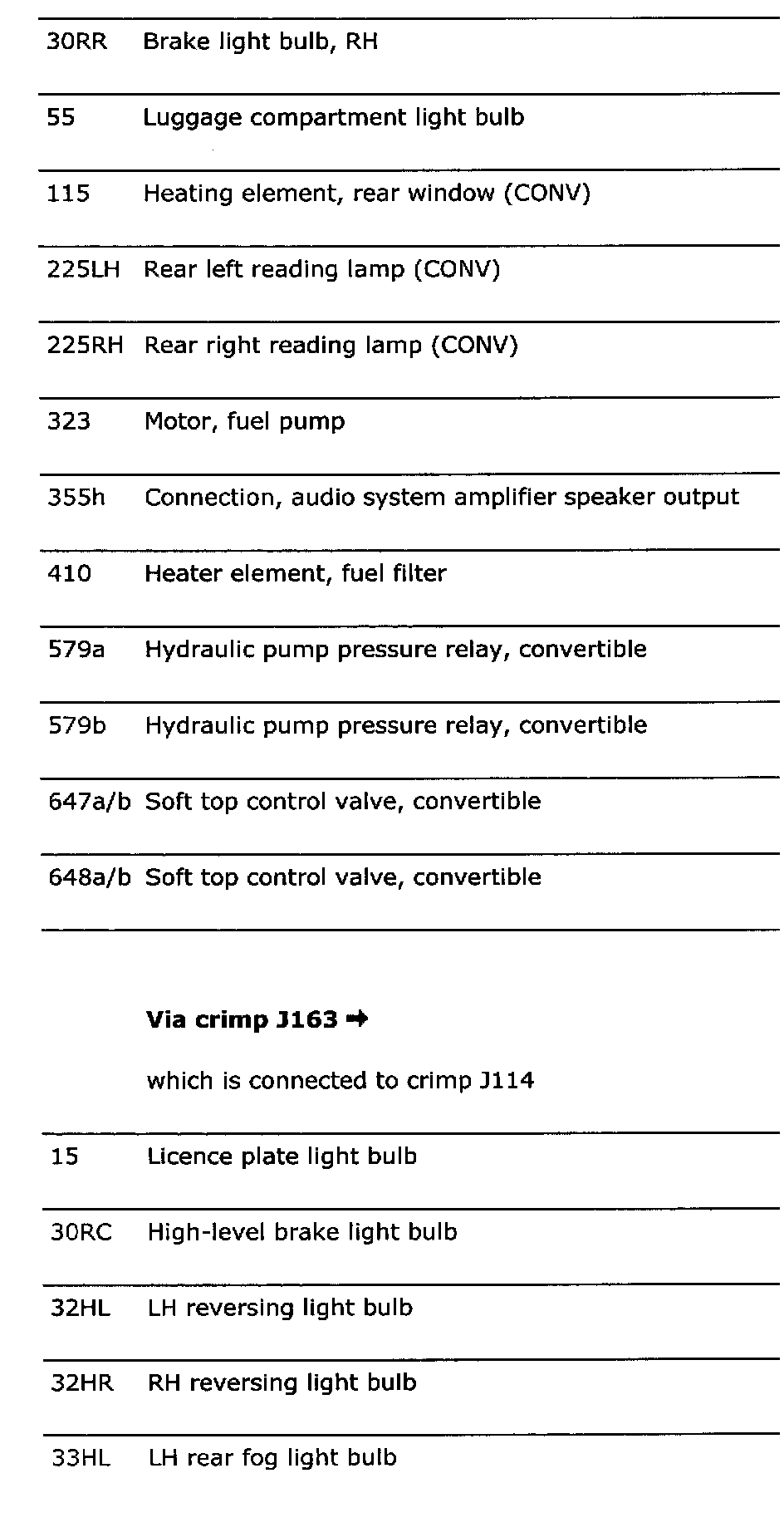

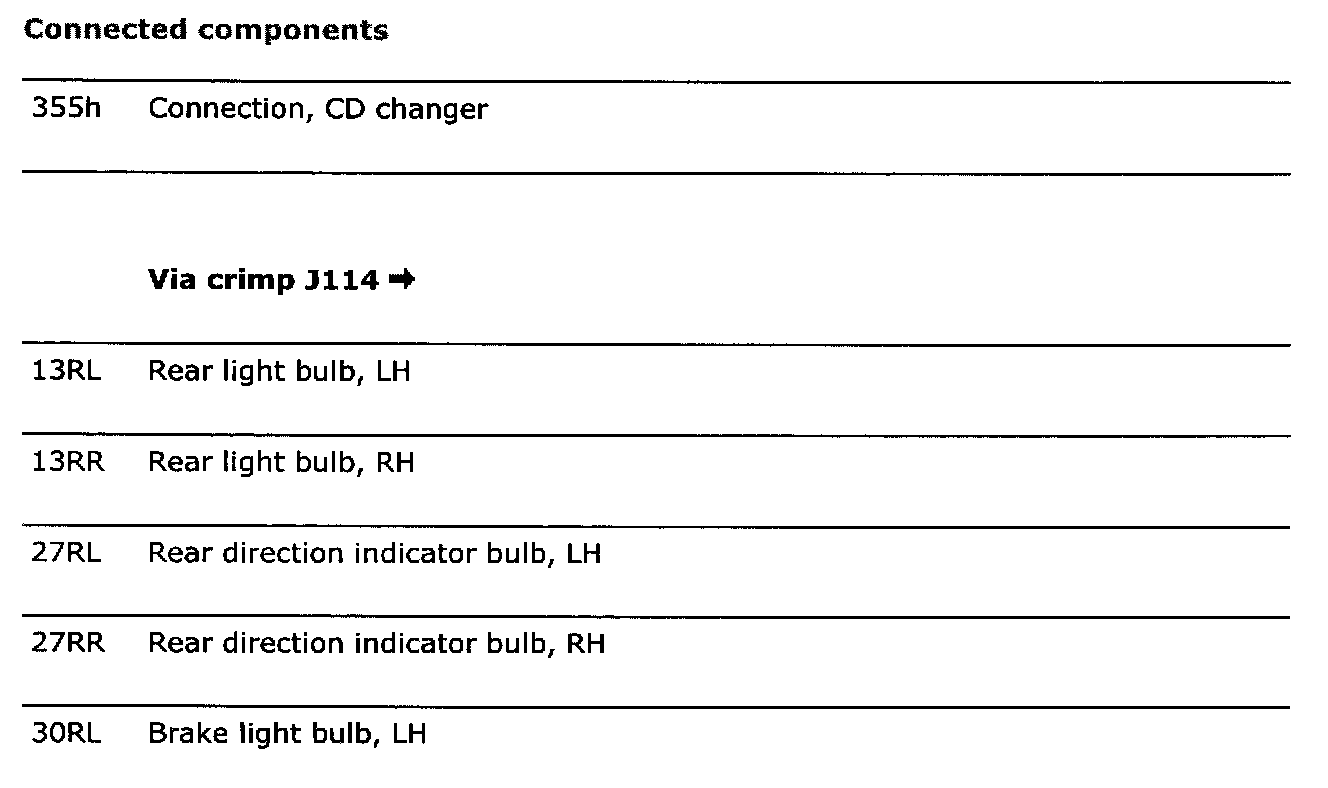

Connected Components Part 1:

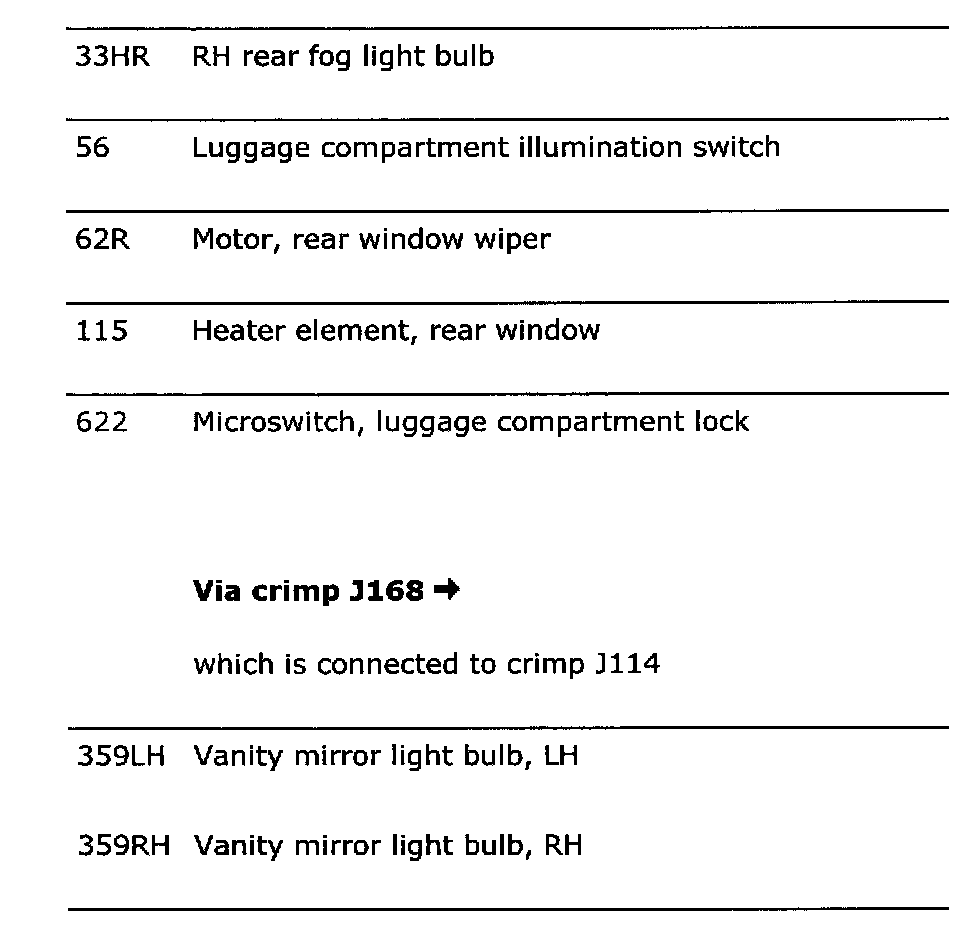

Connected Components Part 2:






Connected Components Part 3:
