Checking the Starting Interlock Contacts

Checking The Starting Interlock Contacts


WARNING
Check that the selector lever is in position P and the handbrake applied.

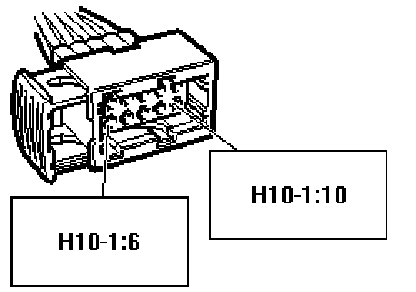

Connect a jumper lead between pins 6 and 10 of the female connector.












- Turn the ignition switch to START.







- The starter motor should run.







Is the function correct?

NO - Checking the Relay Power Supply

YES - Changing Components - III
