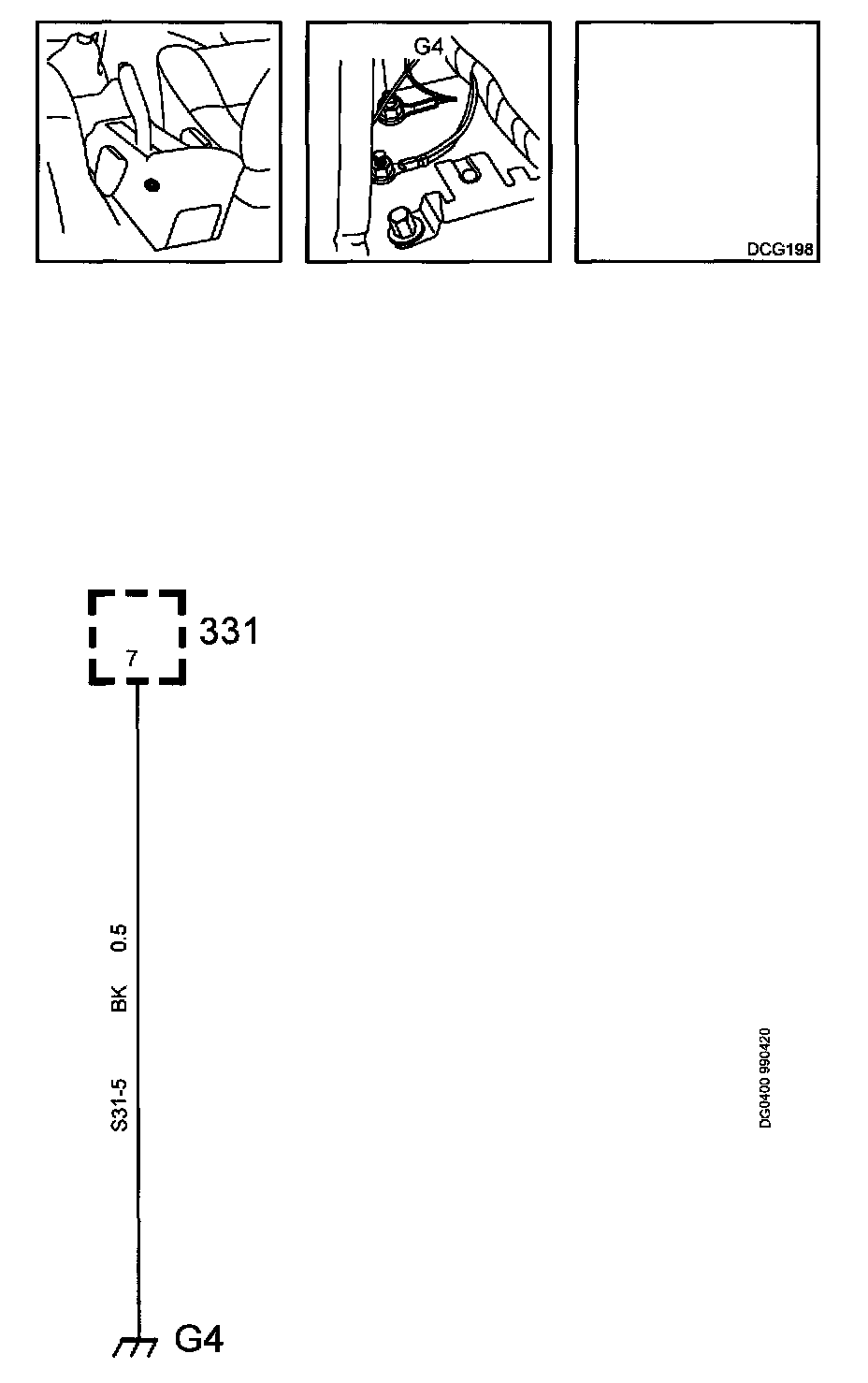

Grounding Point G4
Grounding Point G4
Grounding Point
G4
Location:
on the transmission tunnel between the seats.
Cable marking:
yellow tape.
