Grounding Point G3




Grounding Point G3







Location: in luggage compartment under rear left light cluster.

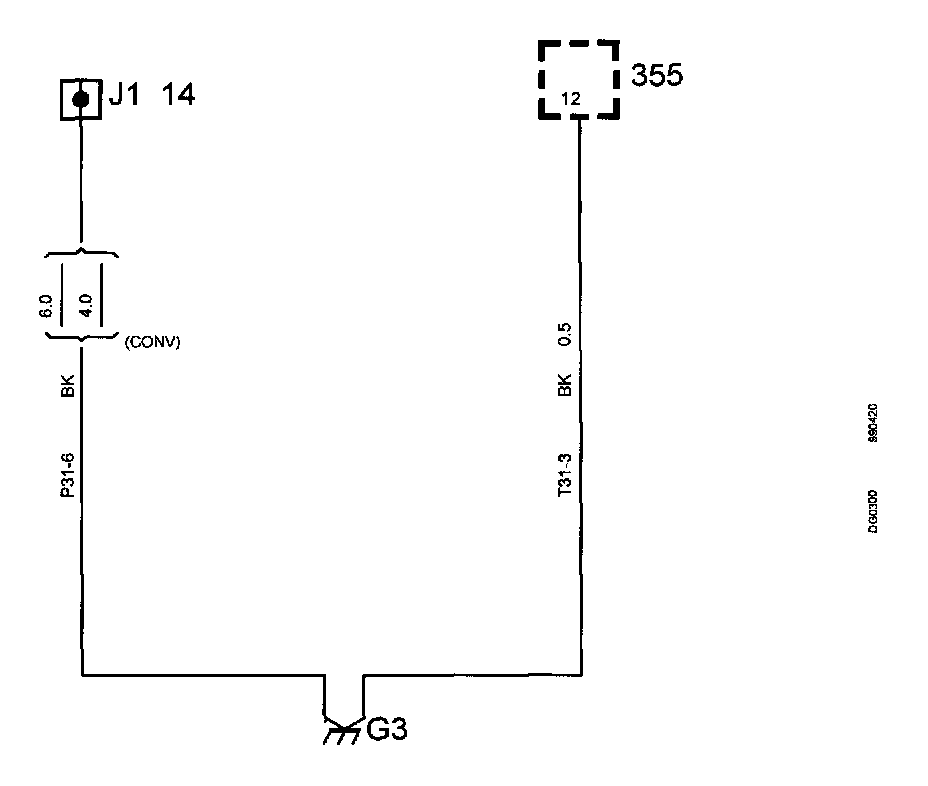

Part 1:

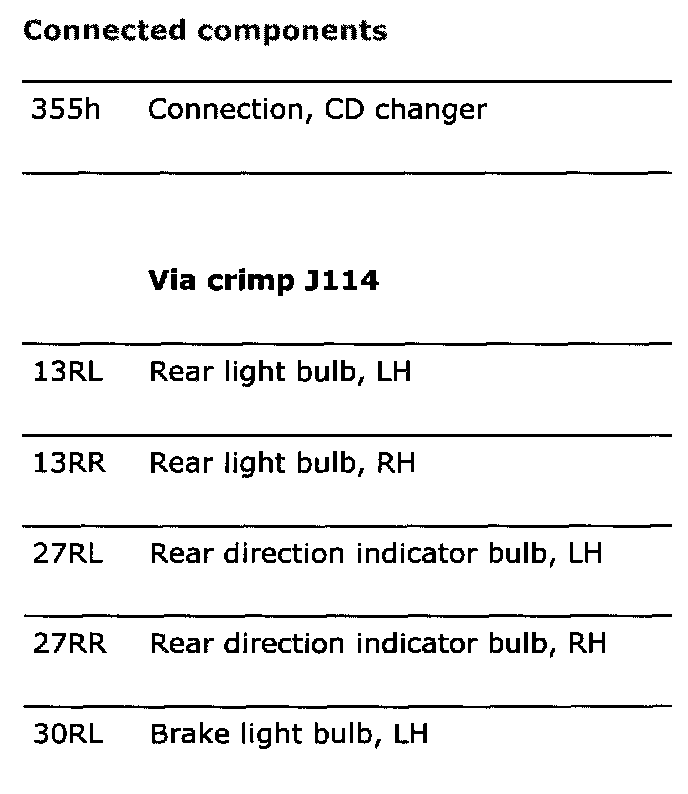

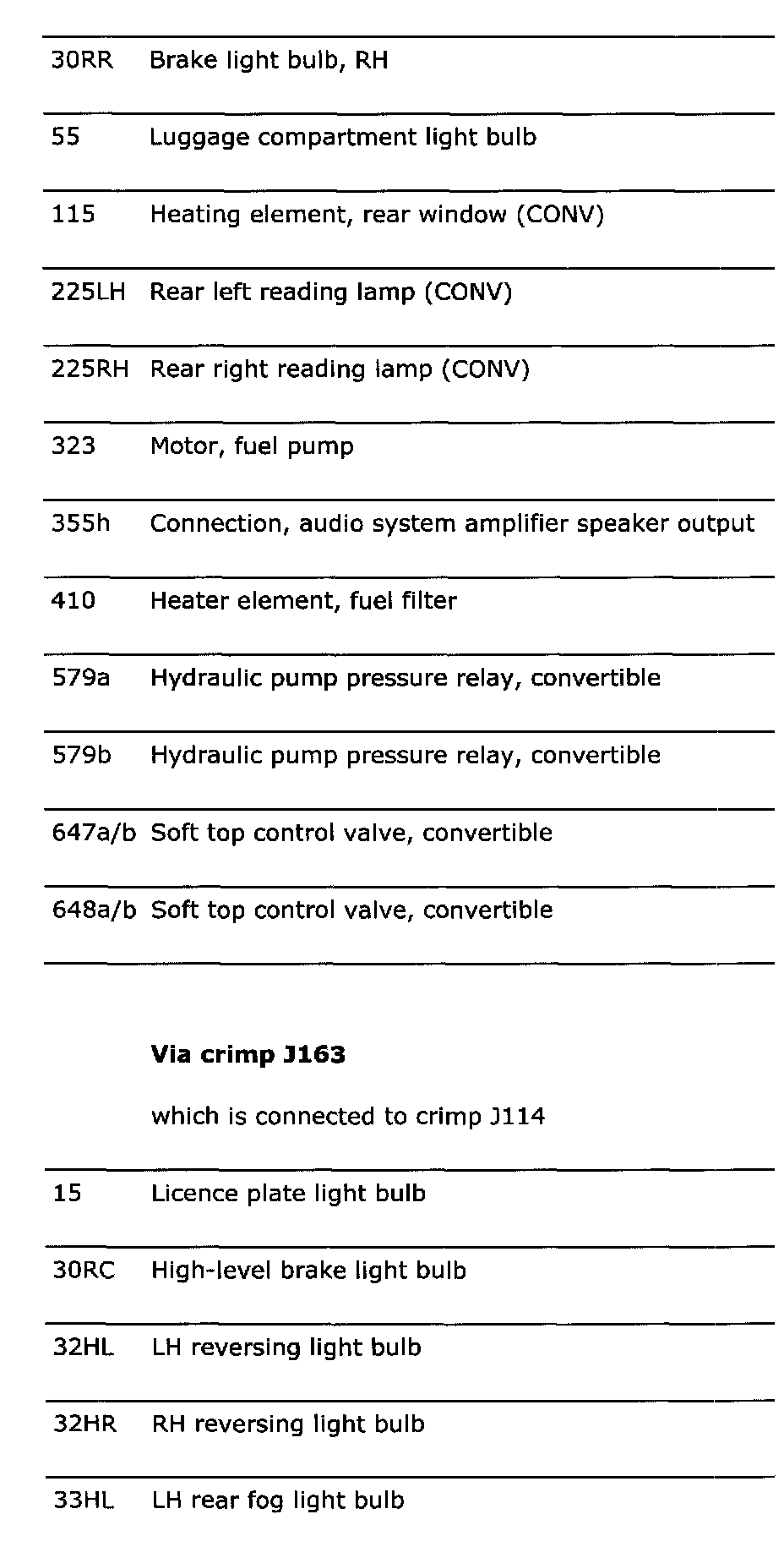

Part 2:

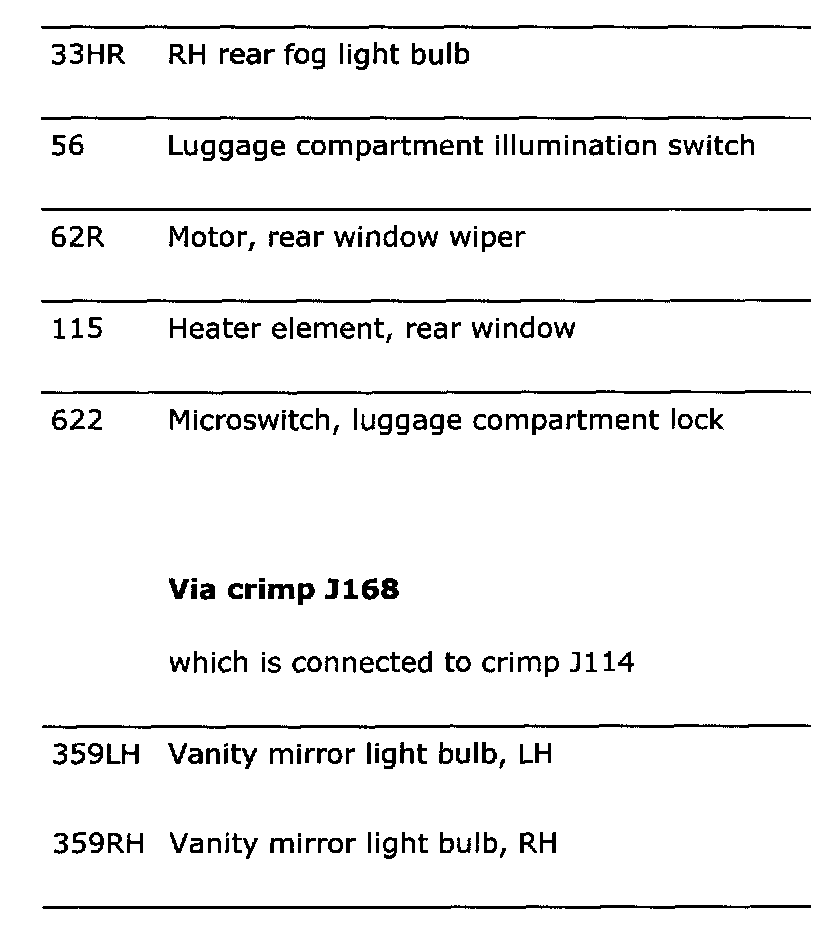

Part 3:
