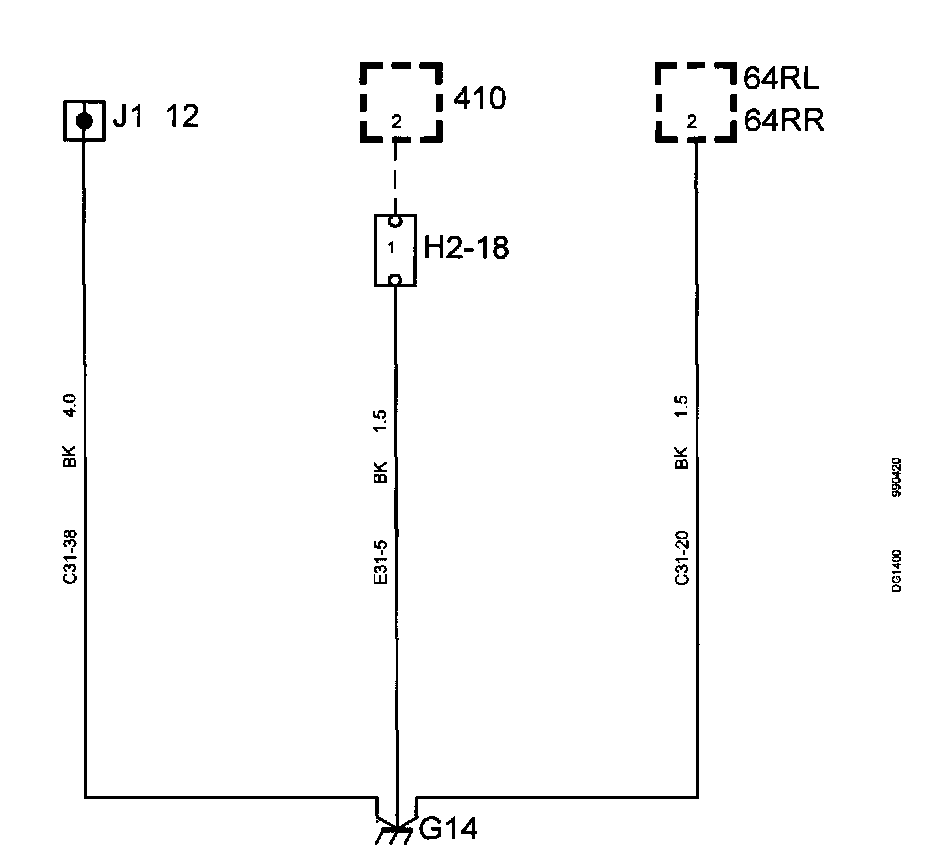

Grounding Point G14




Grounding Point G14

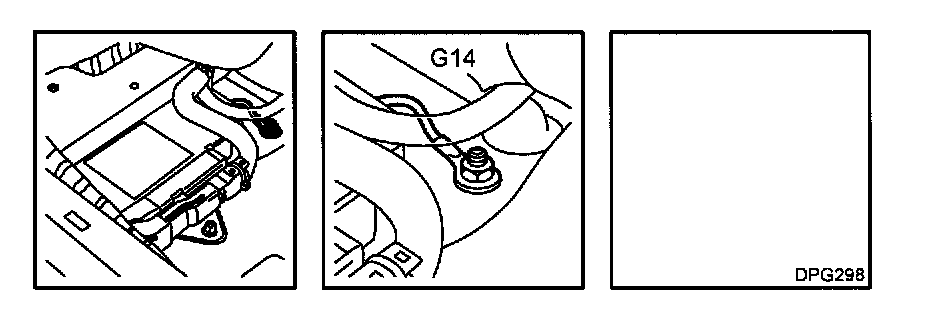

Location: under LH seat on floor behind seat member

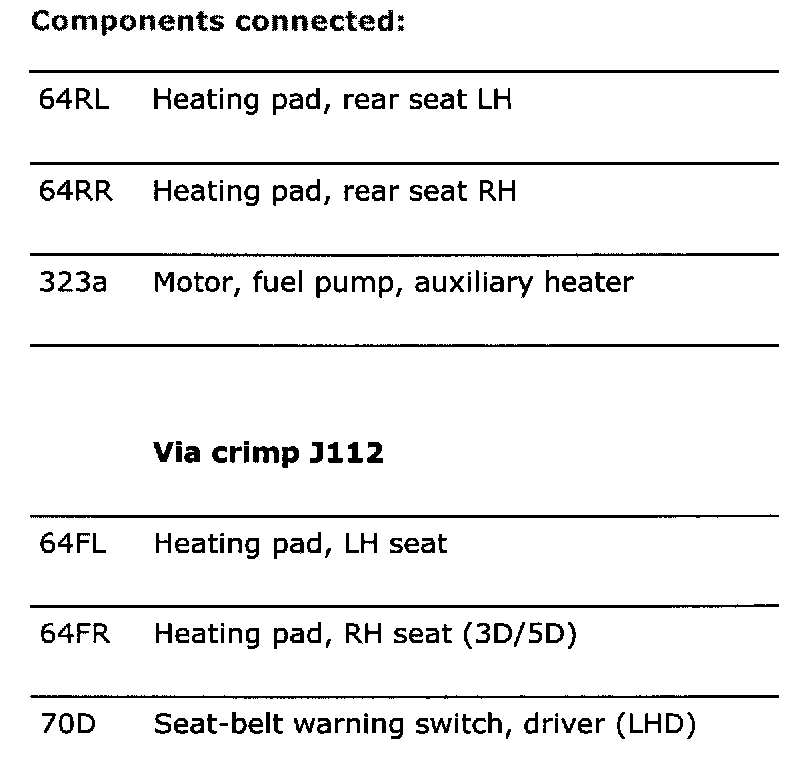

Part 1:

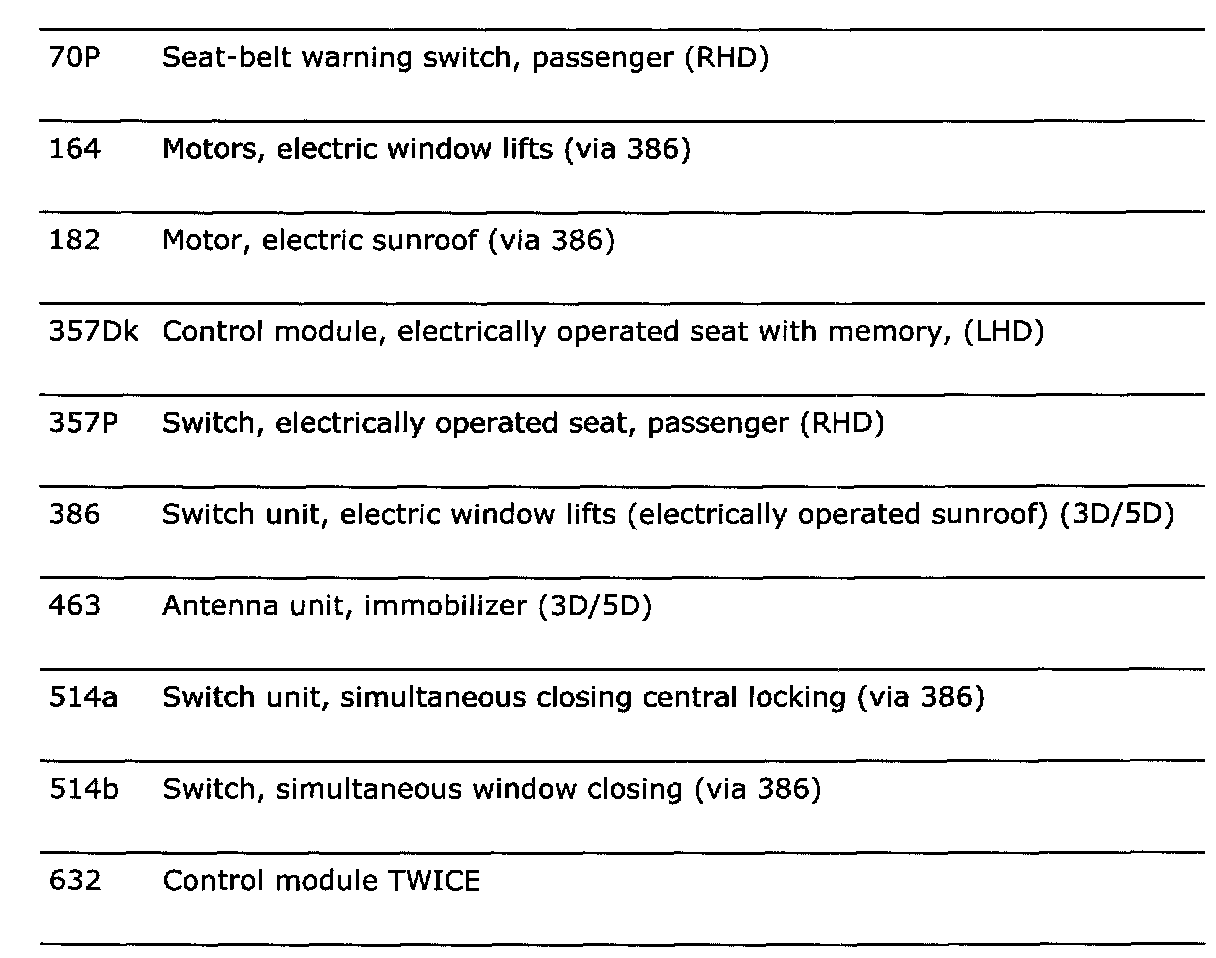

Part 2:
