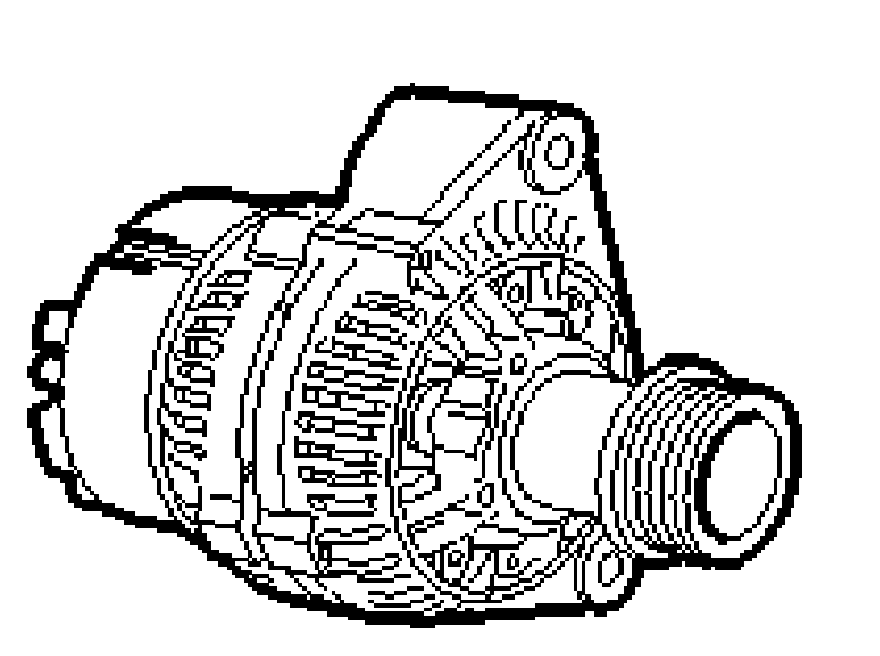

Checking the Generator's Charging Current

Checking The Generator's Charging Current







- Place a maximum load on the generator, such as by activating all the car's electrical equipment or a carbon film resistor.







- Take a current reading.

- The current should correspond to the generator's rated current.

Is the function correct?

NO - Continue With Checking The Generator's Charging Current

YES - Checking the Voltage Drop Between Battery and Generator







- Rectify the generator,Electrical system, 'Charging System'. Testing and Inspection

After performing this procedure Final Check - II
