Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Radio, Stereo, and Compact Disc >> Speaker

Speaker

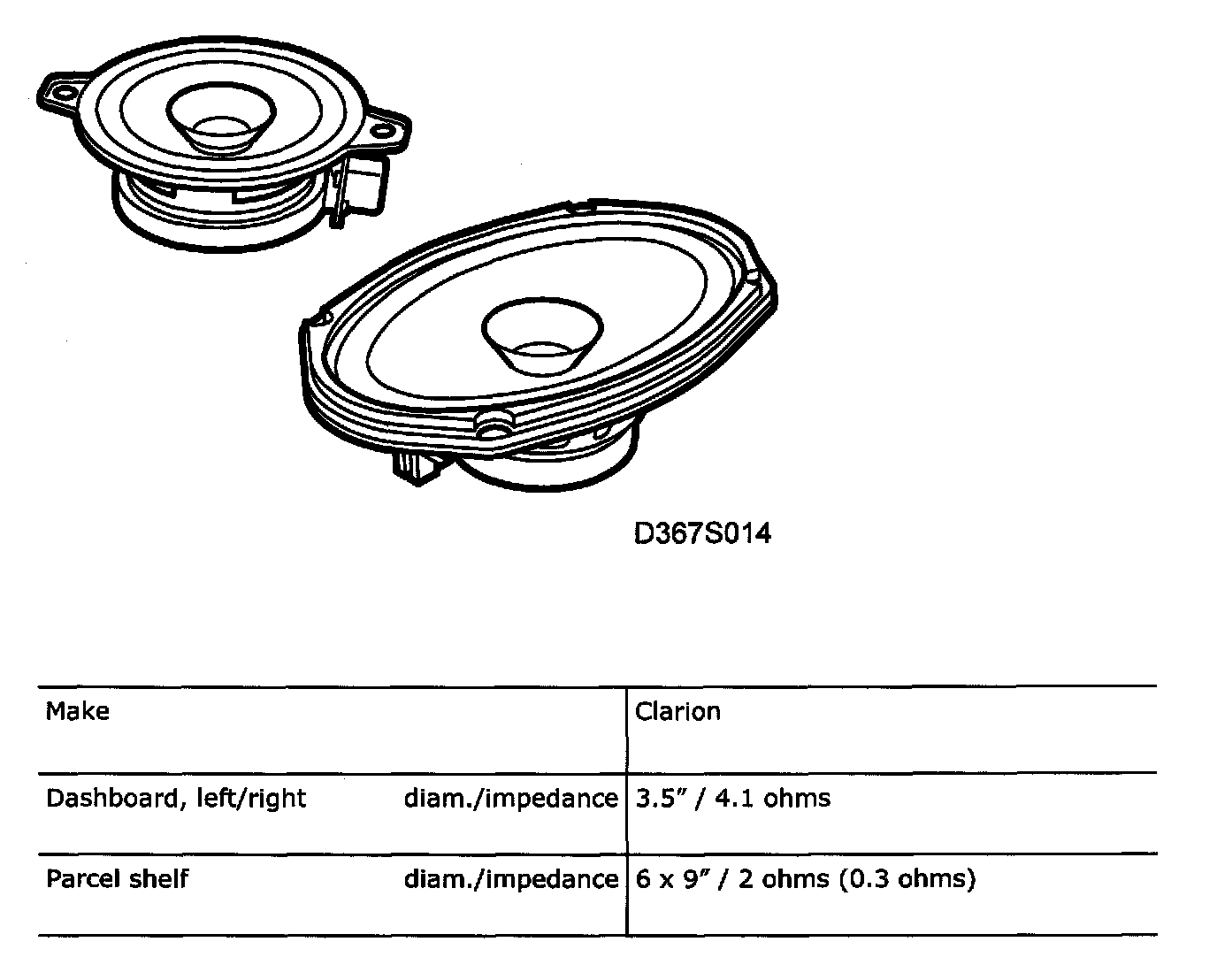

Loudspeaker, Audio System 1 And 2

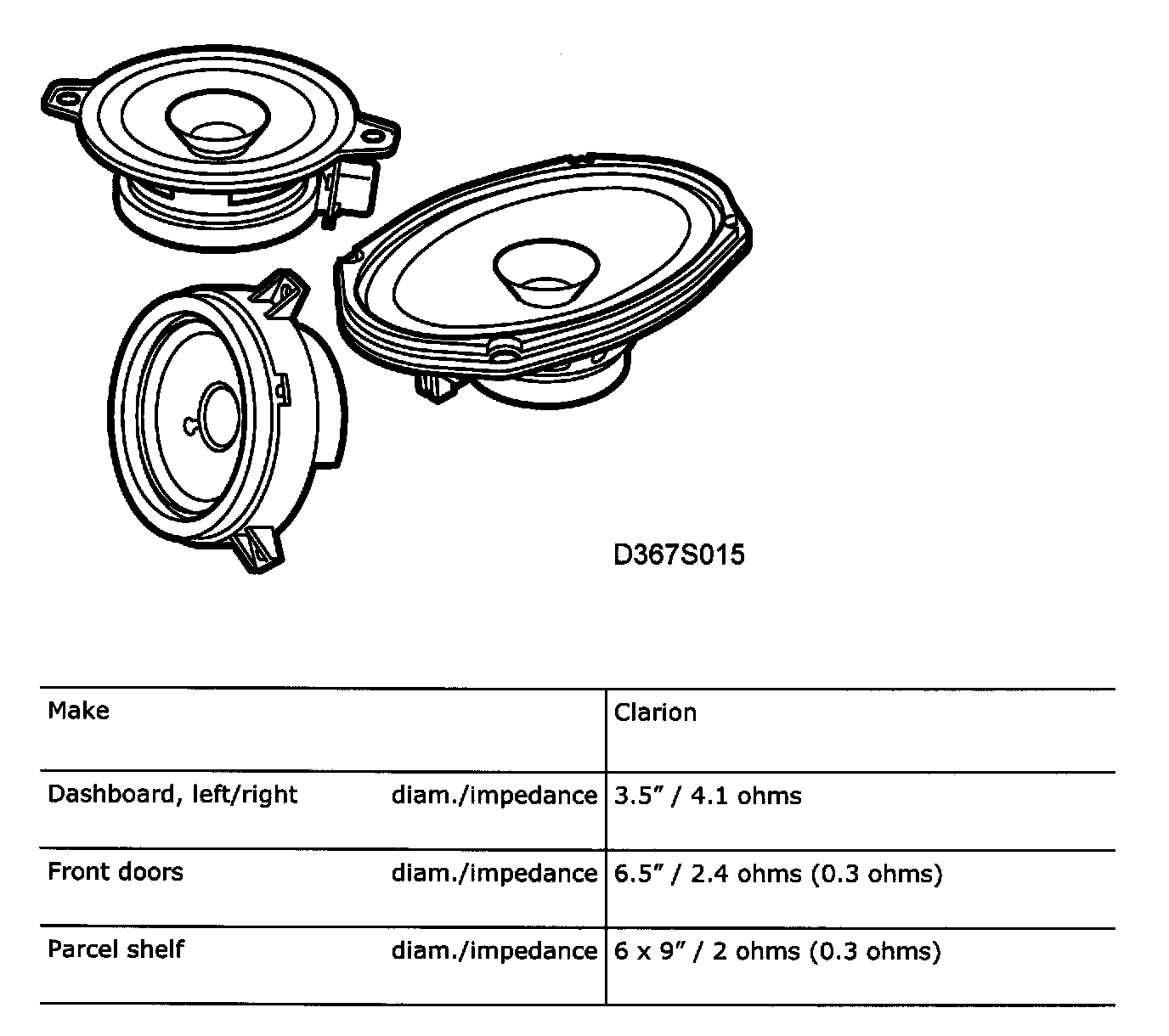

Loudspeaker, Audio System 3
