Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Radio, Stereo, and Compact Disc >> Amplifier, Sound System >> External Amplifier (Audio System 3)

External Amplifier (Audio System 3)




External Amplifier (Audio System 3)

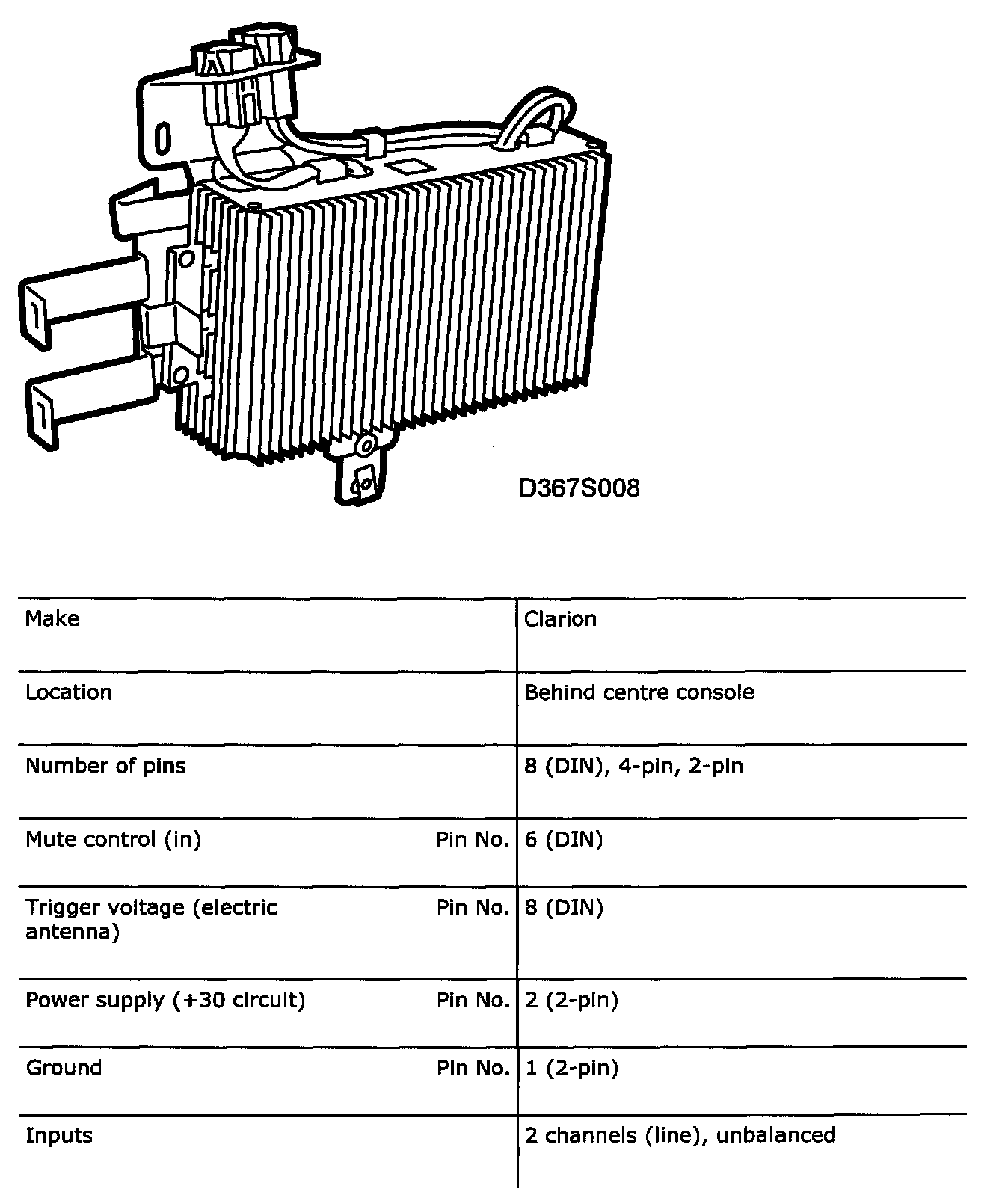

Part 1:

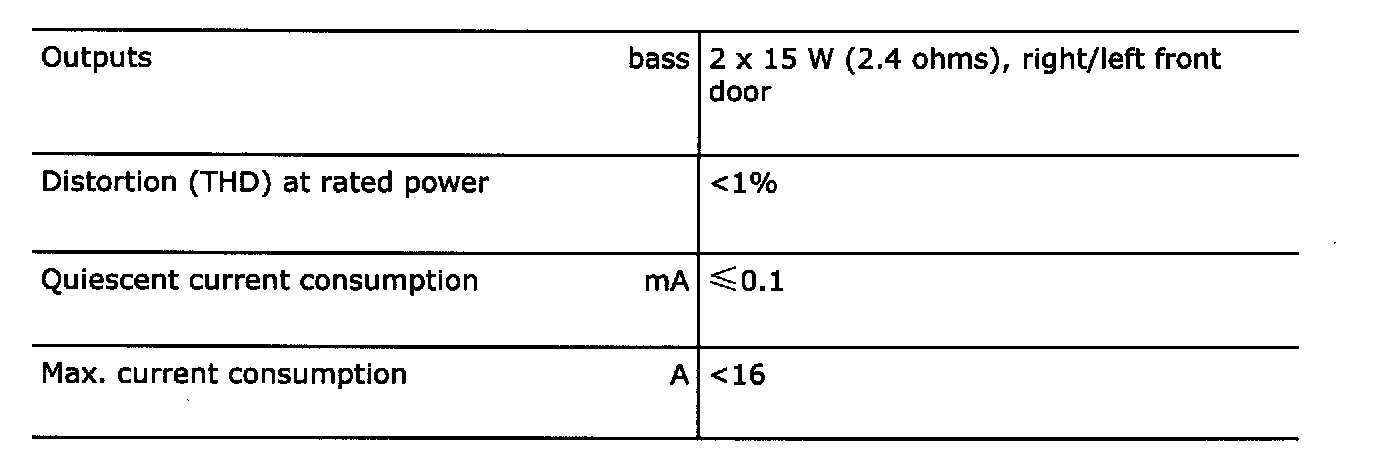

Part 2:
