9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Coolant Temperature Sensor/Switch (For Computer)
Coolant Temperature Sensor/Switch (For Computer)

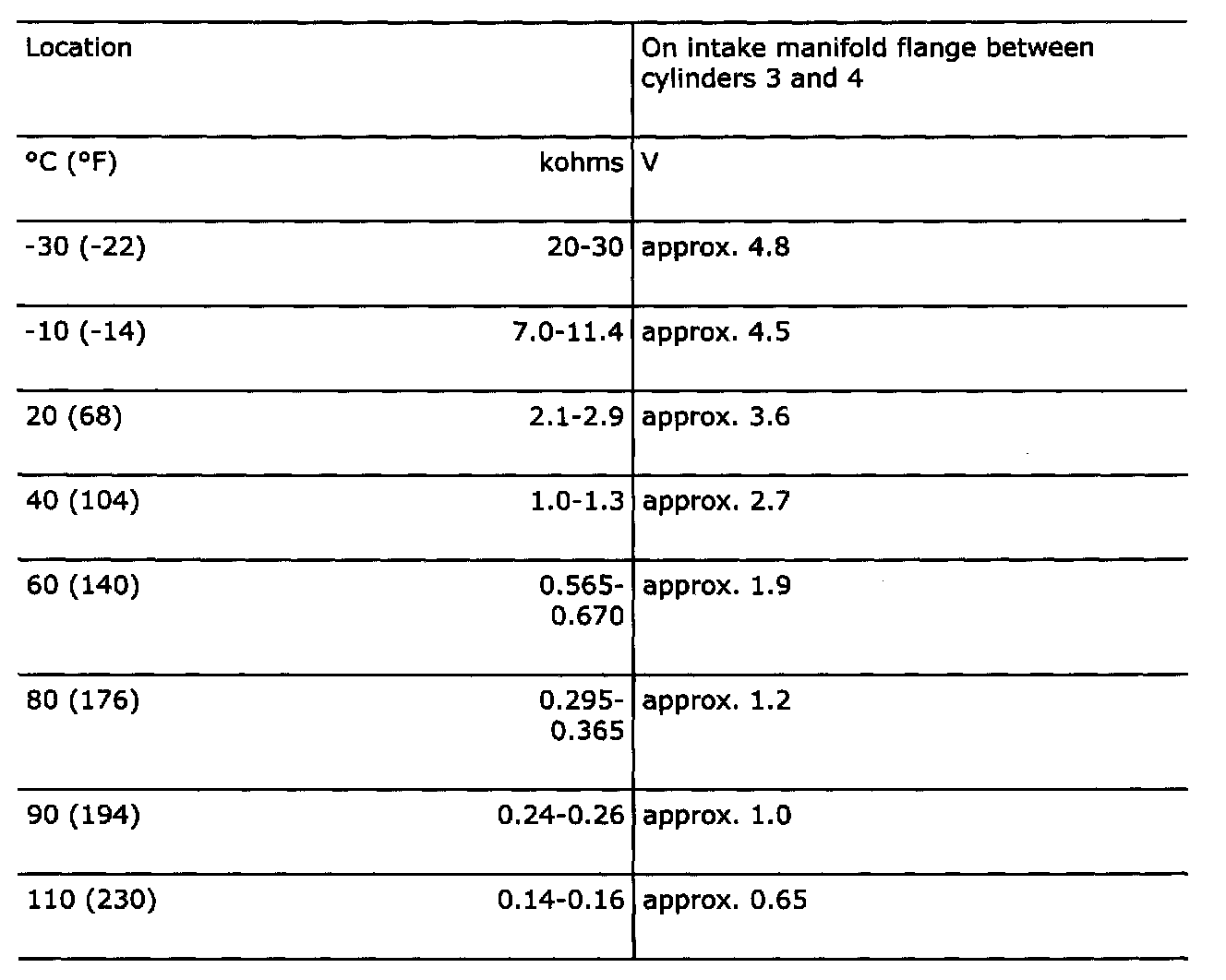

Coolant Temperature Sensor (202)
Power supply
5 V
through
1.0 kohm
resistor in control module.
