Grounding Point G24

Grounding Point G24

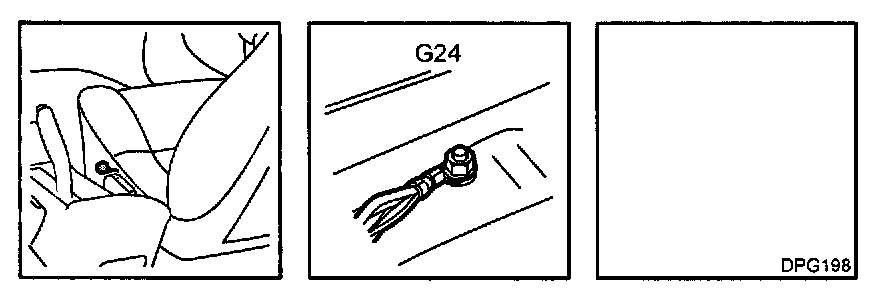

Location: under RH seat on floor behind seat member

Components connected:

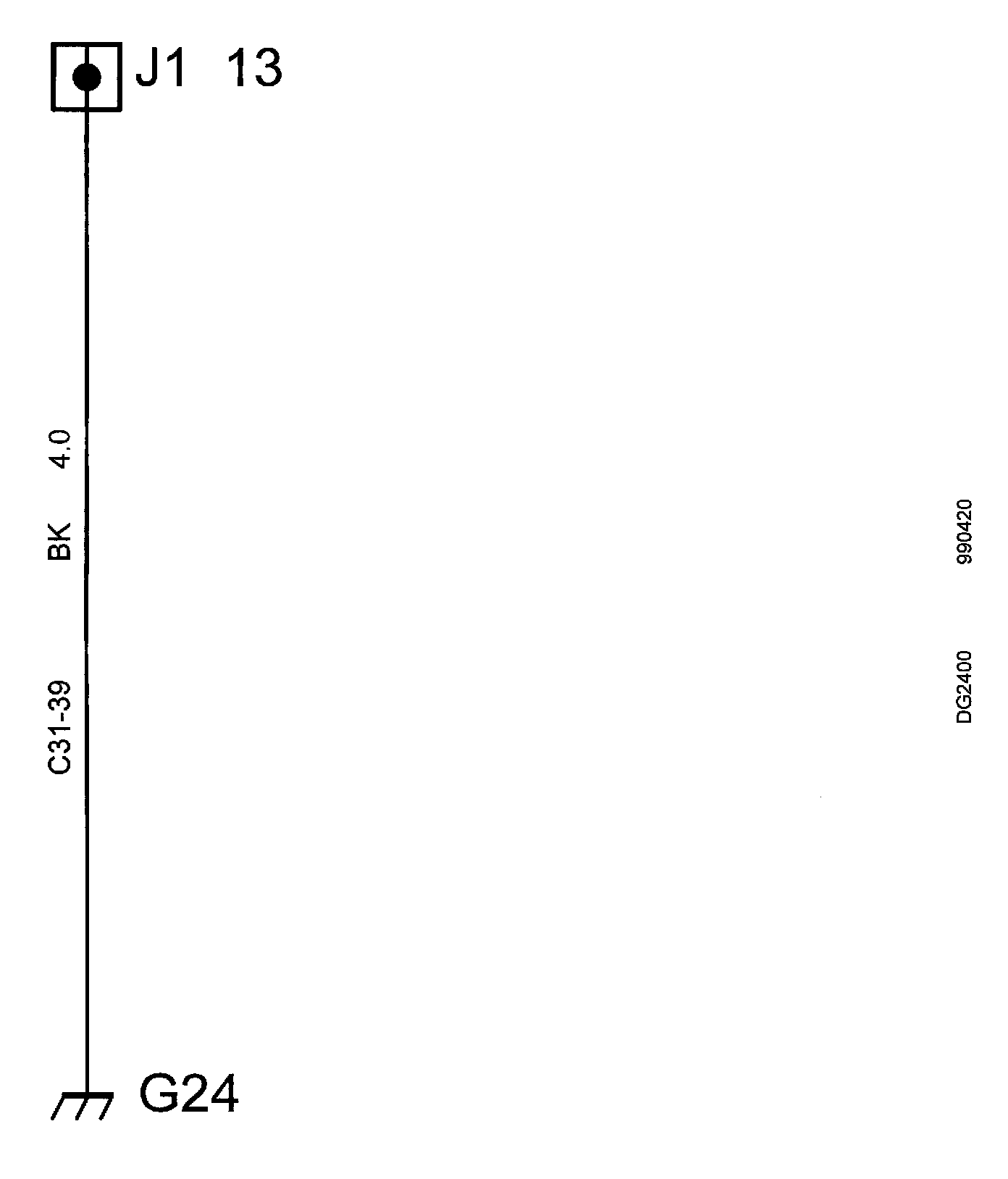

Via crimp J113

64FR Heating pad, LH seat (CONV)
70D Belt switch, driver (RHD)
70P Belt switch, passenger (LHD)
89RH Side direction indicators, RH
357Dk Control module, electrically operated seat with memory, driver (RHD)
357P Switch, electrically operated seat, passenger (LHD)
463 Antenna unit, immobilizer, convertible

A. Incremental components for left-hand-drive car

Via crimp J162
which is in contact with crimp J113

207P Heating element, rear mirror, passenger

B. A. Incremental components for right-hand-drive car

Via crimp J161
which is in contact with crimp J113

124 Switch, electrically operated rear mirror
126D Electrically operated rear mirror, driver (via 124)
184D Motor, central locking, driver's door
207D Heating element, rear mirror, driver
274 Microswitch, central locking, driver's door
388 Switch, luggage compartment lid
