Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

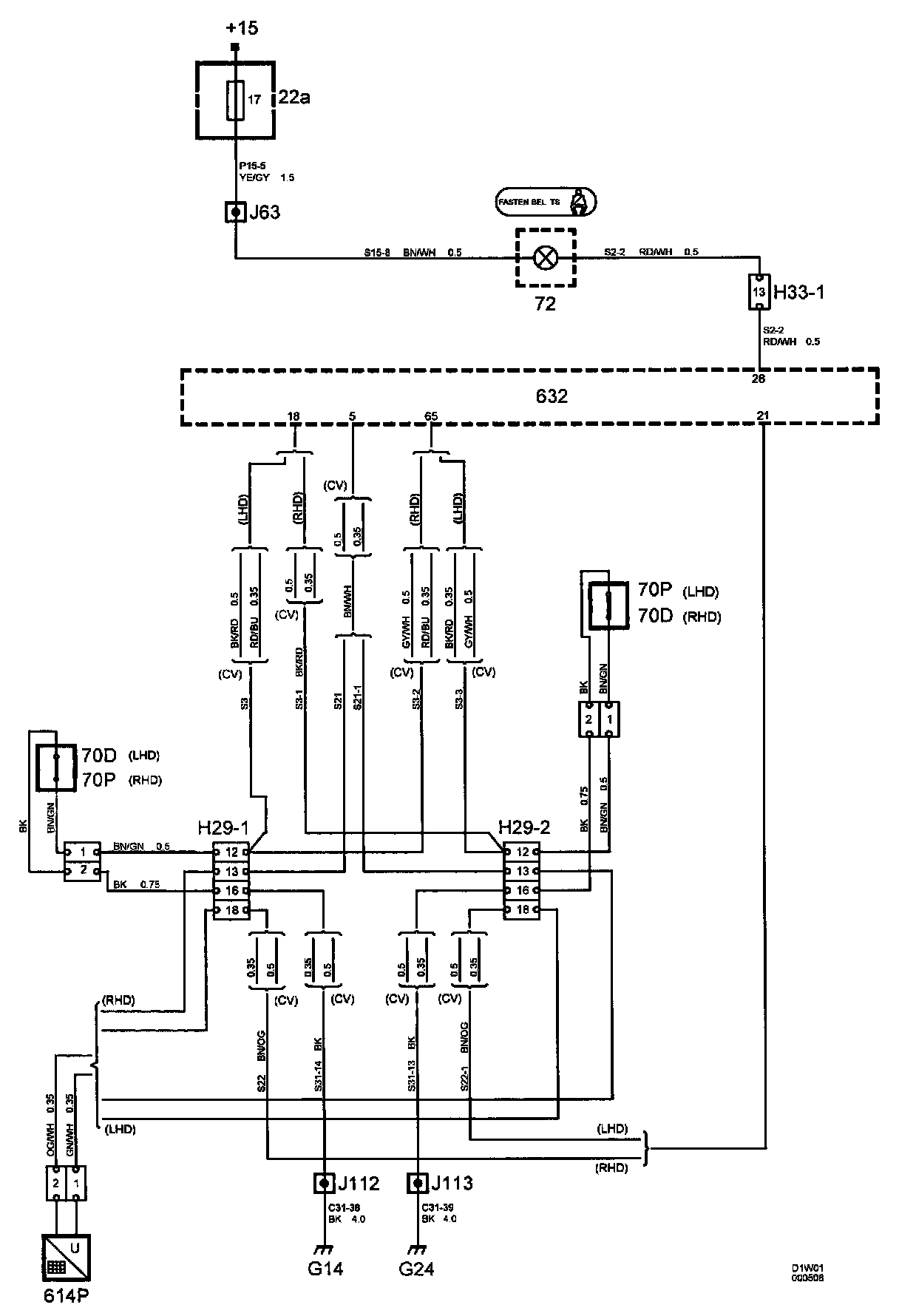

Seatbelt Warning

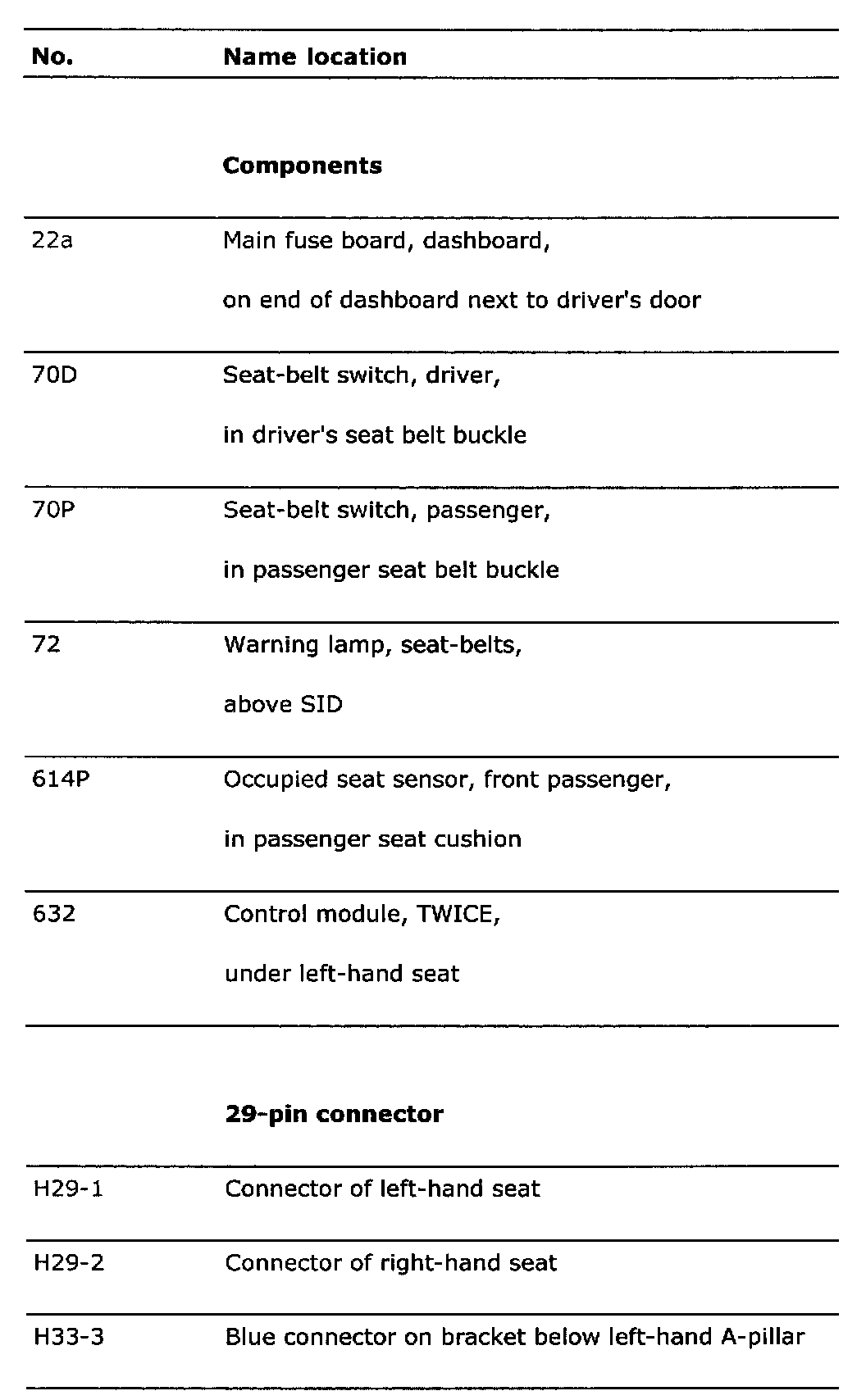

List Of Components


Part 1:

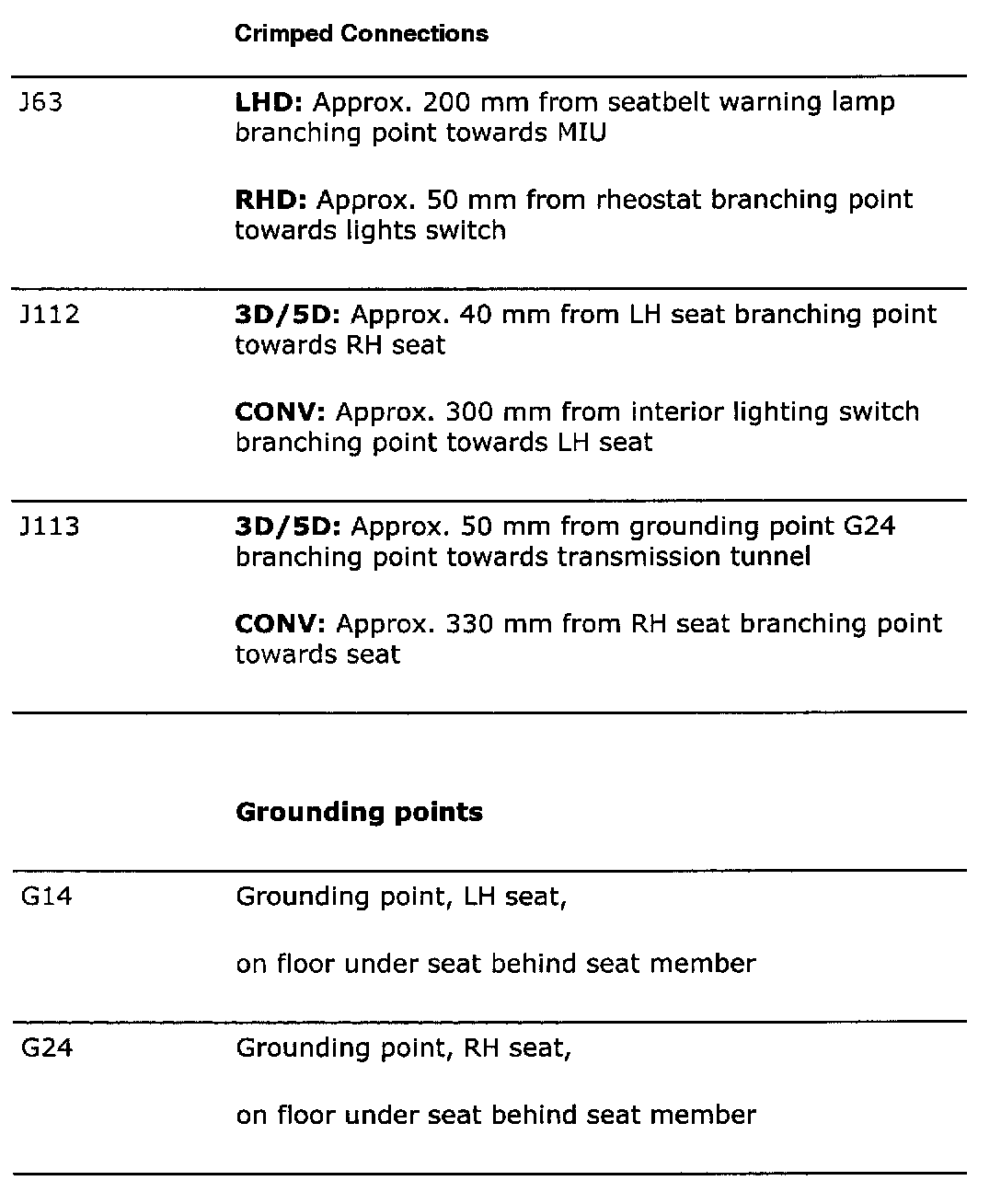

Part 2:
