Evaporative Emission System, Petrol

Evaporative Emission Canister

Dismantling
1. Raise the car and remove the front right wheel.

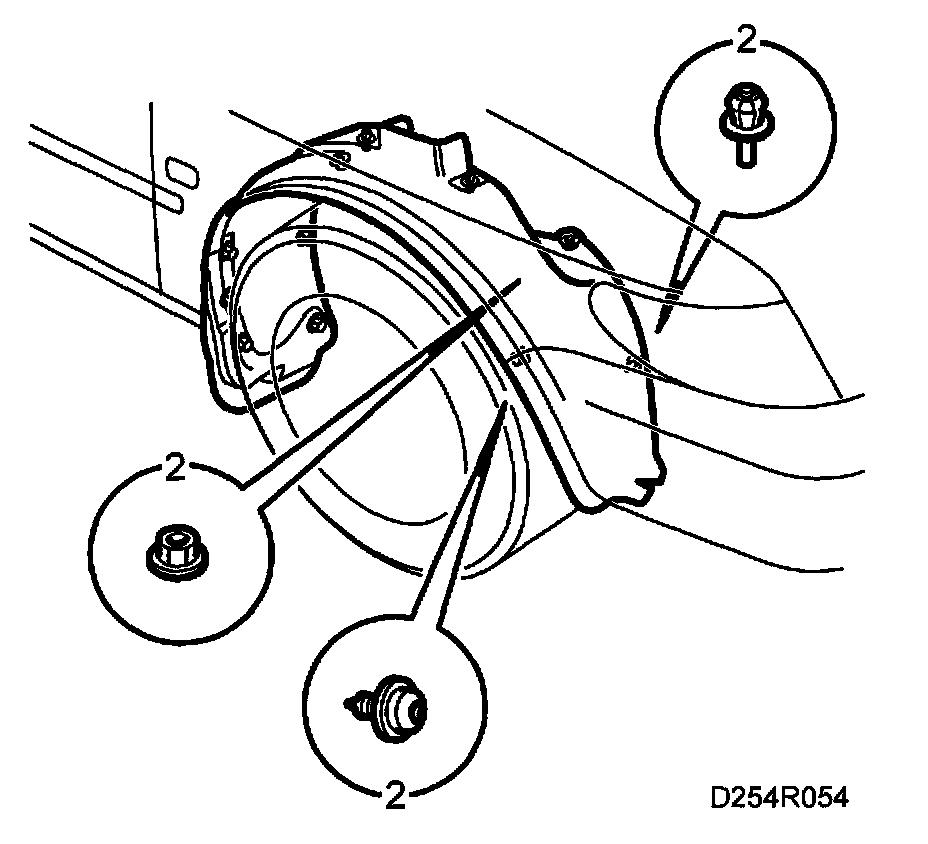

2. Remove the wing liner.

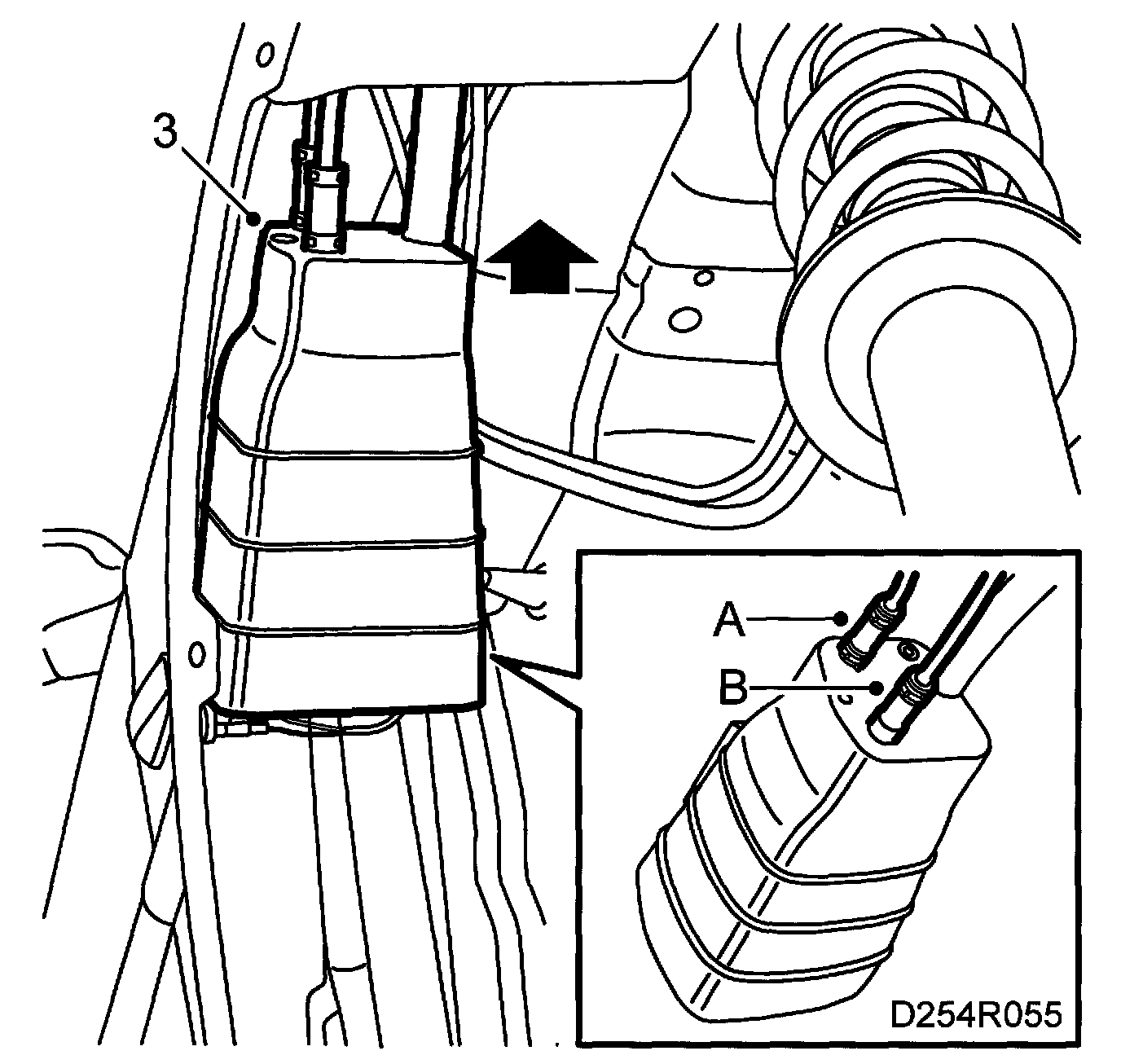

3. Unhook the evaporative emission canister.
4. Detach the hoses and make a note of their positions.
Hose A runs to the EVAP canister purge valve.
Hose B runs to the fuel tank


To fit

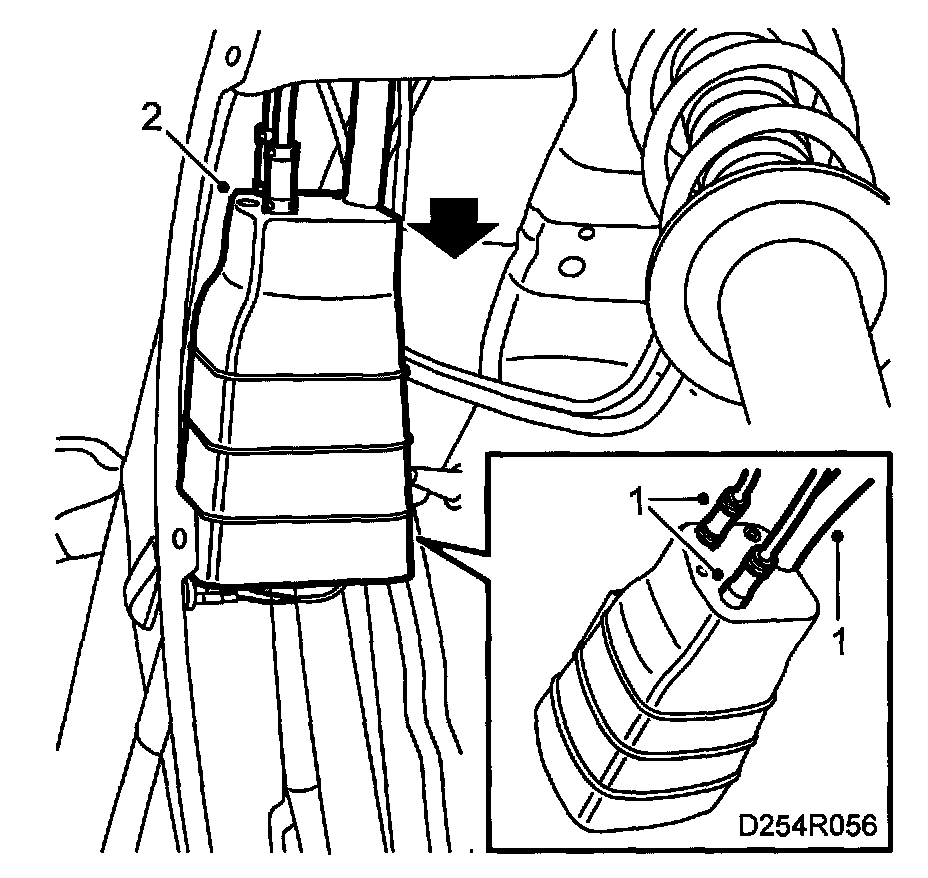

1. Refit the hoses in their correct positions.


IMPORTANT Do not get them mixed up.


2. Hook the evaporative emission canister in place.

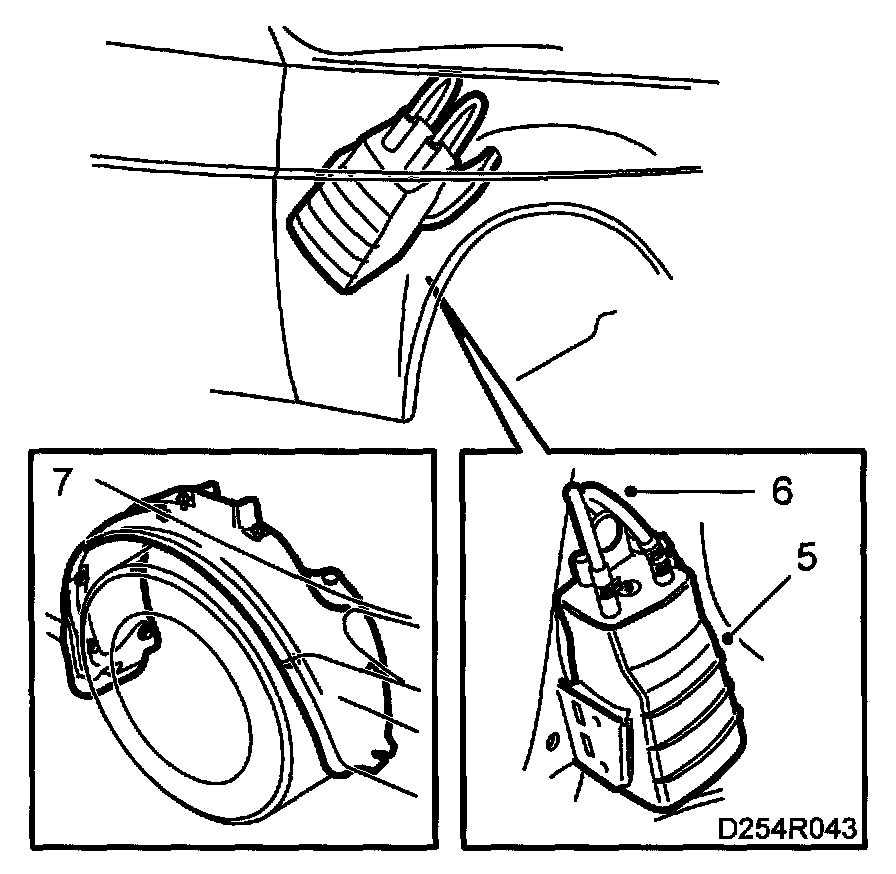

3. Make sure the acoustic absorber is fitted correctly.

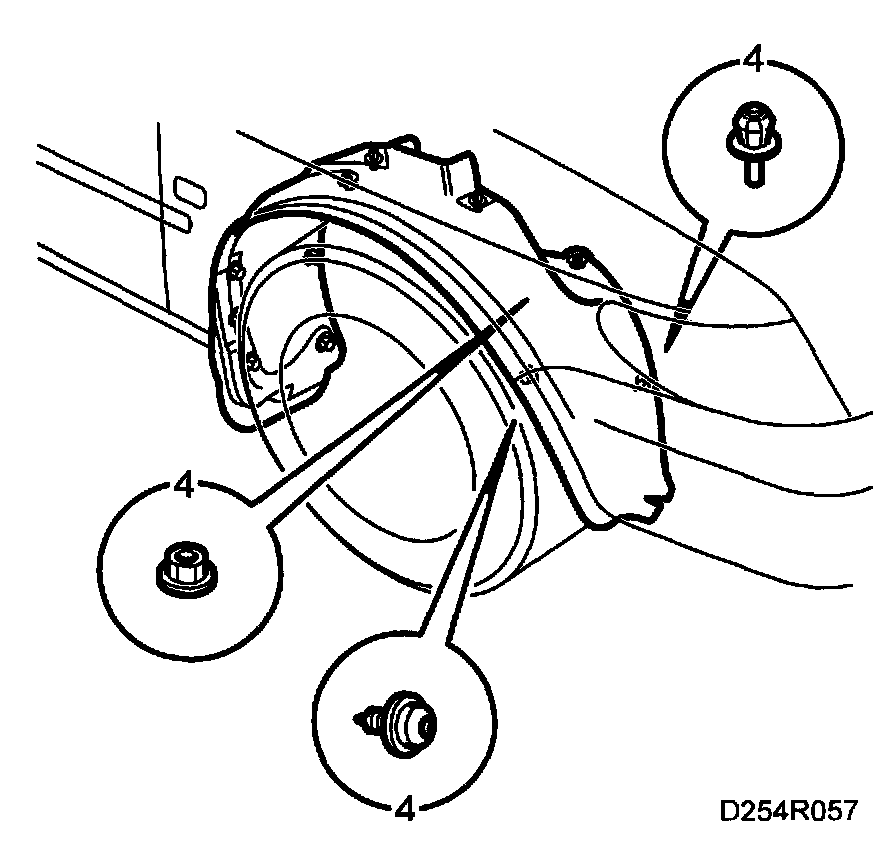

4. Fit the wing liner and wheel.
Tightening torque 110 Nm (81 lbf ft)







5. Lower the car to the floor.
