Electrical Diagrams



Trionic T7 Engine Management System, LEV/OBD II (Part 1/3)

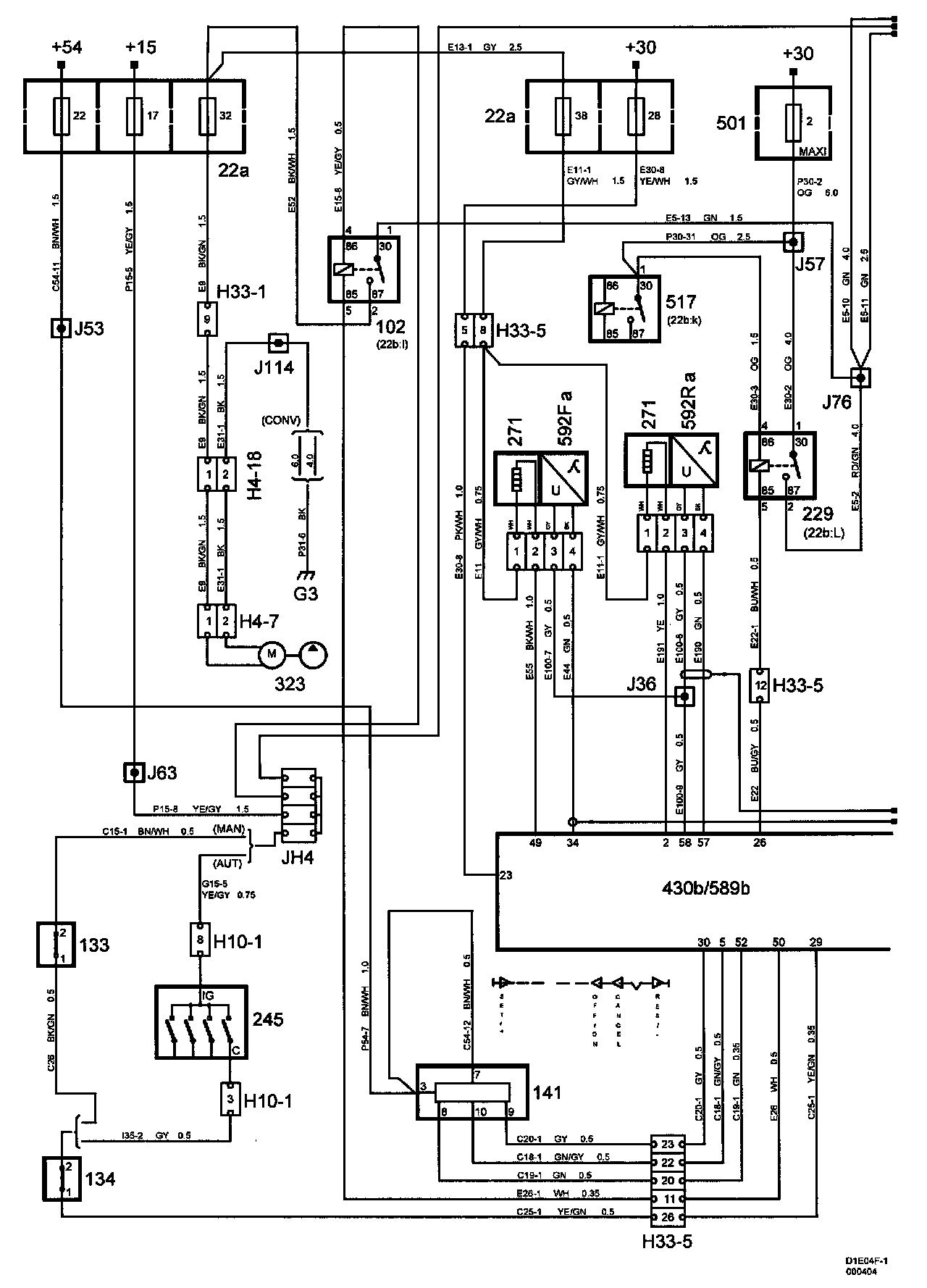

Wiring Diagram:

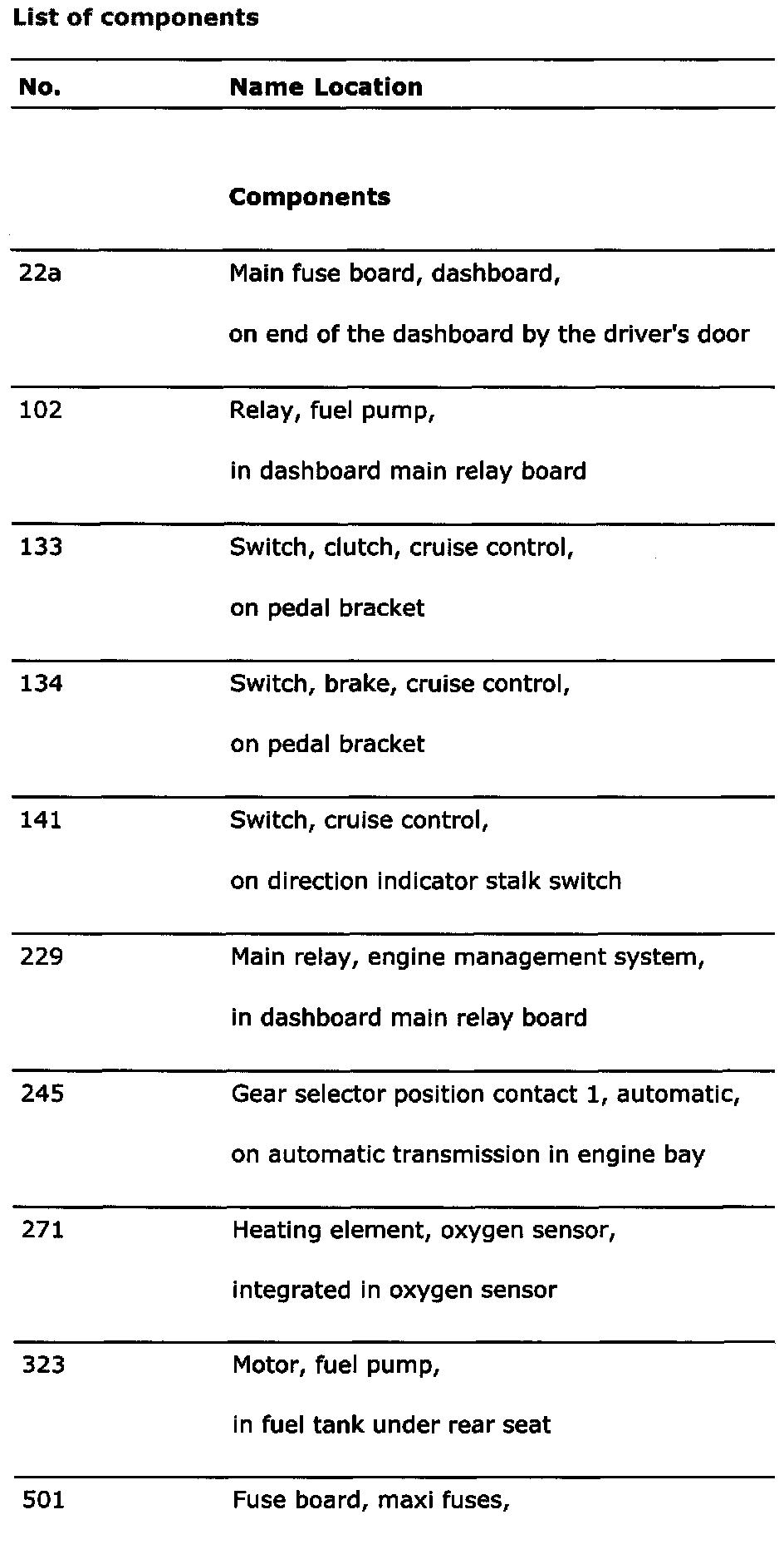

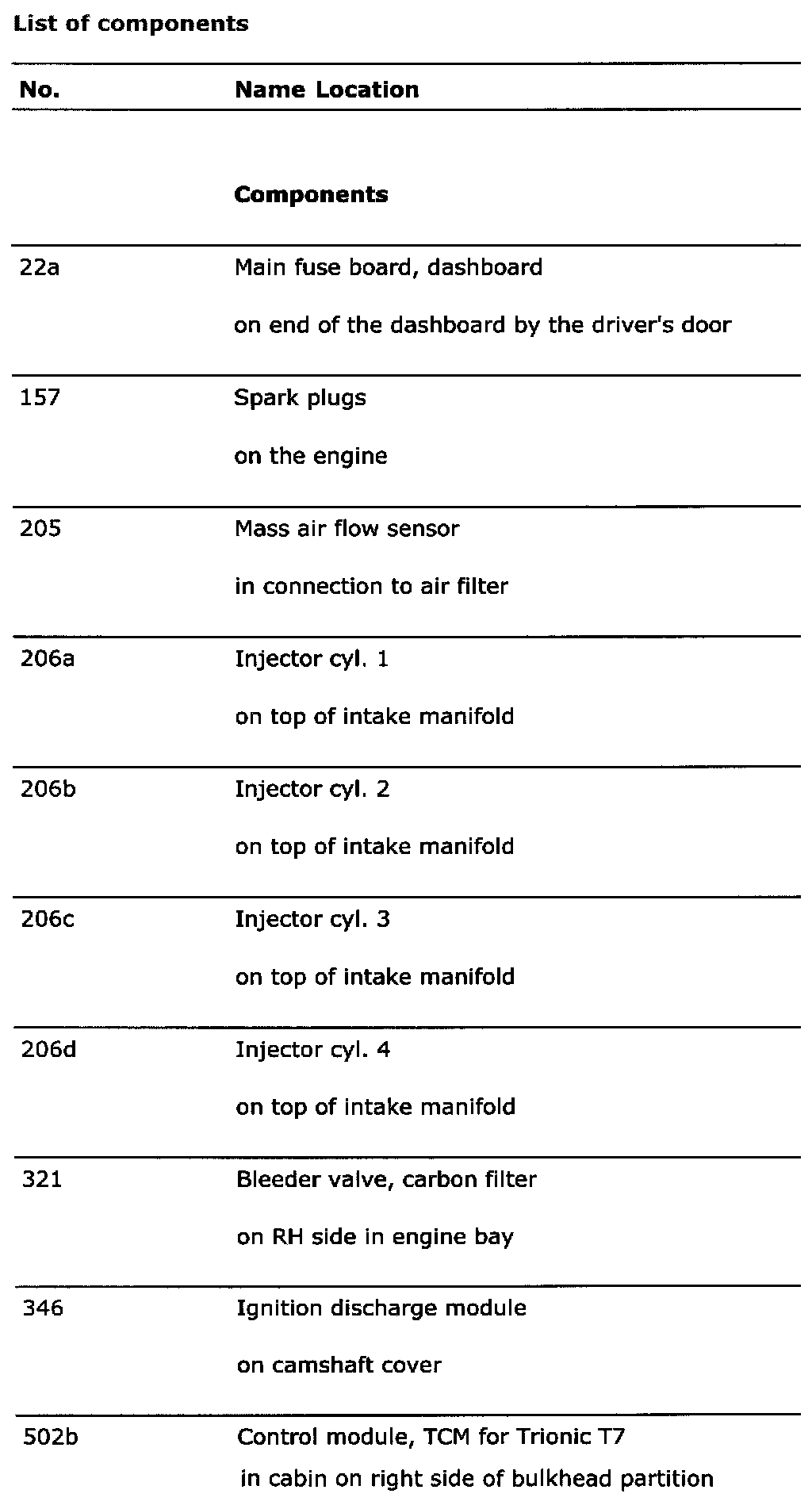

List 1:

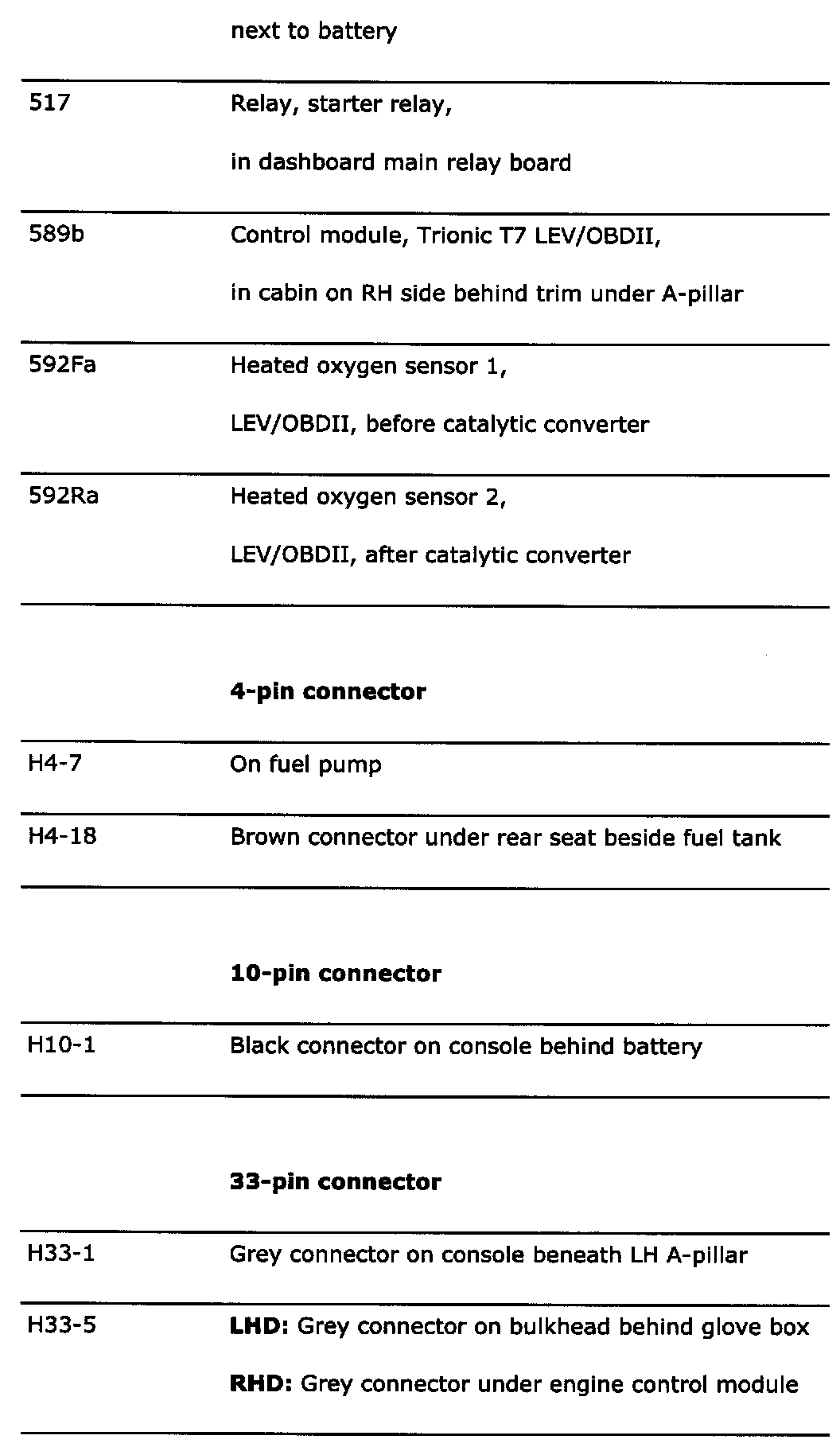

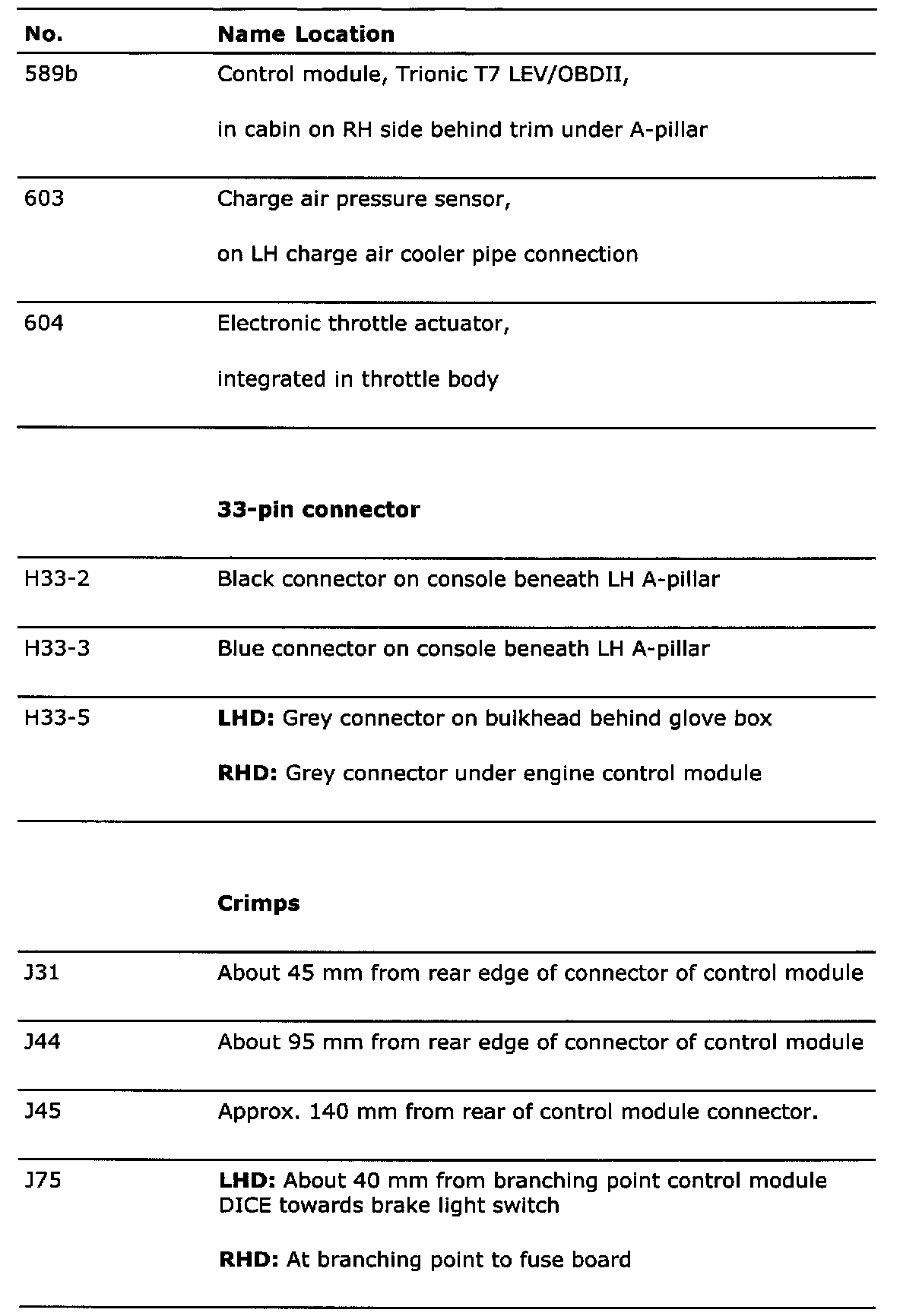

List 2:

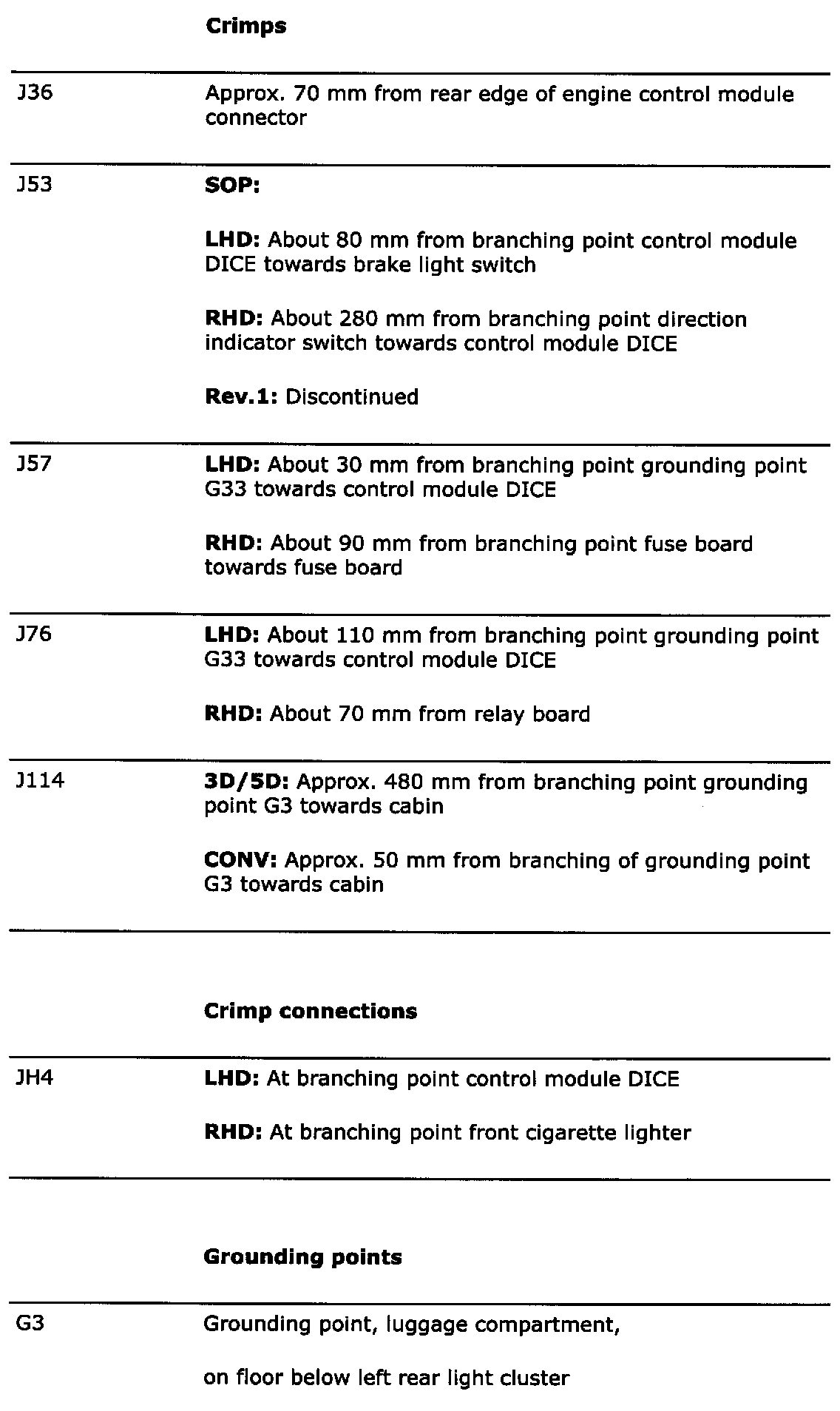

List 3:







Trionic T7 Engine Management System, LEV/OBD II (Part 2/3)

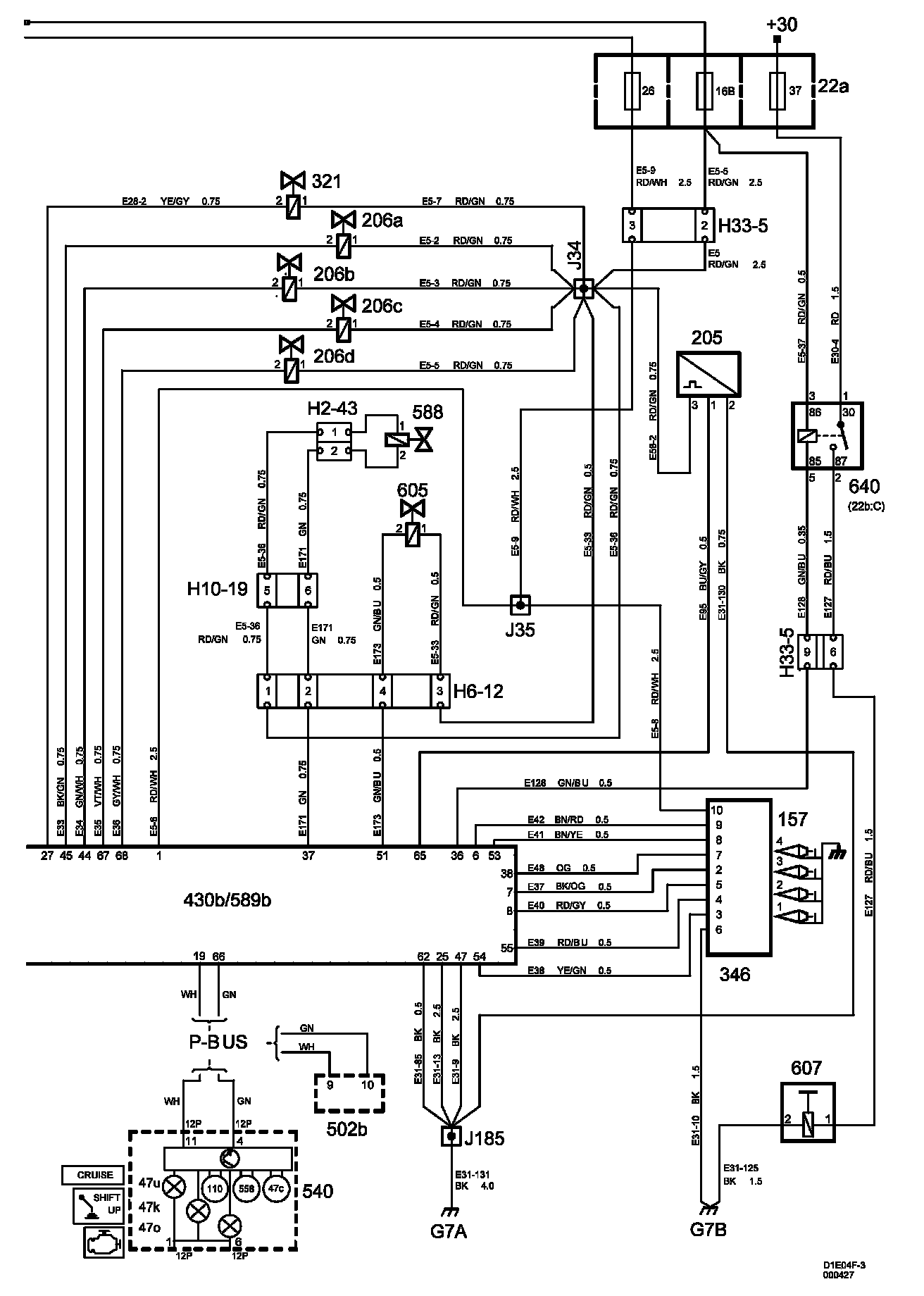

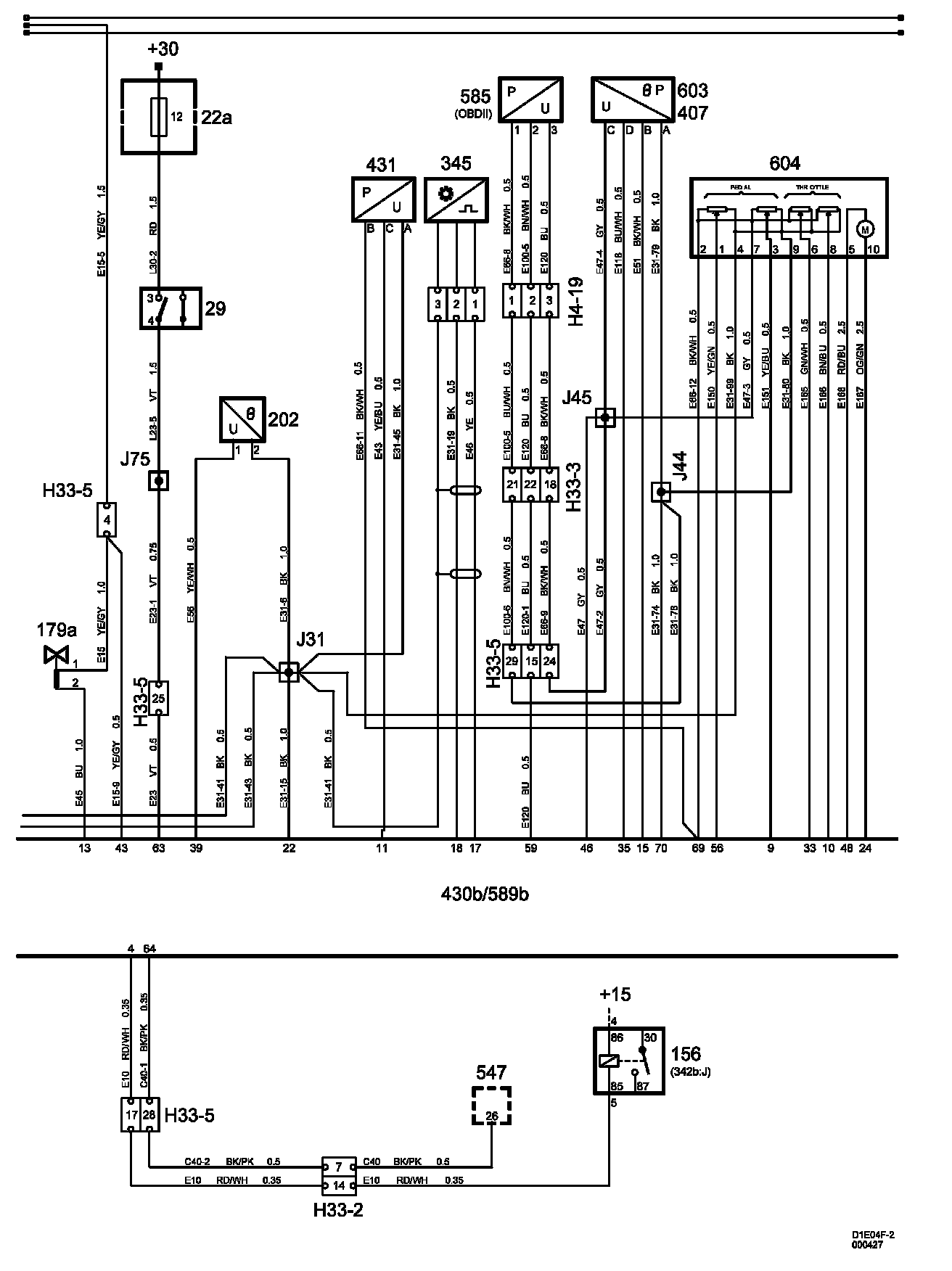

Wiring Diagram:

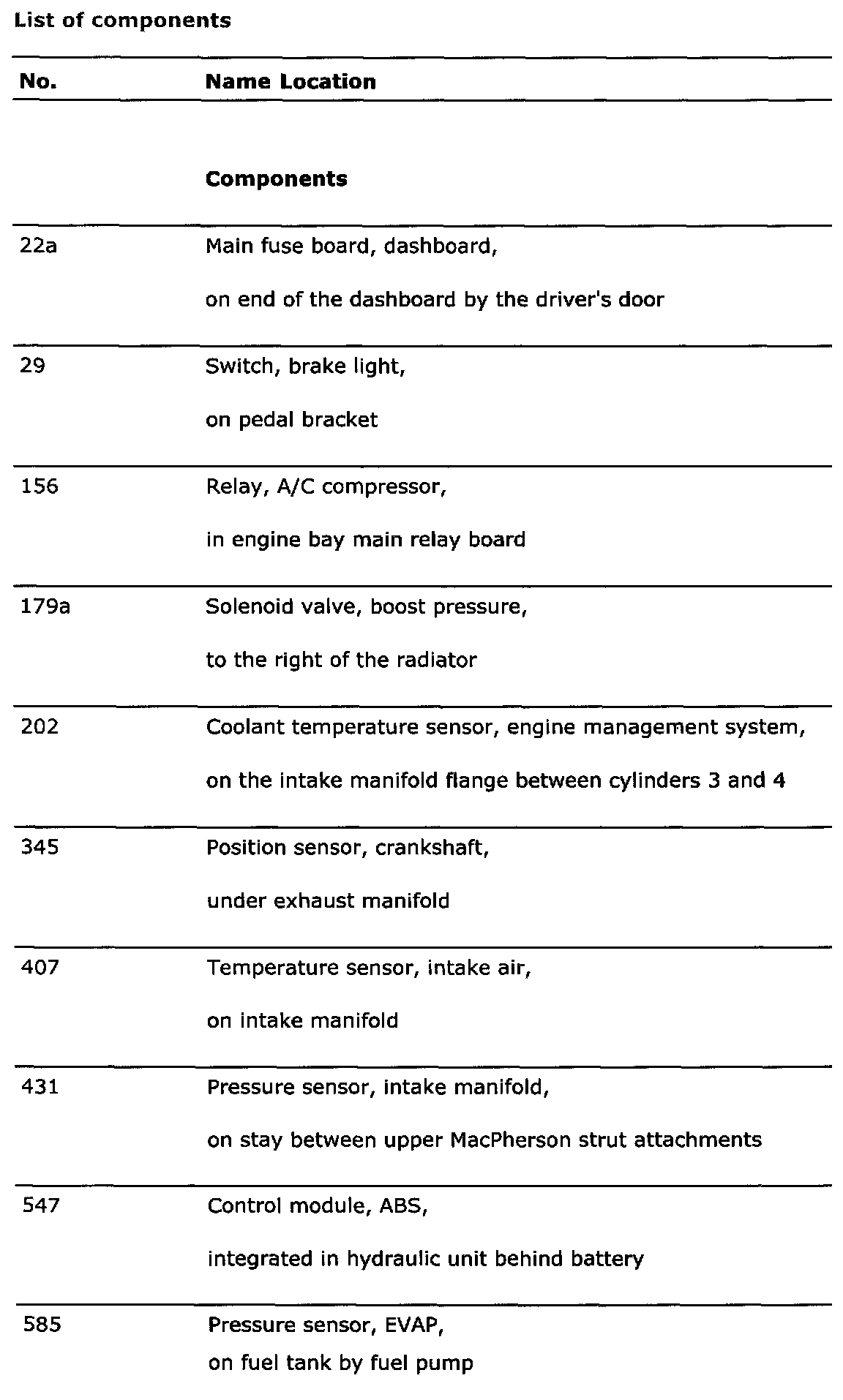

List 1:





List 2:







Trionic T7 Engine Management System, LEV/OBD II (Part 3/3)

Wiring Diagram:

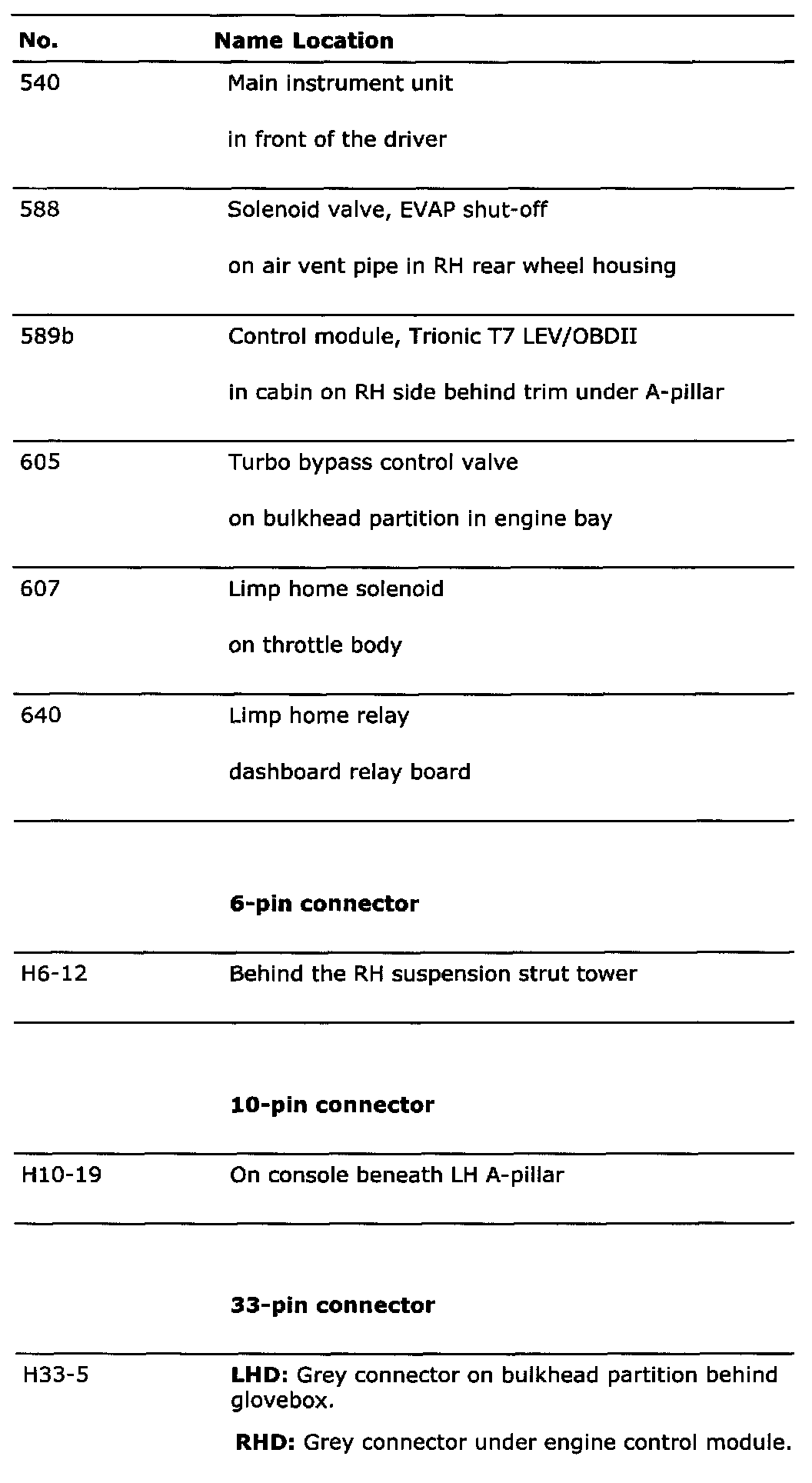

List 1:





List 2:





List 3:
