Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Ground Locations >> Grounding Point G3

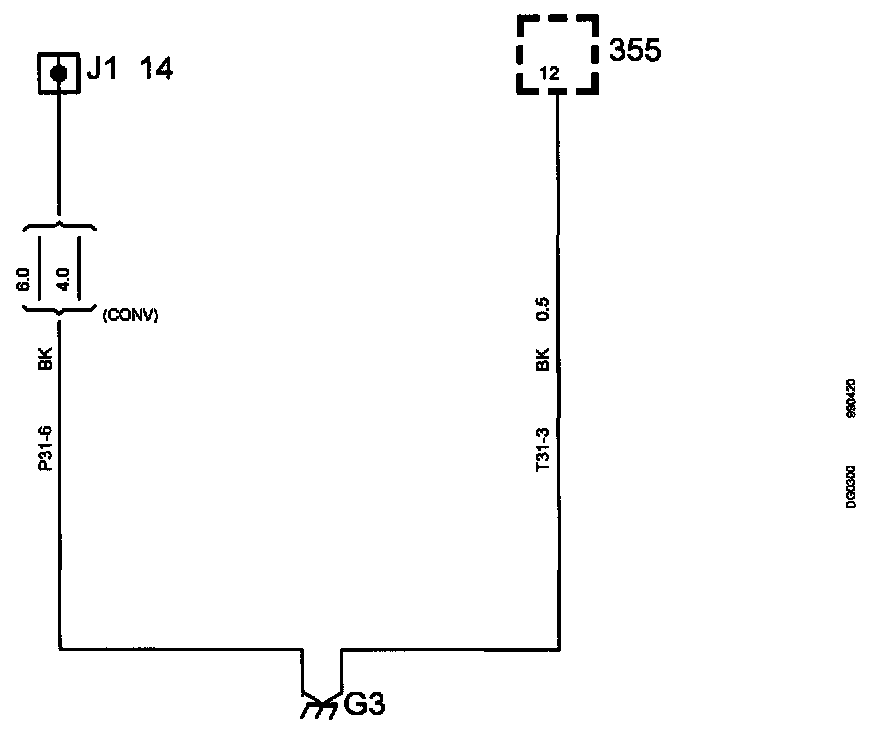

Grounding Point G3




Grounding Point G3

Location: in luggage compartment under rear left light cluster.

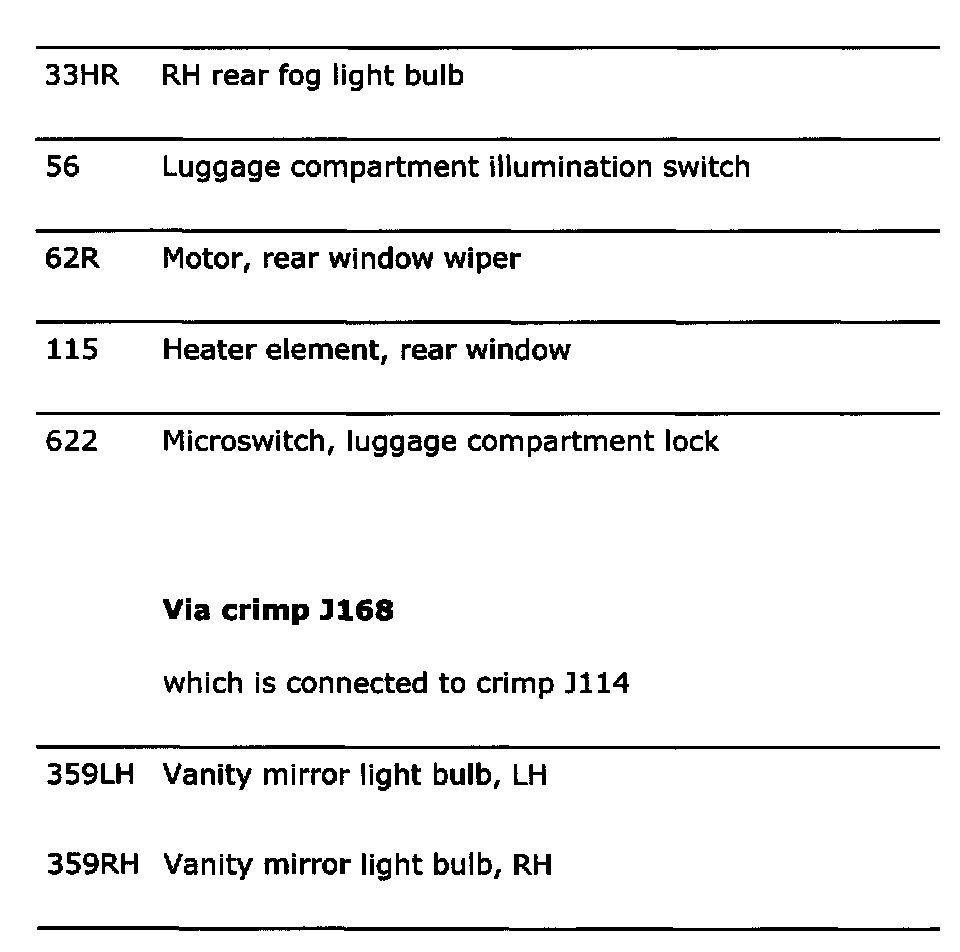

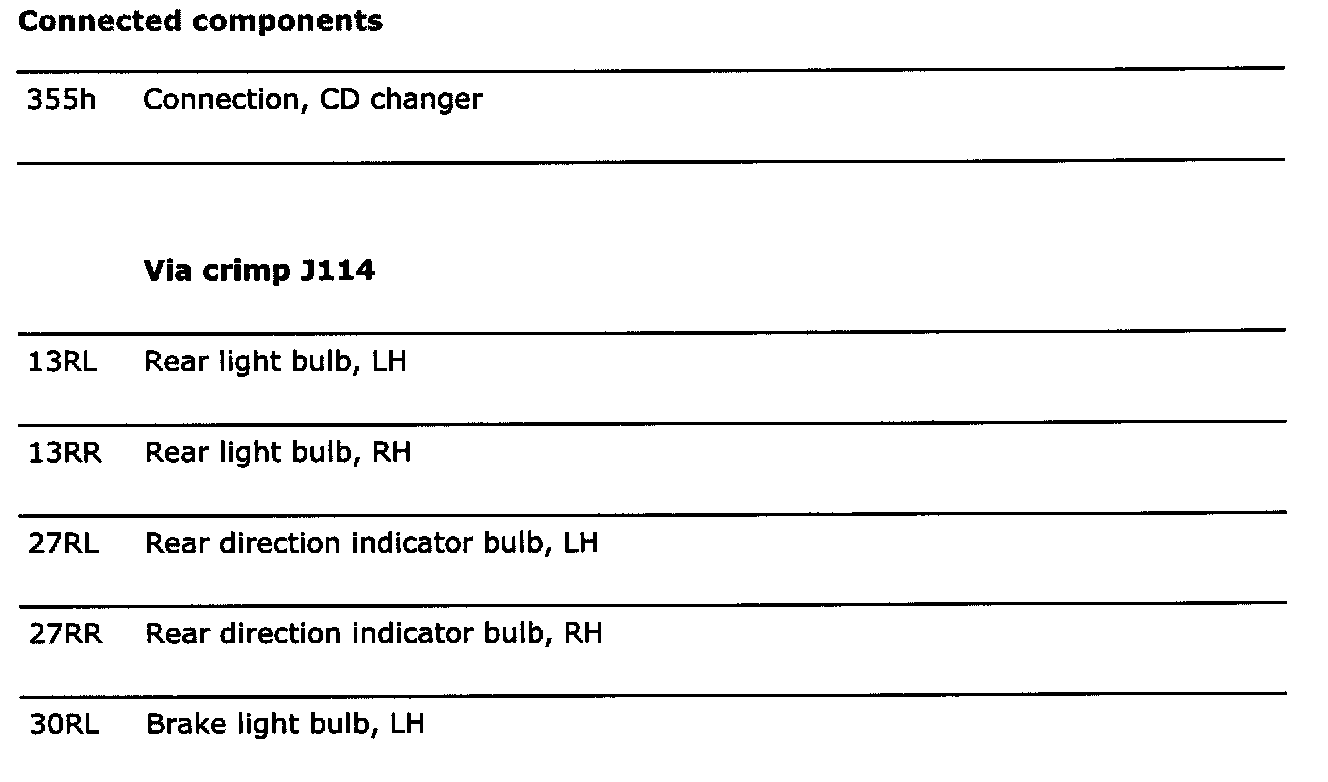

Part 1:

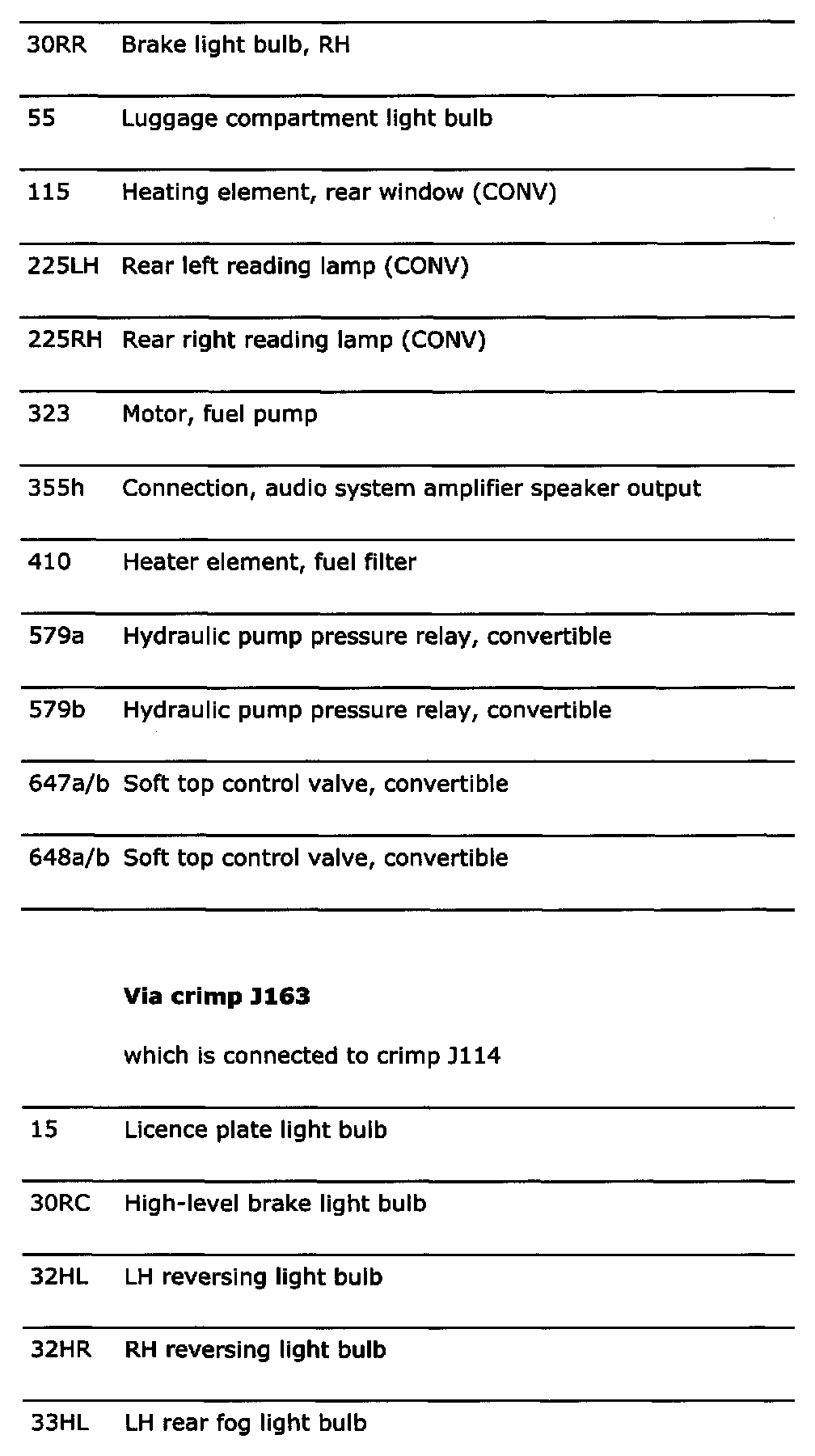

Part 2:
