Fuel Filter: Service and Repair

Fuel Filter


WARNING
Removal of the fuel filter involves partial dismantling of the car's fuel system. The following points must therefore be observed in connection with this work:
- Work only in a well-ventilated area! If approved equipment for the extraction of fuel vapors is available, be sure to use it.
- Wear suitable gloves! Prolonged contact with fuel can cause skin irritation or dermatitis.
- Keep a class BE fire extinguisher close at hand! Beware of sparks caused by short circuits and when connecting and disconnecting leads in electrical circuits.
- No smoking anywhere in the vicinity.


Dismantling

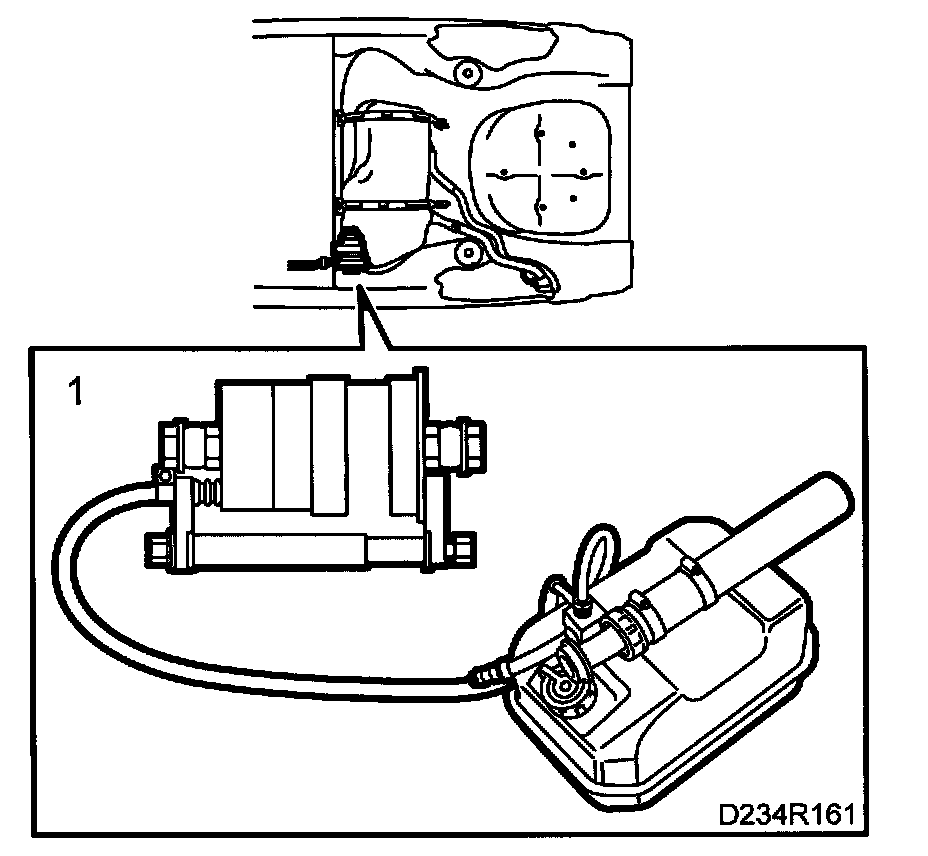

1. Drain fuel from the filter before removal.

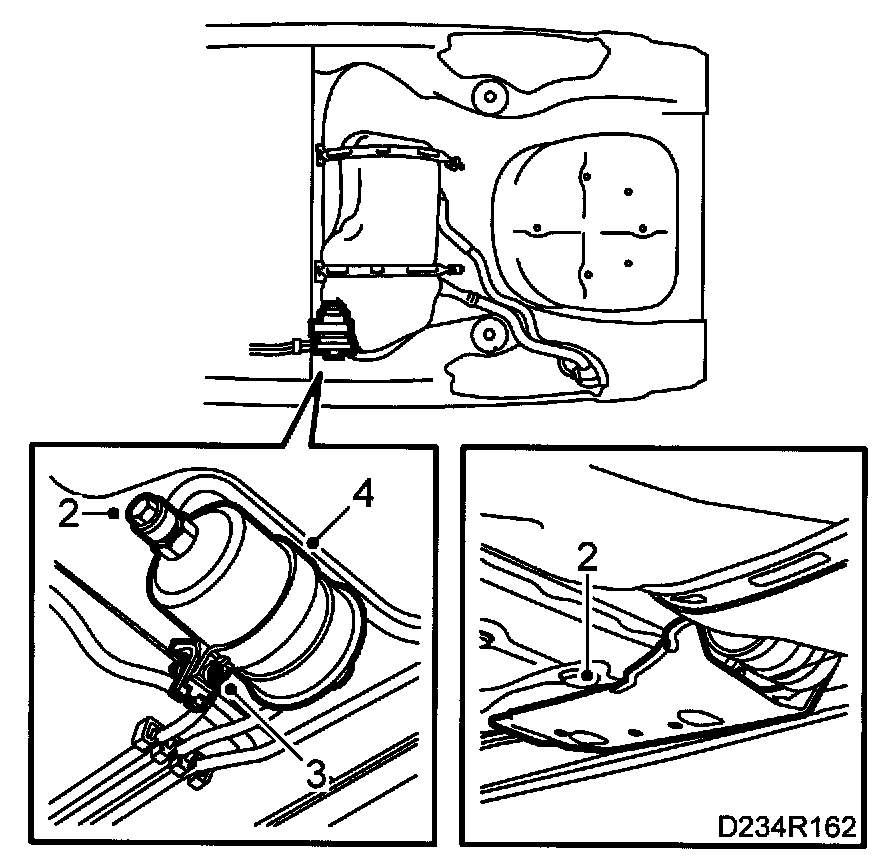

2. Remove the plastic cover on the fuel filter, 2 screws. Undo the banjo fasteners on both sides of the filter.
3. Undo the filter clamp.
4. Remove the filter.

To fit







IMPORTANT
Replace the sealing washers with new ones before fitting.

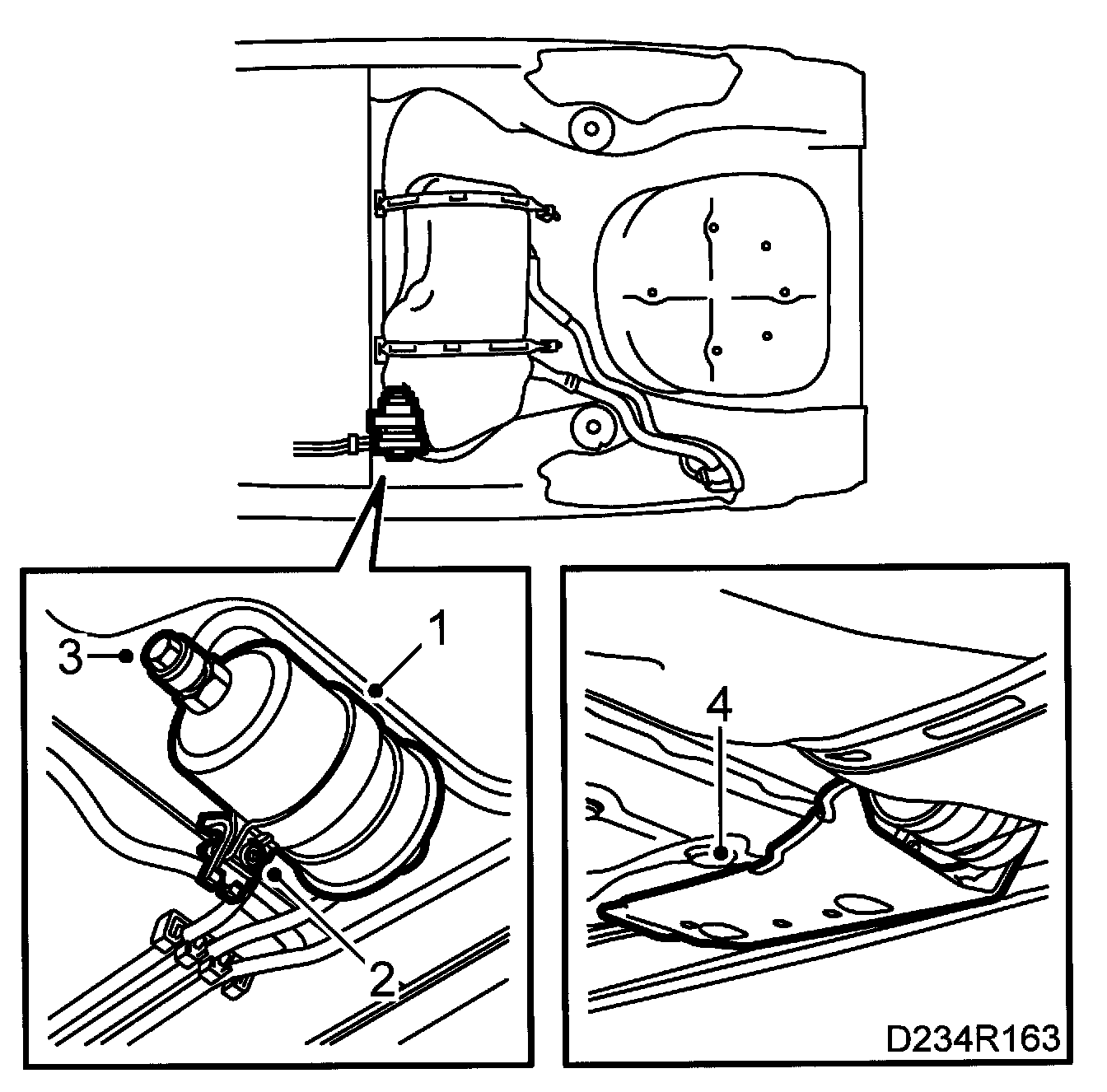

1. Fit the filter.
2. Fasten the filter clamp.
3. Fit the banjo fasteners on both sides of the filter.
Tightening torque: 21 Nm (16 lbf ft)
4. Fit the plastic cover.
