Lamp Holder, Front Roof Console

Lamp Holder, Front Roof Console

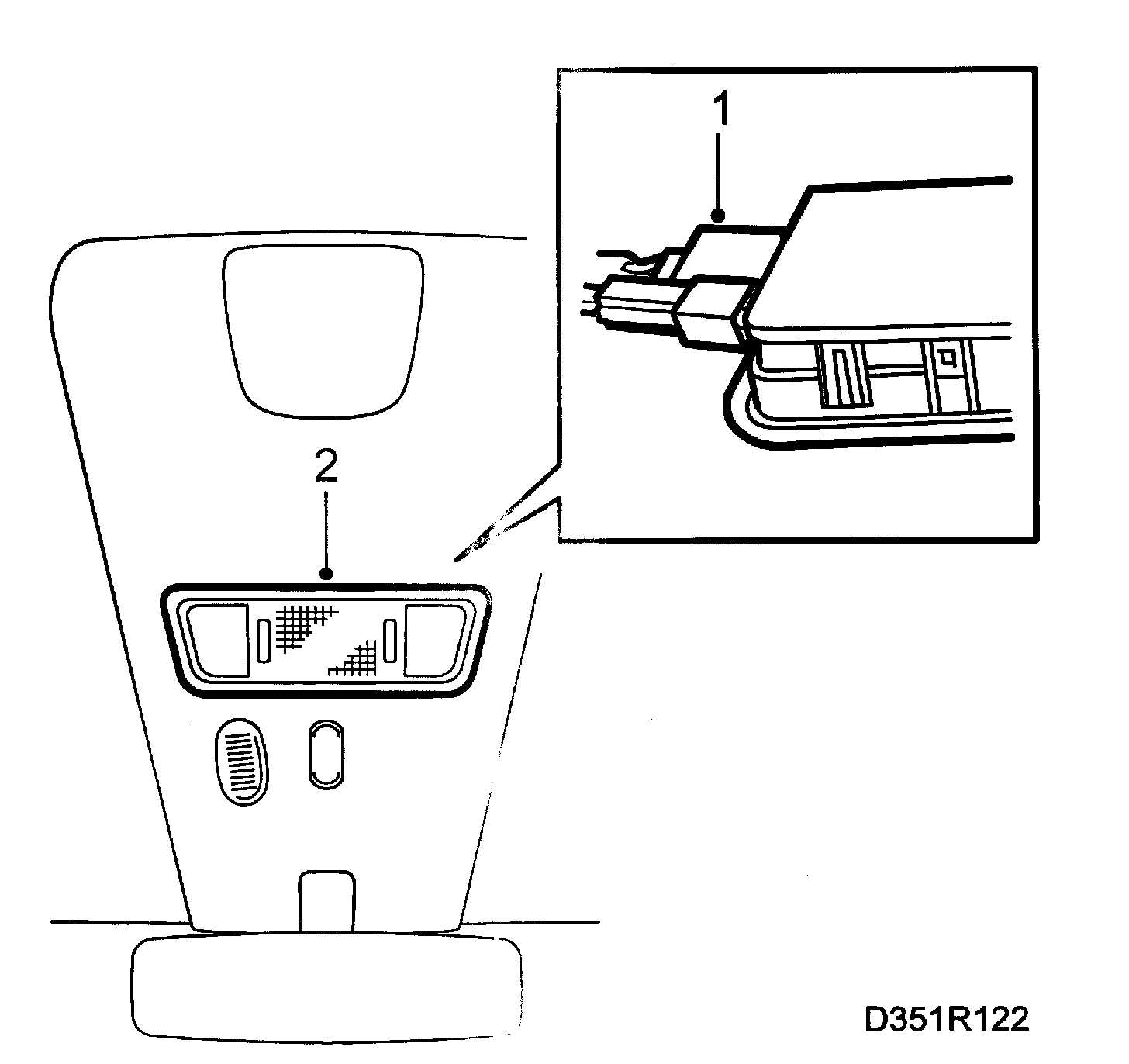

To remove







1. Remove the lamp cover.
2. Remove the connectors and lamp bulbs.
3. Put the lamp holder downwards and replace it.

To fit







1. Replug the connectors.
2. Put the lamp holder back in the roof console.
3. Fit the lamp cover.

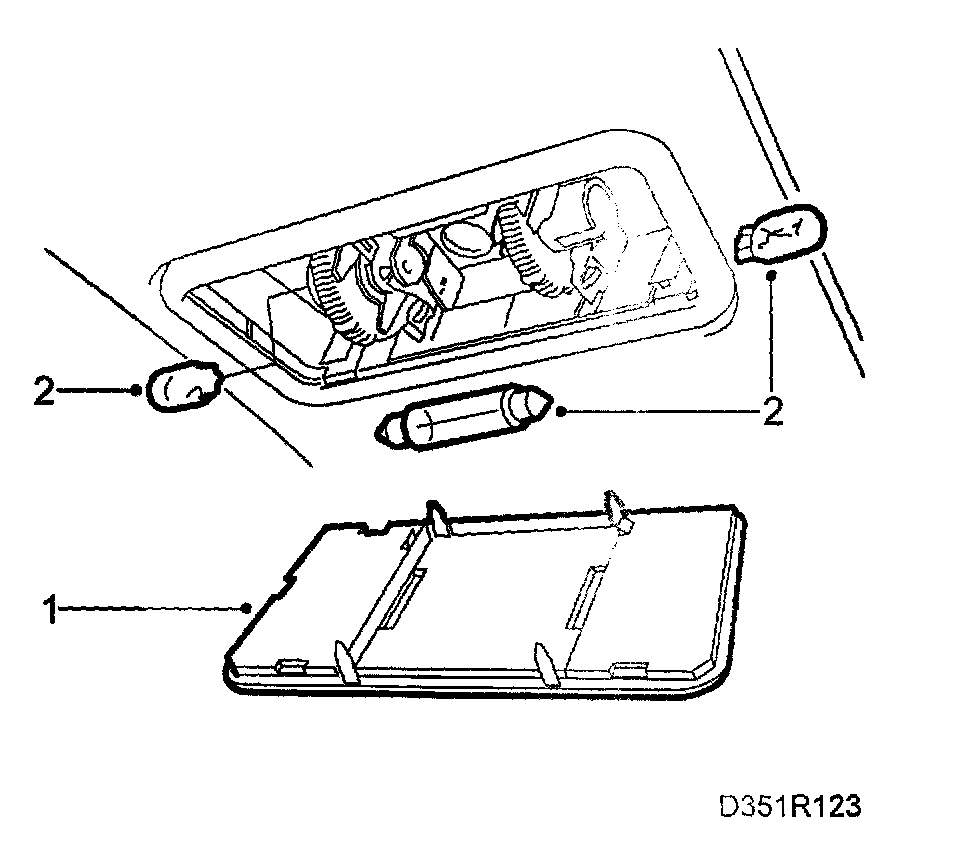

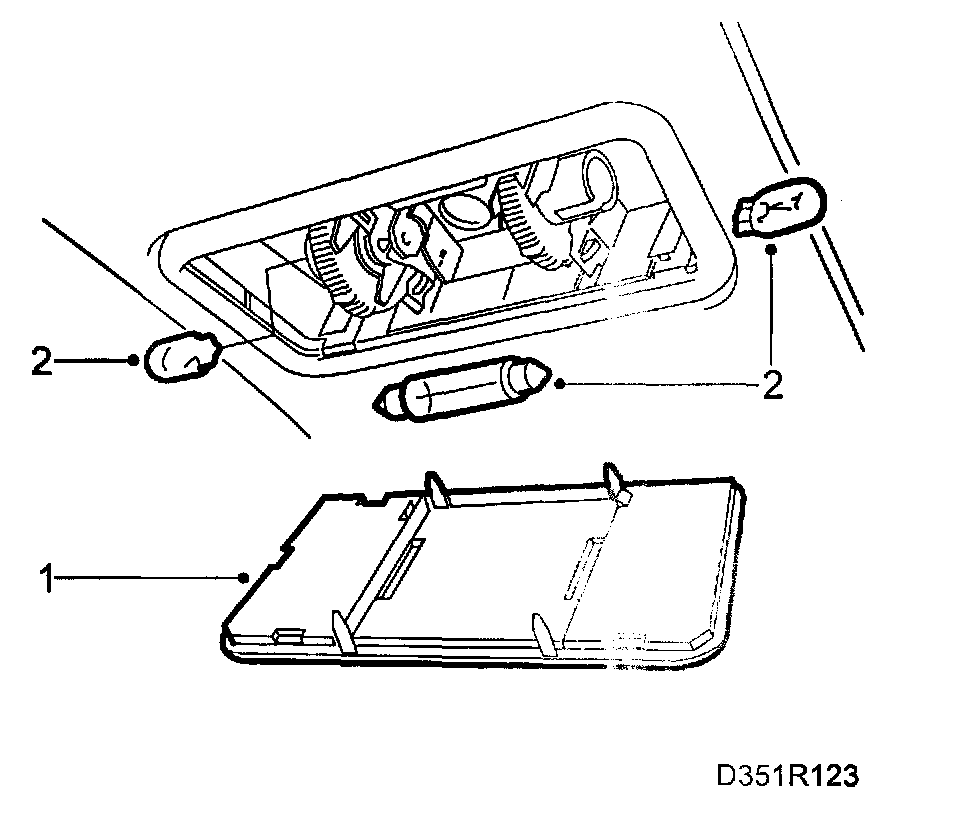

Lamp bulb







1. Remove the lamp cover.
2. Change the bulb.
3. Fit the lamp cover.
