Interior Light Switch: Service and Repair

Interior Light Switch

To remove

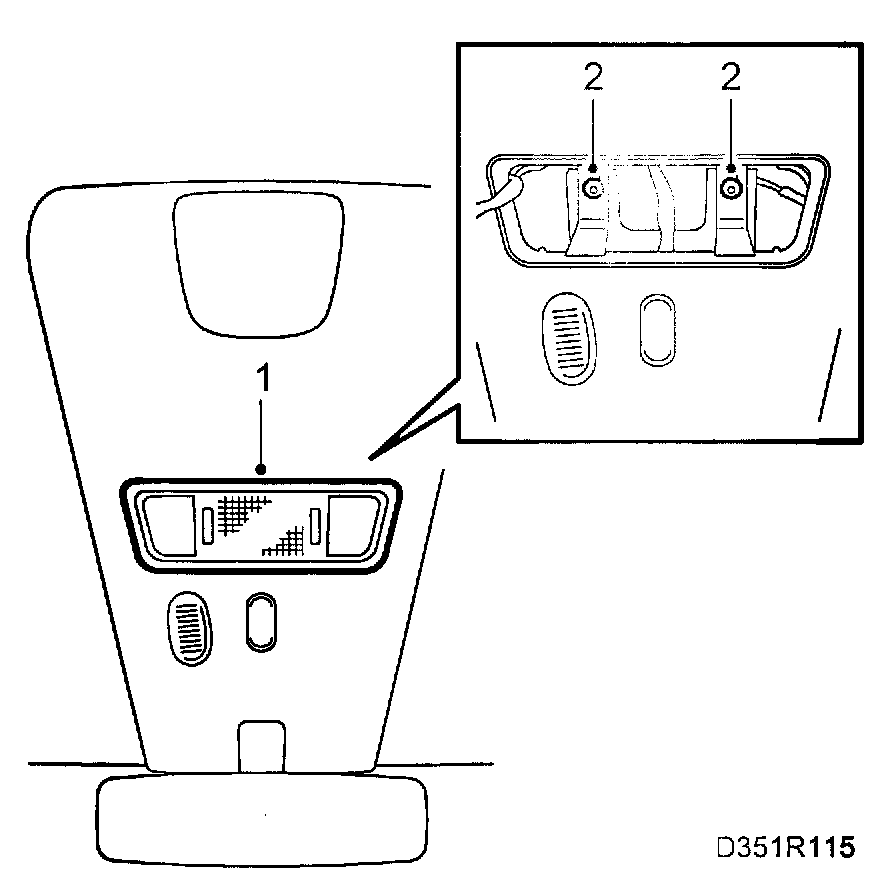

1. Remove the lamp cover from the front roof console.
2. Remove the screws holding the roof console.







3. Remove the roof console and let it hand the leads.

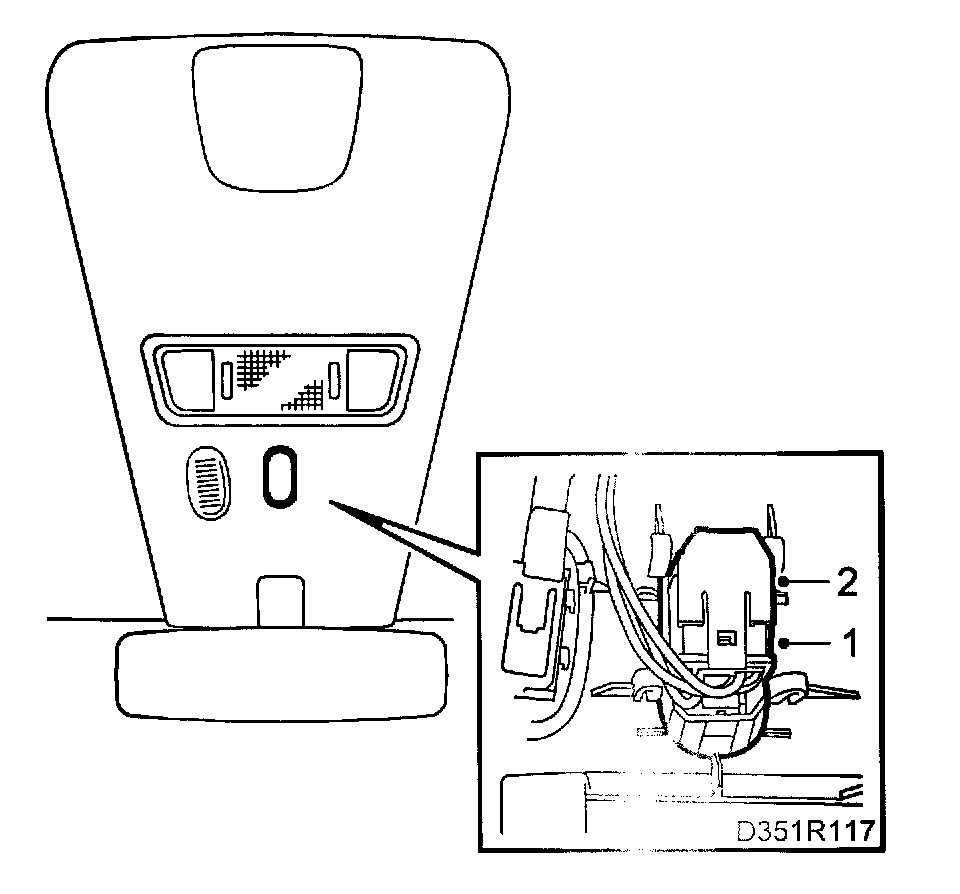

4. Loosen the switch from its holder.
5. Unplug the connector from the switch.

To fit

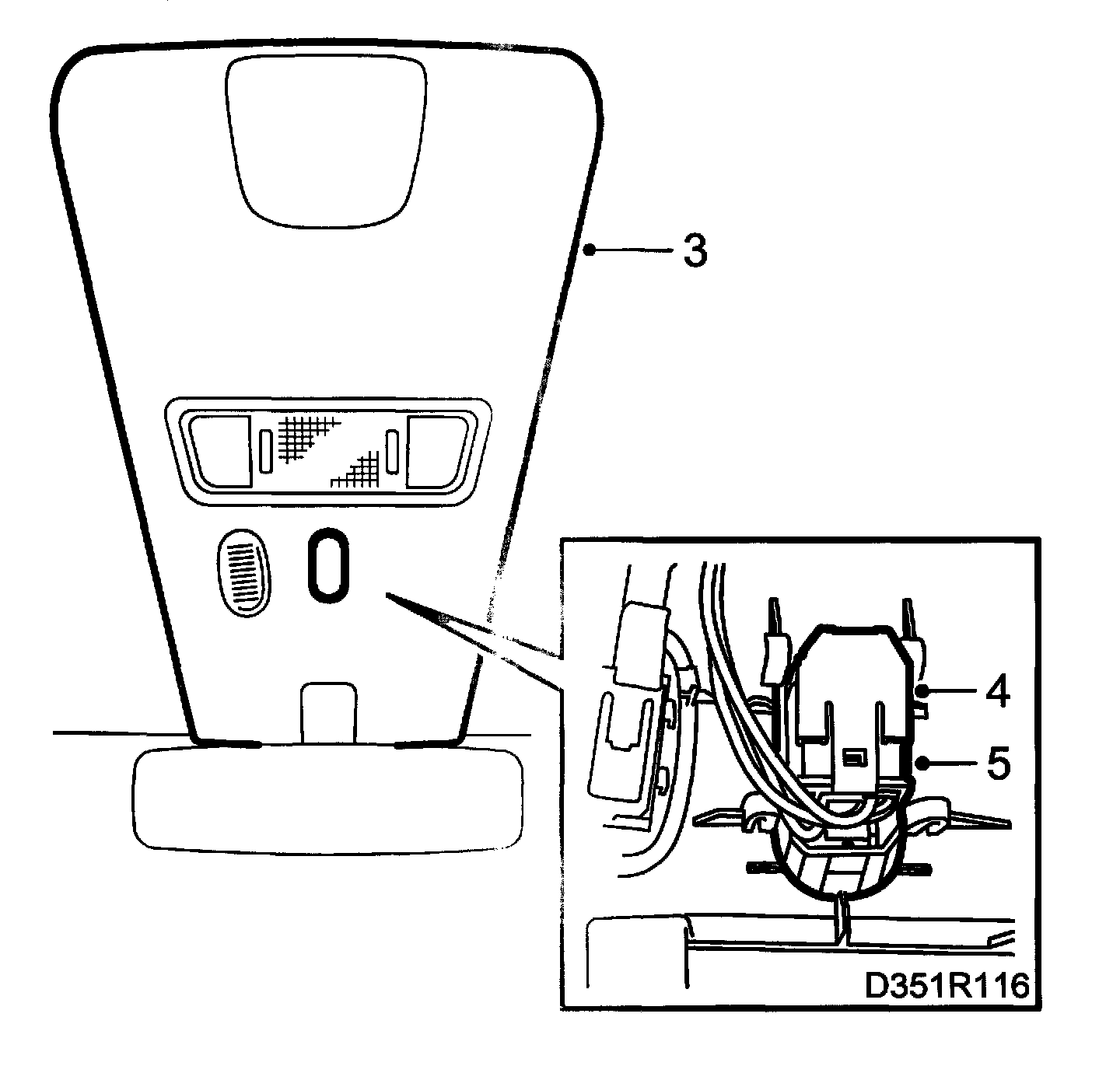

1. Replug the connector.
2. Fit the switch in its holder.

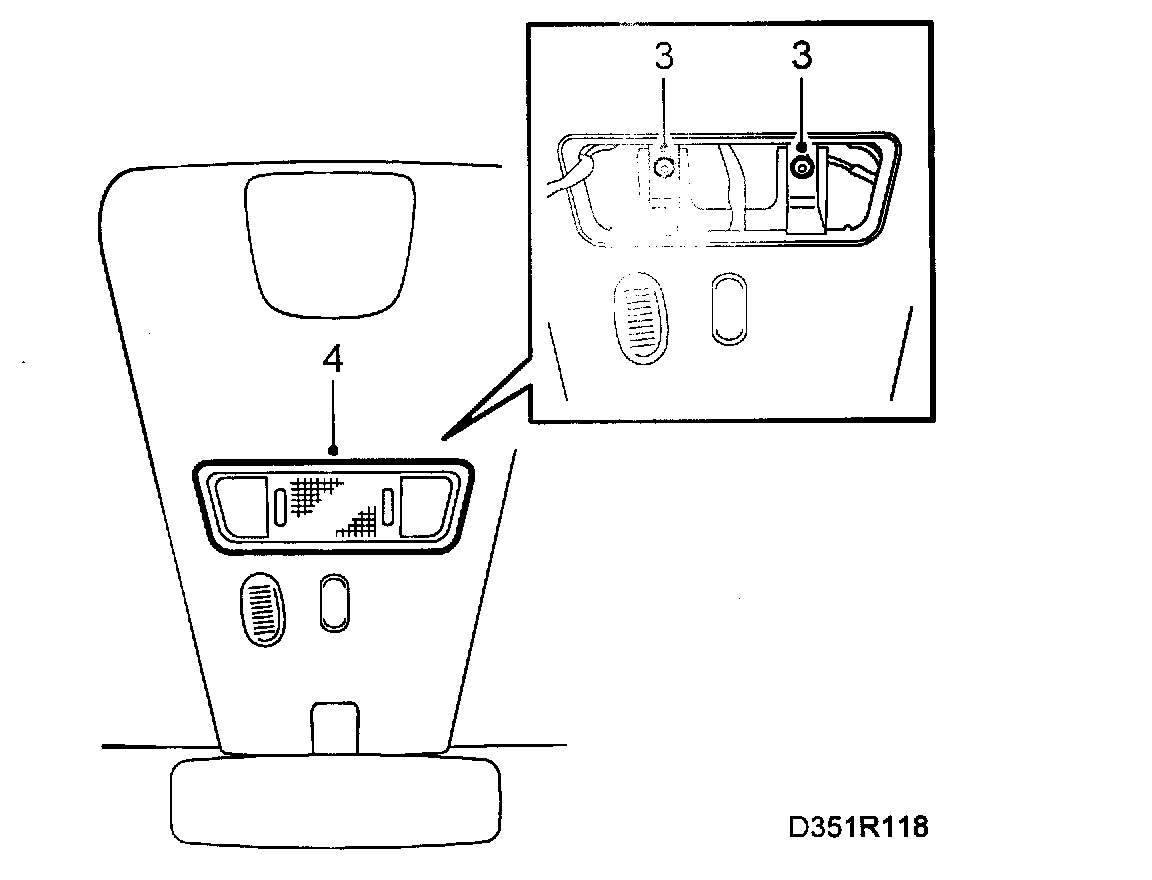

3. Fit the roof console using the 2 screw.







4. Fit the lamp cover.
