Tech 2 Menu Structure

Tech 2 menu structure

Diagnostic Trouble Codes (DTC)
Read Values / Activate Adjustment
Programming
Snapshot
System Information

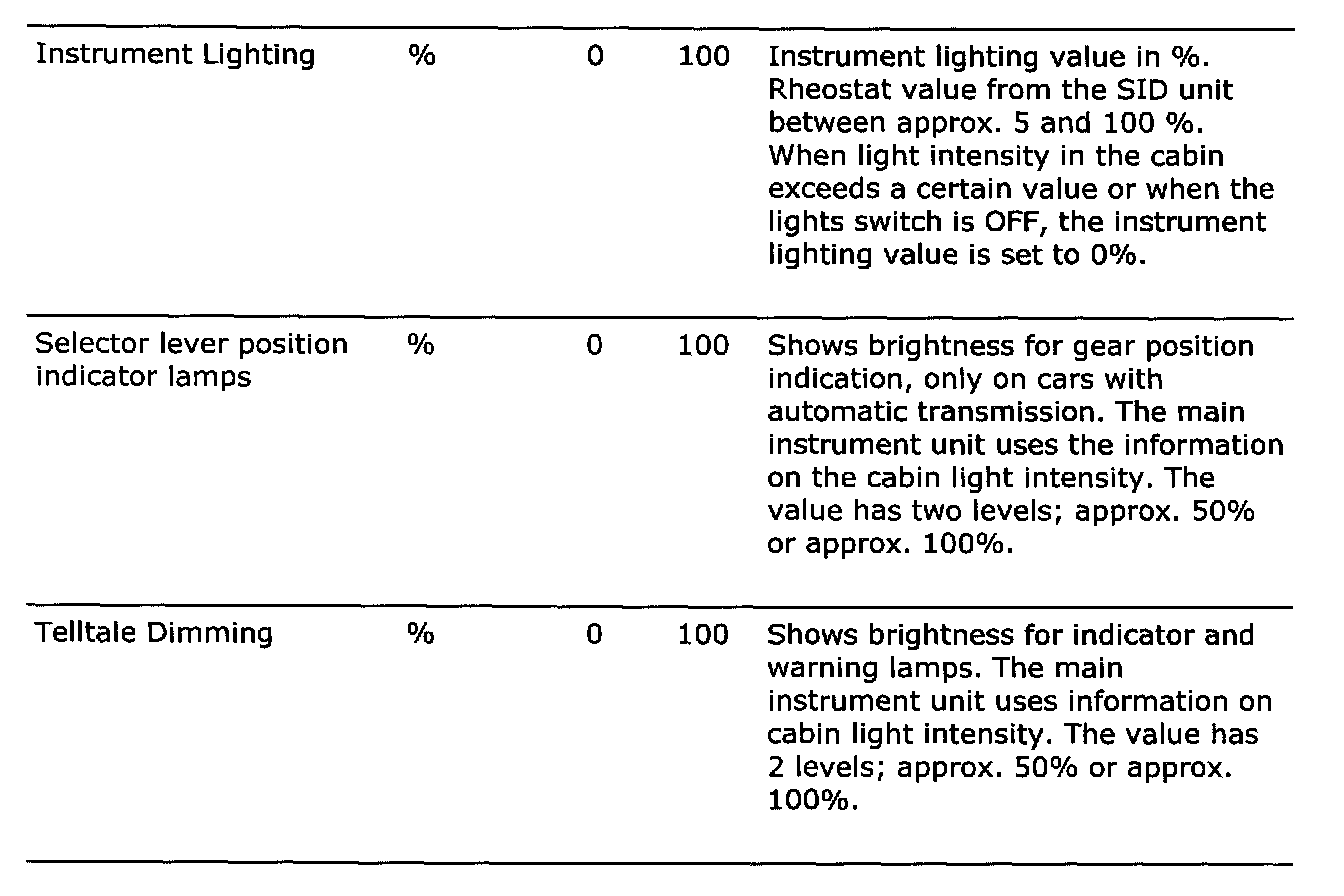

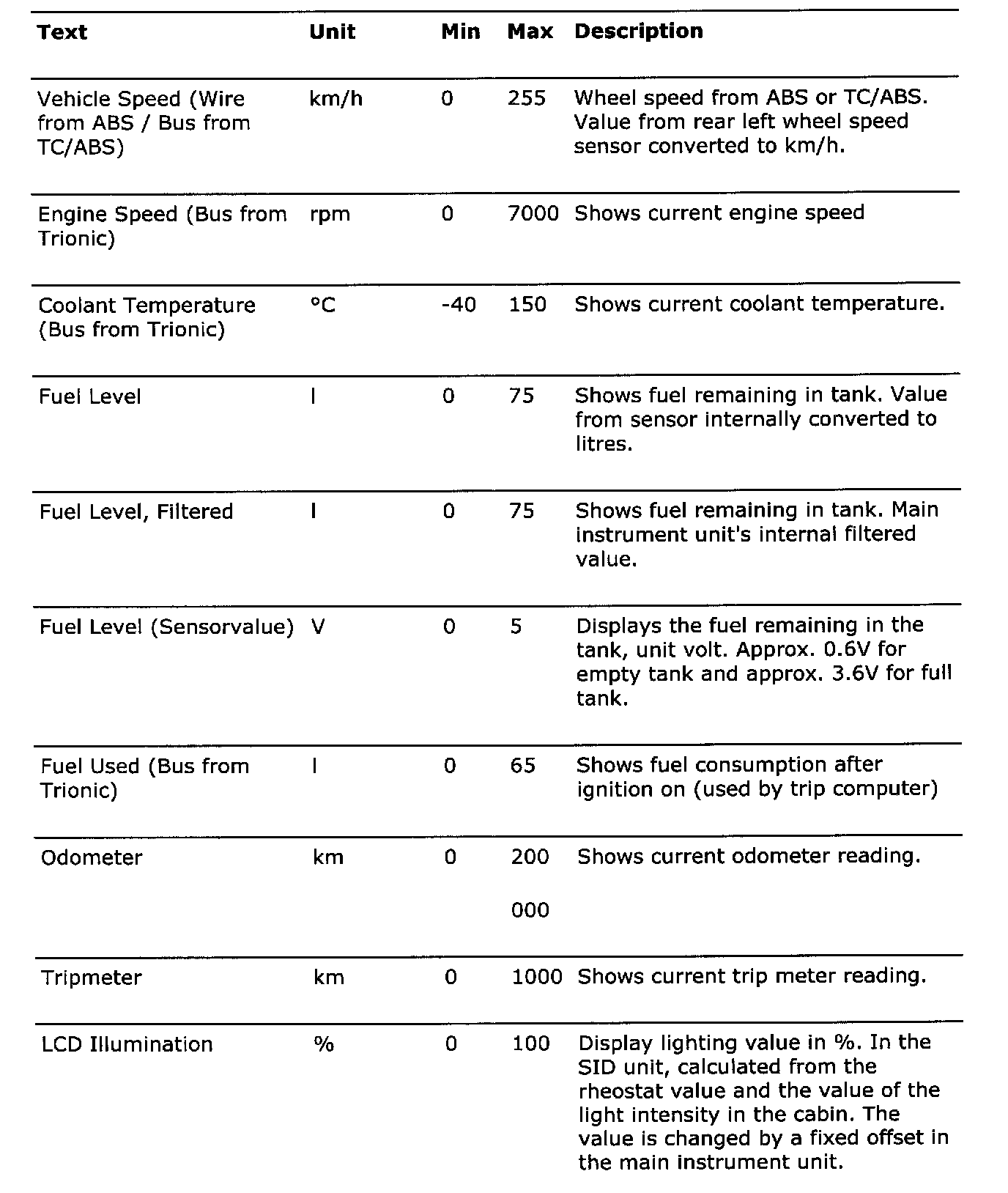

Menu "Read Values"

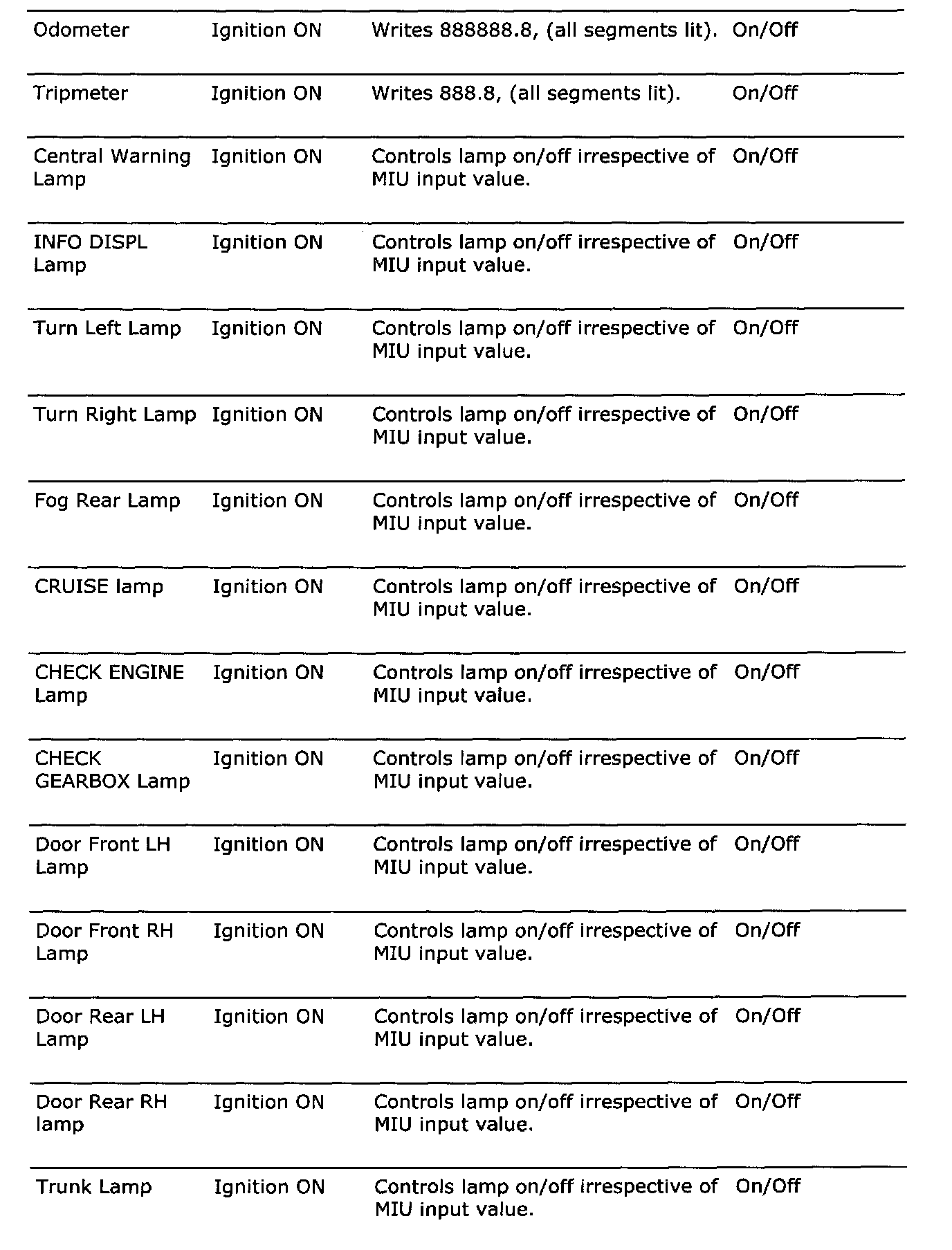

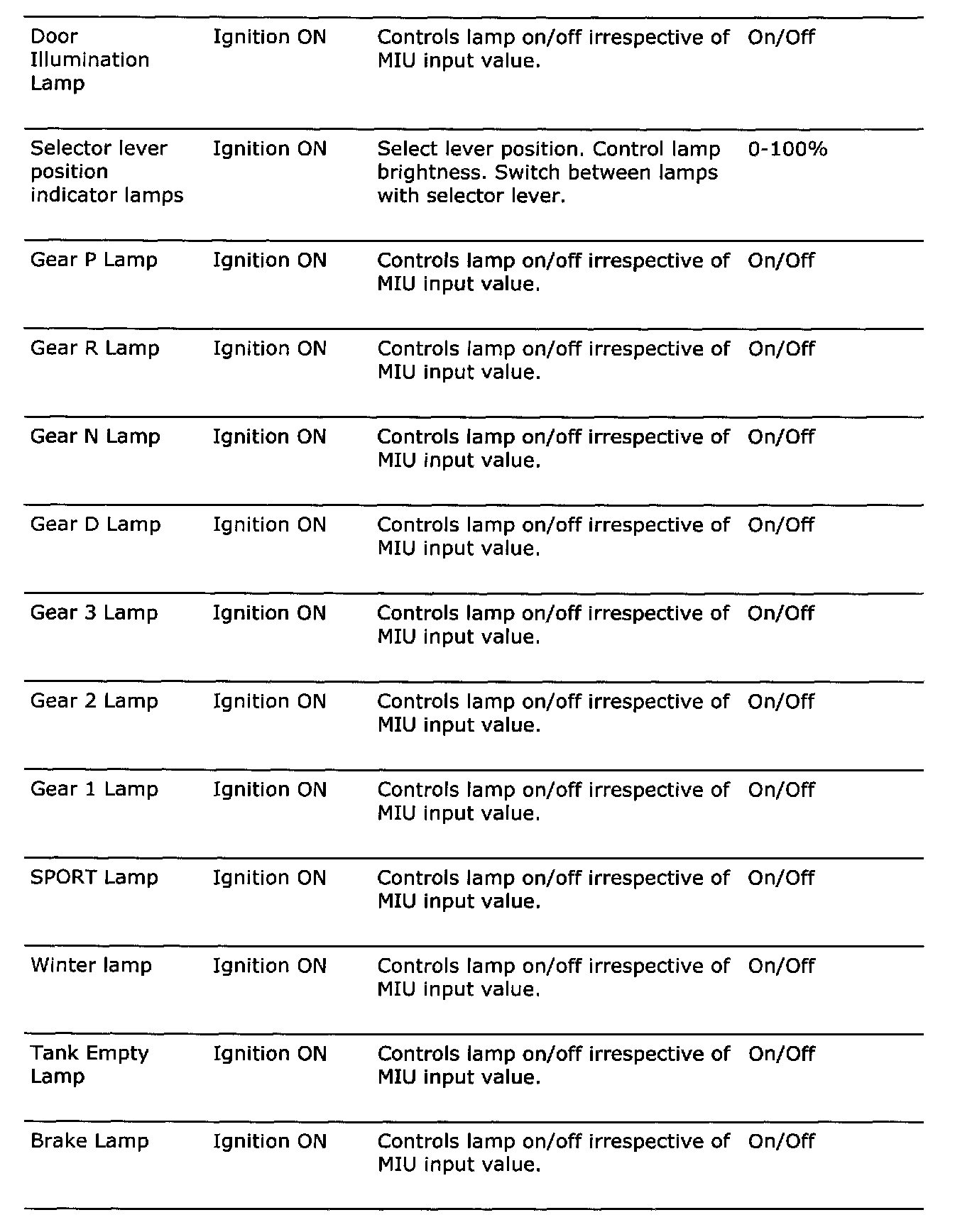

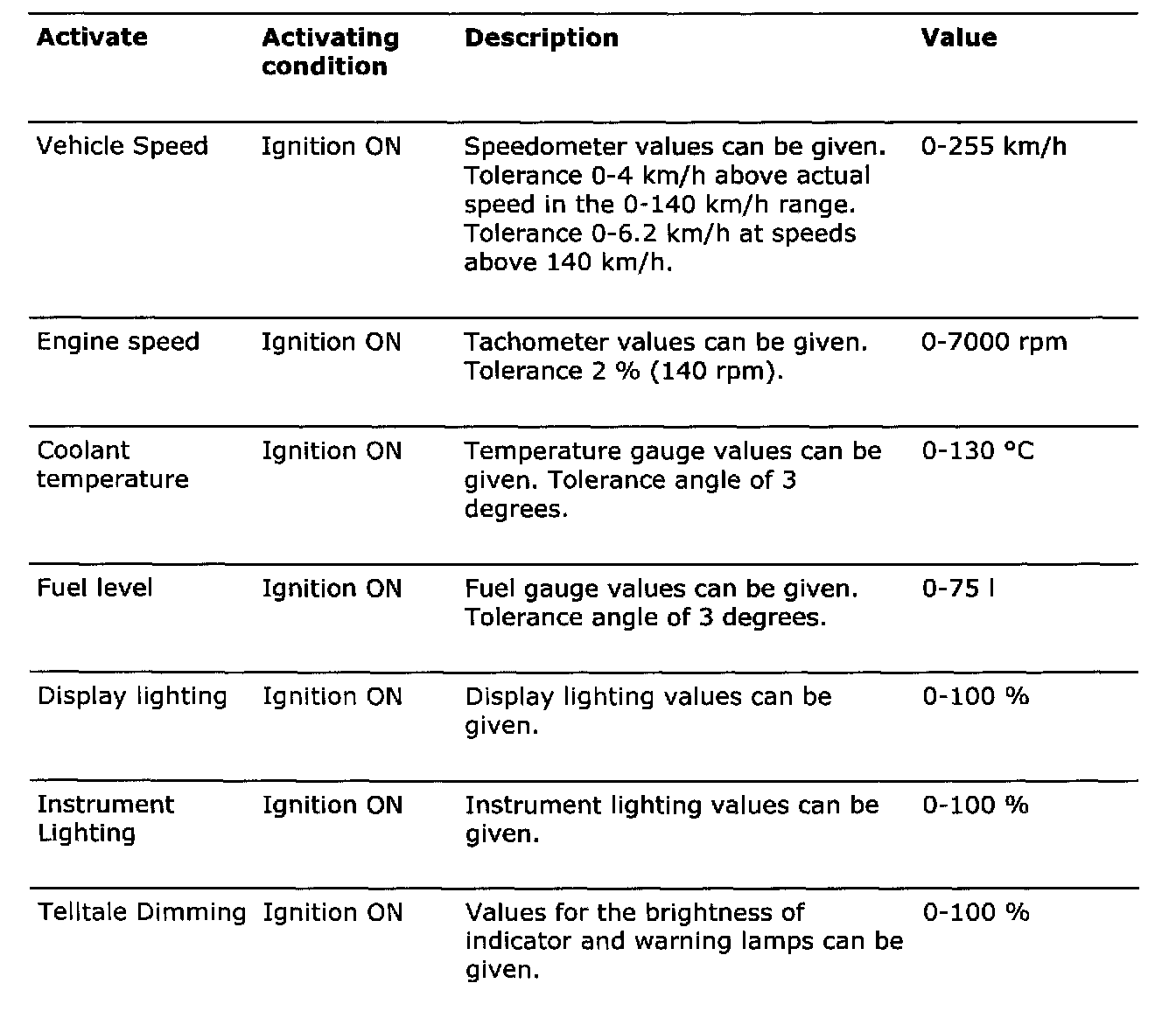

Menu "Activate"

NOTE When a system function is activated with the diagnostic tool, the control module executes a command that is not functionally normal. In activating mode, the diagnostic tool controls the control module, for which reason the activation command should be used with care. An activated function is always reset after exiting activation mode and another selection is made in the diagnostic tool's menu.

















Menu "System Information"







Menu "Adjustment"

Diagnostic tool
Speedometer
Vehicle Speed Night Panel
Fuel Gauge
Fuel gauge, Night Panel
Fuel Consumption Factor
Display lighting level
Temperature Gauge
Coolant Temperature Night Panel
Turbo Pressure Gauge
Engine RPM Night Panel

Menu "Programming"

Diagnostic tool Function
Speedometer -
Spare Part Programming This programming must be carried out on the main instrument unit when it is changed.
