Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Locations >> Splice Locations >> J90

J90

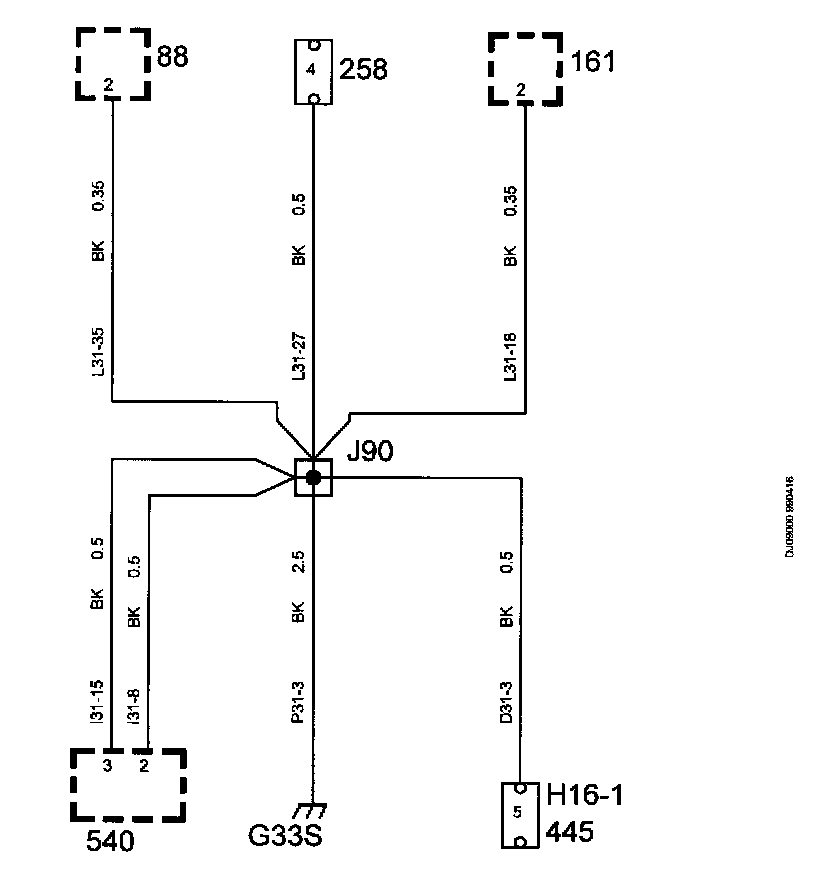

Crimp J90, dashboard harness


Crimp J90, dashboard harness:
