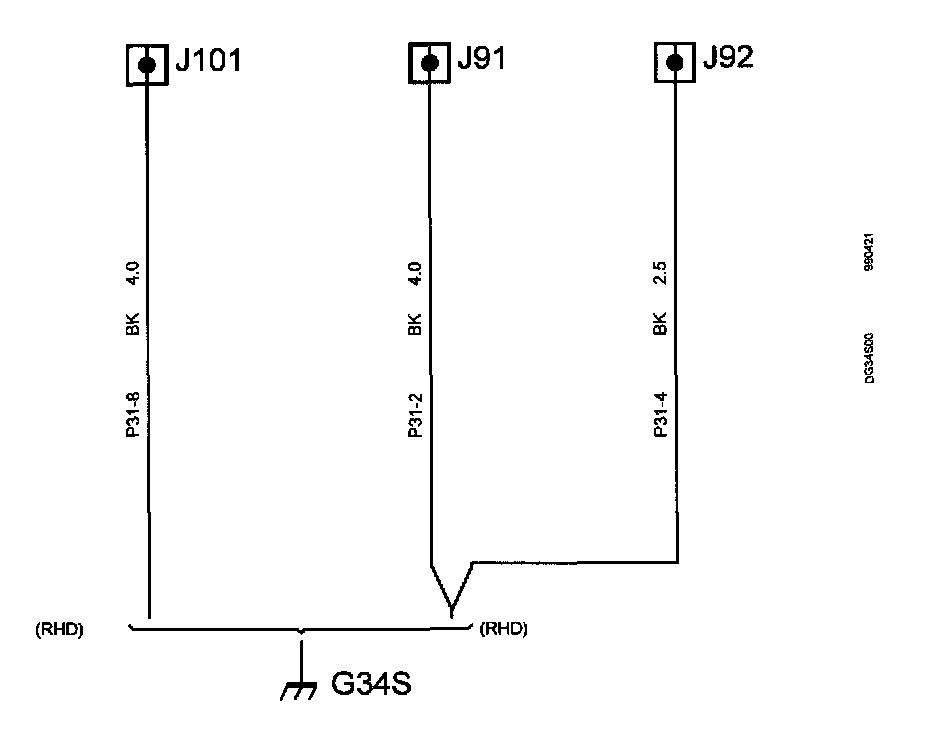

Grounding Point G34S




Grounding Point G34S


Grounding Point G34S:

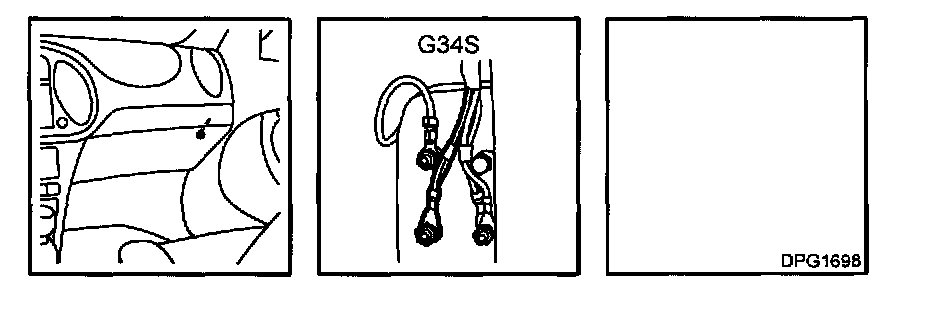

Location: in cabin below right A-pillar.
