G33S

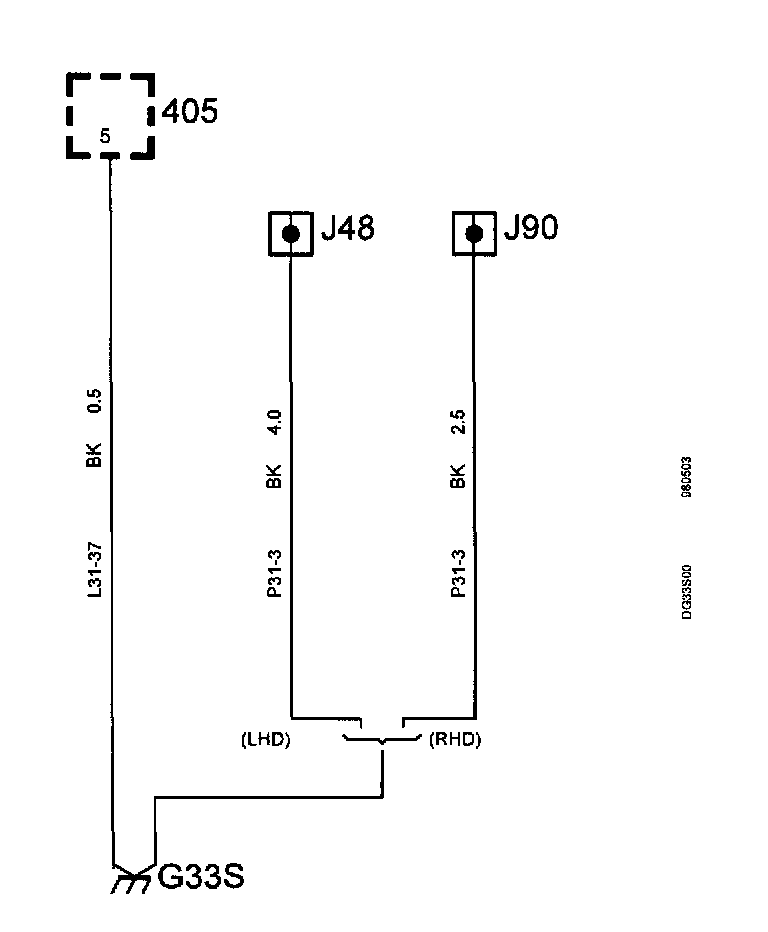

Grounding point G33S

Grounding point G33S:

Location: in cabin below left A-pillar.
Cable marking: yellow tape.

Connected components
405 Reversing light relay, automatic

A Additional components on LHD cars

Via crimp J48
21 Ignition switch relay
88 Switch, extra fog lights
161 Fog light switch
276 Main switch, anti-theft alarm
445 Data link connector, 16-pin CARB
540 Main instrument unit

B. Additional components on RHD cars

Via crimp J90
16 Instrument lighting rheostat
88 Switch, extra fog lights
161 Fog light switch
445 Data link connector, 16-pin CARB
540 Main instrument unit
