G33P

Grounding point G33P

Grounding point G33P:

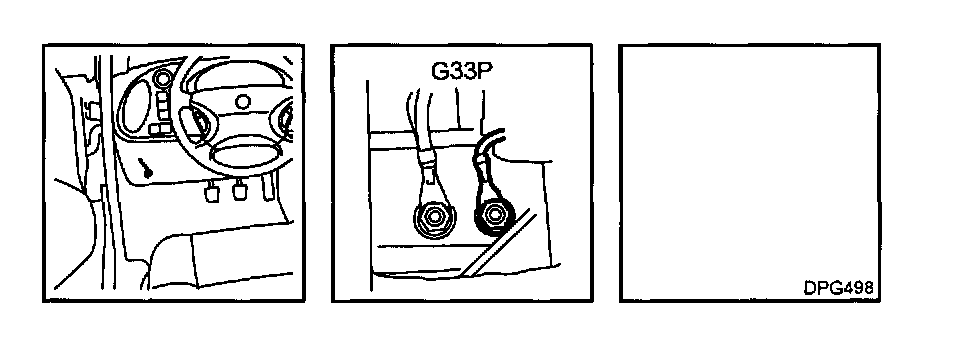

Location: in cabin below left A-pillar.
Cable marking: black adhesive tape.

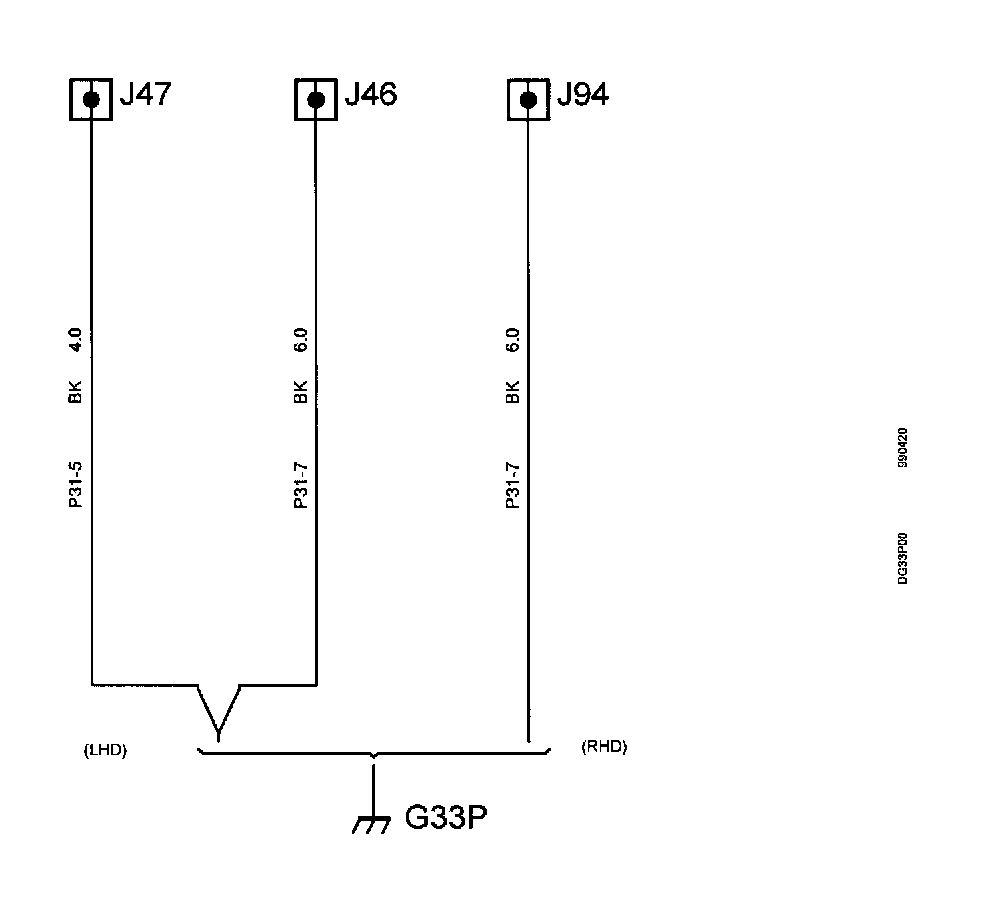

A. Connected components on LHD cars

Via crimp J46
36 Motor, ventilation fan (not ACC)
42 Level switch, brake fluid
282 Switch, headlamp beam adjustment
432 Relay, washer fluid pump
449 Switch, TCS
580 Microswitch, air-mixing damper
640 Limp-home relay
641 Relay, diesel pre-heating

Via crimp J47
10 Light switch
16 Rheostat, instrument lighting
61 Switch, windscreen wipers
61a Switch, rear window wiper
62F Motor, windscreen wipers
242 Level switch, coolant
445 Data link connector, 16 pin, CARB
628 Control module, DICE

B Connected components on RHD cars

Via crimp J94
36 Motor, ventilation fan (not ACC)
42 Level switch, brake fluid
220 Control unit, ventilation fan
282 Switch, headlamp beam adjustment
375 Connection, mobile telephone
432 Relay, washer fluid pump
