Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Locations >> Connector Locations >> H33-5 LHD

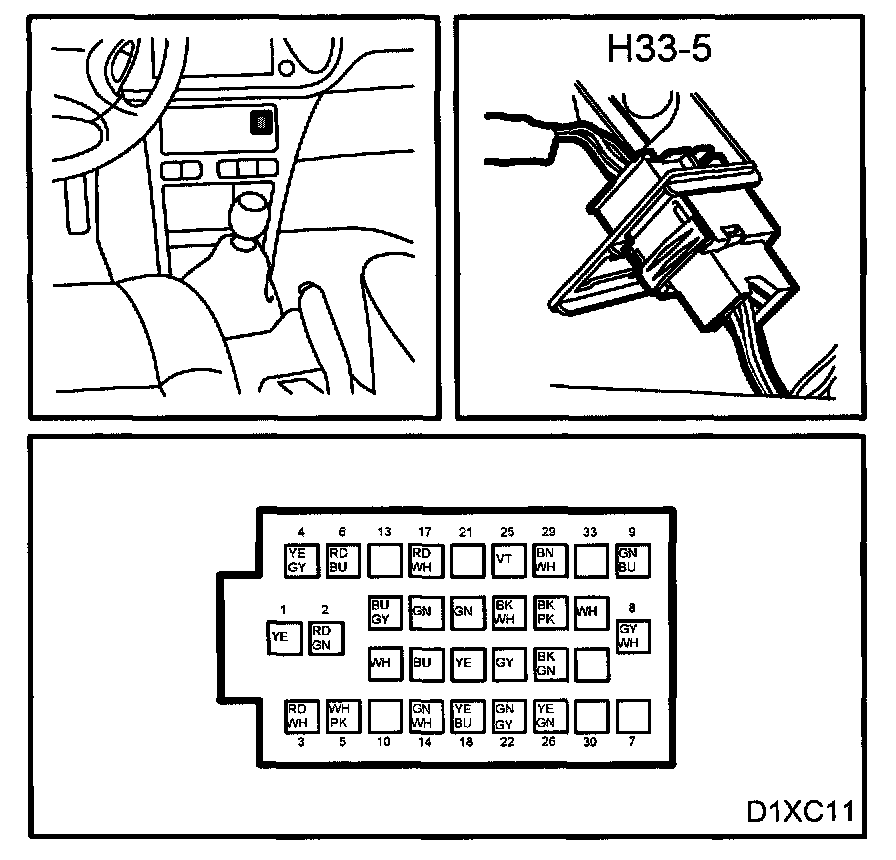

H33-5 LHD




Connector H33-5

LHD


Connector H33-3 - LHD:
