Tech 2 Menu Structure, Value, Activate, Adjust, Prog, Sys Info

Tech 2 menu structure

Diagnostic Trouble Codes (DTC)
Read Values / Activate Adjustment
Programming
Snapshot
System Information

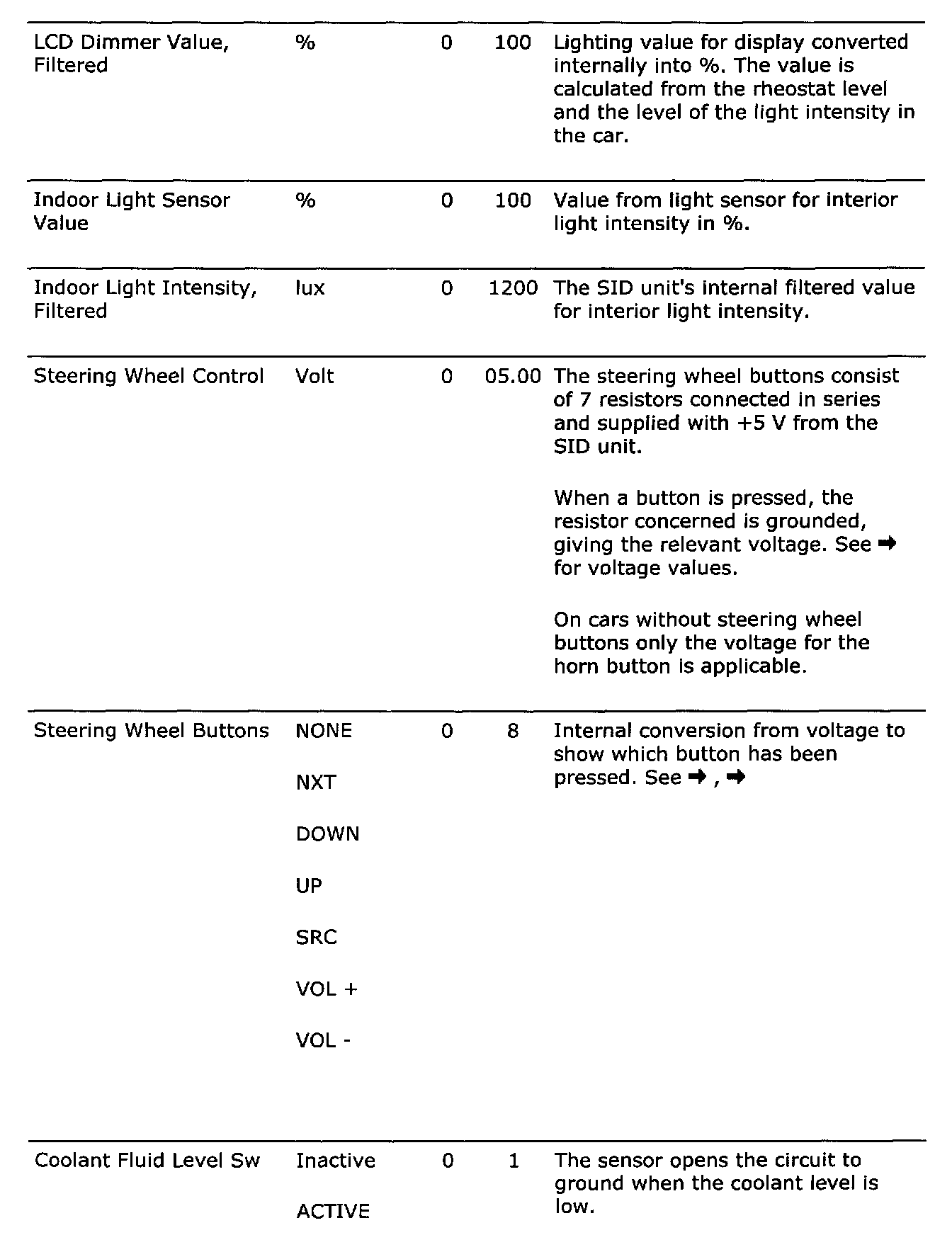

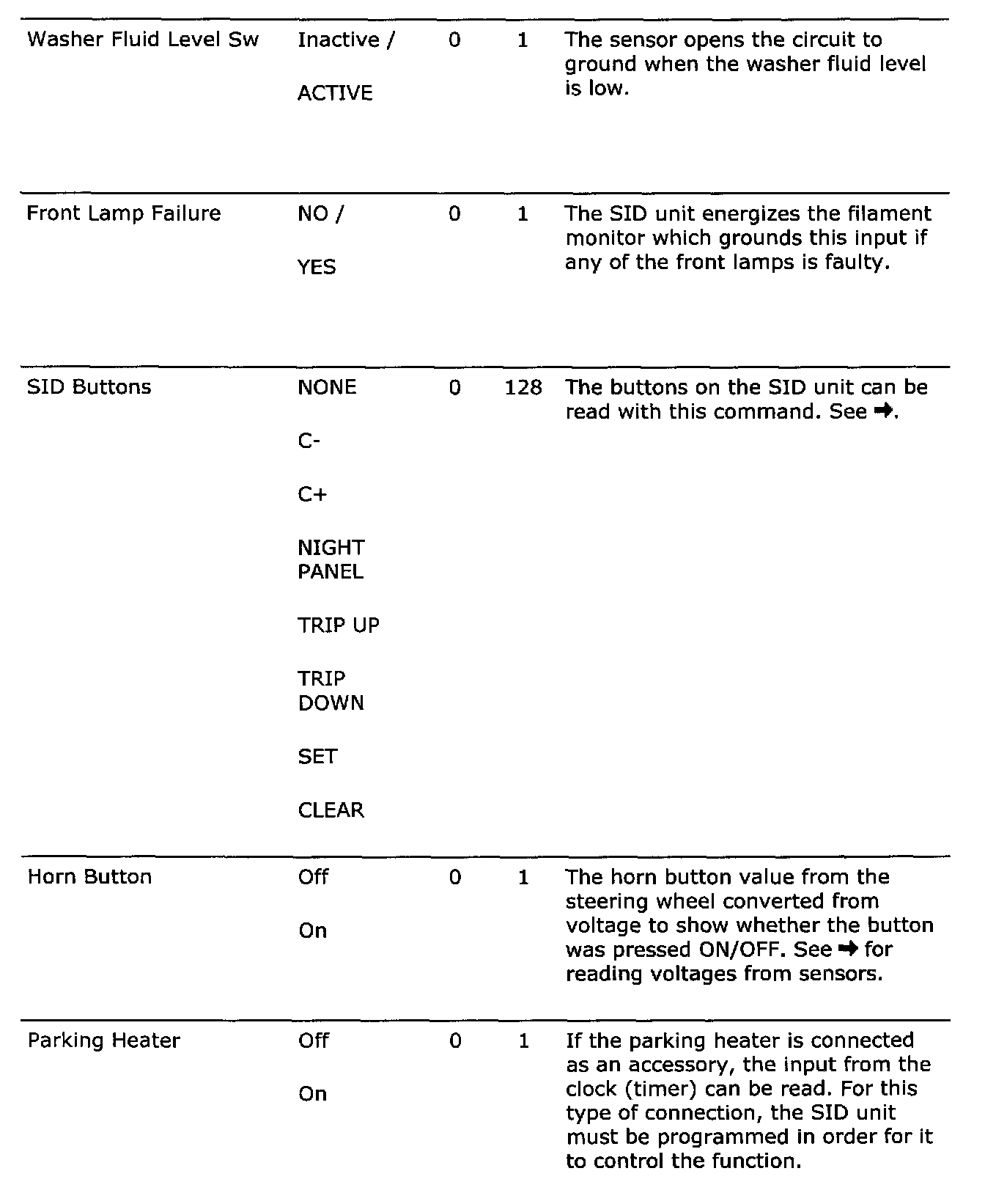

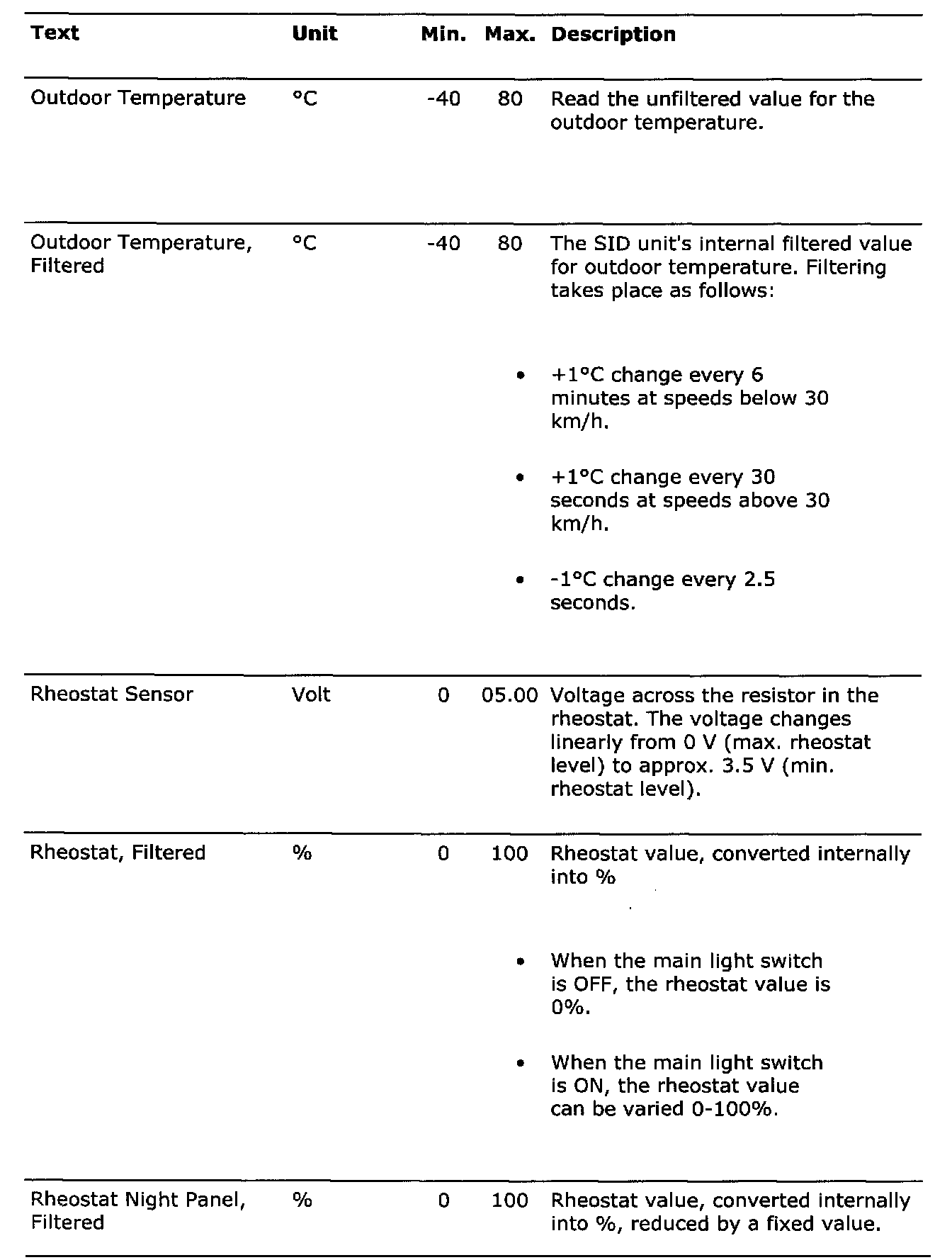

Menu "Read Values"

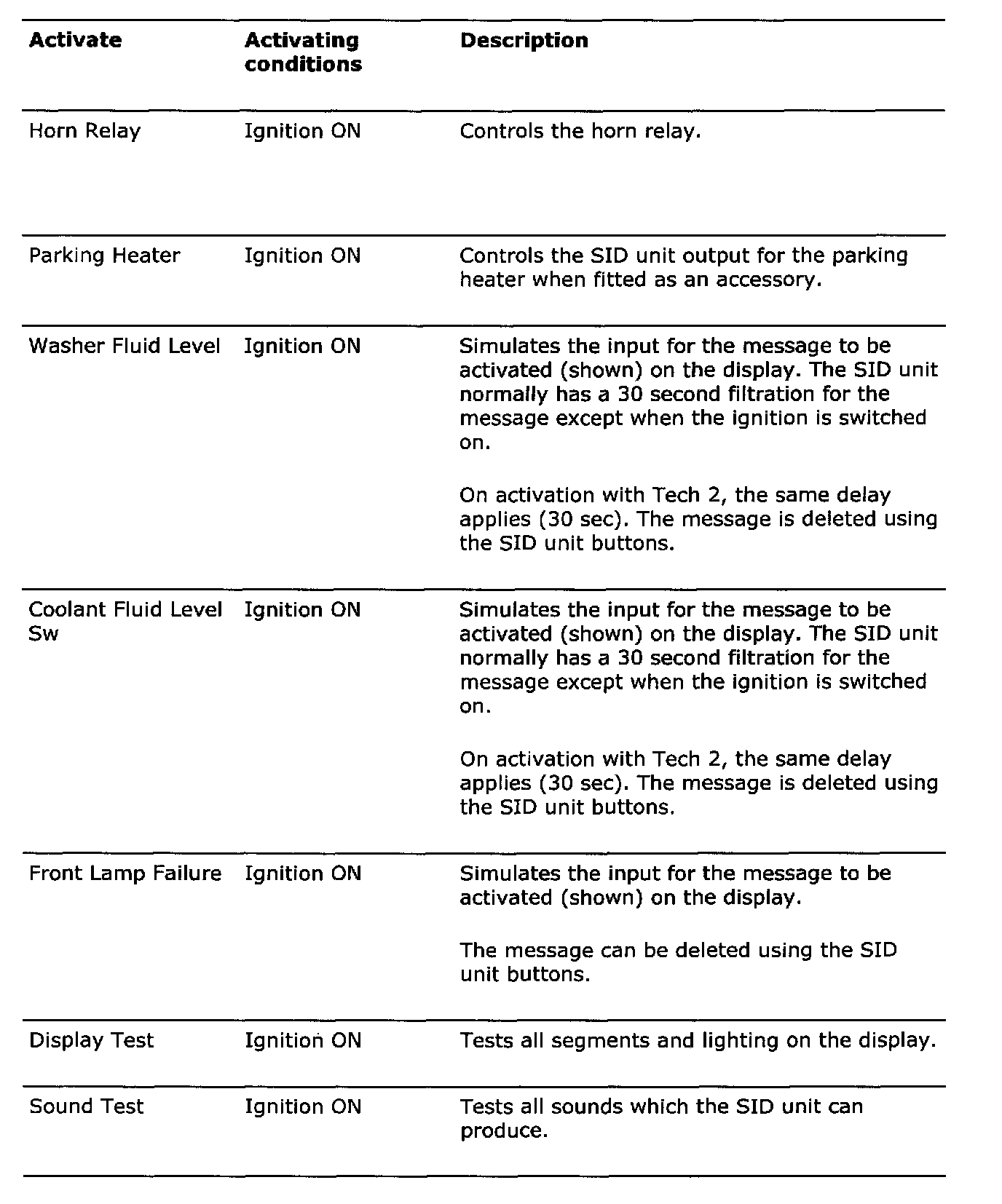

Menu "Activate"

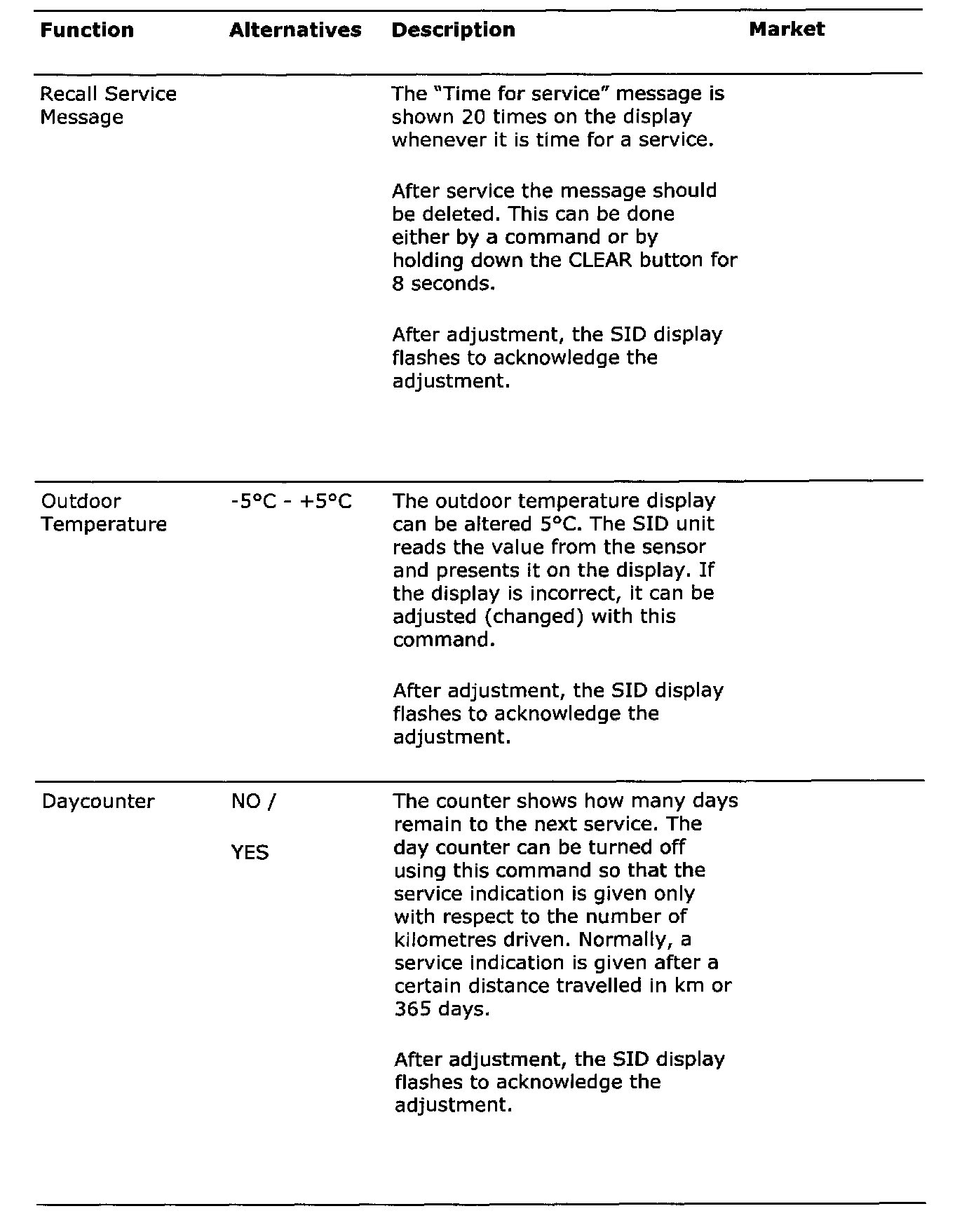

Menu "Adjustment"

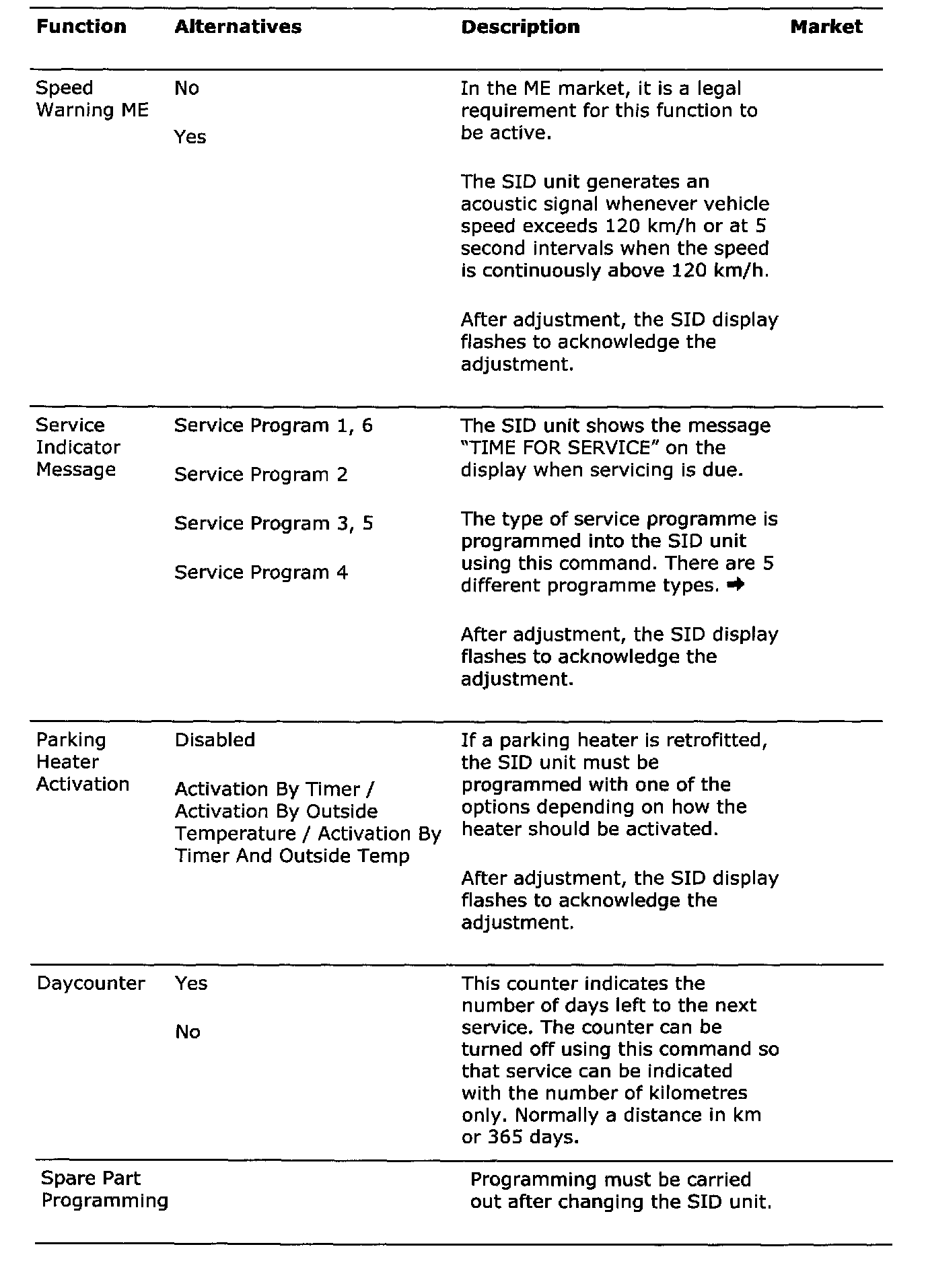

Menu "Programming"







Menu "System Information"

Text Function
SAAB Part Number: Displays the SAAB part number for the control module.
Hardware Version Number: Shows the hardware version for the control module.
Software Version Number: Shows the software version for the control module.
