Grounding Point (G31)




Grounding Point G31

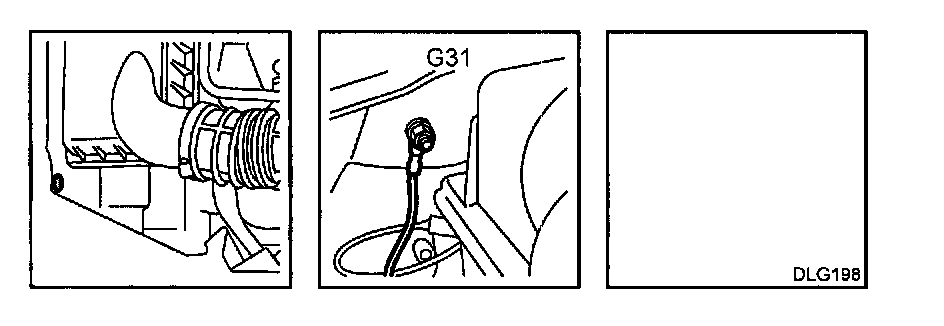

Location: in engine bay on side plate in front of right wheel housing.

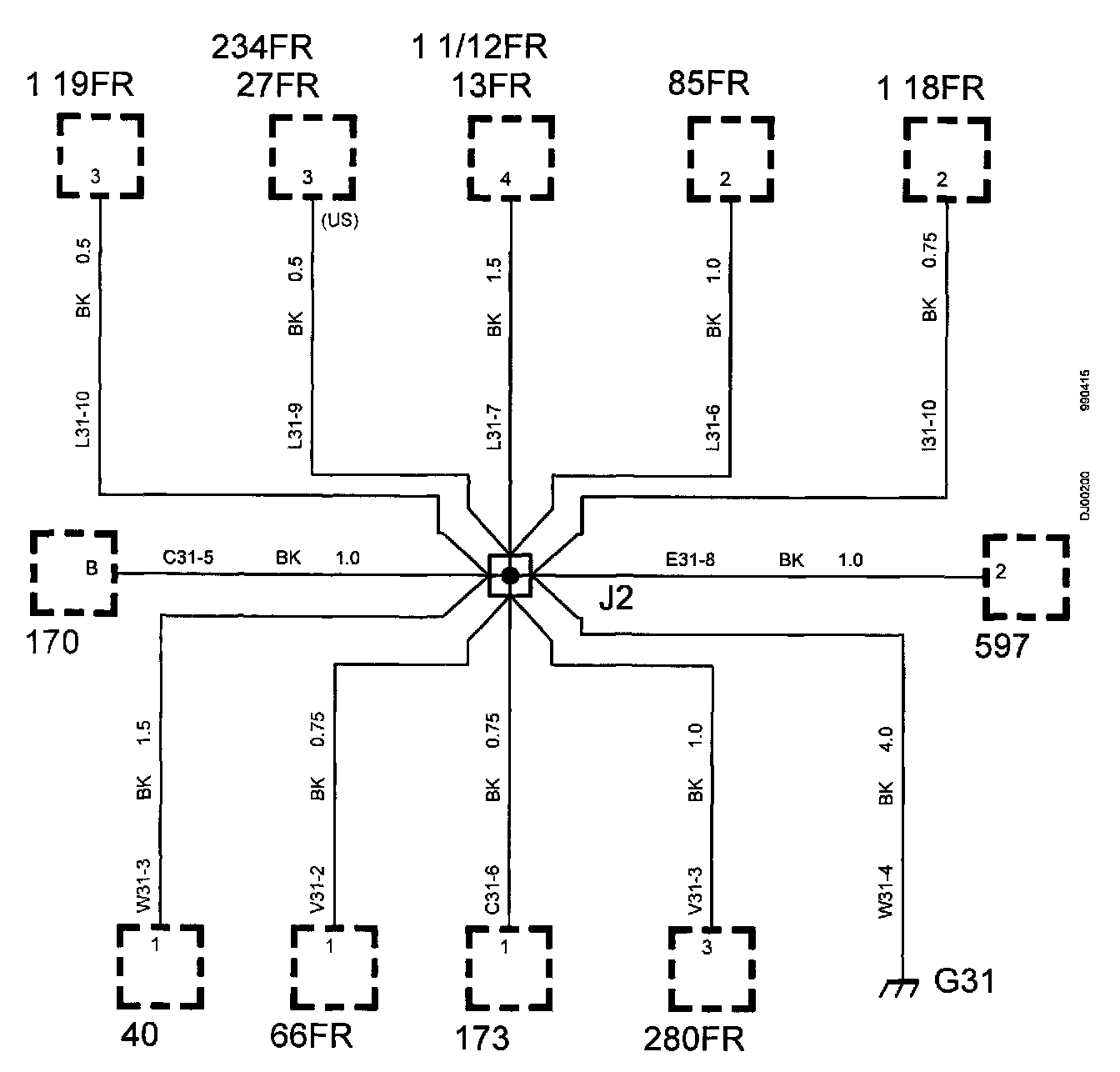

Connected components

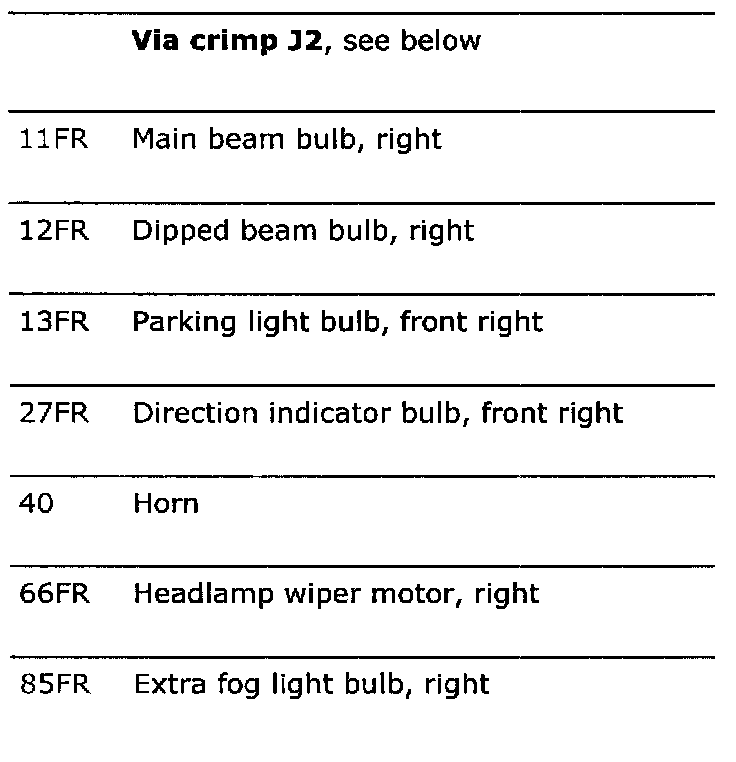

11FR - 85FR:

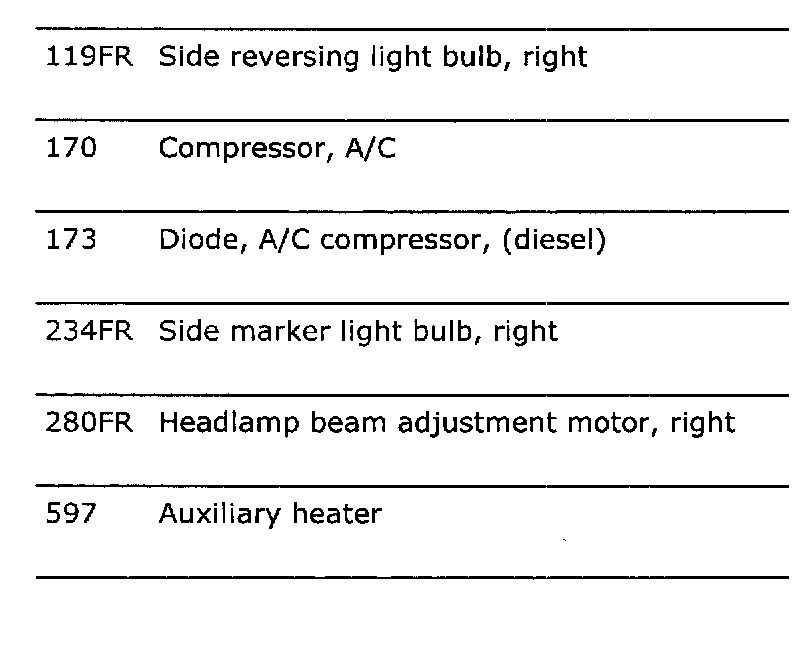

119FR - 597:
