Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> System Diagram >> Headlamp Wipers

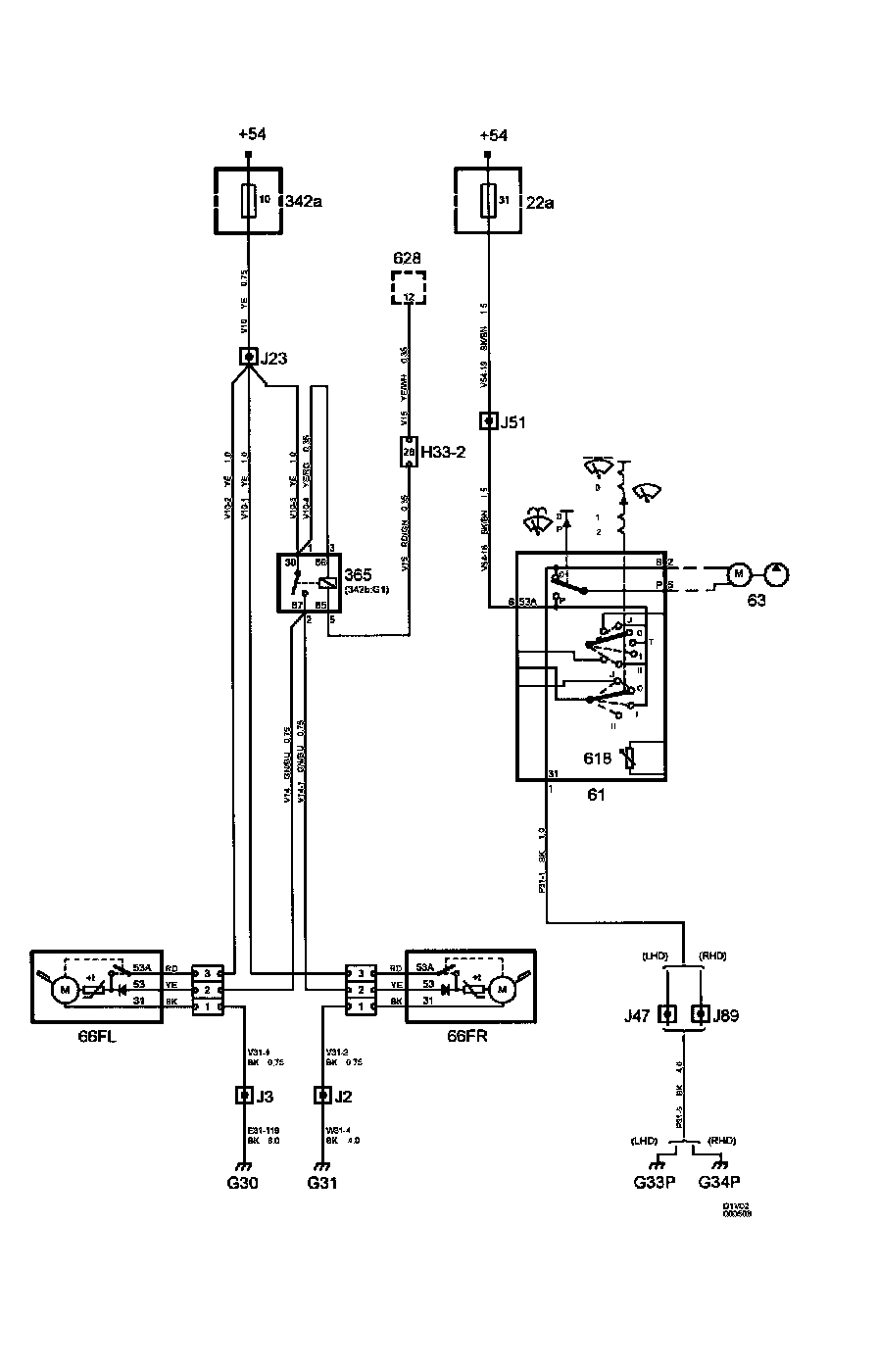

Headlamp Wipers




Headlamp Wipers

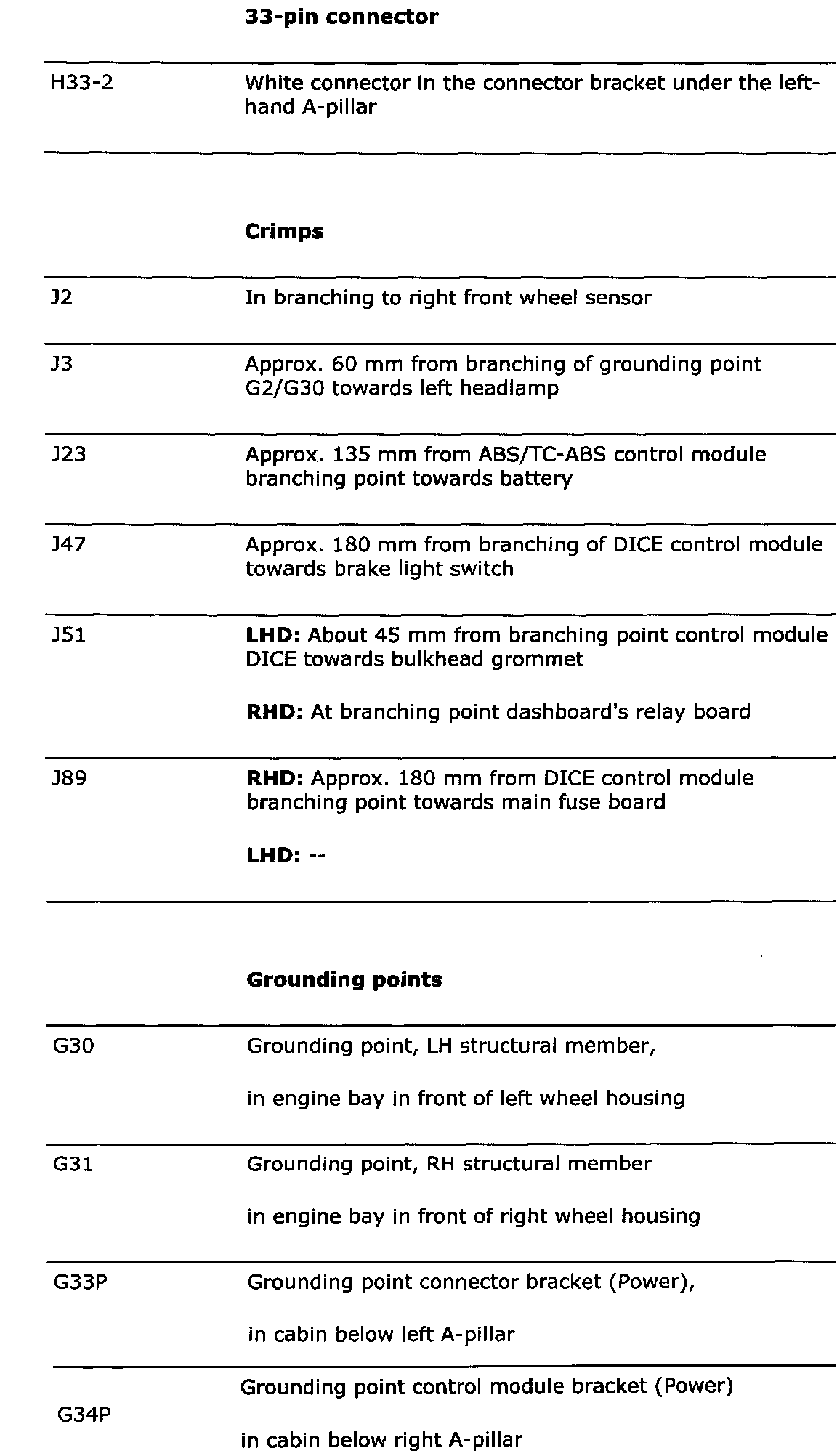

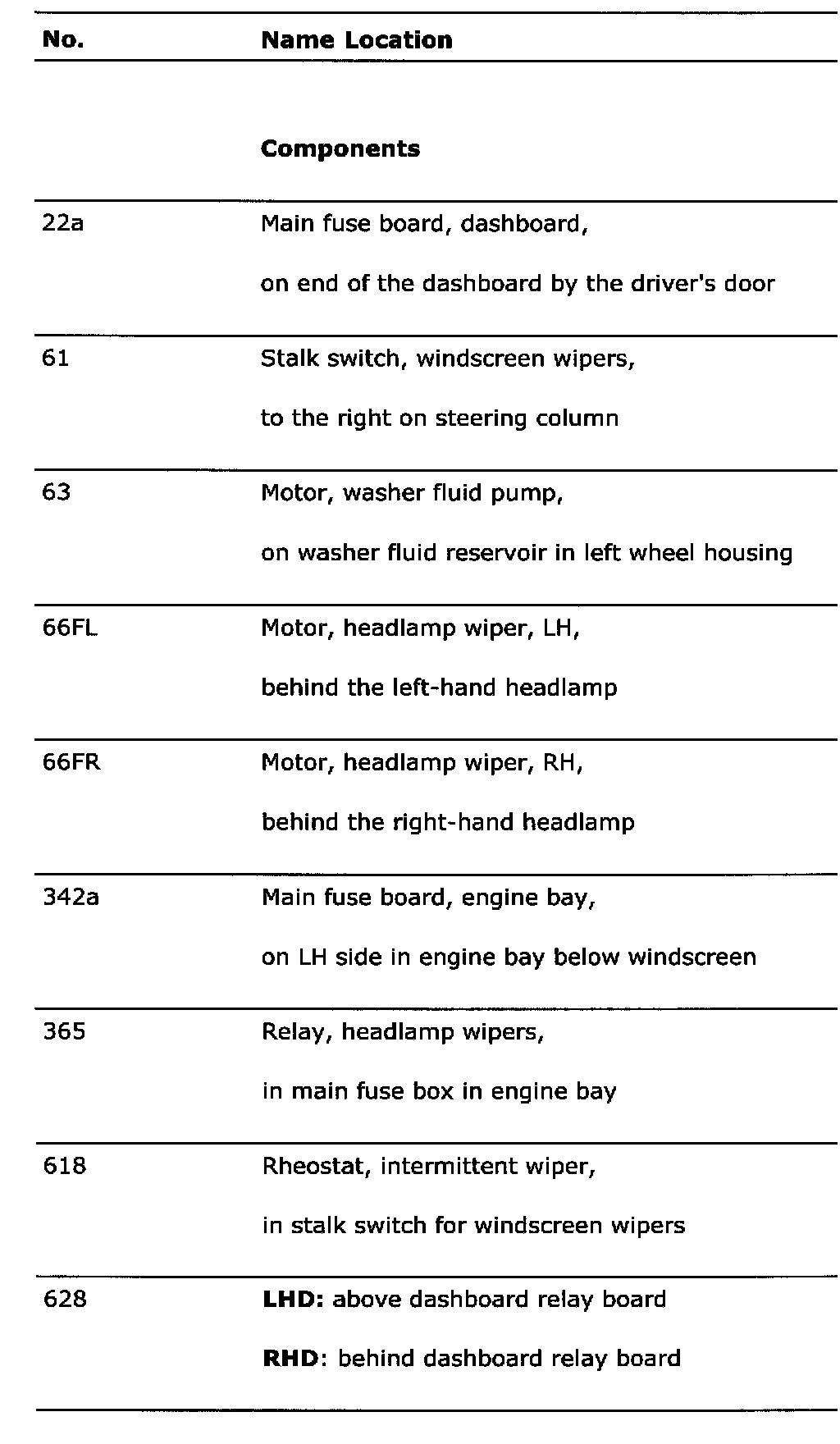

List of Components


Part 1:






Part 2:
