Electrically Adjustable Driver's Seat, LHD
Electrically Adjustable Driver's Seat, LHD
Electrically Adjustable Driver's Seat, LHD

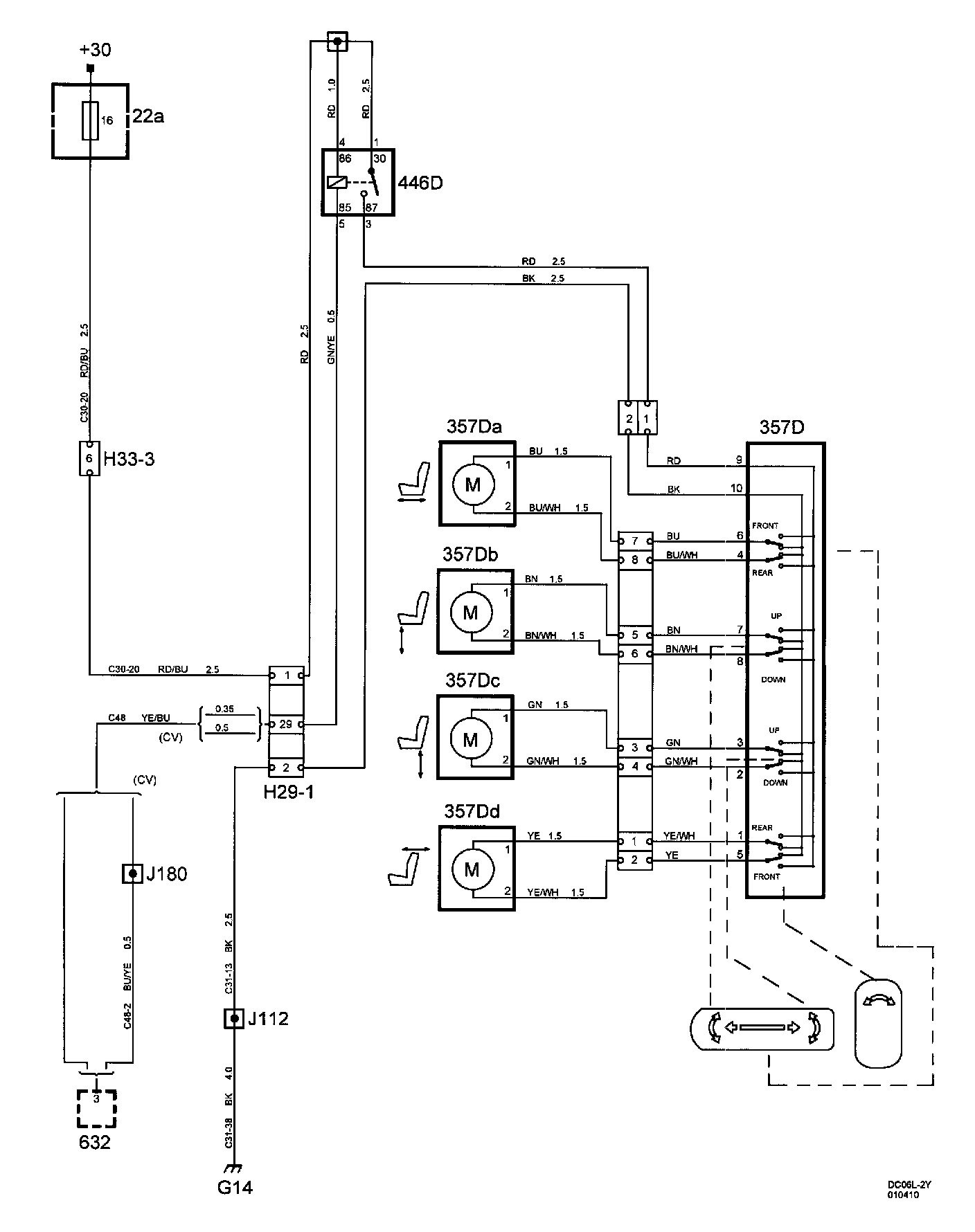

Part 1:

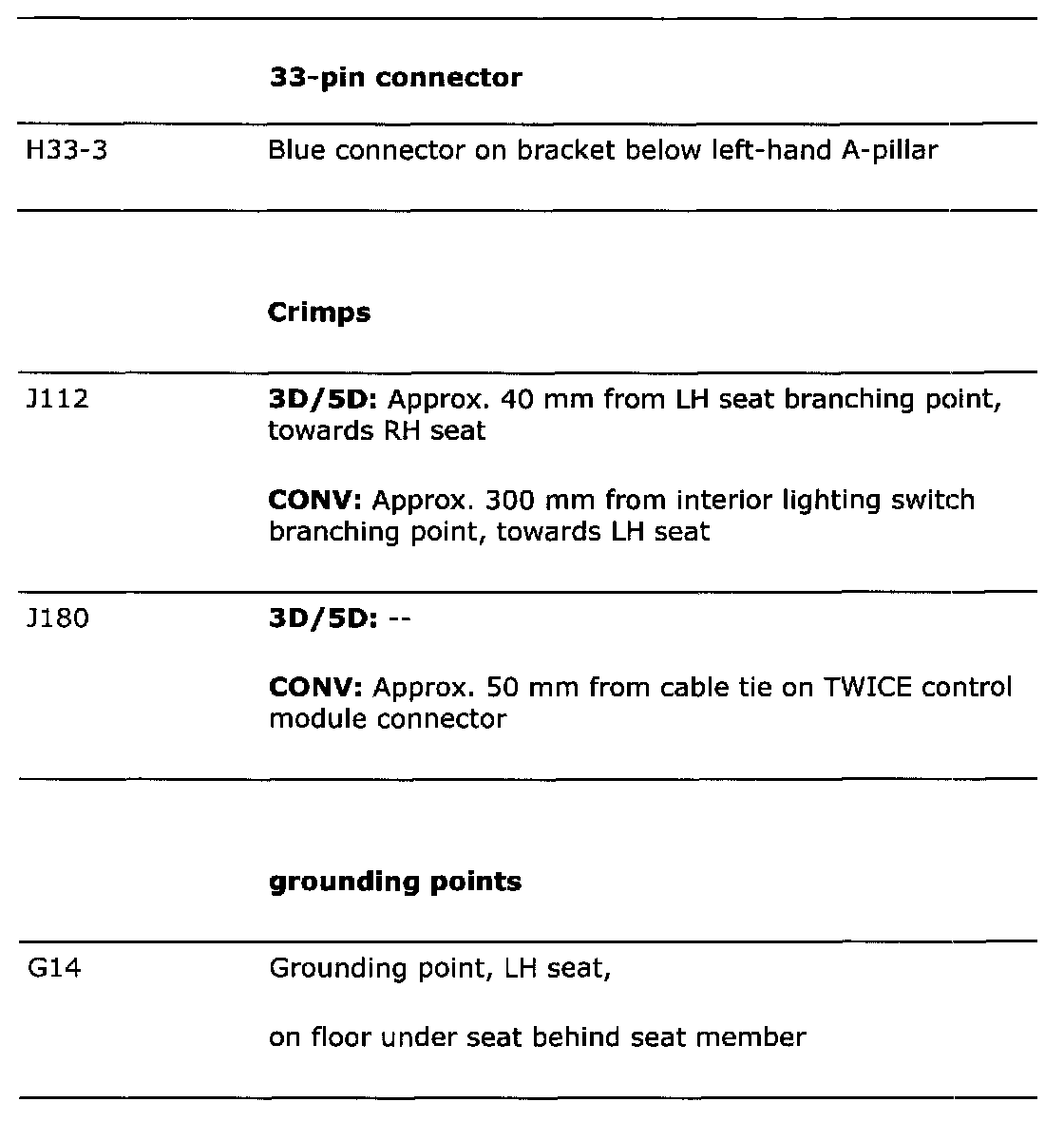

Part 2:
