Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Trionic T7 Engine Management System, LEV/OBD II (Part 3/3)

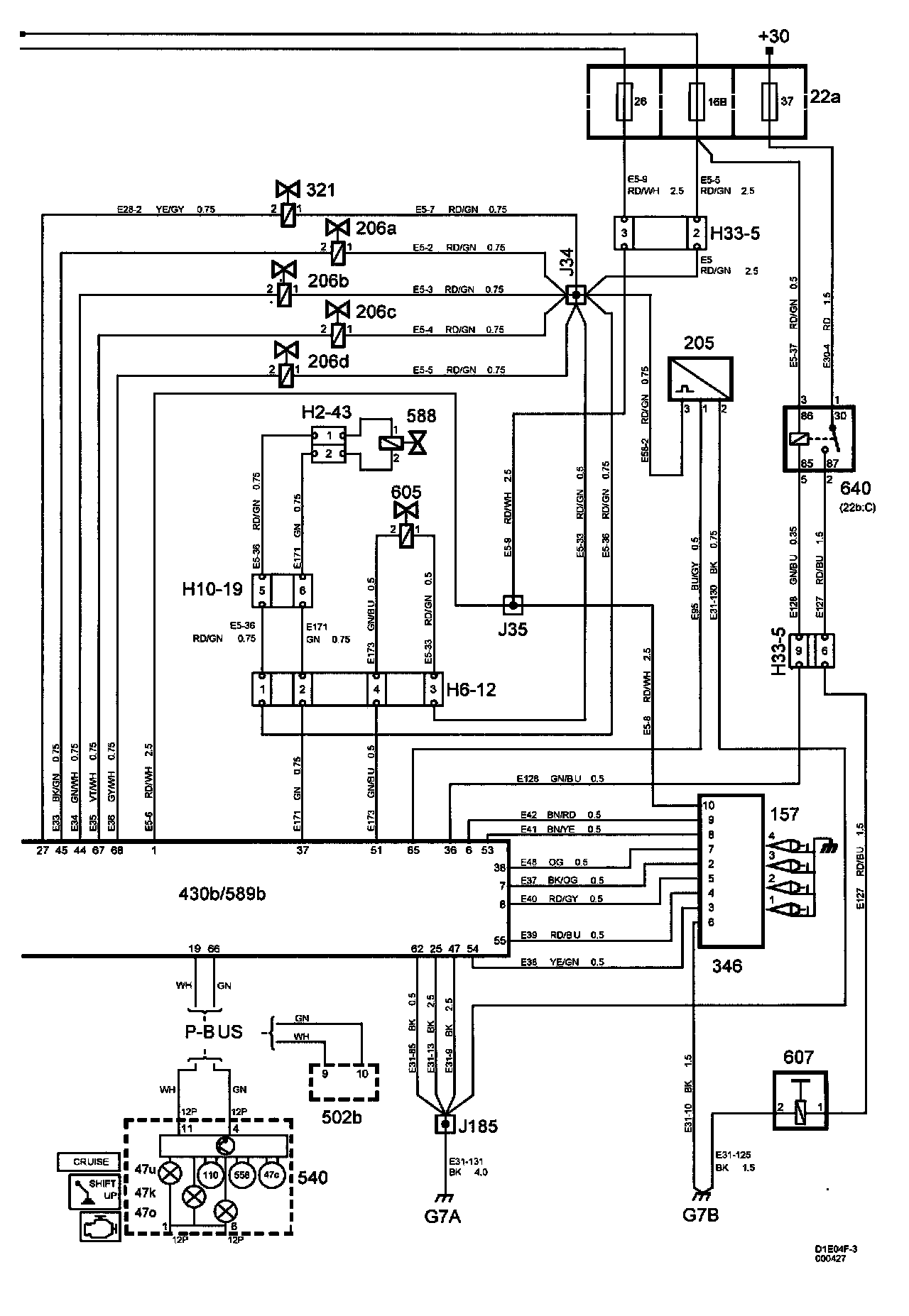

Trionic T7 Engine Management System, LEV/OBD II (Part 3/3)




Engine Management System Trionic T7, LEV/OBD II (Part 3/3)







Part 1:






Part 2:






Part 3:
