Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Communication, P-Bus

Communication, P-Bus




Communication, P-Bus

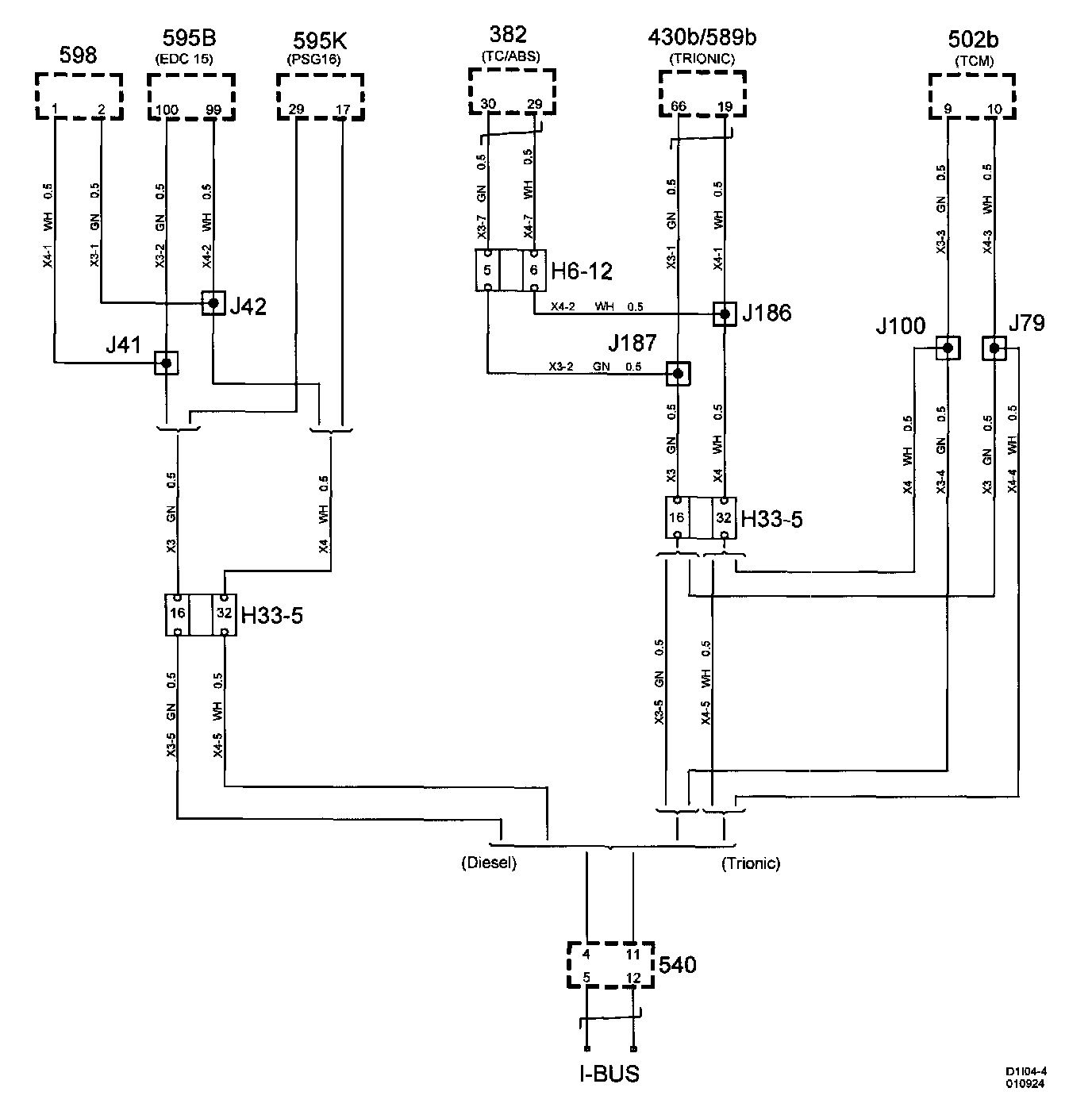

Part 1:

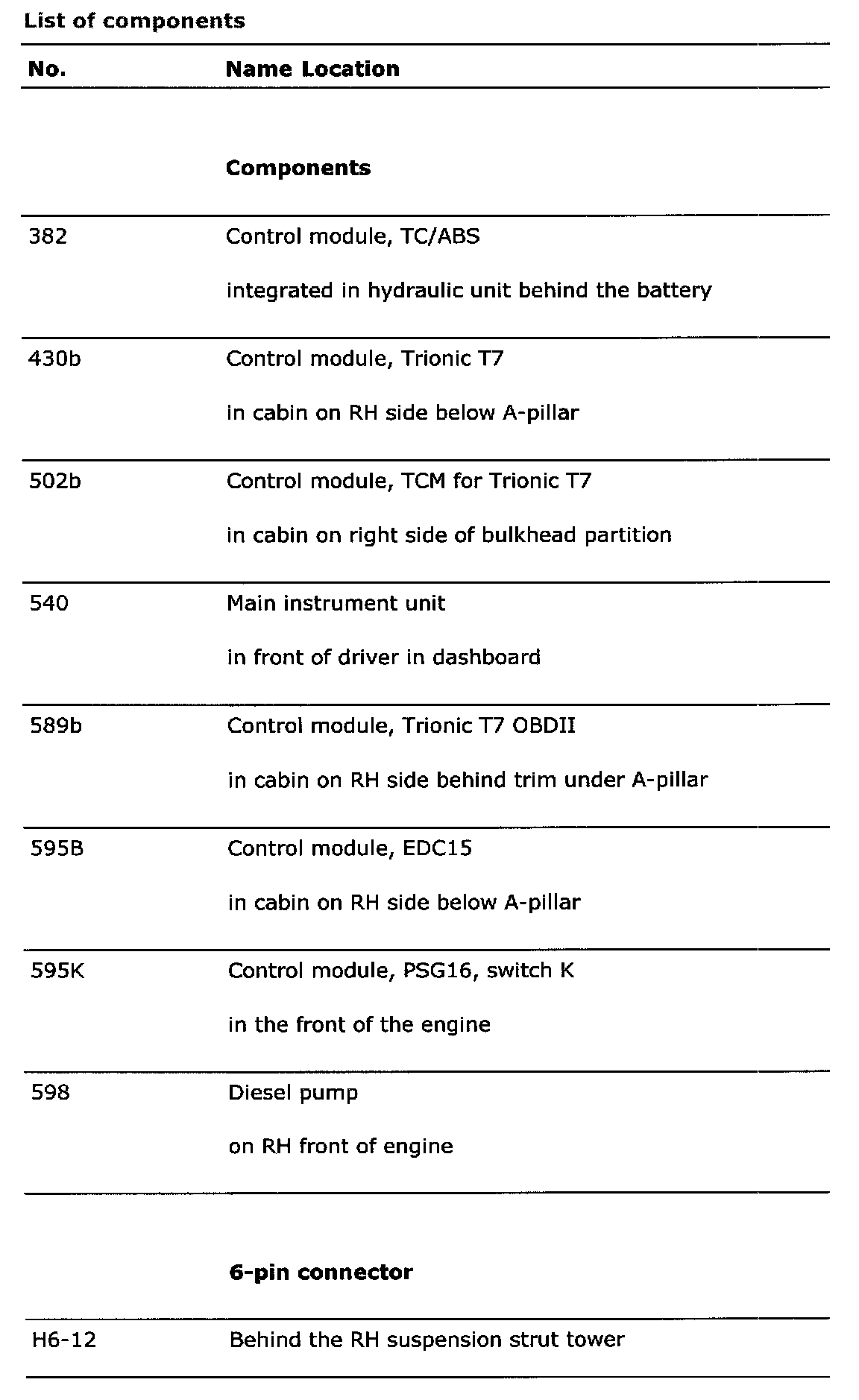

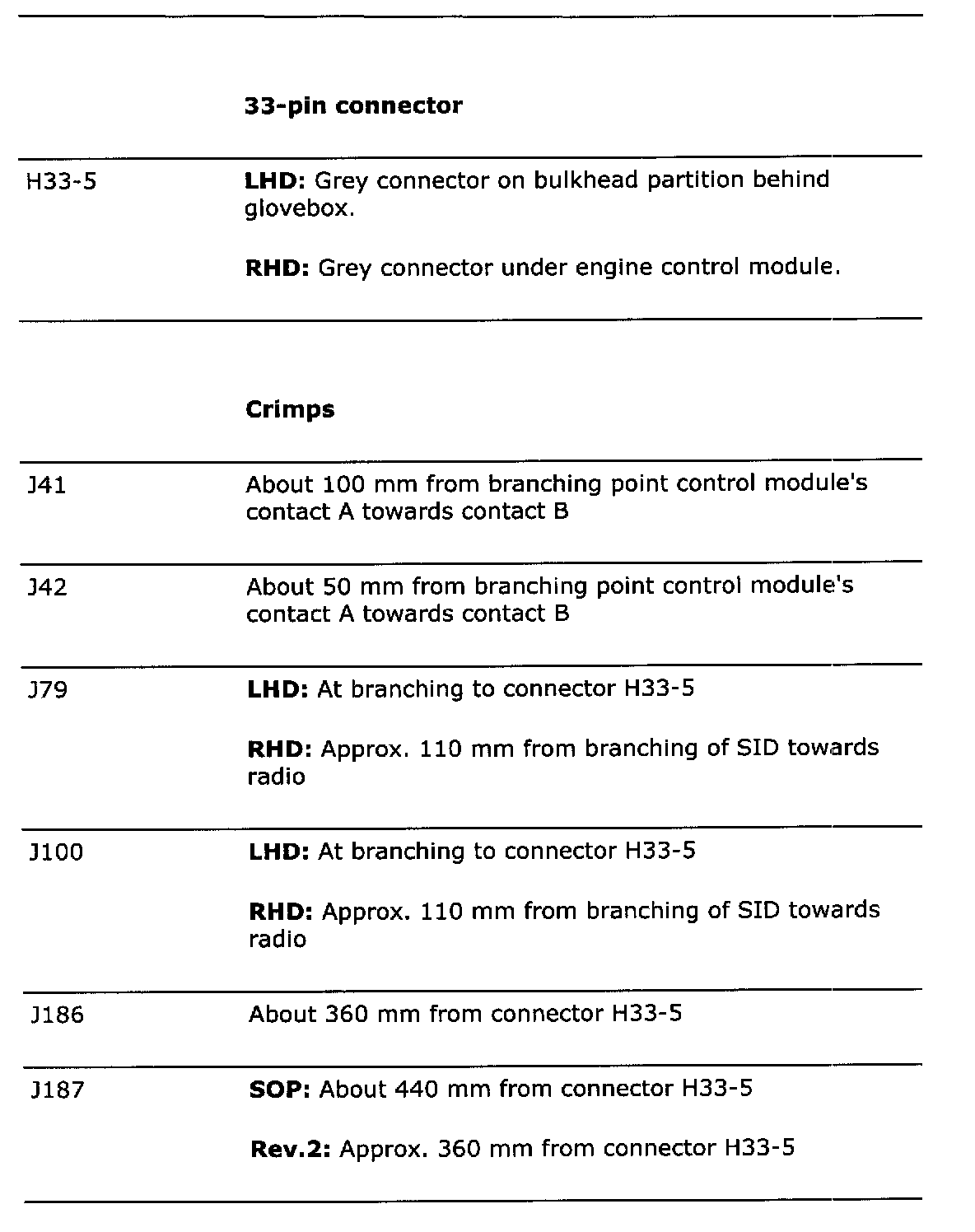

Part 2:
