Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Communication, I-Bus Convertible LHD

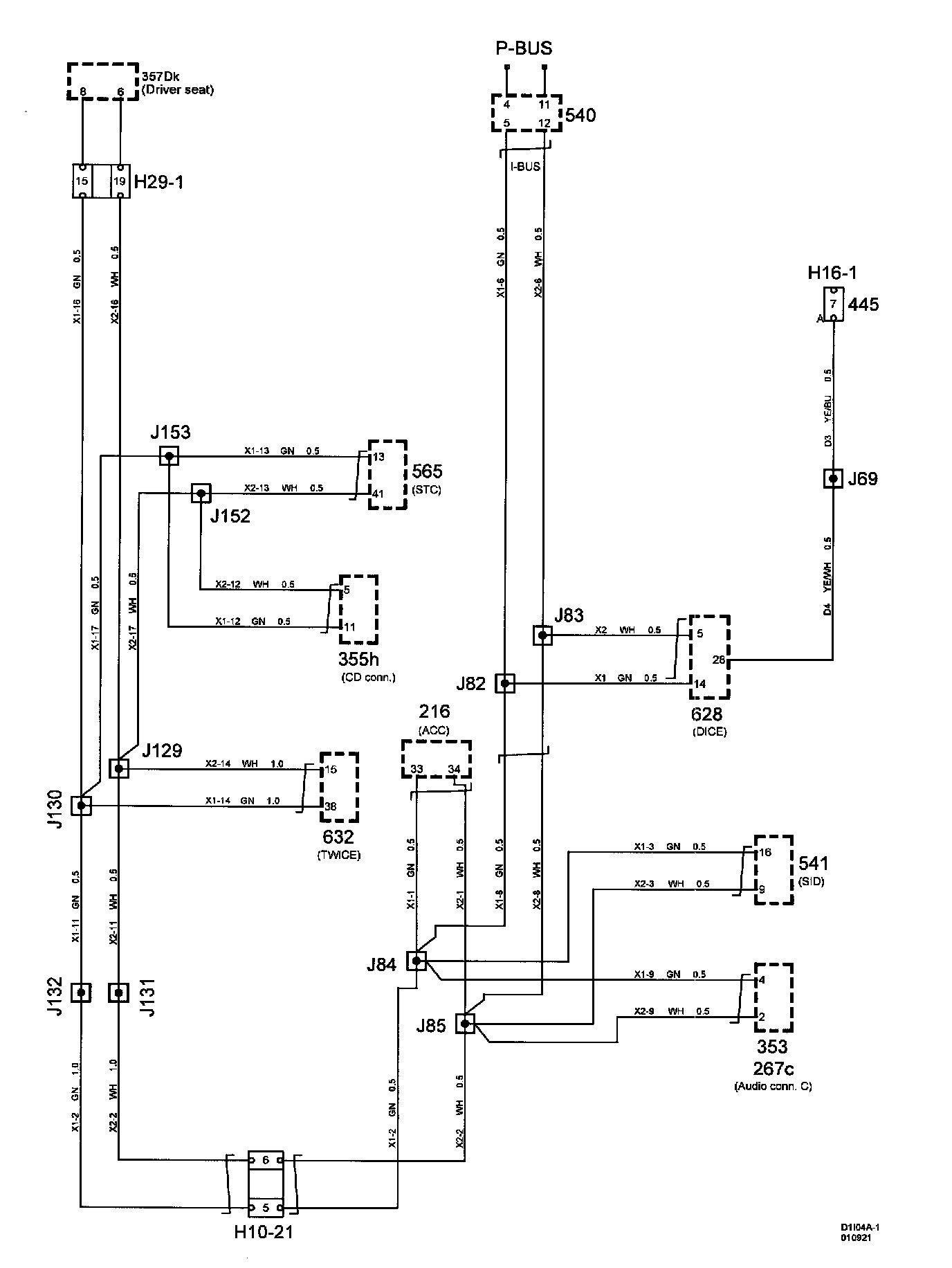

Communication, I-Bus Convertible LHD




Communication, I-Bus Convertible LHD

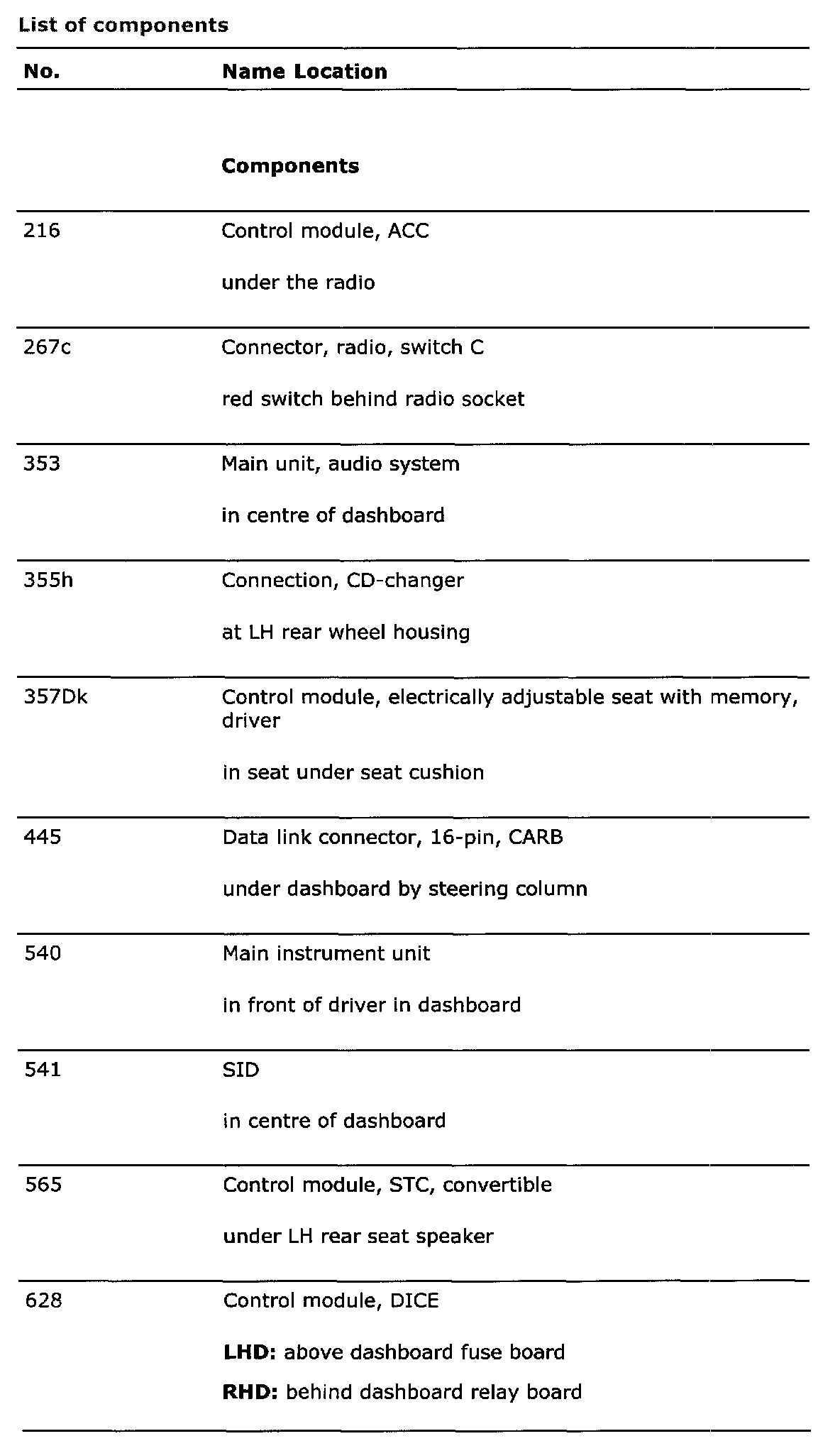

Part 1:

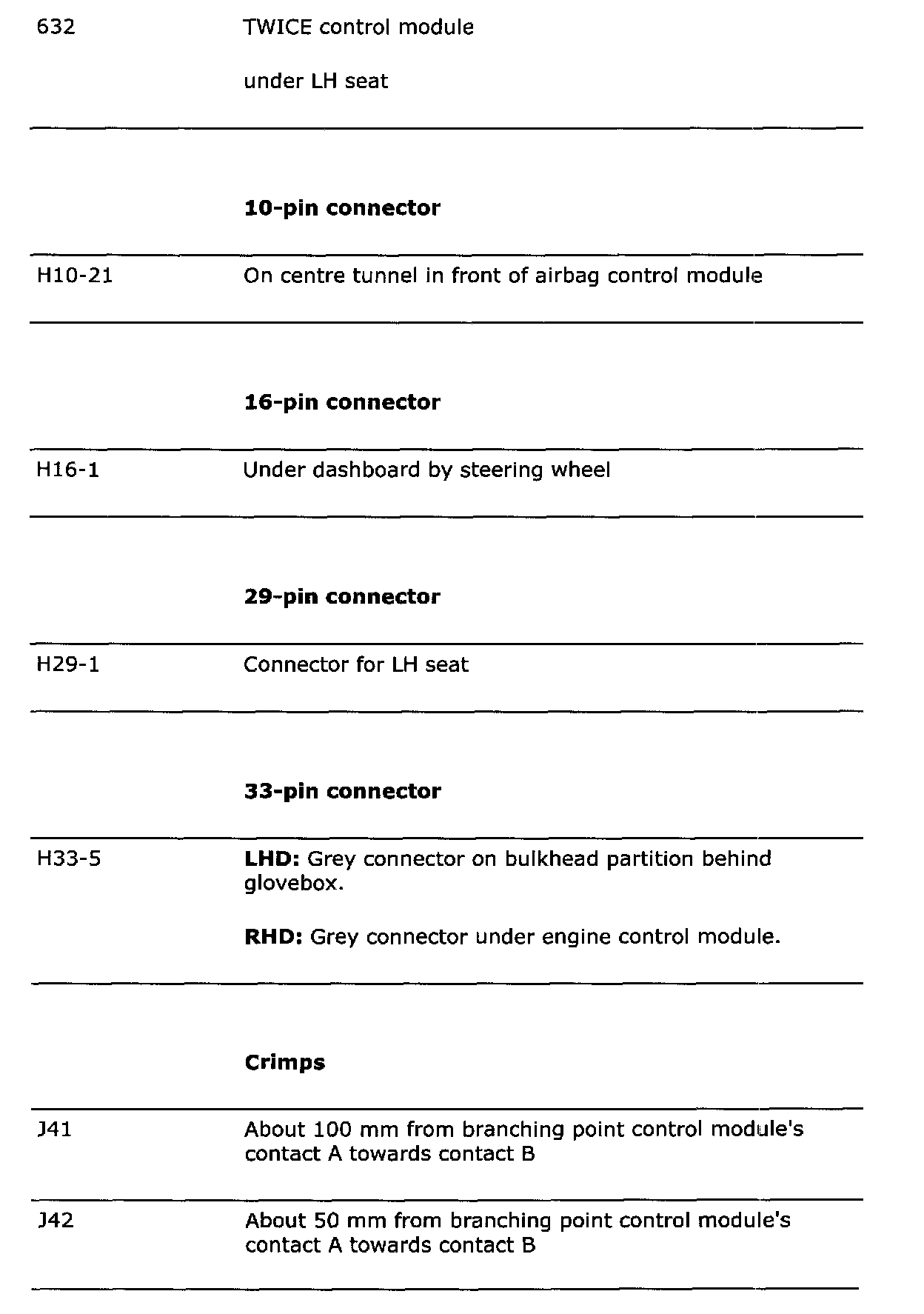

Part 2:






Part 3:
