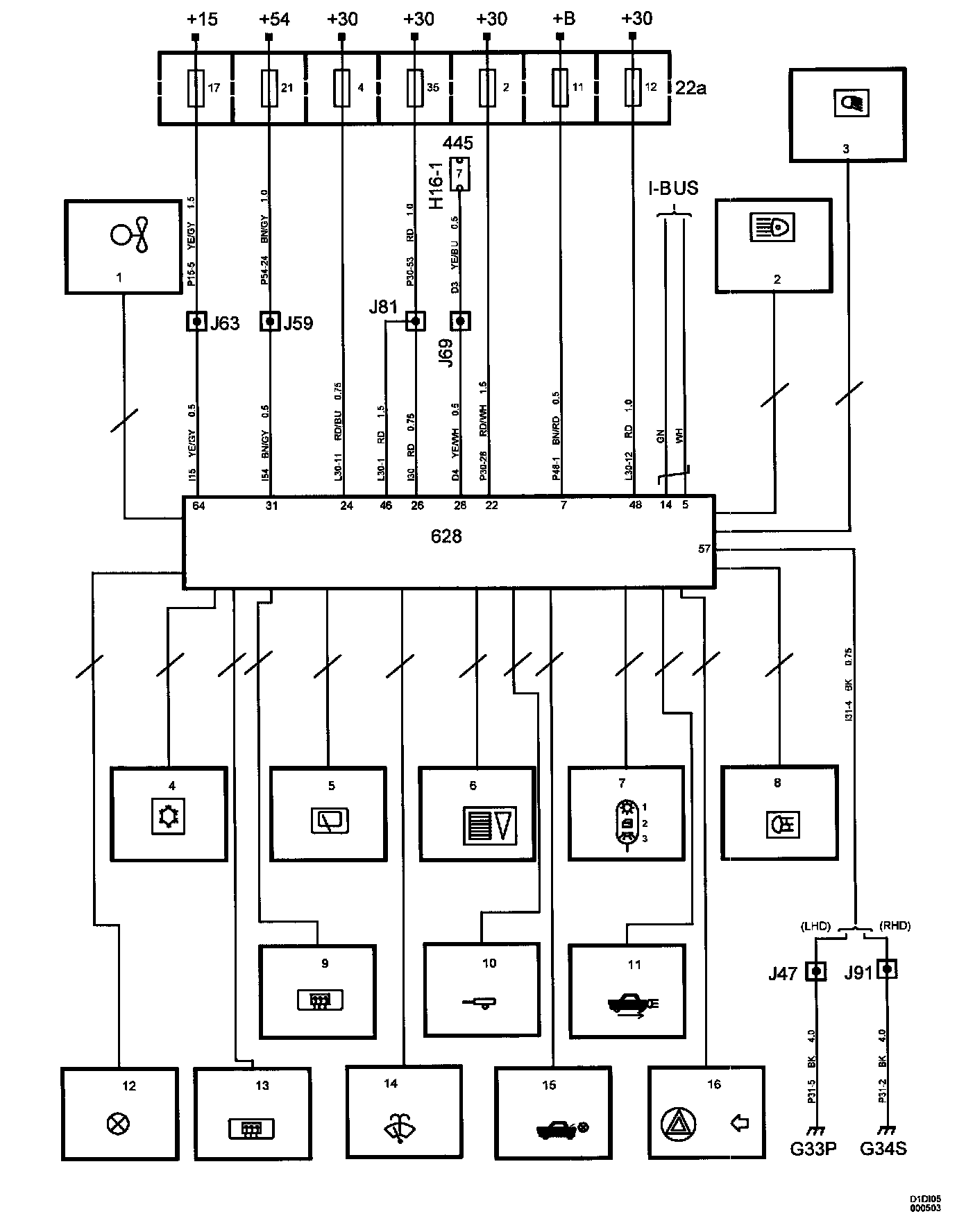

DICE

DICE







1. Petrol engine:
Radiator fan system
Diesel engine:
Radiator fan system
2. Main lighting
3. Fog light
4. Air Conditioning, A/C
5. Rear window wiper
6. Lighting for buttons and controls
7. Interior lighting and reading lamps
- Interior lighting and reading lamps 3D/5D
- Interior lighting and reading lamps, Convertible
8. Rear fog lights
9. Manual control panel, heating & ventilation
10. Trailer connector
- Towbar provision 3D/5D
- Towbar provision Convertible
11. Reversing lights
- Reversing lights, manual gearbox
- Reversing lights, automatic transmission
12. Glove box light
13. Electricity heated rear window and rear mirrors
14. Windscreen wipers
15. Luggage compartment lighting
16. Direction indicators, hazard flashers

Part 1:

Part 2:
