Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier

Instrument Cluster / Carrier

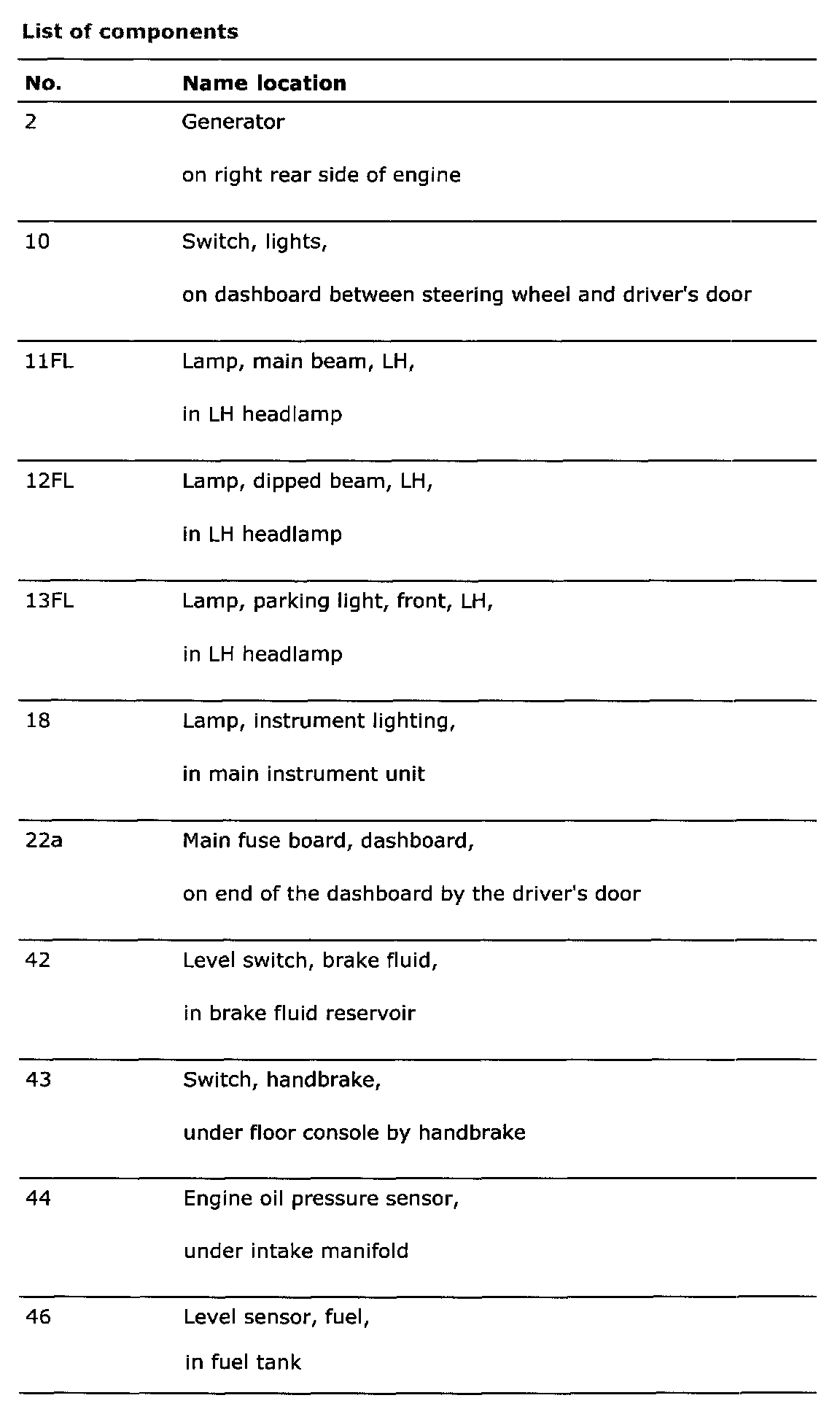

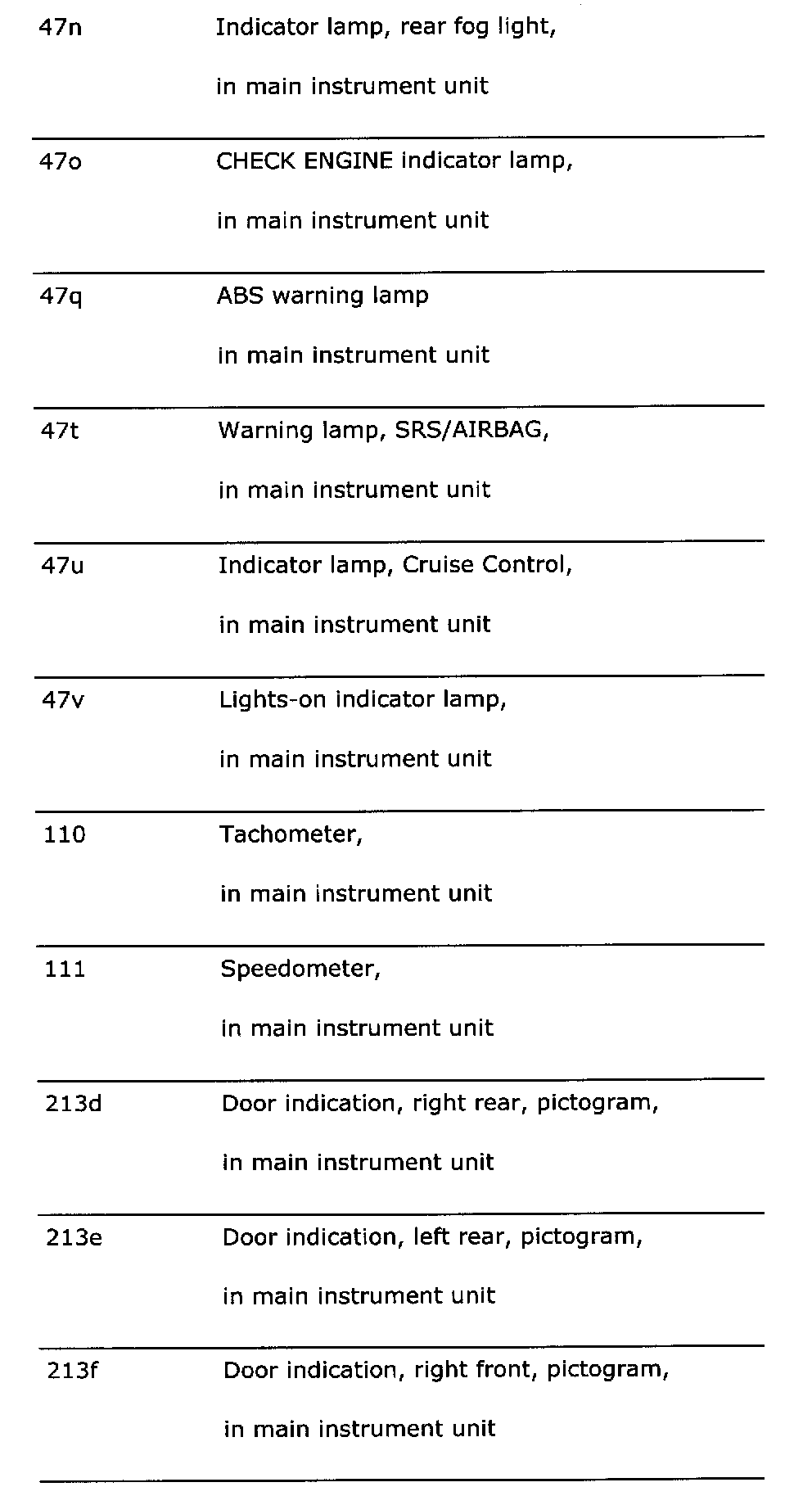

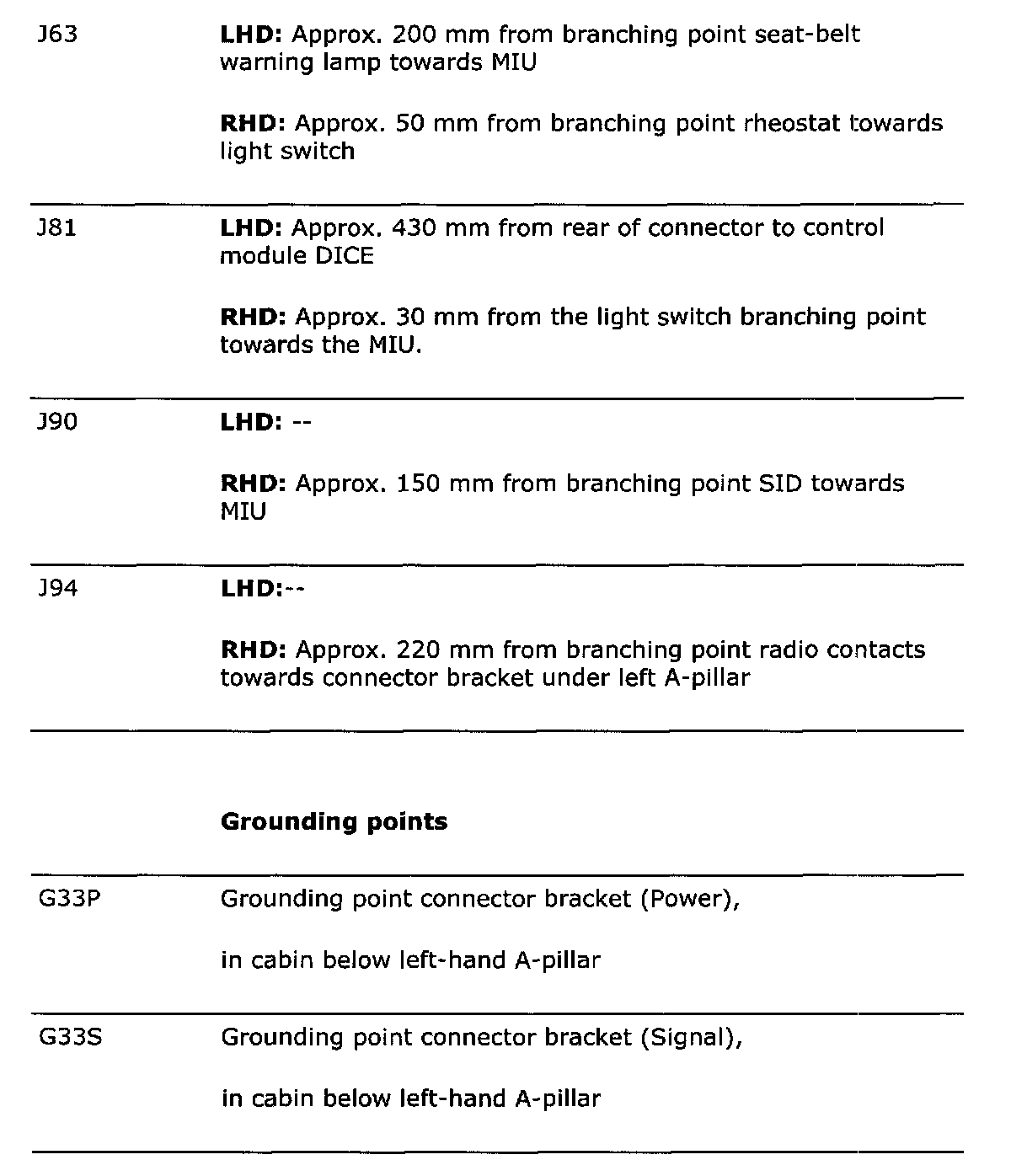

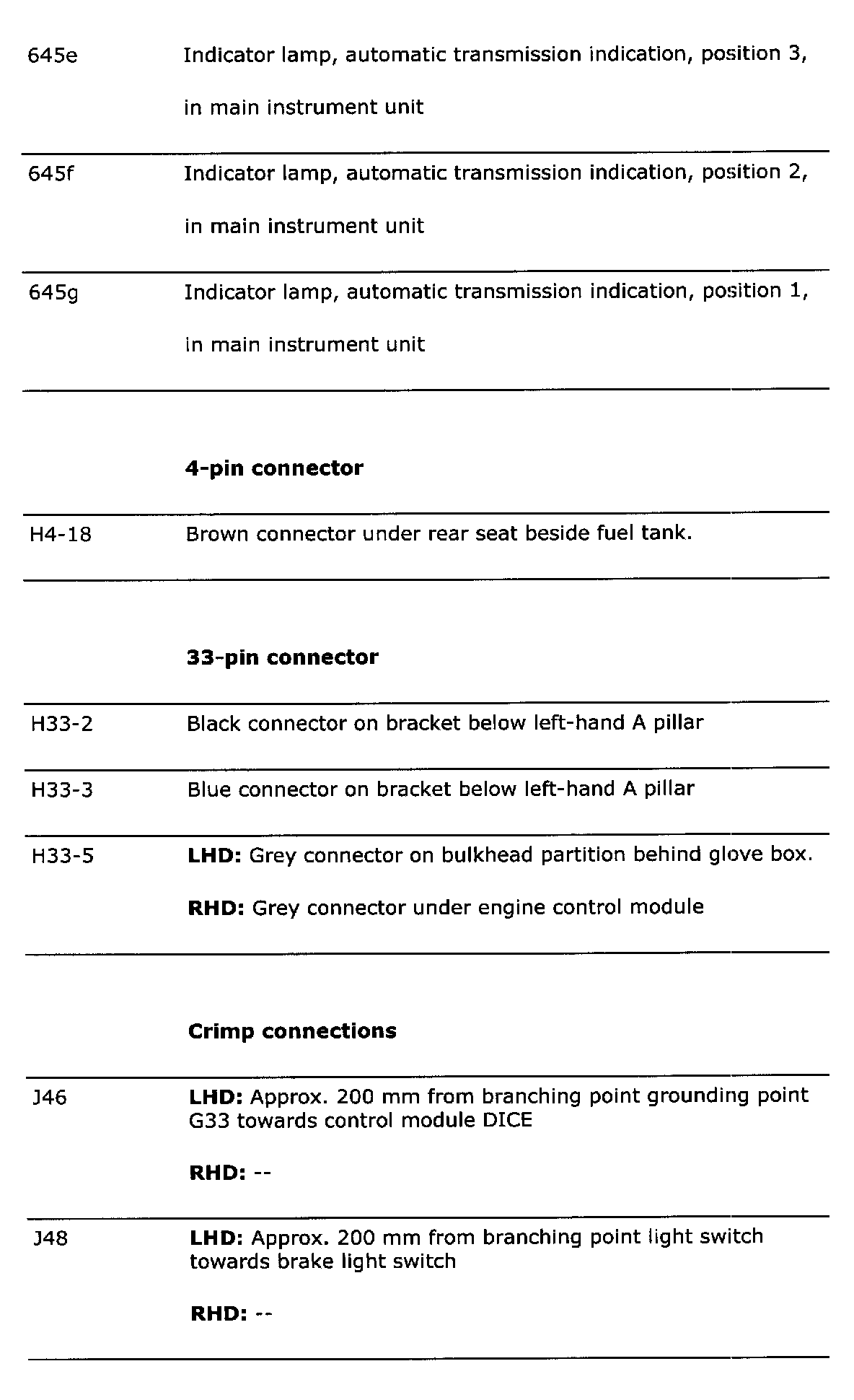

Main Instrument Unit (MIU), T7







Part 1:






Part 2:






Part 3:






Part 4:






Part 5:






Part 6:
