Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Control Assembly, HVAC

Control Assembly, HVAC

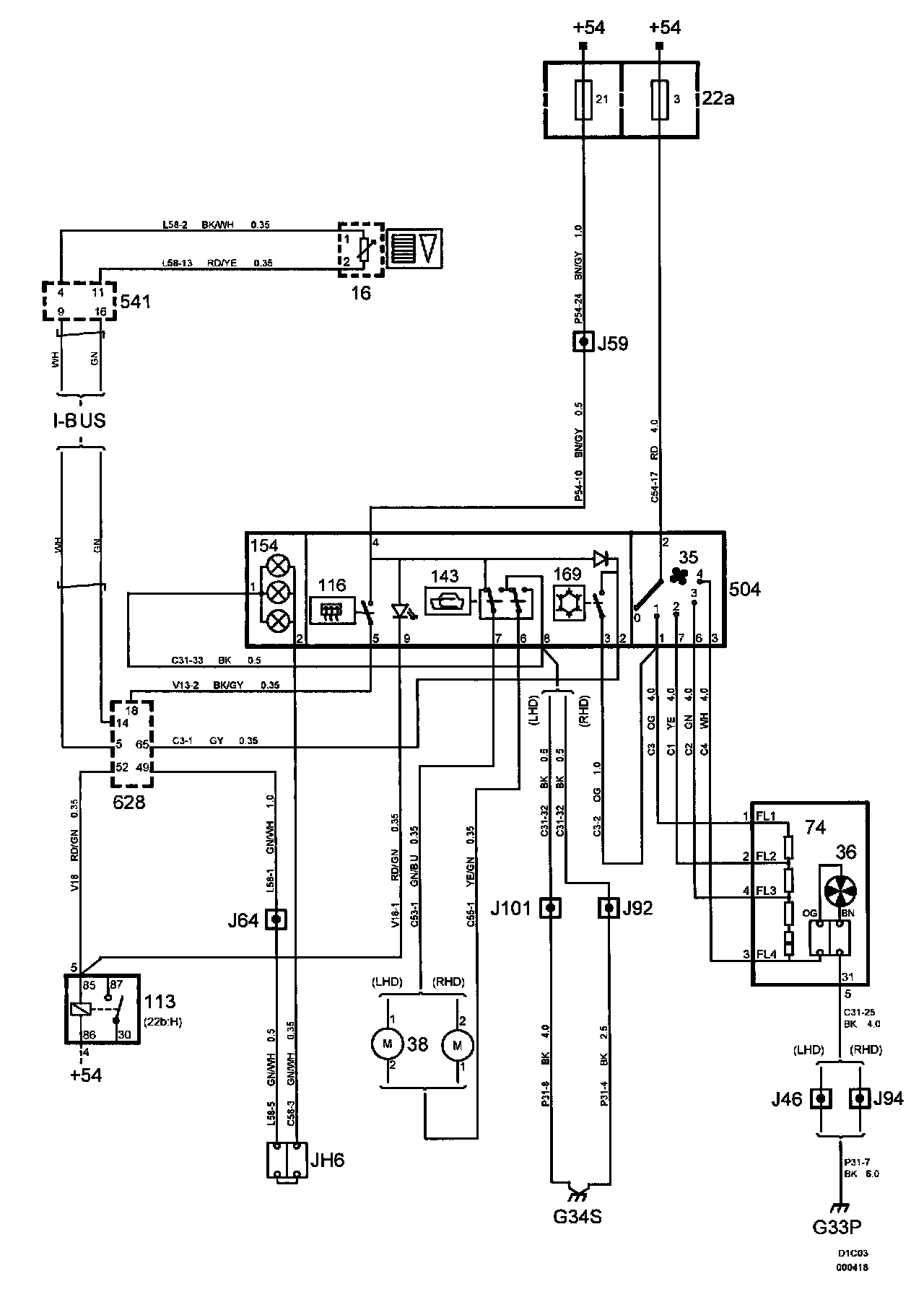

Manual Control Panel, Heating & Ventilation







List of Components

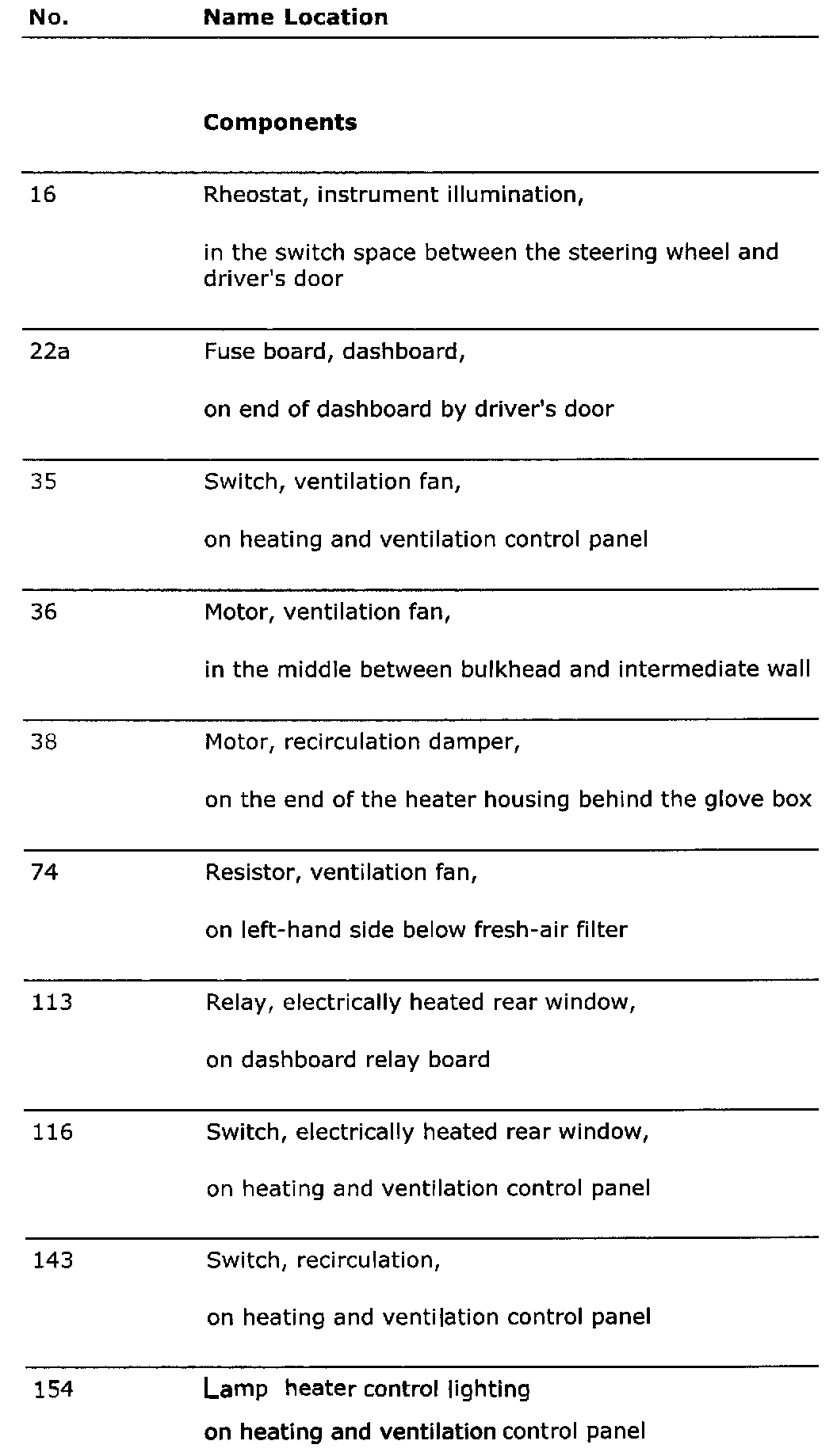

16 - 154:

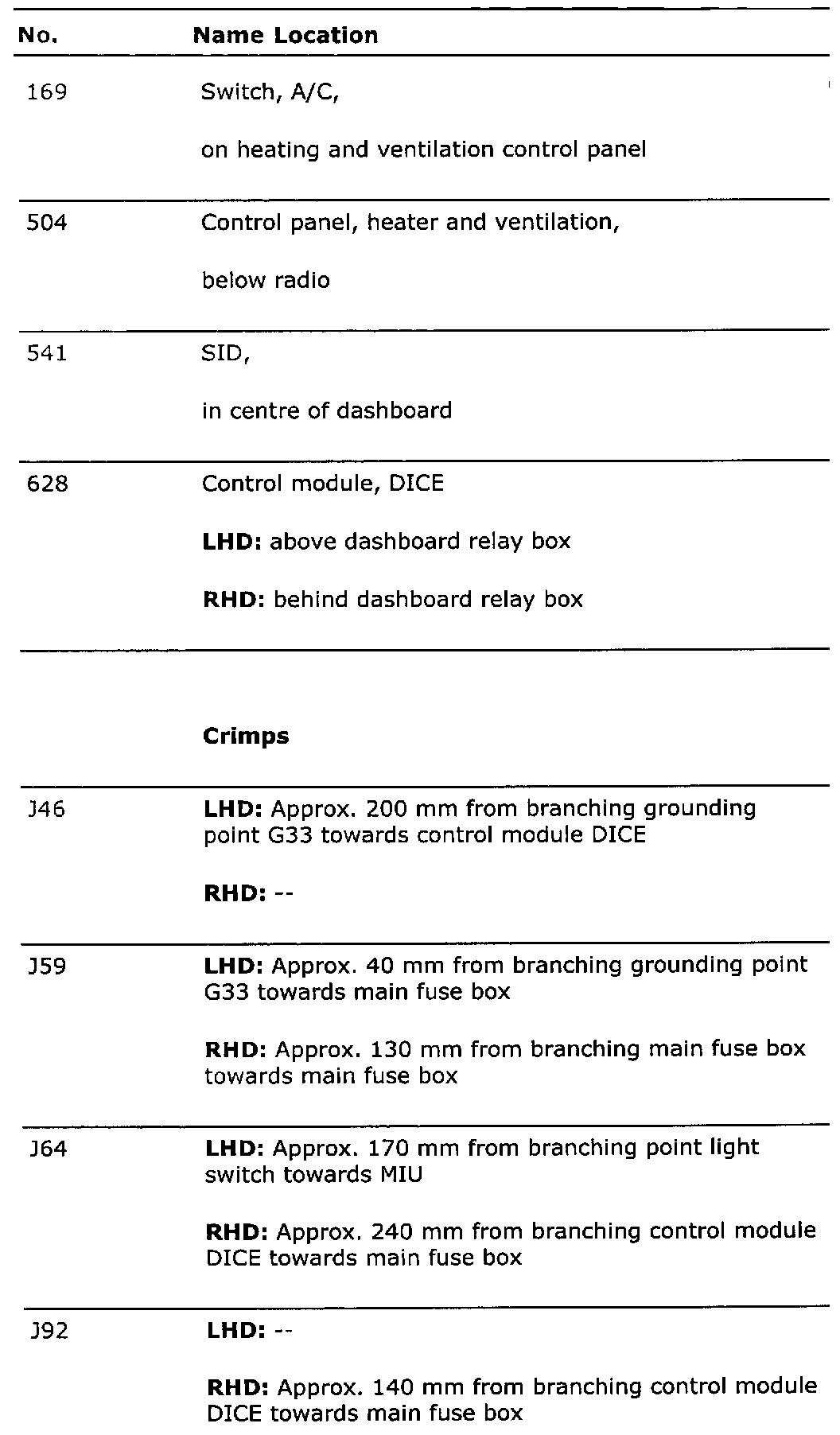

169 - J92:

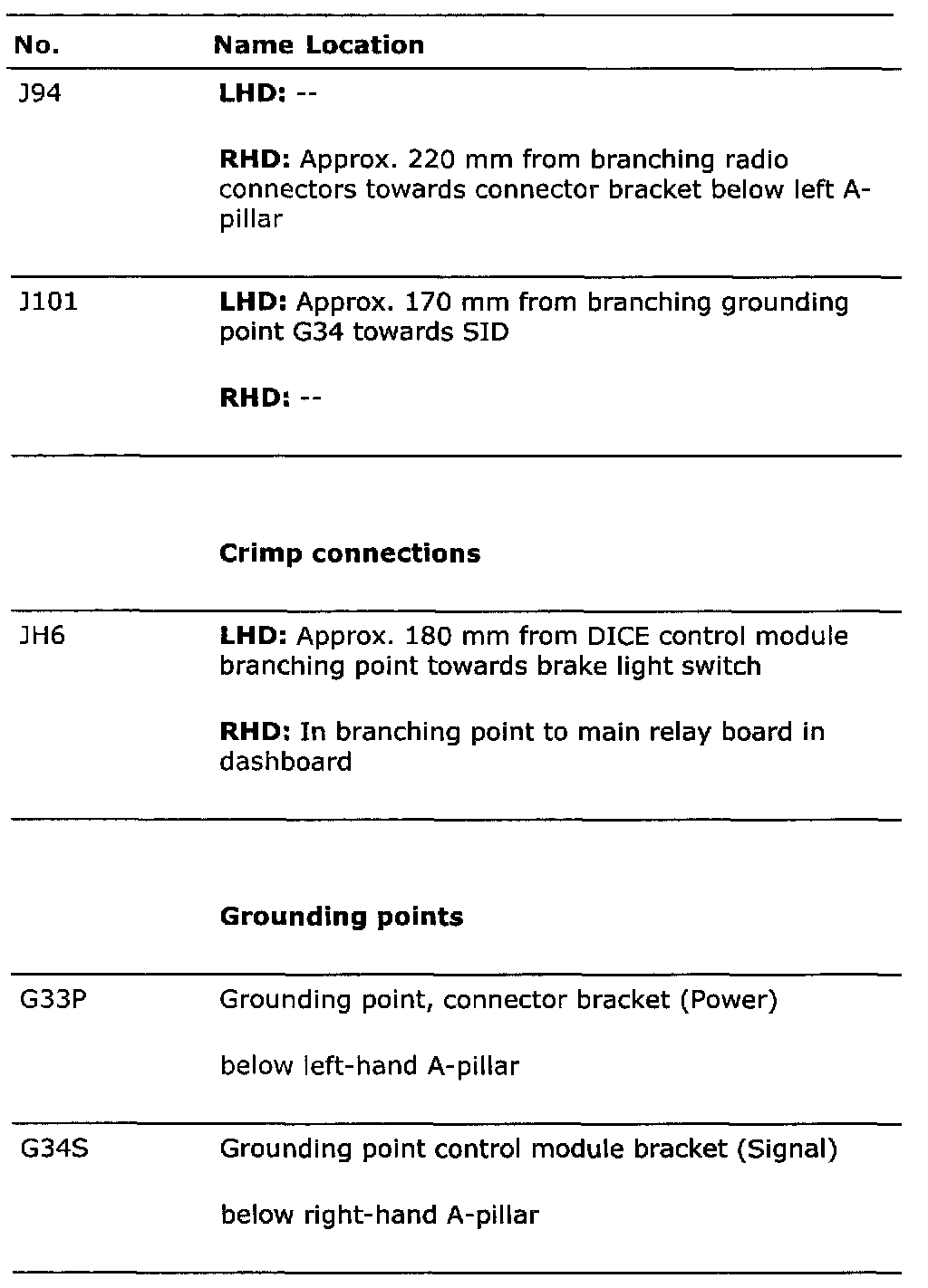

J94 - G34S:
